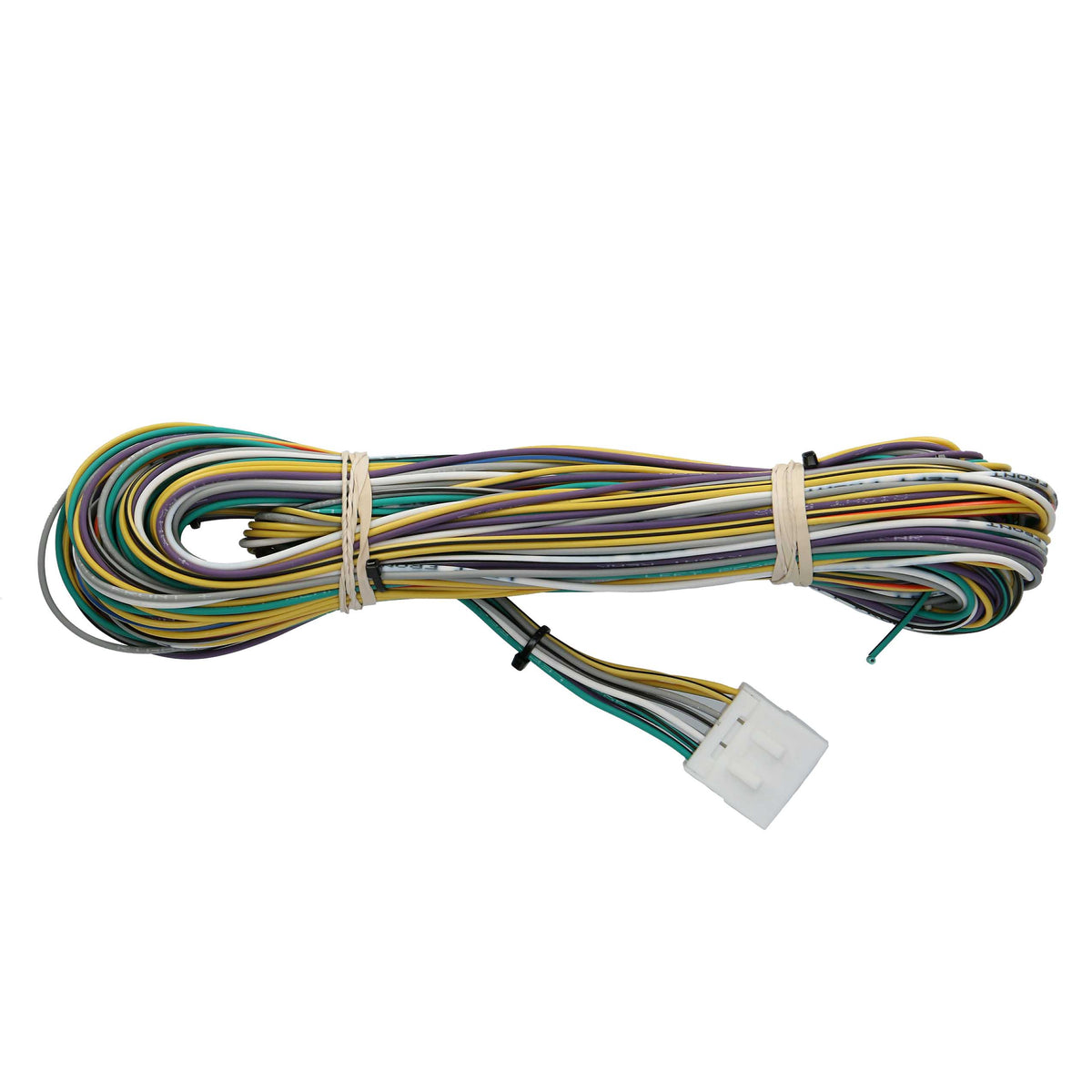

Amp Bypass Harness - Jeep Grand Cherokee 1999-2004 — 70-6507
Key features
- For select Jeep Grand Cherokee 1999-2004
- Factory subwoofer is not retained in select vehicles

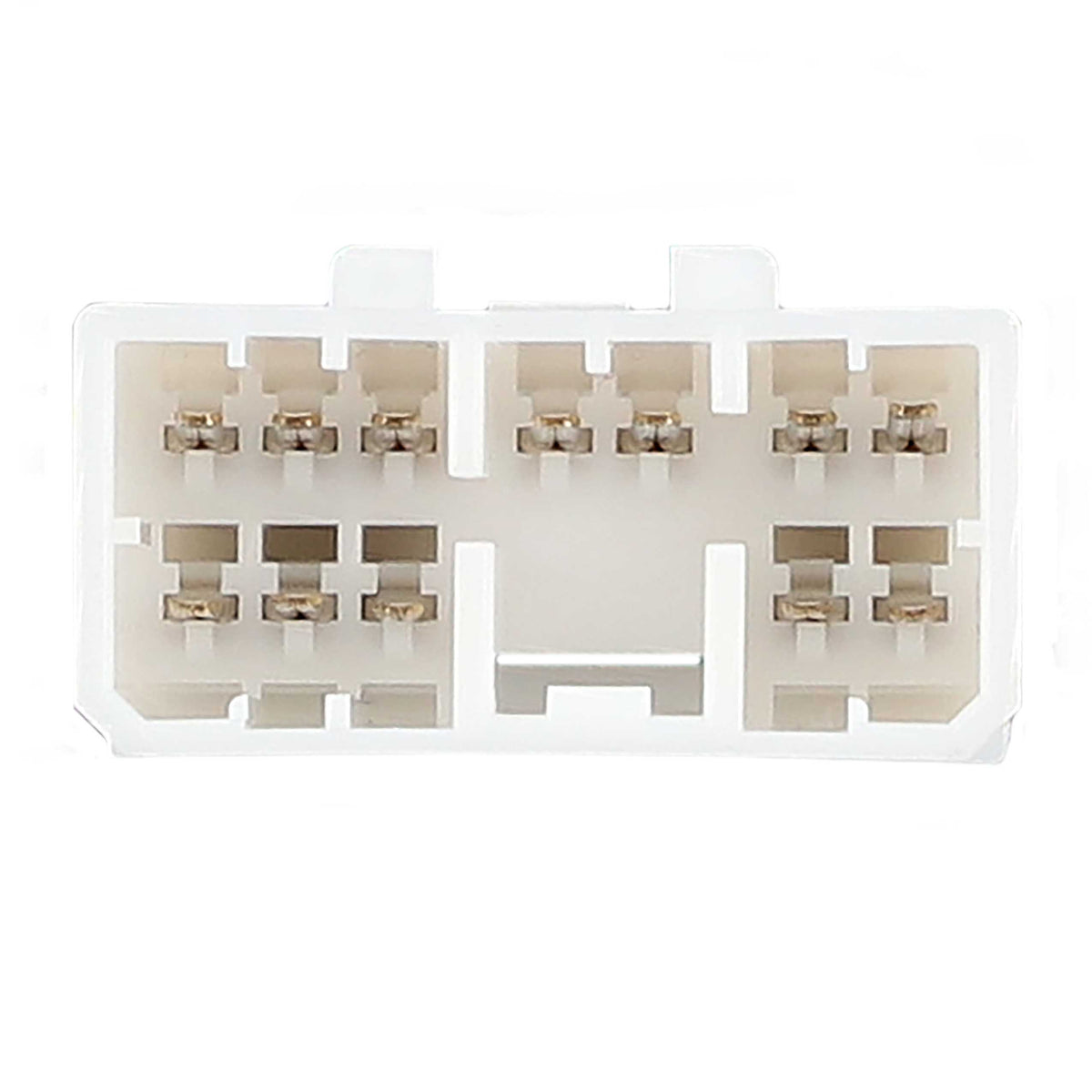

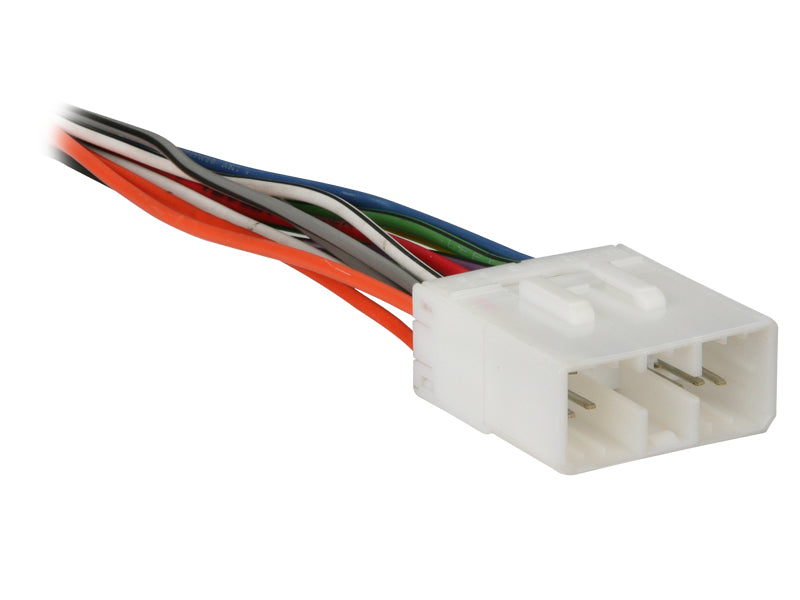

- Plugs into the car's original radio connectors on one side as well as the factory amplifier
- Harness length is 204"
- No wire cutting needed for factory radio connectors
- Color-coded wires on the other side are connected to the aftermarket radio
Amp Bypass Harness - Jeep Grand Cherokee 1999-2004 — 70-6507 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Connect an aftermarket radio in a 1999–2004 Jeep Grand Cherokee with the 70-6507 amp bypass harness. Its vehicle-specific adapter plugs into the original radio connectors, while color-coded wires connect or solder to the new radio.
Key Features & Benefits
- Factory amplifier bypass: Connects with the vehicle’s original radio connectors and factory amplifier.
- Vehicle-specific adapter: Avoids cutting the factory radio connector wires.
- Color-coded leads: Help identify the harness wires when connecting them to the aftermarket radio.
- 204-inch harness length: Provides a long harness run for the installation.
- Radio power: Provides electrical power to the aftermarket radio.
Technical Specifications
| Model | 70-6507 |
|---|---|
| Product type | Factory amplifier bypass harness |
| Vehicle application | Jeep Grand Cherokee, 1999–2004 |
| Harness length | 204" |
| Aftermarket radio connection | Color-coded wires; connect or solder to the radio |
| Factory connection | Vehicle-specific adapter plugs into the original radio connectors and factory amplifier |
| Radio power | Provides electrical power to the radio |
| Factory subwoofer | Not retained in select vehicles |
| Installation support | A tech support number is available 7 days a week |
Why Choose This Product?
The 70-6507 is designed for a radio replacement in the listed Grand Cherokee model years. Its factory-side adapter connects at the original radio connectors, while the other side provides color-coded wires for the aftermarket radio.
The harness bypasses the factory amplifier. In select vehicles, the factory subwoofer is not retained, so consider that when planning your audio system.
Installation & Compatibility Notes
Confirm your vehicle is a 1999–2004 Jeep Grand Cherokee before ordering. The factory-side connectors do not require cutting, but the color-coded wires must be connected or soldered to the aftermarket radio.
A dash kit, antenna adapter, or special interface adapter may also be needed to complete an installation or retain steering-wheel audio controls and other vehicle functions. Requirements depend on the vehicle and equipment.
Frequently Asked Questions
Which vehicles does the 70-6507 fit?
It is listed for Jeep Grand Cherokee models from 1999 through 2004.
Does this harness retain the factory amplifier?
No. It is a factory amplifier bypass harness and connects with the factory amplifier during installation.
Will the factory subwoofer continue to work?
The factory subwoofer is not retained in select vehicles.
Do I need to cut the factory radio wires?
No cutting is needed at the factory radio connectors. The color-coded wires on the other side connect or solder to the aftermarket radio.
