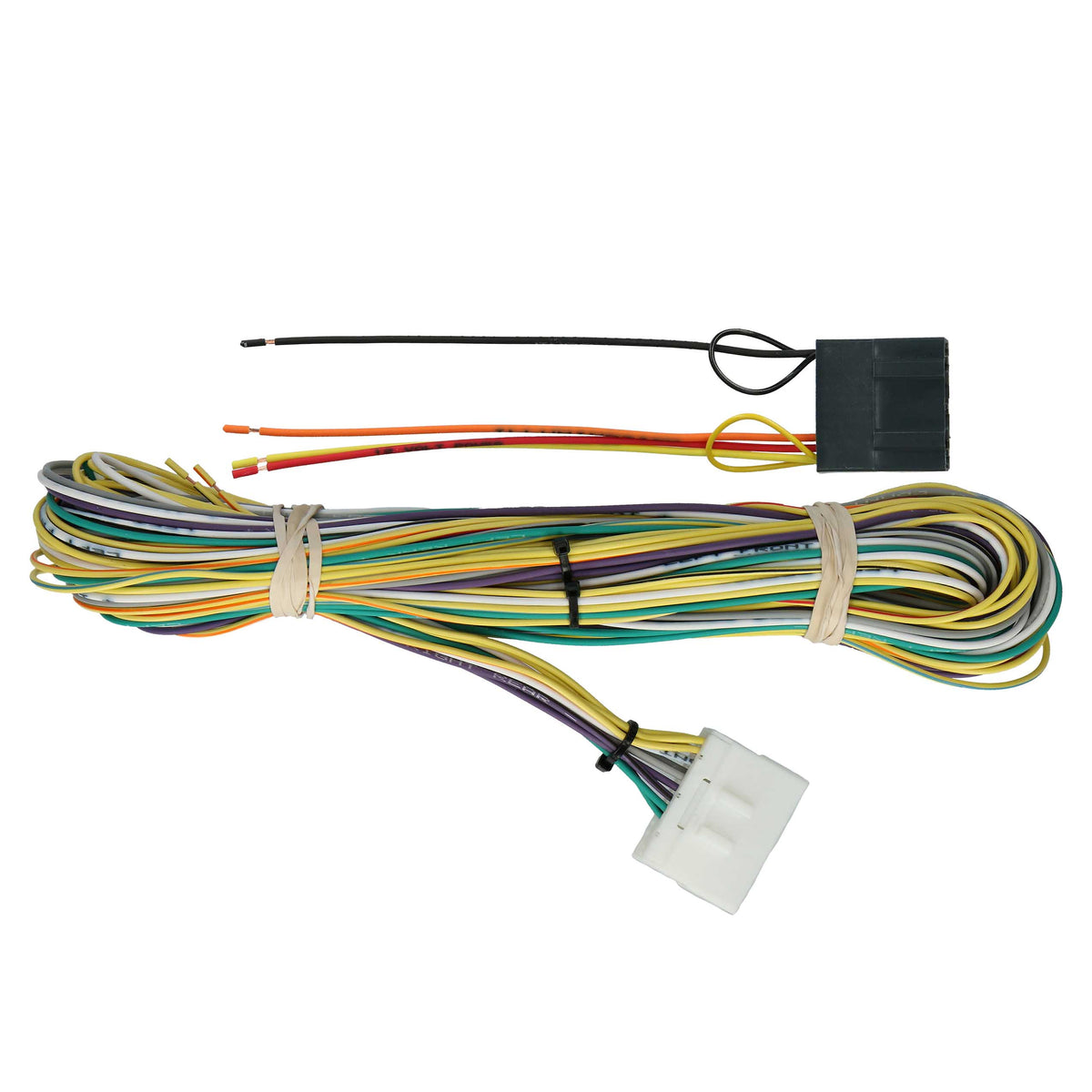

Amp Bypass Harness - Dodge RAM 2002-2004 — 70-6512
Key features
- For select Dodge RAM 2002-2004
- Factory subwoofer is not retained in select vehicles

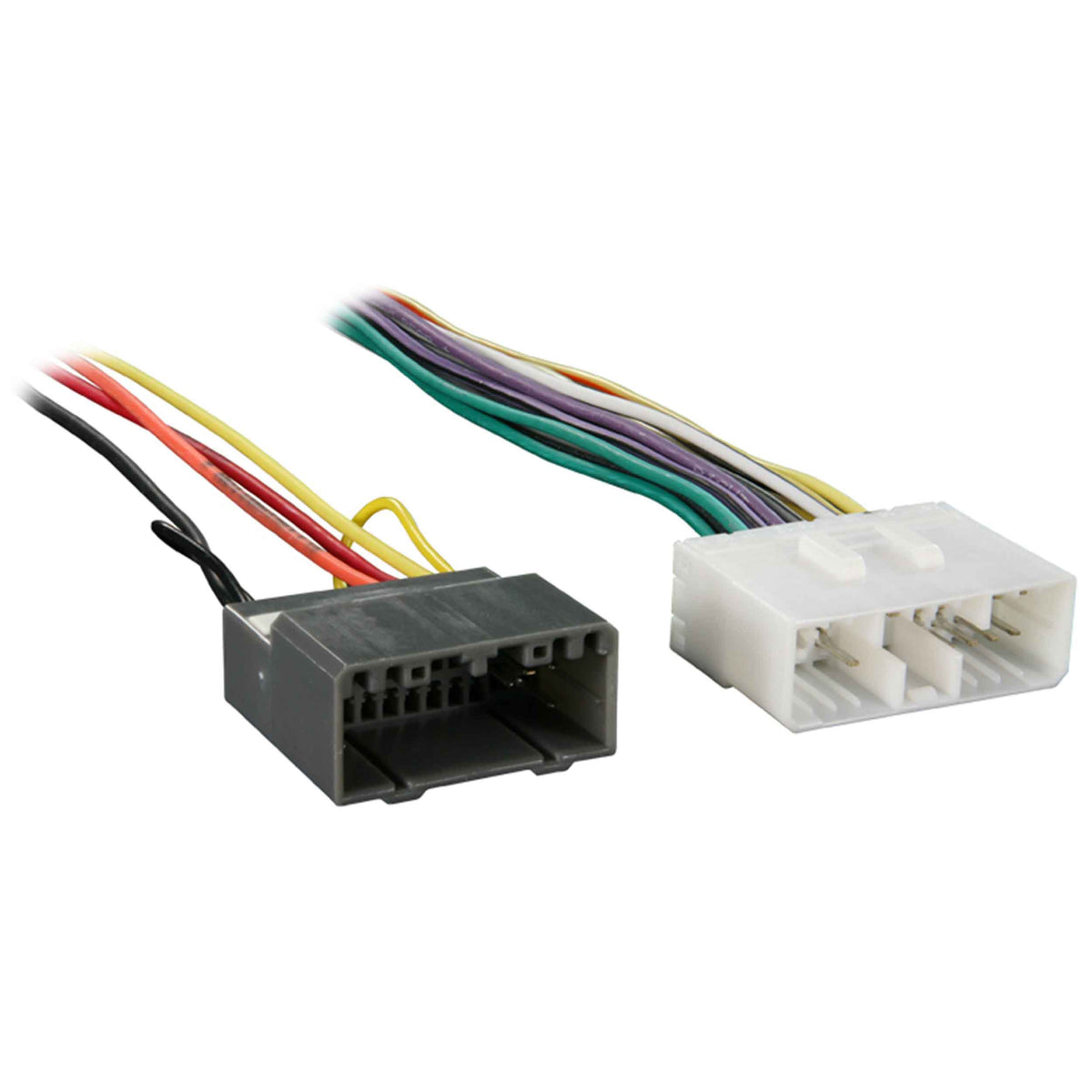

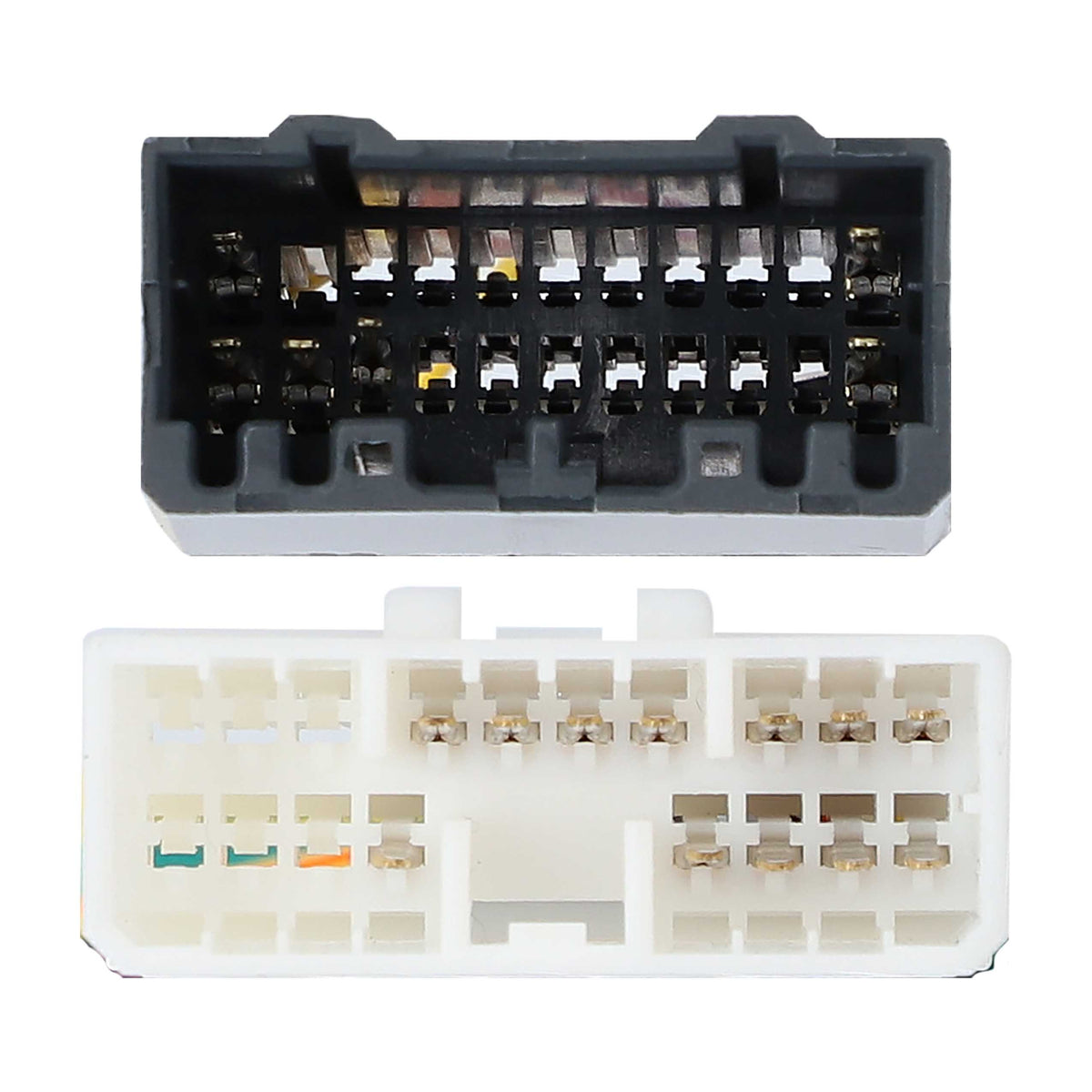

- Plugs into the car's original radio connectors on one side as well as the factory amplifier
- Harness length is 204"
- No wire cutting needed for factory radio connectors
- Color-coded wires on the other side are connected to the aftermarket radio
Amp Bypass Harness - Dodge RAM 2002-2004 — 70-6512 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Keep your Dodge Ram’s factory wiring intact while installing an aftermarket radio with the 70-6512 amplifier bypass harness. It connects with the original radio connectors and has color-coded wires for connection to your new receiver.
Key Features & Benefits
- Factory-connector fit: The vehicle-specific adapter connects to the original radio connectors without cutting those wires.
- Color-coded radio wires: The wires on the receiver side help you identify connections during installation.
- Radio power: The harness provides electrical power to the aftermarket radio.
- 204-inch length: The harness length gives you the stated wiring reach for routing in the vehicle.
- Installation support: A tech support number is available seven days a week for installation help.
Technical Specifications
| Product type | Factory amplifier bypass wiring harness |
|---|---|
| Vehicle application | Dodge Ram 2002–2004, with specific 2004 trim and hands-free restrictions noted below |
| Model | 70-6512 |
| Harness length | 204" |
| Radio-side wiring | Color-coded wires connect to the aftermarket radio |
| Vehicle-side connections | Original radio connectors; also connects to the factory amplifier |
| Factory subwoofer | Not retained in select vehicles |
| Wire cutting | No cutting of factory radio connector wires needed |
| Radio power | Provides electrical power to the radio |
| Installation help | Tech support number available 7 days a week |
| 2004 fitment note | Designed for the SRT10 trim package without the hands-free-capable option. For the SRT-10 with that option and 2004 non-SRT trim packages, use the 70-6510 amplifier bypass harness. |
| Hands-free identification note | Check the rear-view mirror for a telephone icon. If there is no icon, the source indicates this harness will work for the stated SRT10 application. |
Why Choose This Product?
The 70-6512 is intended for a specific Dodge Ram amplifier-bypass installation, including the 2004 SRT10 without the hands-free-capable option. Its vehicle-side adapter avoids cutting the factory radio connector wires, while its color-coded receiver-side wires give you connections to make at the aftermarket radio.
Installation & Compatibility Notes
Connect the color-coded wires to the aftermarket radio as required for your installation. Additional parts may be needed, such as a dash kit or antenna adapter. Depending on the vehicle, a special interface adapter may be needed to retain steering-wheel audio controls or functions such as navigation or video.
For 2004 SRT10 fitment, check the rear-view mirror for a telephone icon. The 70-6512 is not the specified harness for SRT-10 models with the hands-free-capable option or 2004 non-SRT trims; the product details direct those applications to model 70-6510.
Frequently Asked Questions
Which Dodge Ram trims use the 70-6512?
For 2004, it is designed for the SRT10 trim without the hands-free-capable option. The product title also lists Dodge Ram 2002–2004; check your vehicle’s application before installation.
How can I identify the hands-free-capable option?
Look for a telephone icon on the rear-view mirror. The product details state that the 70-6512 works for the specified SRT10 application when that icon is absent.
Does the harness retain the factory subwoofer?
The factory subwoofer is not retained in select vehicles.
Are other parts needed to install an aftermarket radio?
A dash kit, antenna adapter, or vehicle-specific interface adapter may be needed, depending on your vehicle and the functions you want to retain.
