Amp Bypass Harness - Chrysler | Dodge | Jeep 2004-2009 — 70-6514
Key features
- For select Chrysler / Dodge / Jeep 2004-2009
- Factory subwoofer is not retained in select vehicles
- Plugs into the car's original radio connectors on one side as well as the factory amplifier
- Harness length is 72"
- One 22-pin power plug and one 18-pin amplifier plug
- No wire cutting needed for factory radio connectors
Amp Bypass Harness - Chrysler | Dodge | Jeep 2004-2009 — 70-6514 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Connect an aftermarket radio in a 2004–2009 Chrysler, Dodge, or Jeep with the 70-6514 factory amplifier bypass harness. Its vehicle-specific plugs connect to the original radio connectors and factory amplifier, while color-coded wires connect to your new radio.

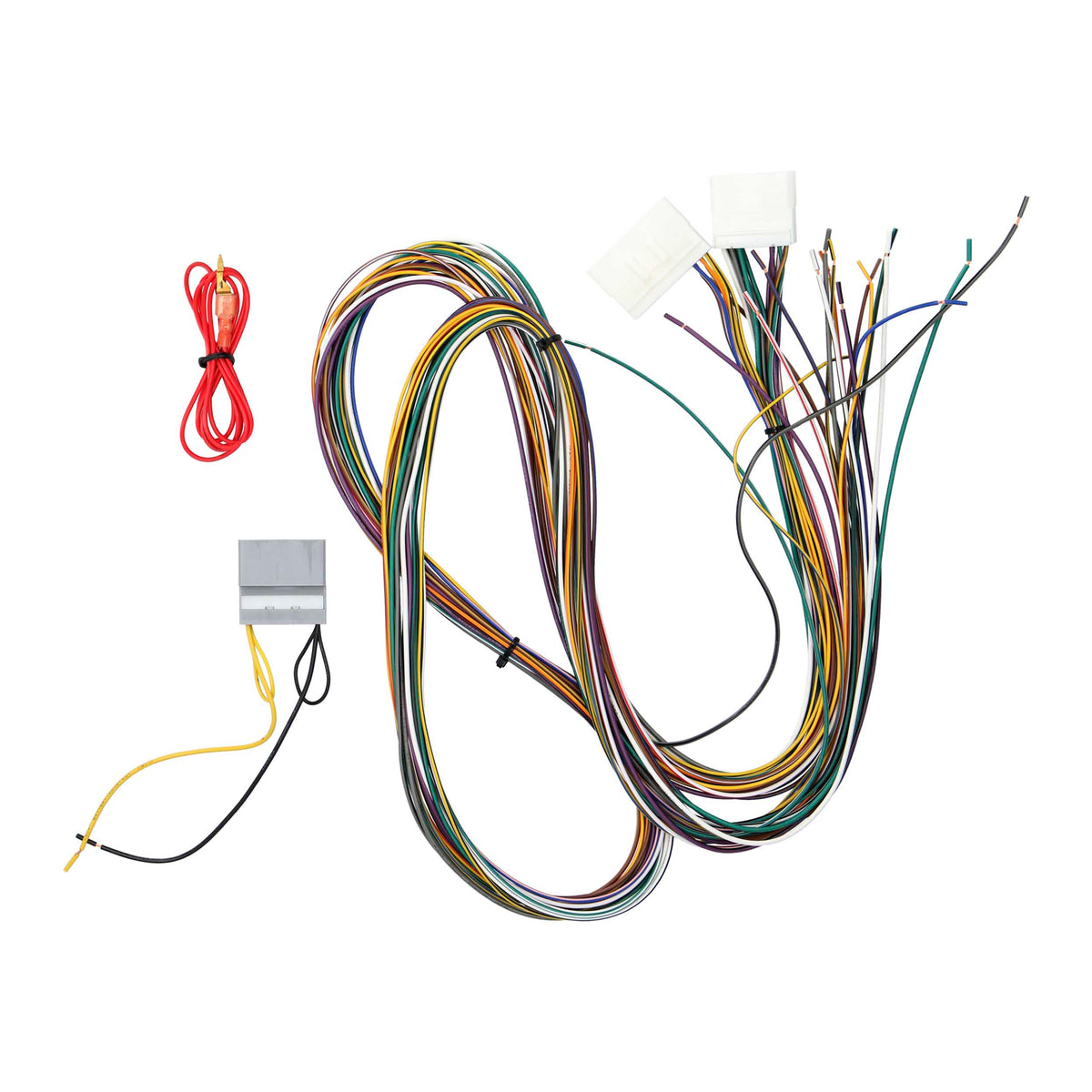

The 72-inch harness gives you room to route the wiring during installation. You won’t need to cut the factory radio connector wires.
Key Features & Benefits

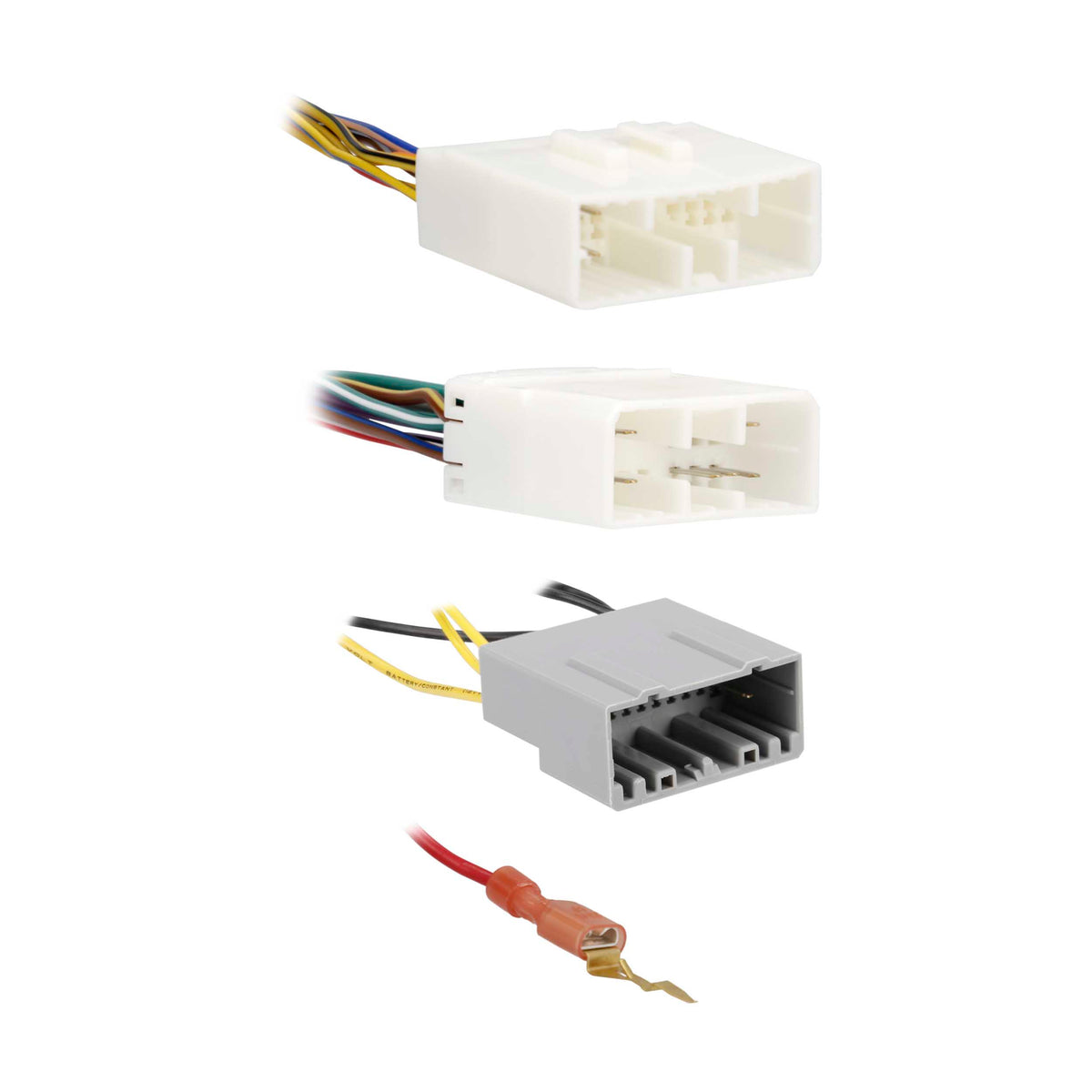

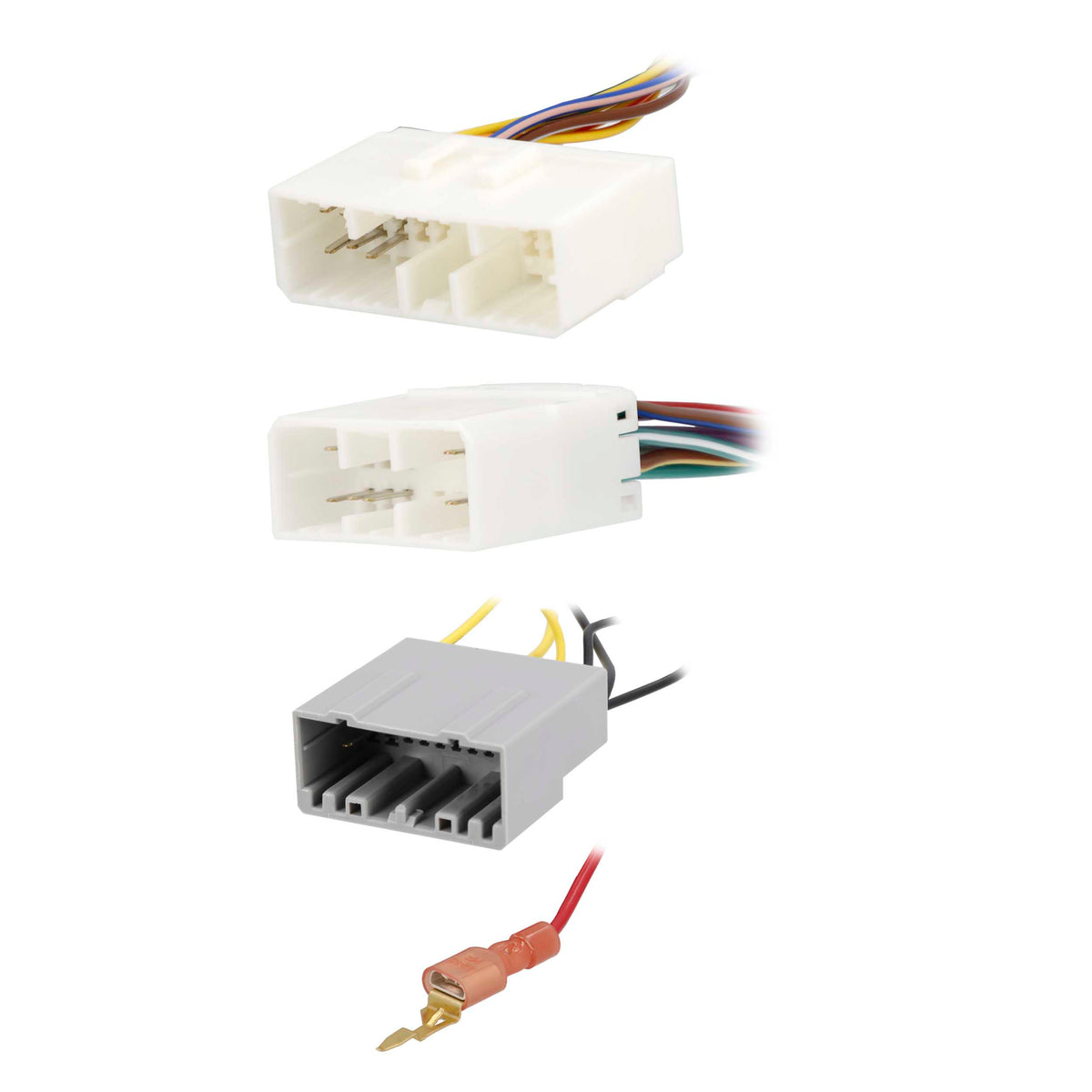

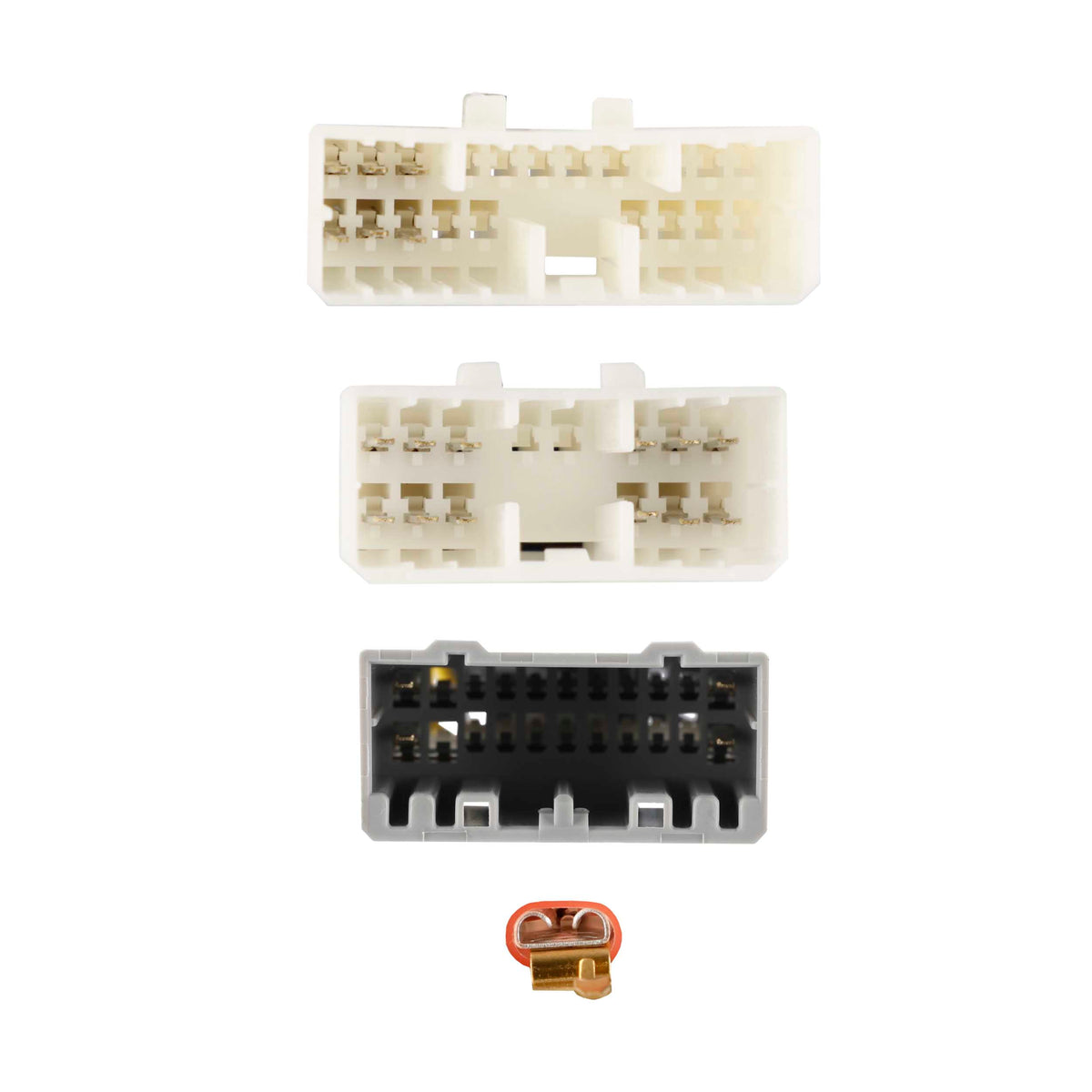

- Vehicle-specific connections: One 22-pin power plug and one 18-pin amplifier plug connect with the corresponding factory connections.

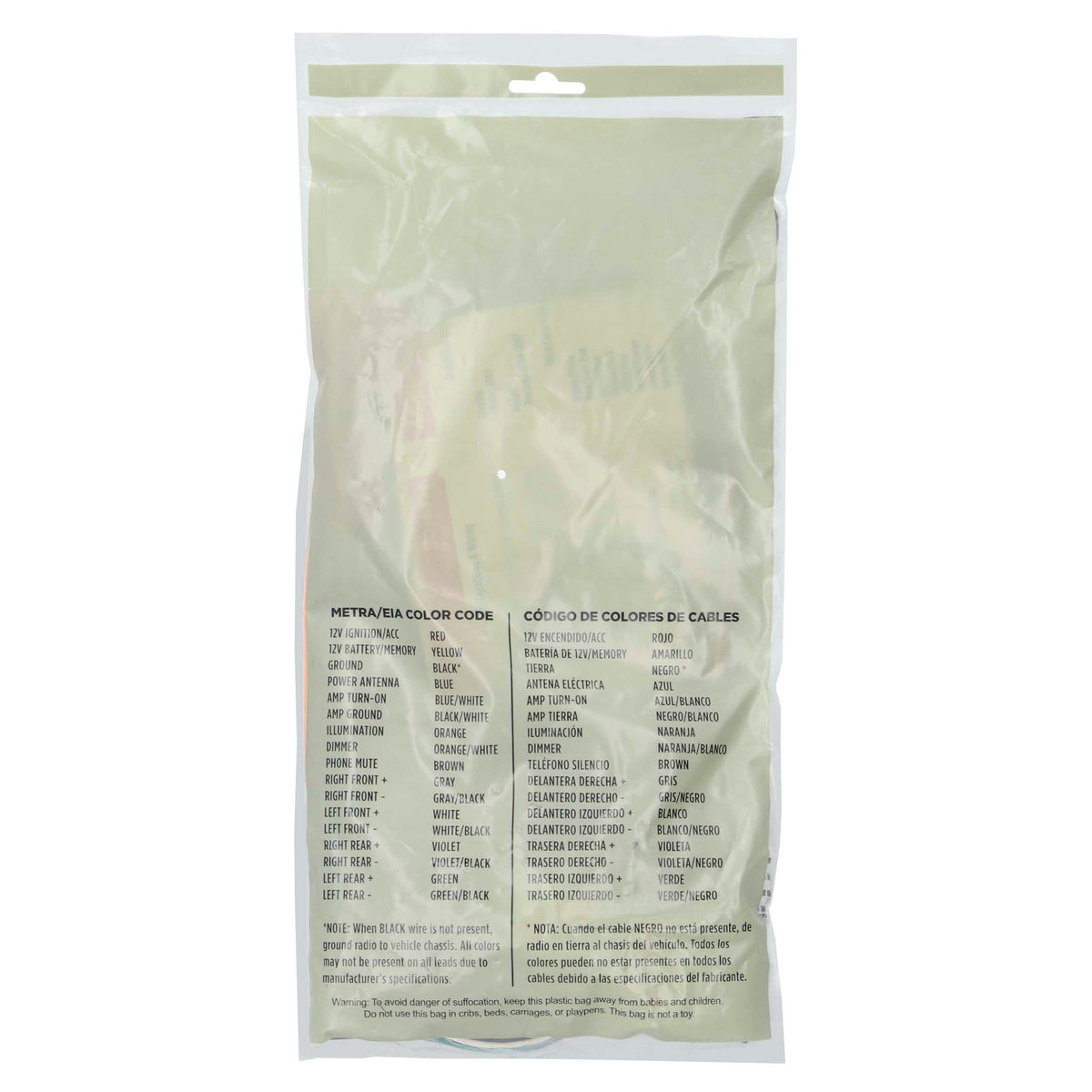

- Color-coded radio wiring: Match the harness wires to the aftermarket radio connections.
- No cutting at factory connectors: Keep the original radio connector wiring intact.
- 72-inch length: Route the harness between the connections and your radio installation location.
- Installation help: A tech support number is available seven days a week.
Technical Specifications
| Product type | Factory amplifier bypass wiring harness |
|---|---|
| Model | 70-6514 |
| Vehicle years | 2004–2009 |
| Connections | One 22-pin power plug; one 18-pin amplifier plug |
| Harness length | 72" |
| Radio-side wiring | Color-coded wires for connection to the aftermarket radio |
Why Choose This Product?
The 70-6514 is designed to connect an aftermarket radio with the original radio connectors and factory amplifier. Its vehicle-side plugs avoid cutting the factory radio connector wires, while the color-coded leads provide the connections for your new receiver.
Check your vehicle’s application before choosing this harness. In select vehicles, the factory subwoofer is not retained.
Installation & Compatibility Notes
Connect the color-coded harness wires to the aftermarket radio; the product details specify that these wires are connected or soldered to the receiver. The vehicle-specific side plugs into the original radio connectors and factory amplifier.
A dash kit, antenna adapter, or special interface adapter may also be needed, depending on the vehicle and the functions you want to retain. A special interface may be required for steering-wheel audio controls, navigation, video, or other vehicle functions.
Frequently Asked Questions
Which vehicles is the 70-6514 for?
It is listed for Chrysler, Dodge, and Jeep vehicles from 2004–2009. Confirm the harness application for your specific vehicle before installation.
Does this harness retain the factory subwoofer?
The factory subwoofer is not retained in select vehicles.
Do I need to cut the factory radio connector wires?
No. The vehicle-specific plugs connect to the original radio connectors without cutting those wires. The color-coded wires connect to the aftermarket radio.
What other parts might be needed?
Depending on your vehicle and installation, you may need a dash kit, antenna adapter, or special interface adapter to retain vehicle functions.
How long is the harness?
The harness is 72" long.
