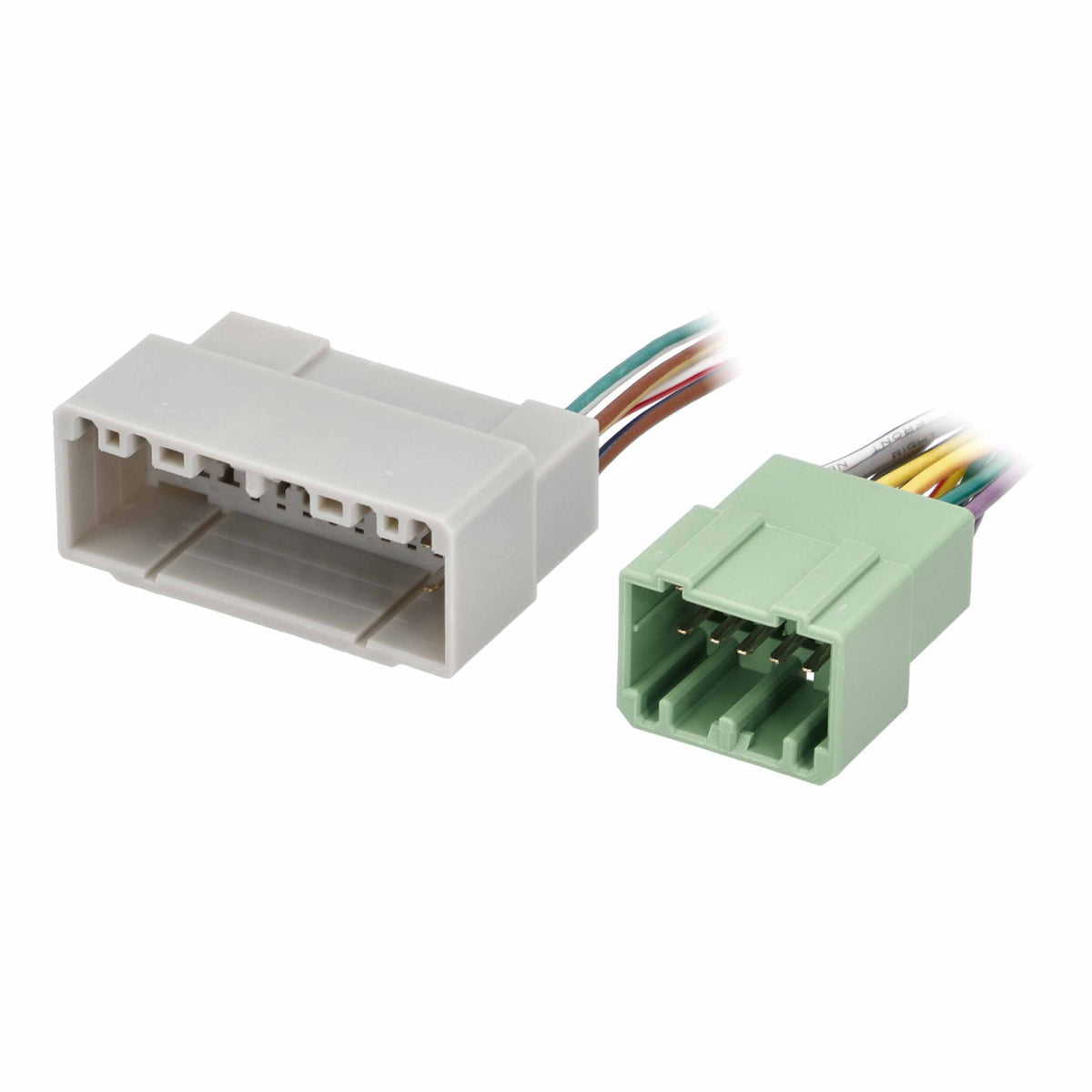

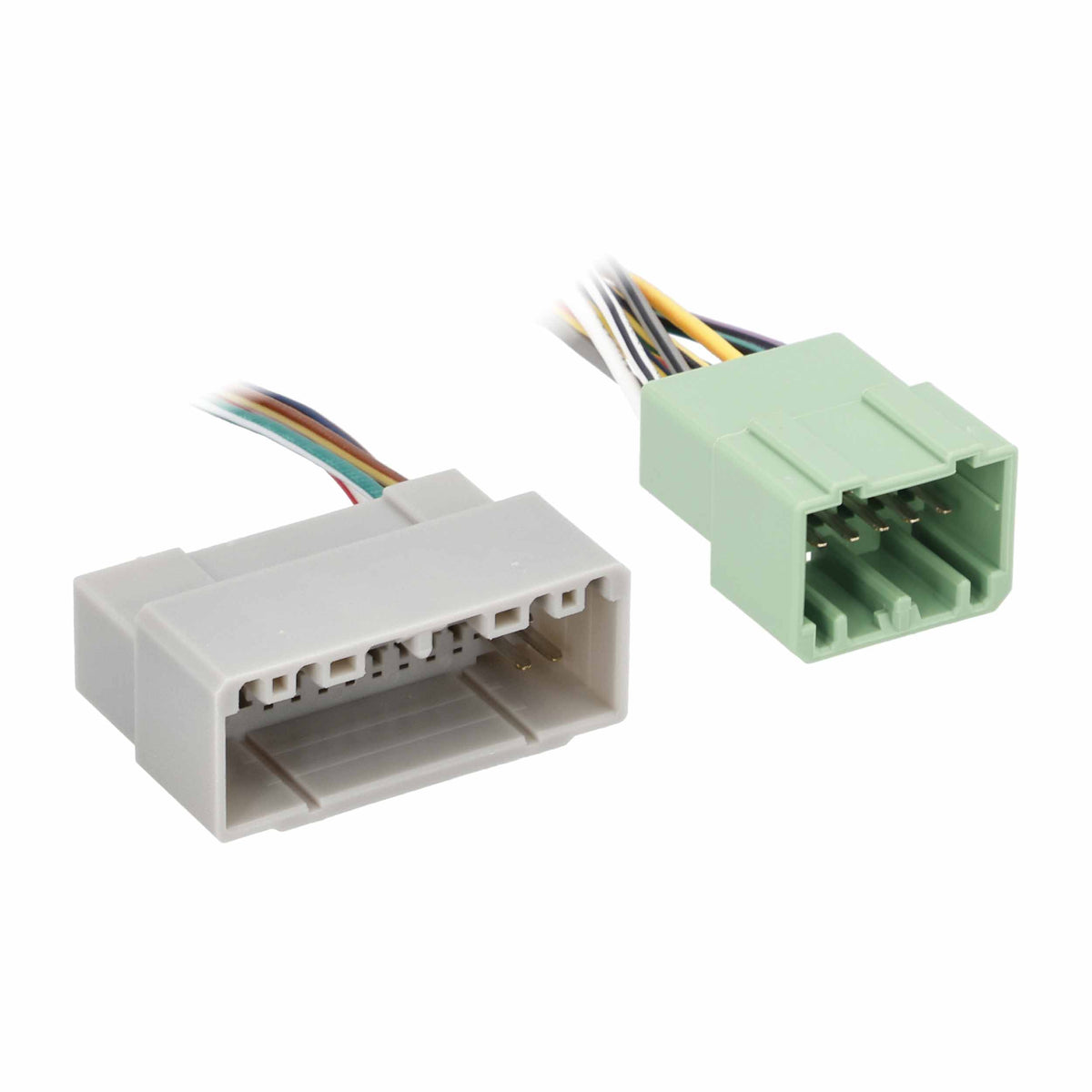

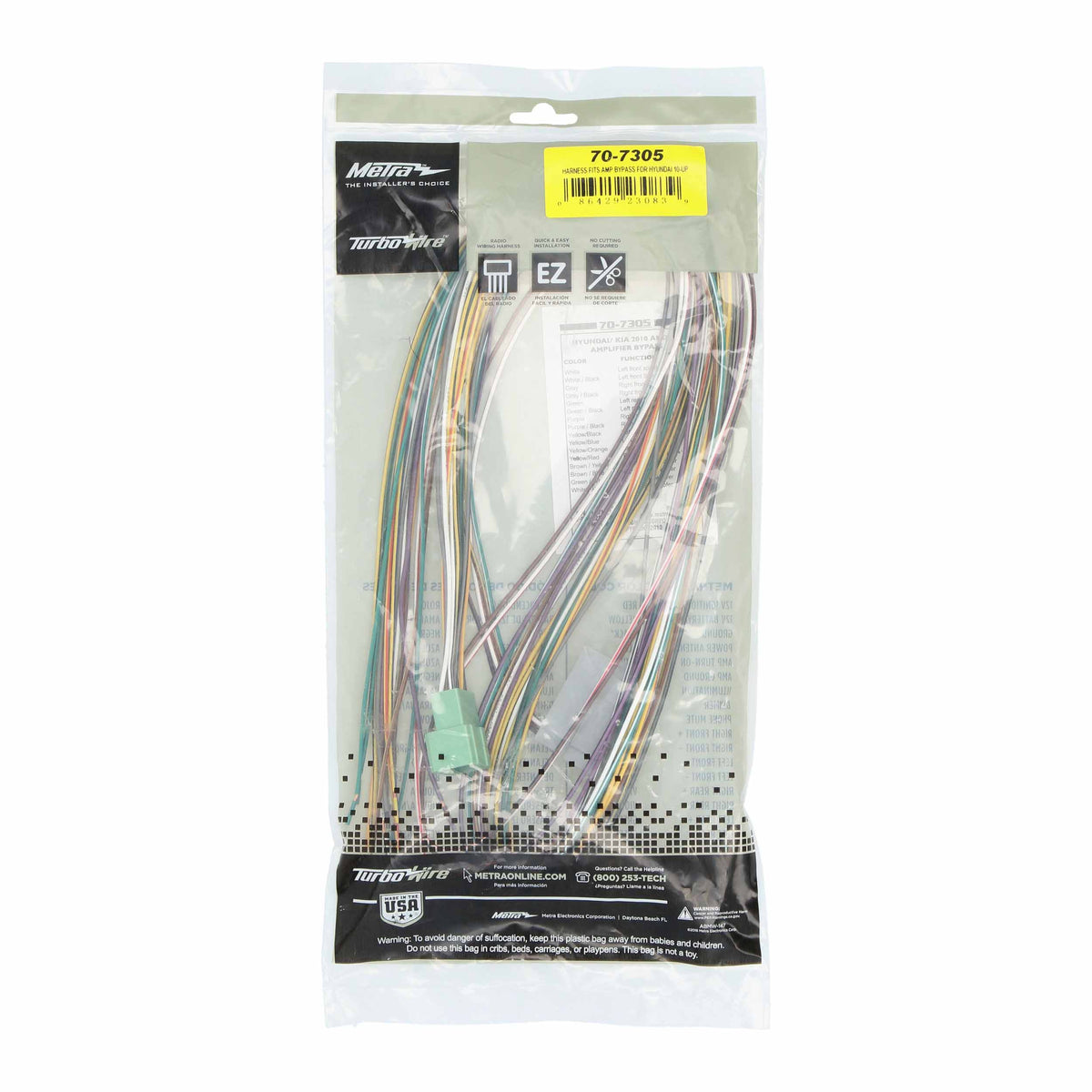

Amp Bypass Harness - Hyundai | Kia 2010-2016 — 70-7305
Key features
- For select Hyundai / Kia 2010-2016
- Factory subwoofer is not retained in select vehicles

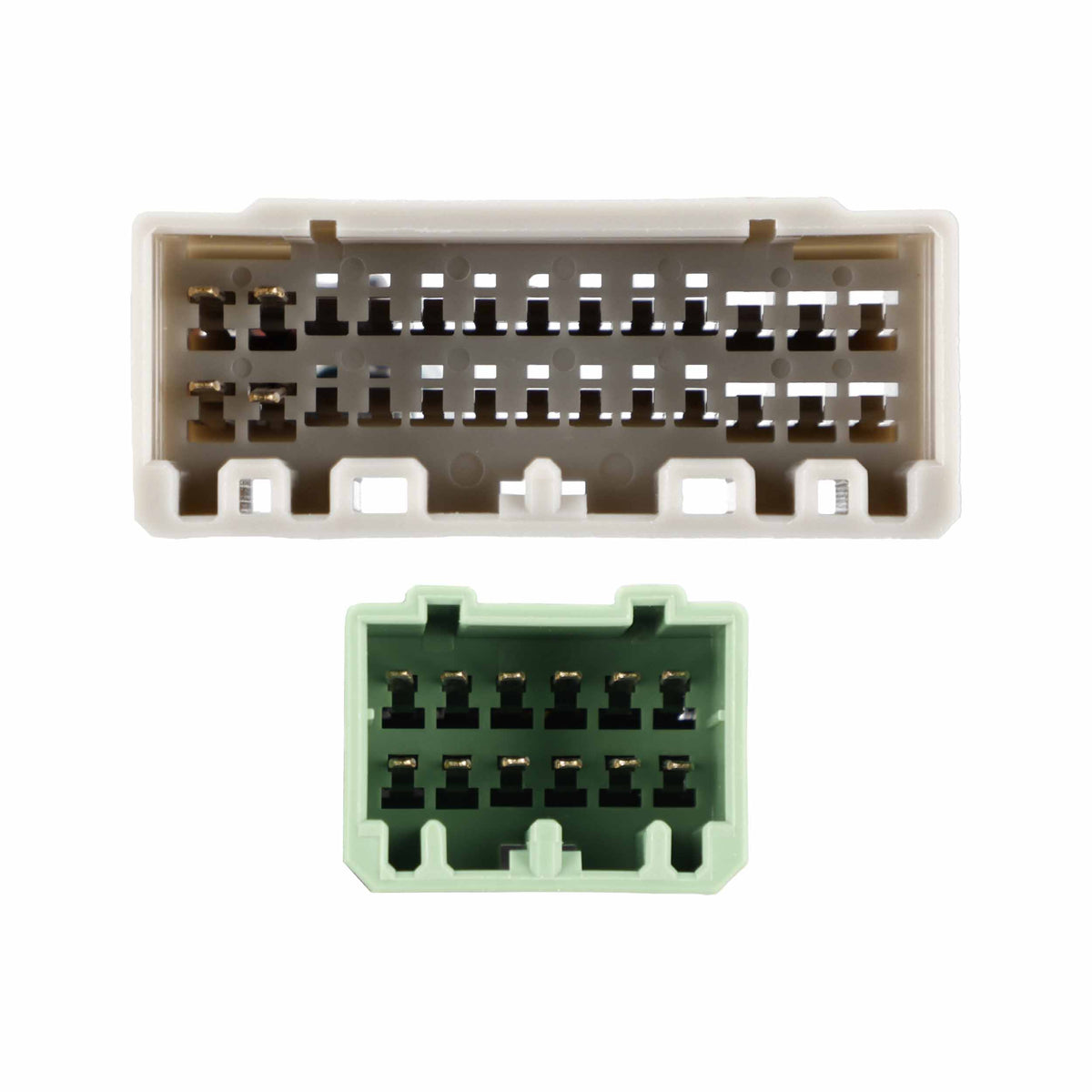

- Plugs into the car's original radio connectors on one side as well as the factory amplifier

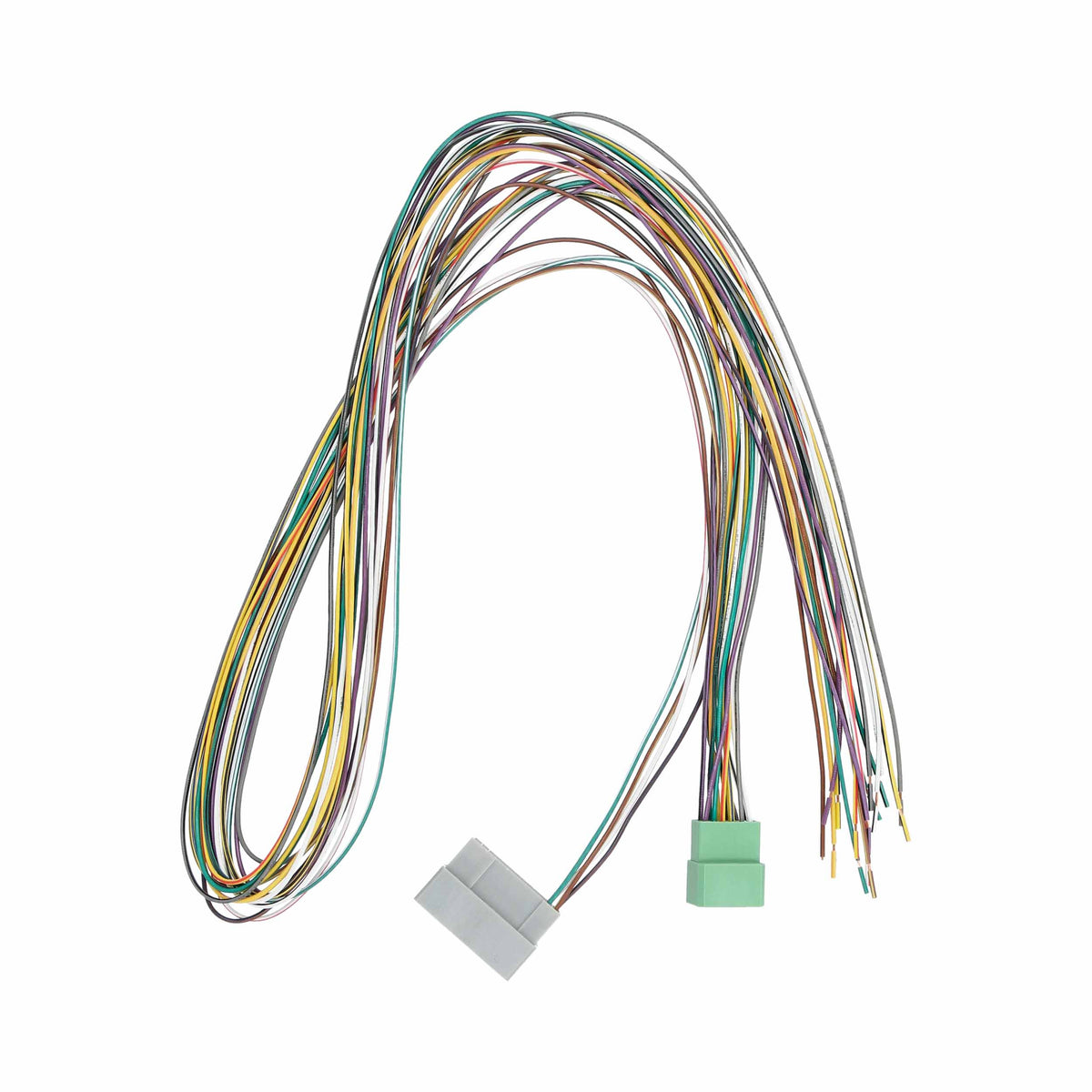

- Harness length is 204"
- No wire cutting needed for factory radio connectors
- Designed with 24" leads for aftermarket amplifier installation
Amp Bypass Harness - Hyundai | Kia 2010-2016 — 70-7305 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Connect an aftermarket radio in a 2010–2016 Hyundai or Kia with the 70-7305 amp bypass harness. Its vehicle-specific connectors meet the original radio connections, while color-coded leads connect to your new receiver.
Key Features & Benefits
- Vehicle-specific connections: Plugs into the original radio connectors without cutting those factory wires.

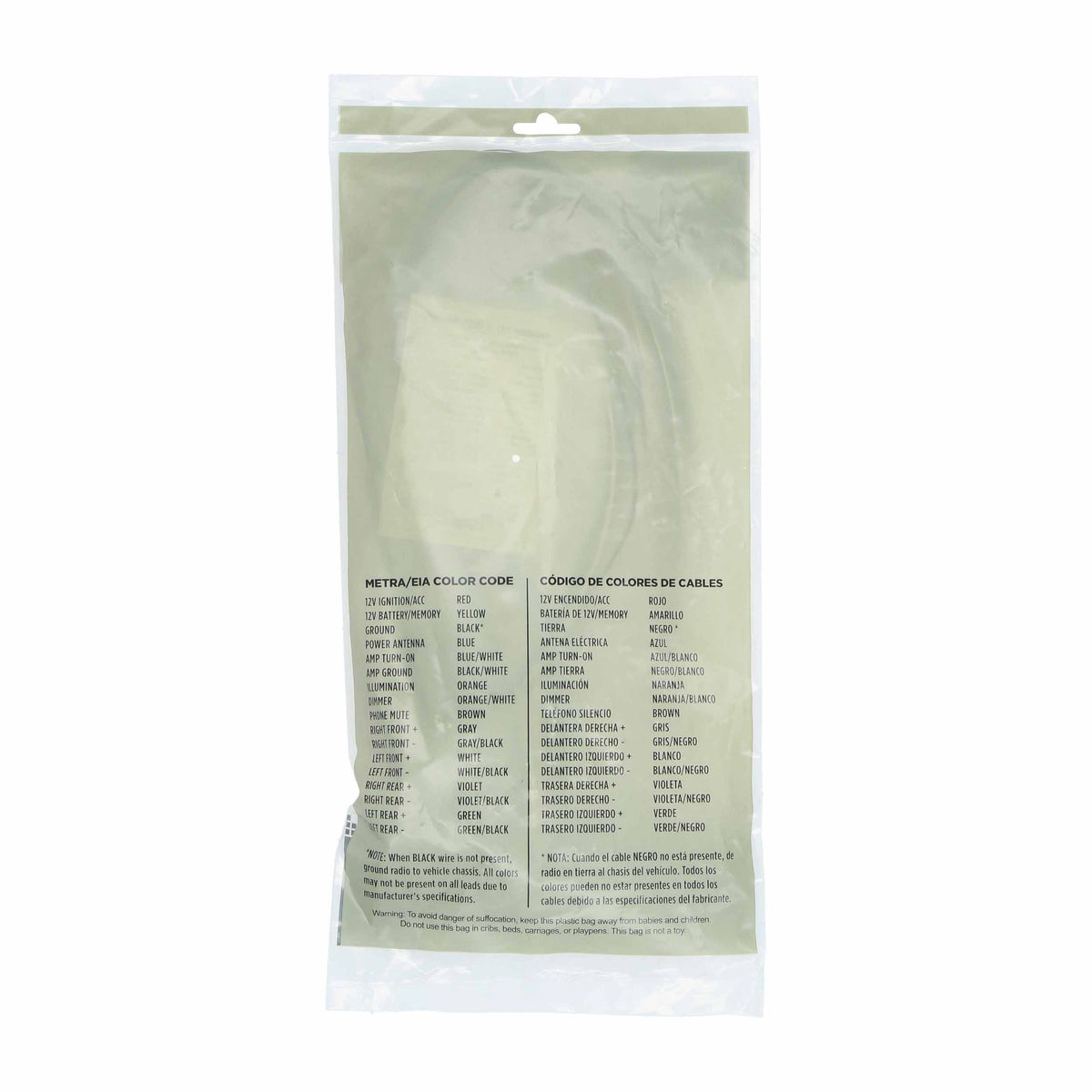

- Color-coded radio wires: Helps you match the harness leads to the aftermarket receiver’s connections.
- Factory amplifier bypass: Supports radio installation in vehicles with a factory amplifier.
- Extended harness: The harness measures 204 inches for routing during installation.
- Amplifier installation leads: Includes 24-inch leads for an aftermarket amplifier installation.
Technical Specifications
| Product | Amp Bypass Harness |
|---|---|
| Model | 70-7305 |
| Vehicle application | Hyundai | Kia 2010–2016 |
| Harness length | 204" |
| Aftermarket amplifier leads | 24" |
| Radio wiring | Color-coded wires connect to the aftermarket radio |
| Radio power | Provides electrical power to the radio |
| Factory subwoofer | Not retained in select vehicles |
Why Choose This Product?
The 70-7305 brings vehicle-specific connectors and color-coded radio leads together in one harness. It connects to the original radio connectors and factory amplifier, avoiding the need to cut each factory wire at the radio connection.
Installation & Compatibility Notes
Confirm your vehicle’s year, make, and model before installation. Connect or solder the color-coded wires to the aftermarket radio as required.
Depending on your vehicle and the functions you want to retain, installation may also require a dash kit, antenna adapter, or a special interface adapter. The factory subwoofer is not retained in select vehicles. A technical support number is available for installation help seven days a week.
Frequently Asked Questions
Which vehicles does the 70-7305 fit?
It is listed for Hyundai and Kia vehicles from 2010 through 2016. Check your specific vehicle application before installation.
Do I need to cut the factory radio wires?
No. The harness plugs into the original radio connectors, so cutting those factory wires is not needed.
Does this harness retain the factory subwoofer?
The factory subwoofer is not retained in select vehicles.
Could I need other parts for my radio installation?
Depending on your vehicle, you may need a dash kit, antenna adapter, or special interface adapter to retain steering-wheel audio controls or other functions.
Can I use the leads for an aftermarket amplifier installation?
The harness has 24-inch leads designed for an aftermarket amplifier installation.
