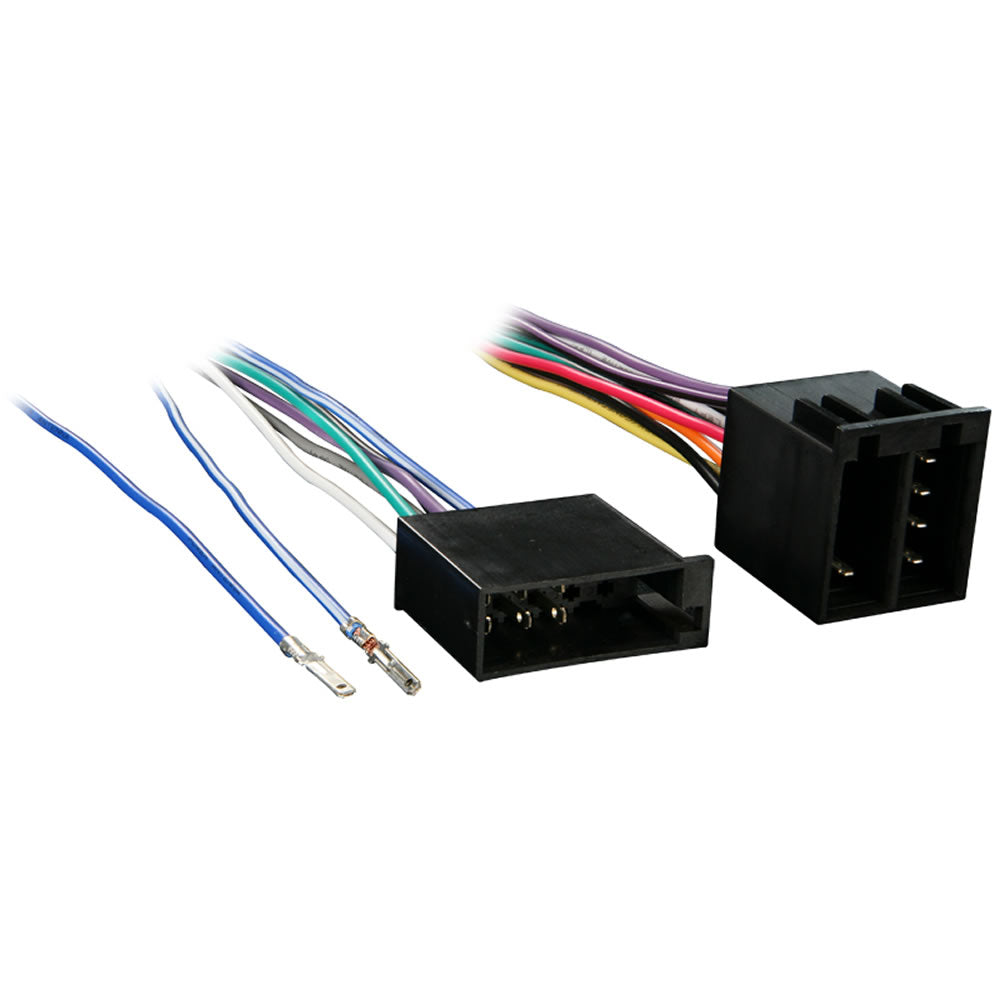

Amp Integration Harness - Volkswagen 1987-2002 — 70-9002
Key features
- For select Volkswagen 1987-2002
- For use with VW amplified speaker system
- Plugs into the car's original radio connectors on one side
- Designed for aftermarket radios that are 35 watts or less
- Includes amp turn-on lead, 8-pin power plug, and 8-pin speaker plug
- No wire cutting needed for factory radio connectors
Amp Integration Harness - Volkswagen 1987-2002 — 70-9002 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Connect an aftermarket radio to the factory-amplified speaker system in a 1987–2002 Volkswagen with the 70-9002 amp integration harness. Its vehicle-specific plugs connect to the original radio connectors, avoiding the need to cut those factory wires.
Key Features & Benefits
- Factory amplifier integration: Designed for Volkswagen vehicles with an amplified speaker system.
- Vehicle-specific connectors: Plugs into the original radio connectors for a more direct installation.
- Color-coded radio wires: Connect or solder these wires to the aftermarket radio.
- Radio power limit: Designed for aftermarket radios rated at 35 watts or less.
- Included connections: Comes with an amp turn-on lead, an 8-pin power plug, and an 8-pin speaker plug.
- Common-ground requirement: For use with a common-ground radio.
Technical Specifications
| Product | Amp integration wiring harness |
|---|---|
| Model | 70-9002 |
| Vehicle application | Volkswagen, 1987–2002 |
| Audio system | Factory-amplified speaker system |
| Aftermarket radio rating | 35 watts or less |
| Radio requirement | Common-ground radio |
| Included connections | Amp turn-on lead, 8-pin power plug, 8-pin speaker plug |
Why Choose This Product?
The 70-9002 provides a vehicle-specific connection between the original radio plugs and an aftermarket receiver in a Volkswagen with a factory-amplified speaker system. Its color-coded wires give you the leads to connect or solder to the new radio, while the vehicle-side adapter avoids cutting the factory radio connectors.
Installation & Compatibility Notes
Use this harness with a common-ground aftermarket radio rated at 35 watts or less. Check your vehicle’s fitment before installation. Depending on the vehicle and the features you want to retain, you may also need a dash kit, an antenna adapter, or a special interface adapter for steering-wheel audio controls, navigation, video, or other functions.
Frequently Asked Questions
Will this harness work with a factory-amplified Volkswagen audio system?
It is designed for use with a Volkswagen amplified speaker system from the listed 1987–2002 model-year range.
What radio can I use with the 70-9002?
Use an aftermarket radio rated at 35 watts or less that has a common-ground design.
Do I need to cut the factory radio wires?
No. The harness plugs into the car’s original radio connectors. The color-coded wires on the other side connect or solder to the aftermarket radio.
What connections are included?
The harness includes an amp turn-on lead, an 8-pin power plug, and an 8-pin speaker plug.
Could I need other installation parts?
Depending on your vehicle and installation, you may need a dash kit, an antenna adapter, or a special interface adapter to retain certain vehicle functions.
Is installation help available?
A technical support number is available for installation help seven days a week.
