Camera Data Interface - Chrysler 2013-2023 — AXAC-CH5

Product Overview

Add front and side camera views while keeping your factory backup camera with the AXAC-CH5 camera data interface for Chrysler vehicles from 2013–2023. It supports up to four camera inputs and uses CAN bus signals to switch views in response to vehicle functions.

Key Features & Benefits

• Four camera inputs: Retain the factory backup camera and add up to three additional CAN-activated cameras.
• Automatic camera switching: CAN bus reverse and turn signal triggers can switch camera views based on vehicle functions.
• Programmable output: Configure the switched 12-volt, 5-amp output using the Axxess Updater program.
• Programmable camera controls: Four camera control wires can be configured through the Axxess Updater program.
• Manual operation: The interface can also be controlled manually and used with an aftermarket radio.
• Updateable interface: A Micro “B” USB connection supports updates.

Technical Specifications

• Model: AXAC-CH5
• Application: Chrysler, 2013–2023
• Camera inputs: Up to four total, including the factory camera; up to three additional CAN-activated cameras
• Switched output: Programmable 12-volt, 5-amp
• Triggers: Reverse and turn signal triggers generated through CAN bus communication
• Camera control wires: Four programmable wires
• Vehicle Speed Sense: Input and output
• Updates: Micro “B” USB; output and camera control wire configuration via the Axxess Updater program
• Warranty: 1-year limited warranty

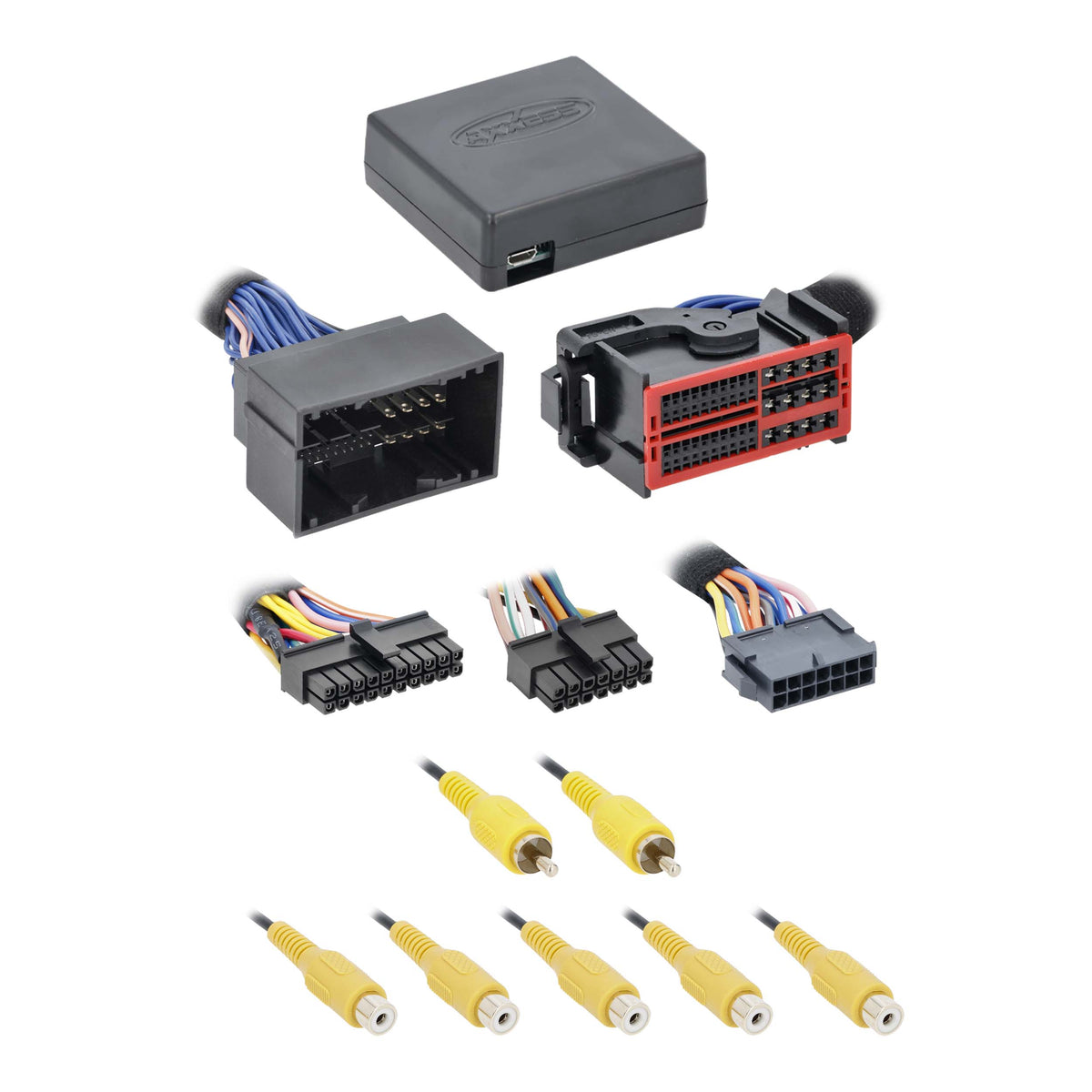

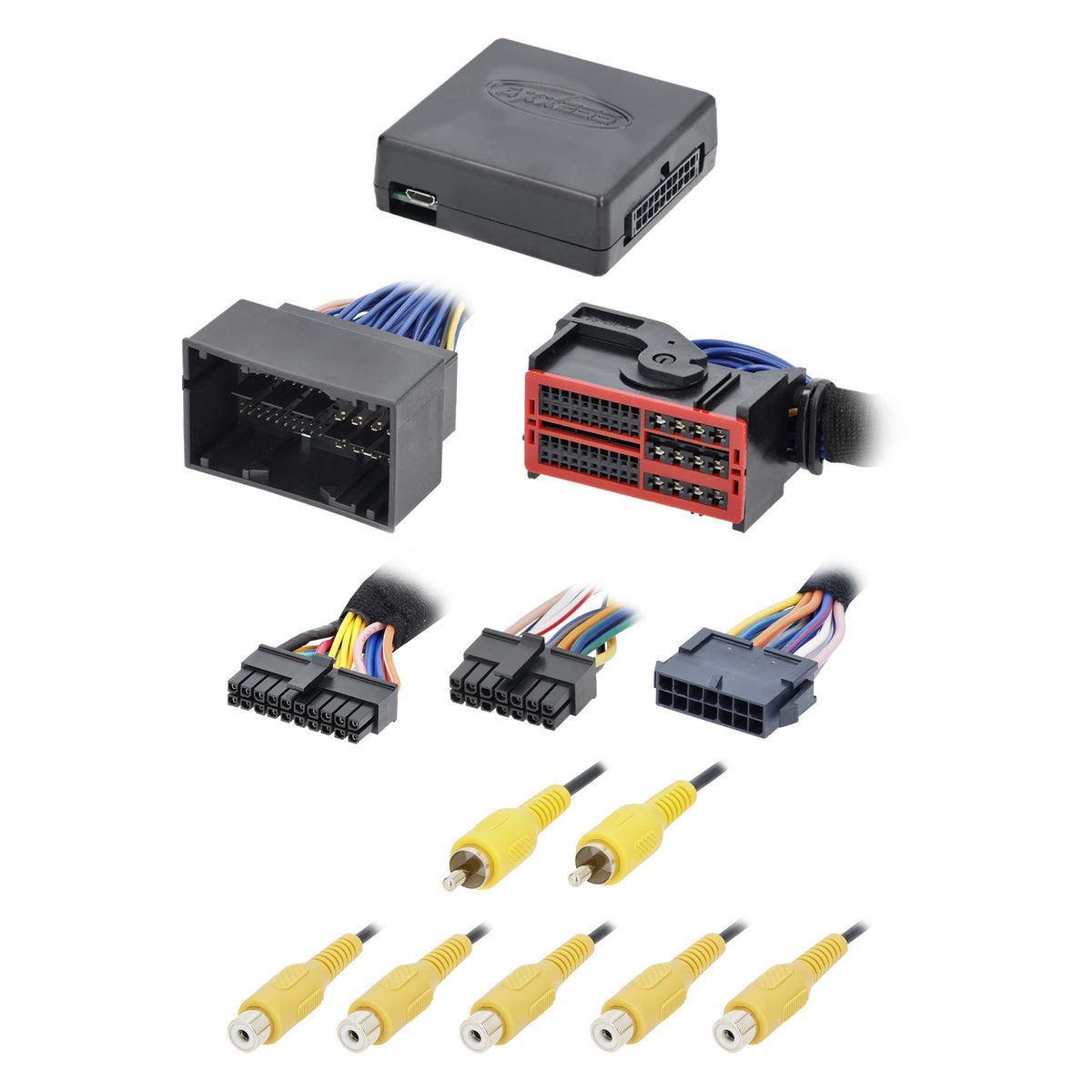

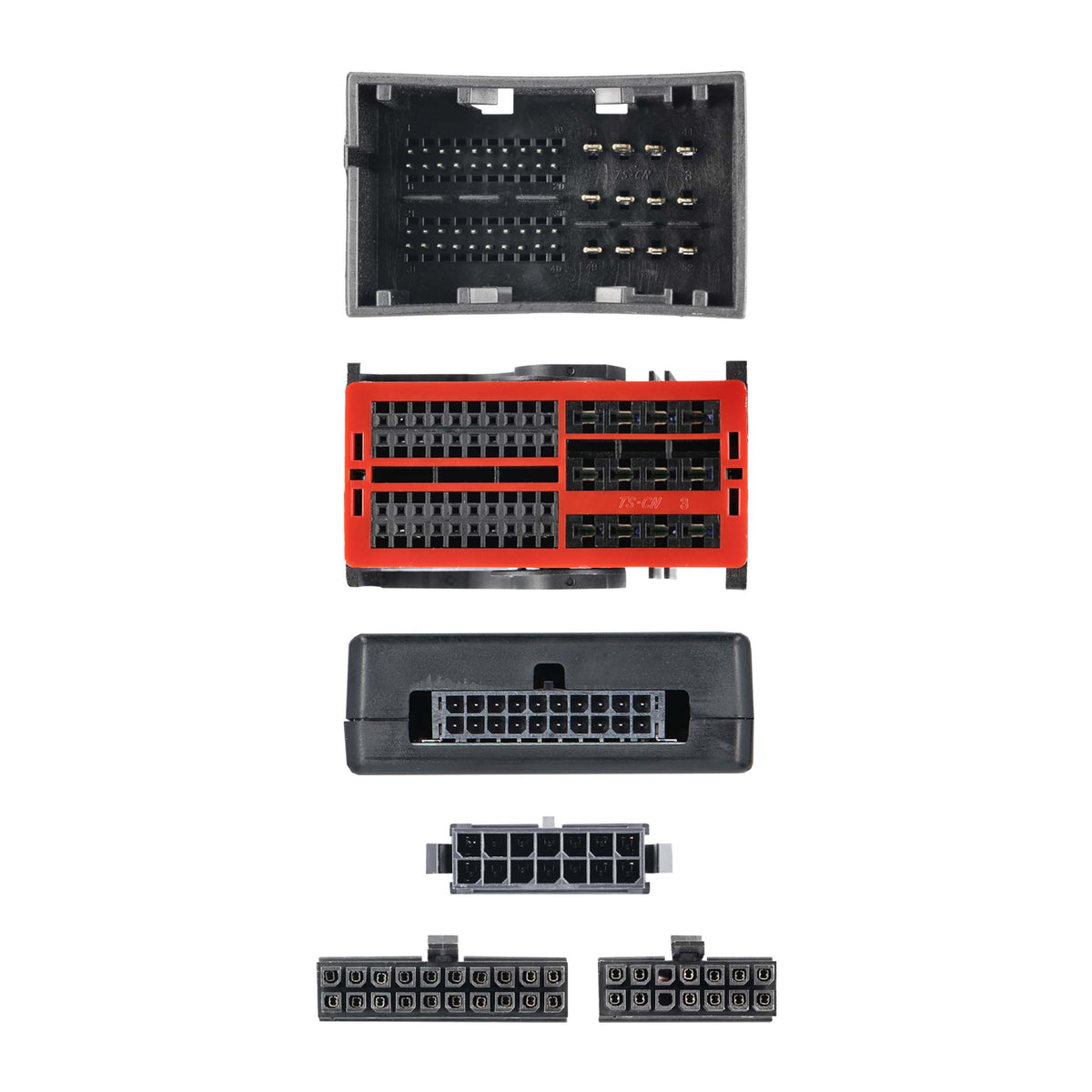

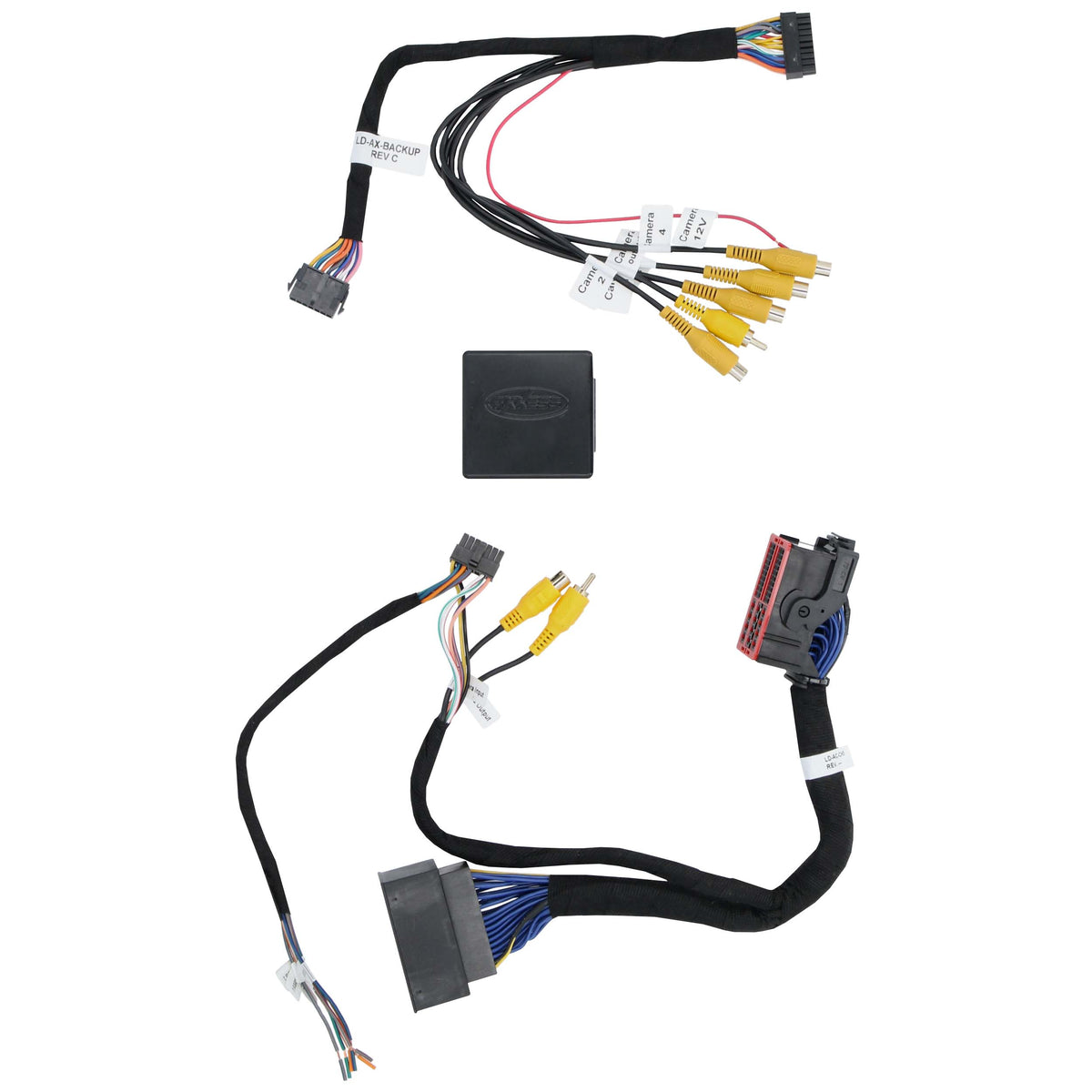

• Included: Interface, interface harness, and vehicle harness

Why Choose This Product?

The AXAC-CH5 brings additional camera views into a setup that retains the factory backup camera. Automatic reverse and turn signal triggers can make those views available in response to vehicle functions, while manual control offers another way to operate the interface.

Installation & Compatibility Notes

This interface is listed for Chrysler vehicles from 2013–2023 and includes a vehicle harness. Confirm that the application matches your vehicle and that your camera setup and radio are suitable for the intended connection. Configuration of the switched output and camera control wires uses the Axxess Updater program.

Frequently Asked Questions

How many cameras can the AXAC-CH5 support?

It supports up to four camera inputs total, including the factory backup camera, with up to three additional CAN-activated cameras.

Which vehicle signals can trigger camera switching?

Reverse and turn signal triggers are generated through CAN bus communication.

Can I control the cameras manually?

Yes. The interface can also be manually controlled and used with an aftermarket radio.

What comes with the interface?

The package includes the interface, interface harness, and vehicle harness.

Can the output and camera control wires be configured?

Yes. The switched 12-volt, 5-amp output and four programmable camera control wires are configured using the Axxess Updater program.
