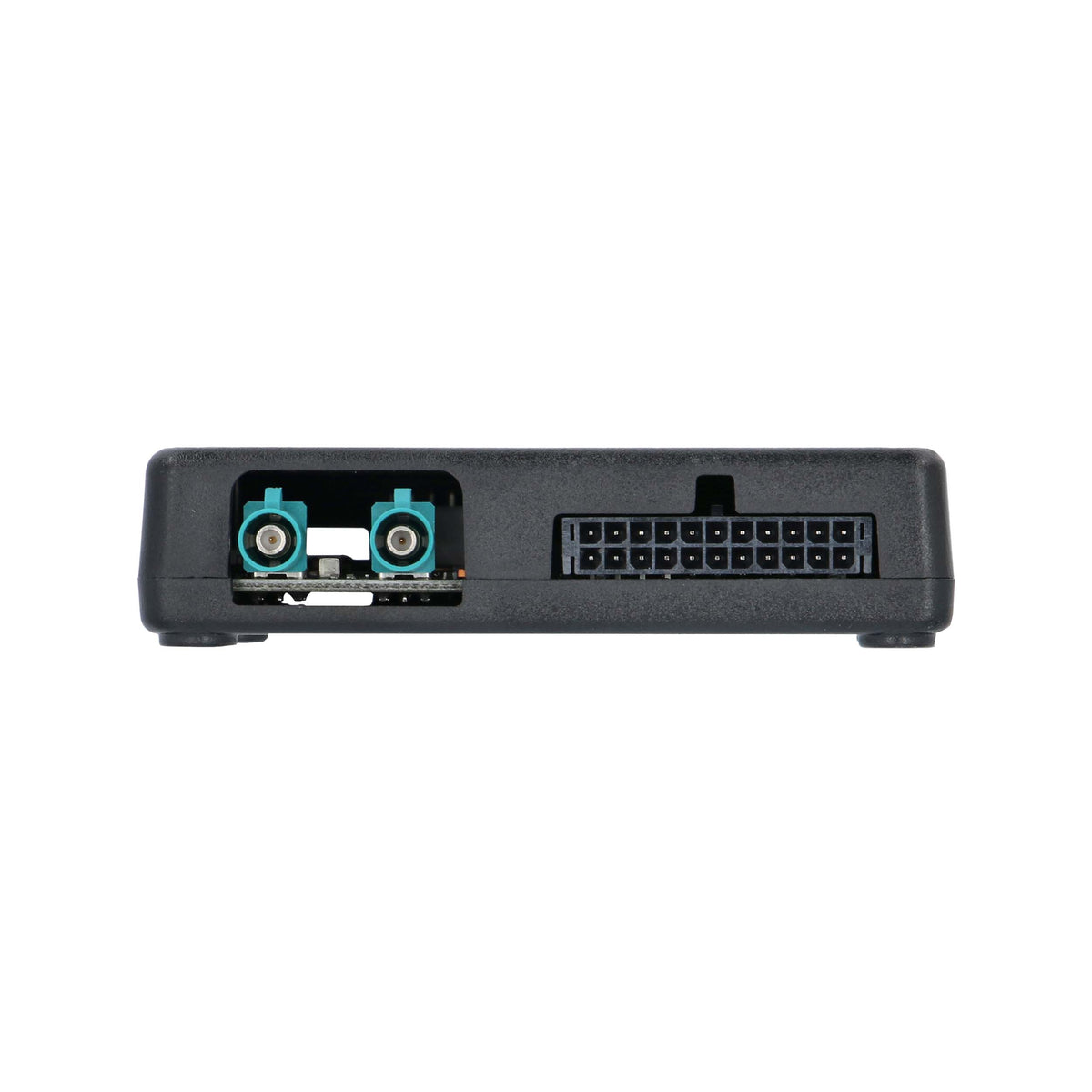

Camera Data Interface - Jeep | RAM 2018.5-2023 — AXAC-CH7
Key features
- For select Jeep / RAM 2018.5-2023
- Retains the factory backup camera and supports additional CAN-activated cameras
- Programmable 12-volt, 5-amp switched output
- CAN-generated reverse and turn-signal triggers
- One programmable camera control wire; VSS input and output

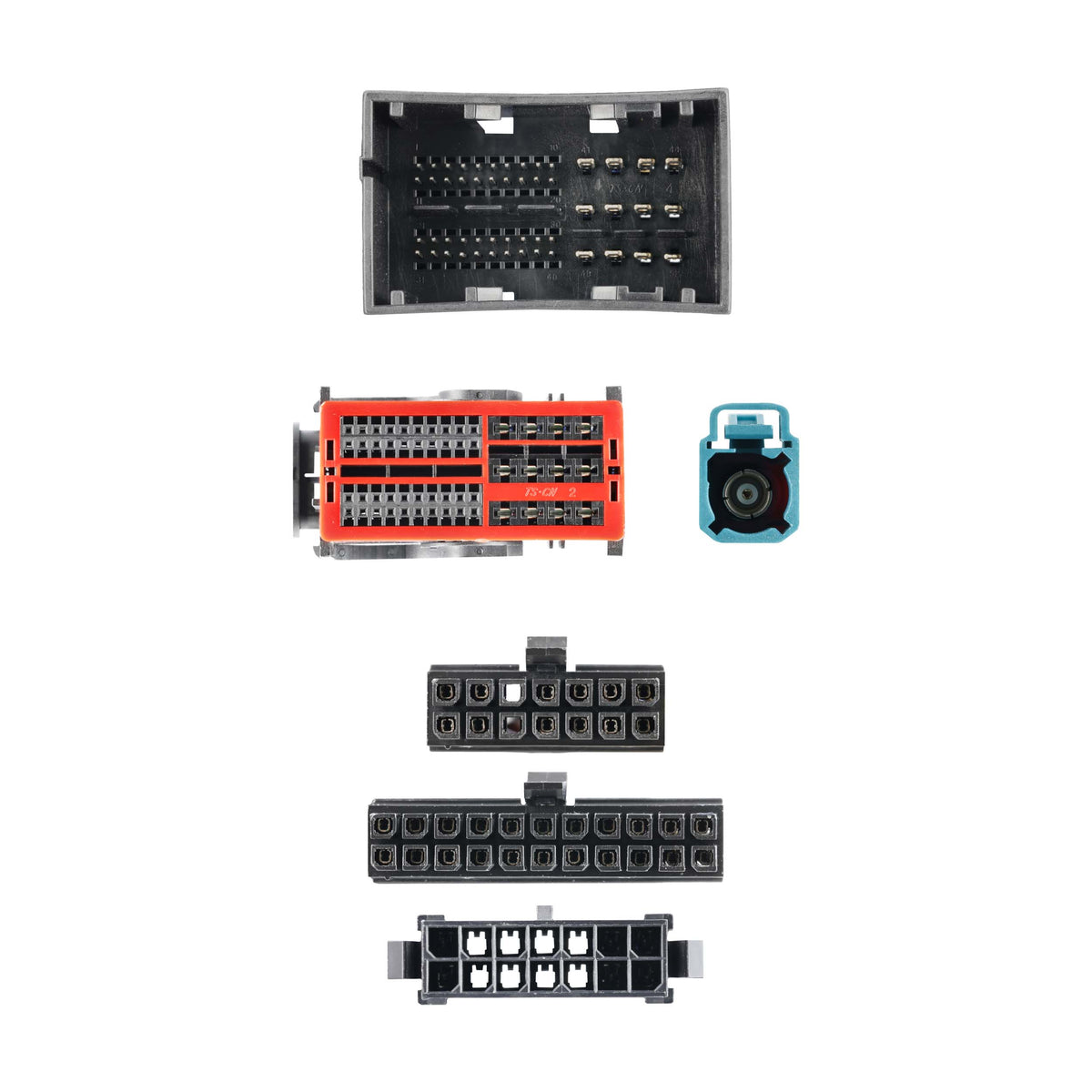

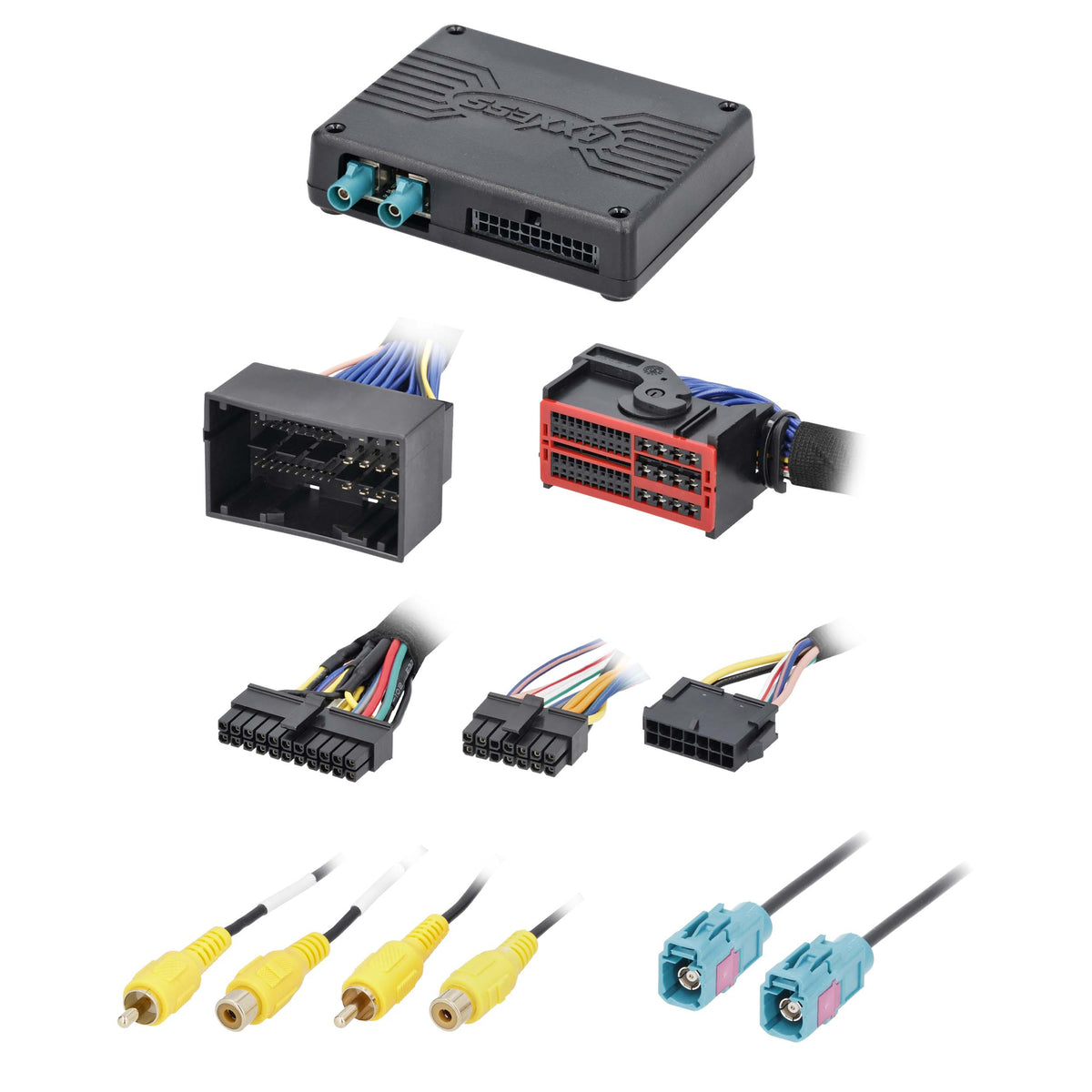

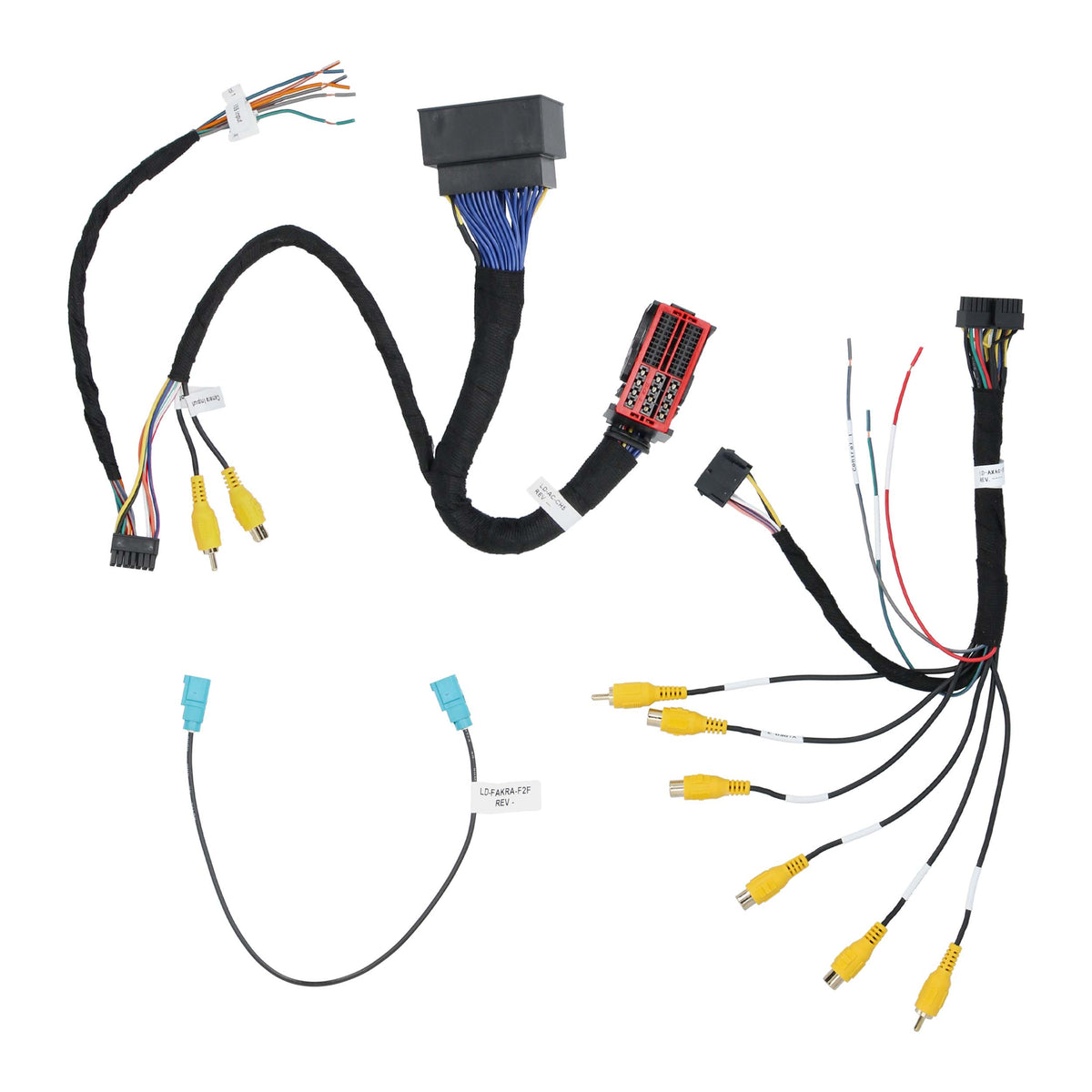

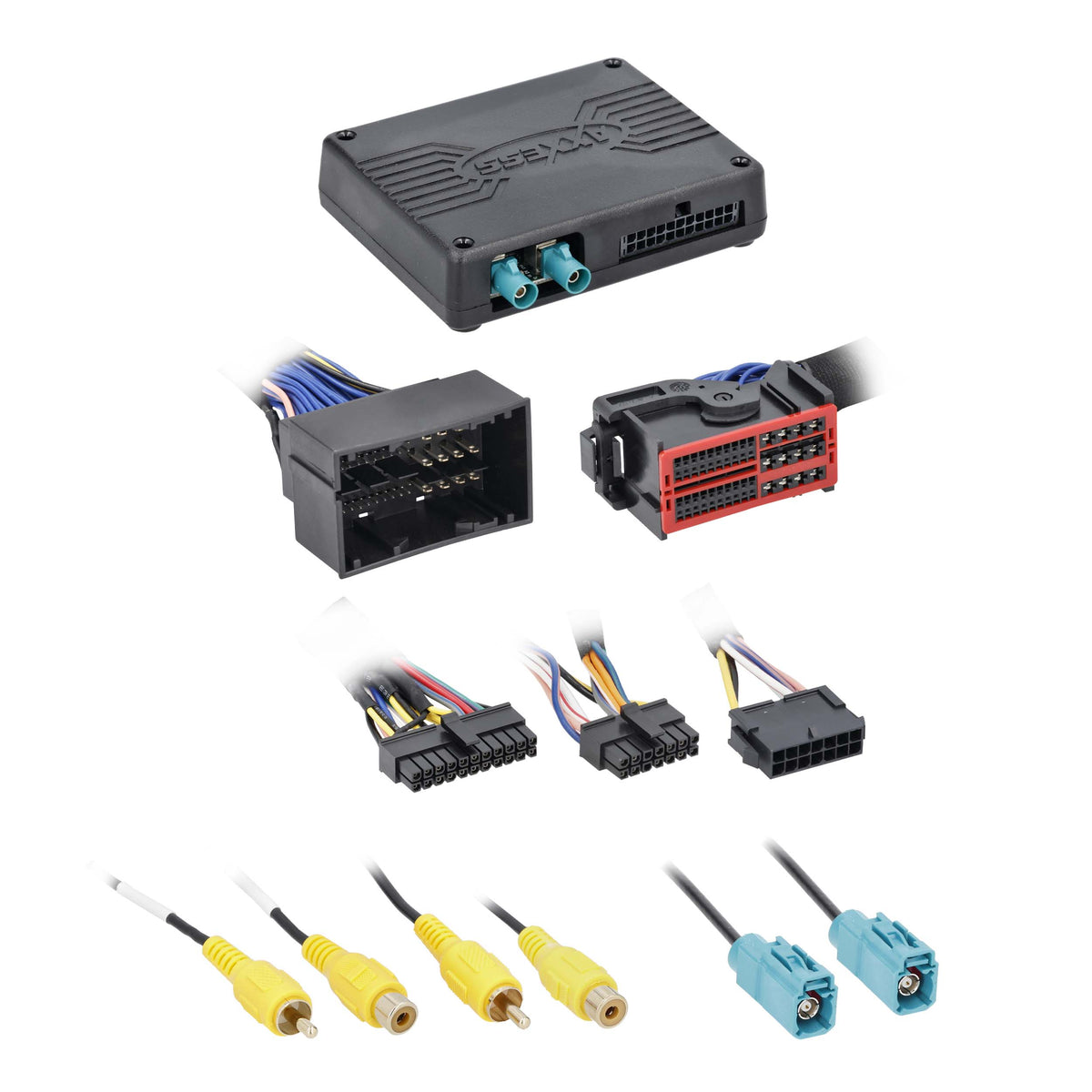

- Includes interface, interface harness and vehicle harness
Camera Data Interface - Jeep | RAM 2018.5-2023 — AXAC-CH7 is backordered and will ship as soon as it is back in stock.
Description
Description
The Axxess AXAC-CH7 camera interface adds camera switching to supported Jeep and RAM factory-radio installations. It includes the interface and vehicle-specific harnessing.
Camera inputs and setup
The installation manual specifies up to three additional cameras while retaining the factory backup camera, or up to four cameras when no factory backup camera is present. Reverse and turn-signal triggers are obtained through CAN communication.
- Programmable 12-volt, 5-amp switched output and one programmable camera control wire.
- Vehicle-speed-sense input and output.

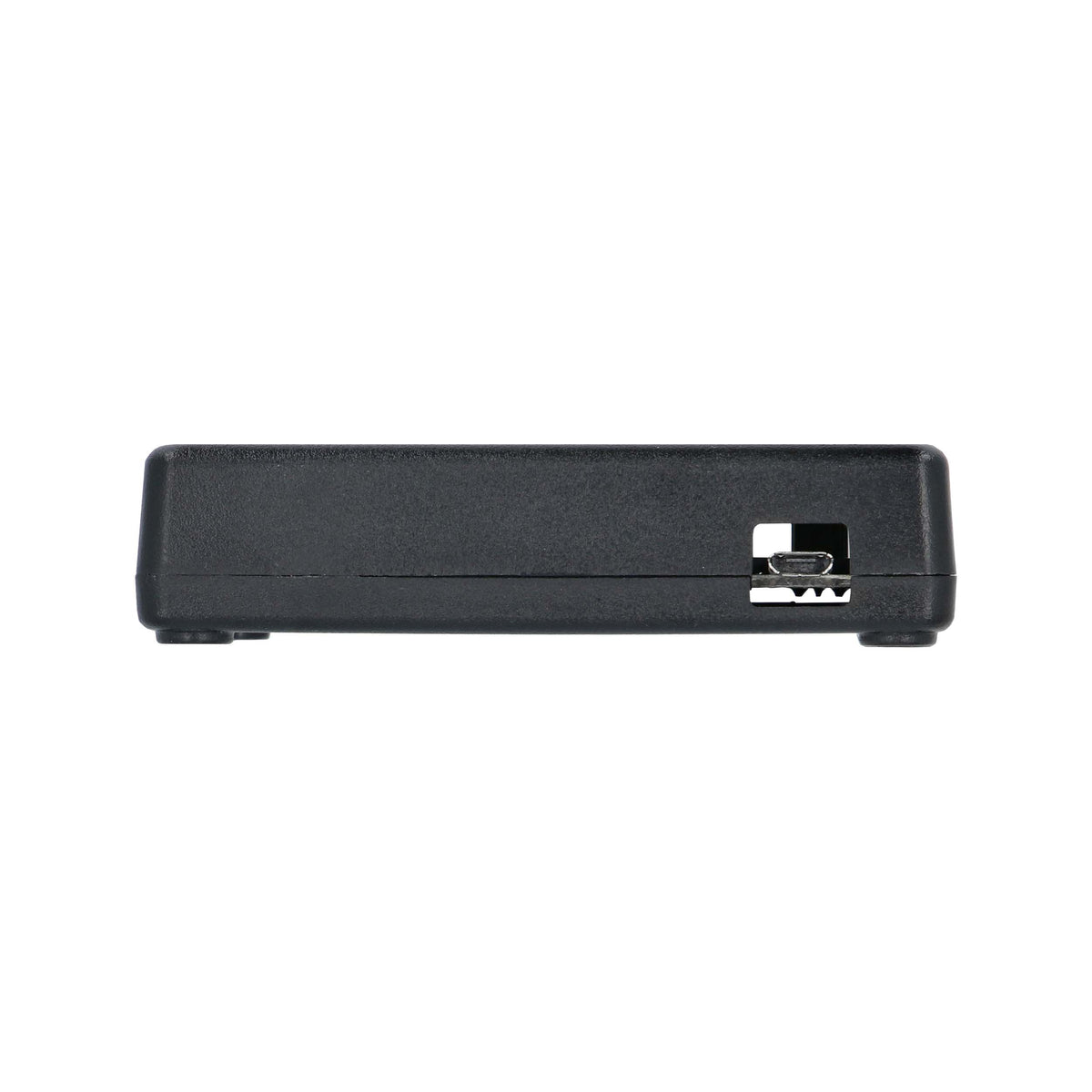

- Configuration uses the Axxess Updater and a separately sold AXUSB-MCBL update cable.
Supported functions vary by vehicle and radio. Confirm the exact Wrangler JL/JT, Gladiator or RAM application and Uconnect configuration before ordering; camera retention and camera-addition application lists are not identical.
