Metra | SKU:
AXAC-GM1
$70.00 off

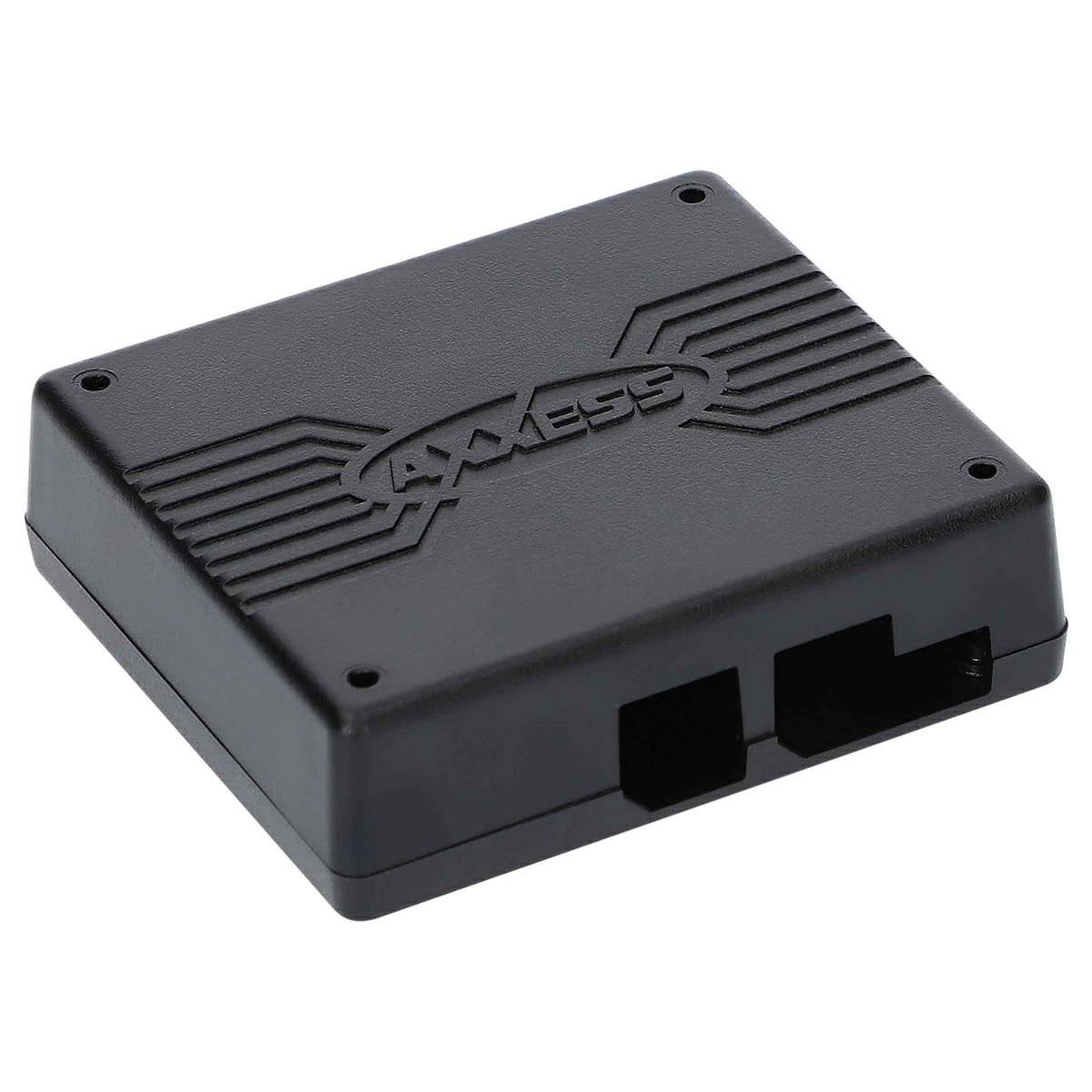

Camera Data Interface - Chevy | GMC 2015-2020 — AXAC-GM1
Sale price
$624.99
Regular price
$694.99
Unit price
Shipping calculated at checkout.
Key features
- For select Chevy / GMC 2015-2020
- Retains the factory backup camera while adding up to three additional CAN-activated cameras (4 total camera inputs)
- Programmable 12-volt, 5-amp switched output (configured via the Axxess Updater program)
- Four (4) programmable camera control wires (configured via the Axxess Updater program)

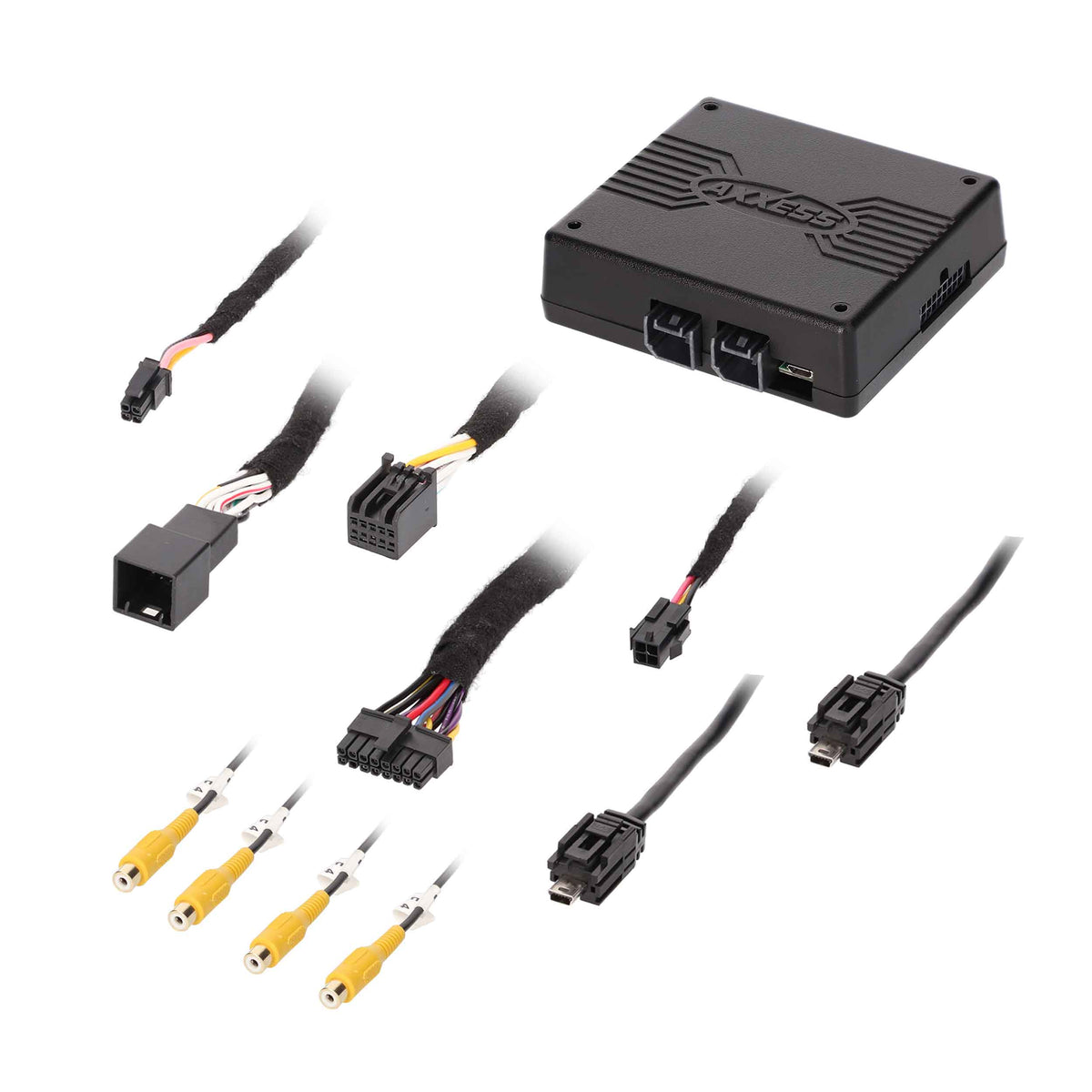

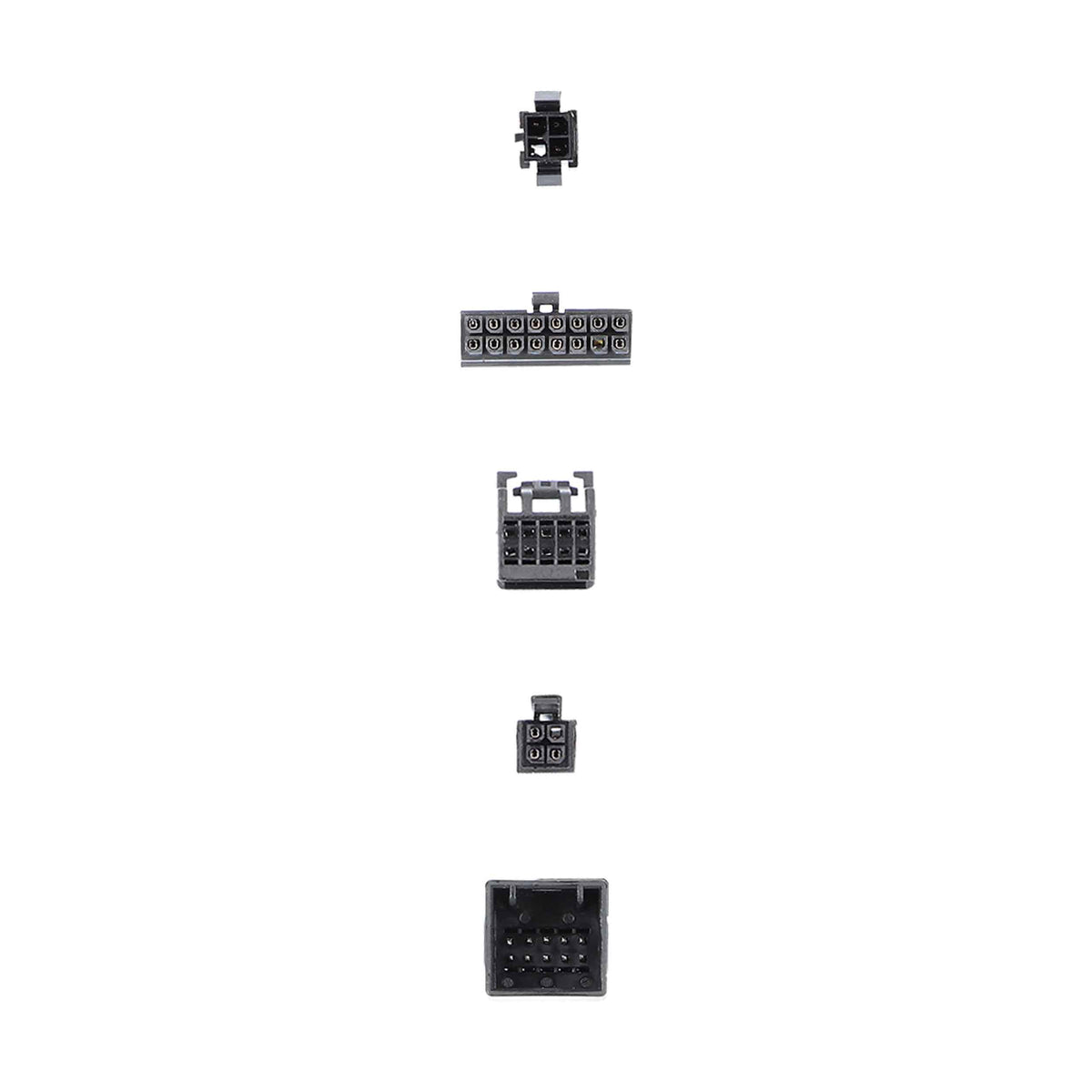

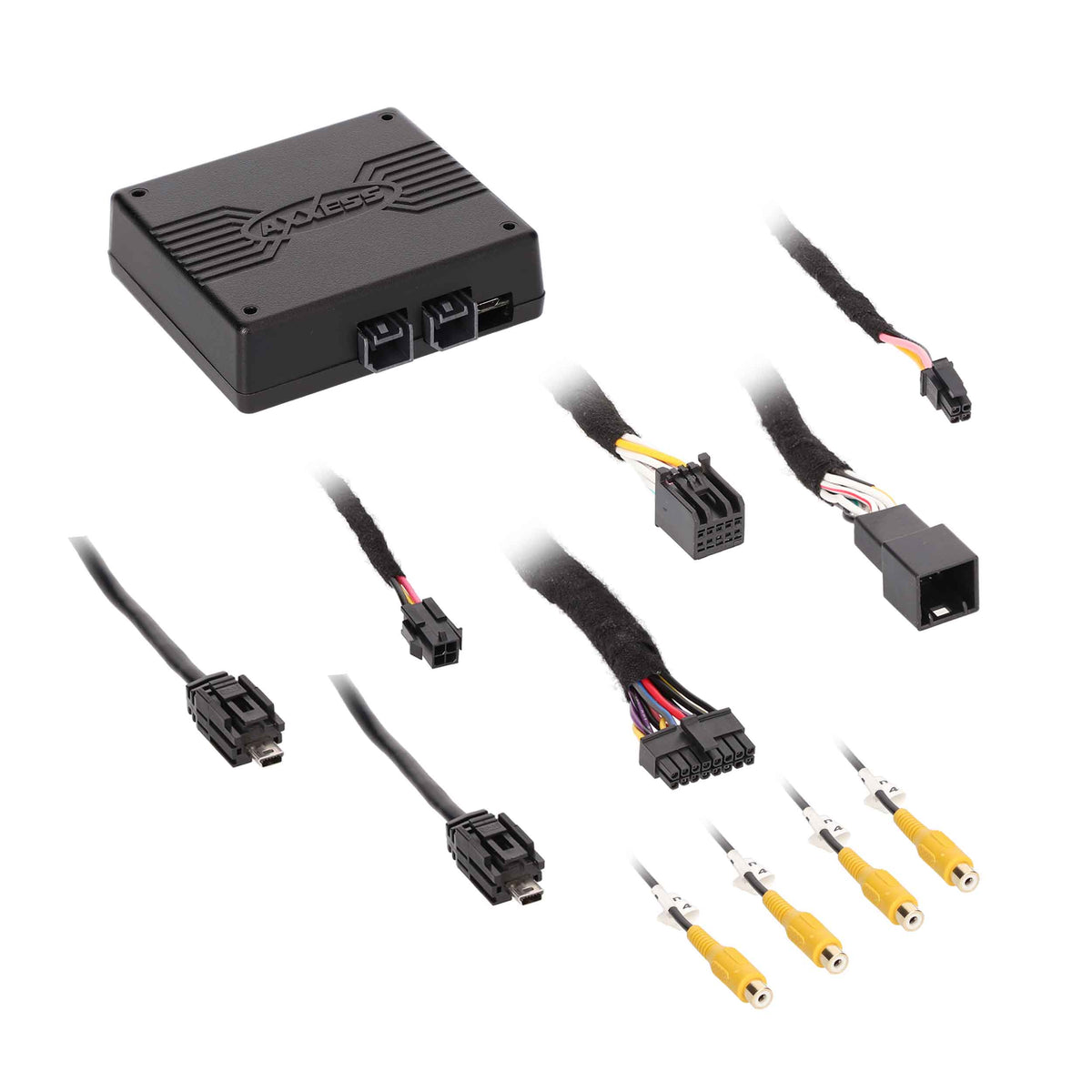

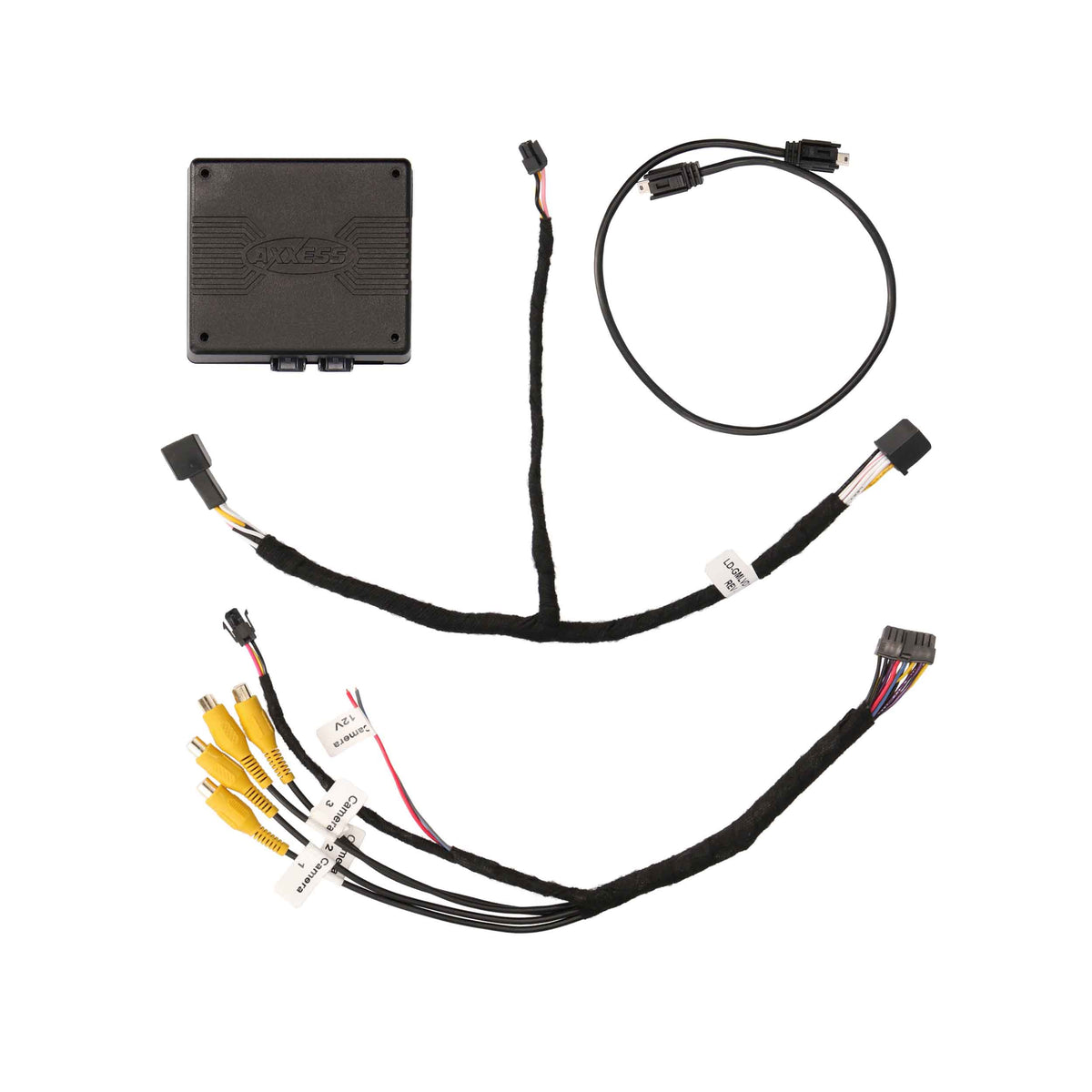

- Includes: Interface; Interface harness; (2) Vehicle harness
- Includes AXAC camera interface and vehicle-specific harness
Camera Data Interface - Chevy | GMC 2015-2020 — AXAC-GM1 is backordered and will ship as soon as it is back in stock.
Description
Description
The Axxess AXAC-GM1 camera interface integrates additional cameras with supported Chevrolet and GMC 8-inch MyLink screens using the IO5/IO6 configuration. Its manual covers selected 2015–2020 applications, not every vehicle in those years.
Camera switching
- Four total camera inputs: retains the original backup camera with up to three additional cameras.
- CAN-based reverse and turn-signal triggers, with programmable camera control wires.
- Programmable 12-volt, 5-amp switched output and vehicle-speed-sense input/output.
- Configuration requires the Axxess Updater and a separately sold AXUSB-MCBL cable.
Verify the exact model, year, screen size and radio option before installation. The package is an interface and harness solution; cameras are selected separately.
