Toyota 2001-2015 — AXAMP-TY1
Key features
- For select Toyota 2001-2015
- Designed for amplified systems
- Provides 6 channels of 5-volt RMS audio
- Non-fading full range output (channels 5 and 6)
- Input: 50W per channel
- Amp turn-on trigger (DC): 250mA
Toyota 2001-2015 — AXAMP-TY1 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add aftermarket amplifiers to a Toyota 2001–2015 while retaining the original radio and its features with the Axxess AXAMP-TY1 amplifier integration interface. It provides six channels of 5-volt RMS audio and includes an external bass knob for additional audio output level adjustments.
Key Features & Benefits
- Factory radio retention: Keep the vehicle’s original radio and features when adding aftermarket amplifiers.
- Six-channel output: Connect an amplified system using six channels of 5-volt RMS audio.
- External bass knob: Adjust additional audio output level from the included knob.
- Plug-and-play installation: The interface installs behind the radio and requires no programming.
- LED feedback: A dual-colored indicator light provides interface feedback.
Technical Specifications
| Product | Axxess AXAMP-TY1 amplifier integration interface |
|---|---|
| Vehicle application | Toyota 2001–2015 |
| System type | Designed for amplified systems |

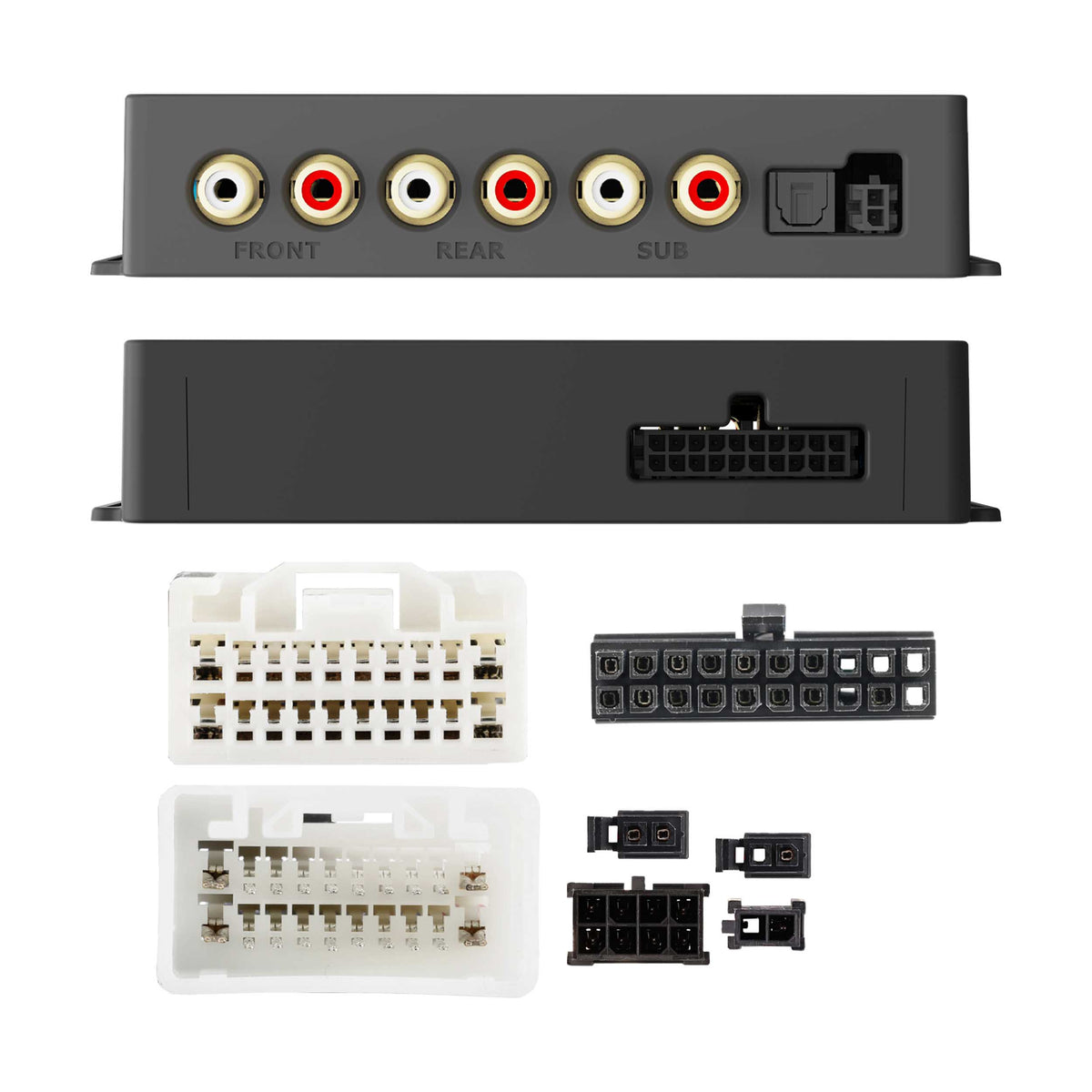

| Audio output | 6 channels of 5-volt RMS audio |
| Channels 5 and 6 | Non-fading full-range output |
| Input | 50W per channel |
| Amp turn-on trigger | DC: 250mA |
| S/PDIF output | 2-channel, front |
| Indicator | Dual-colored LED feedback light |
| Warranty | 1 year |

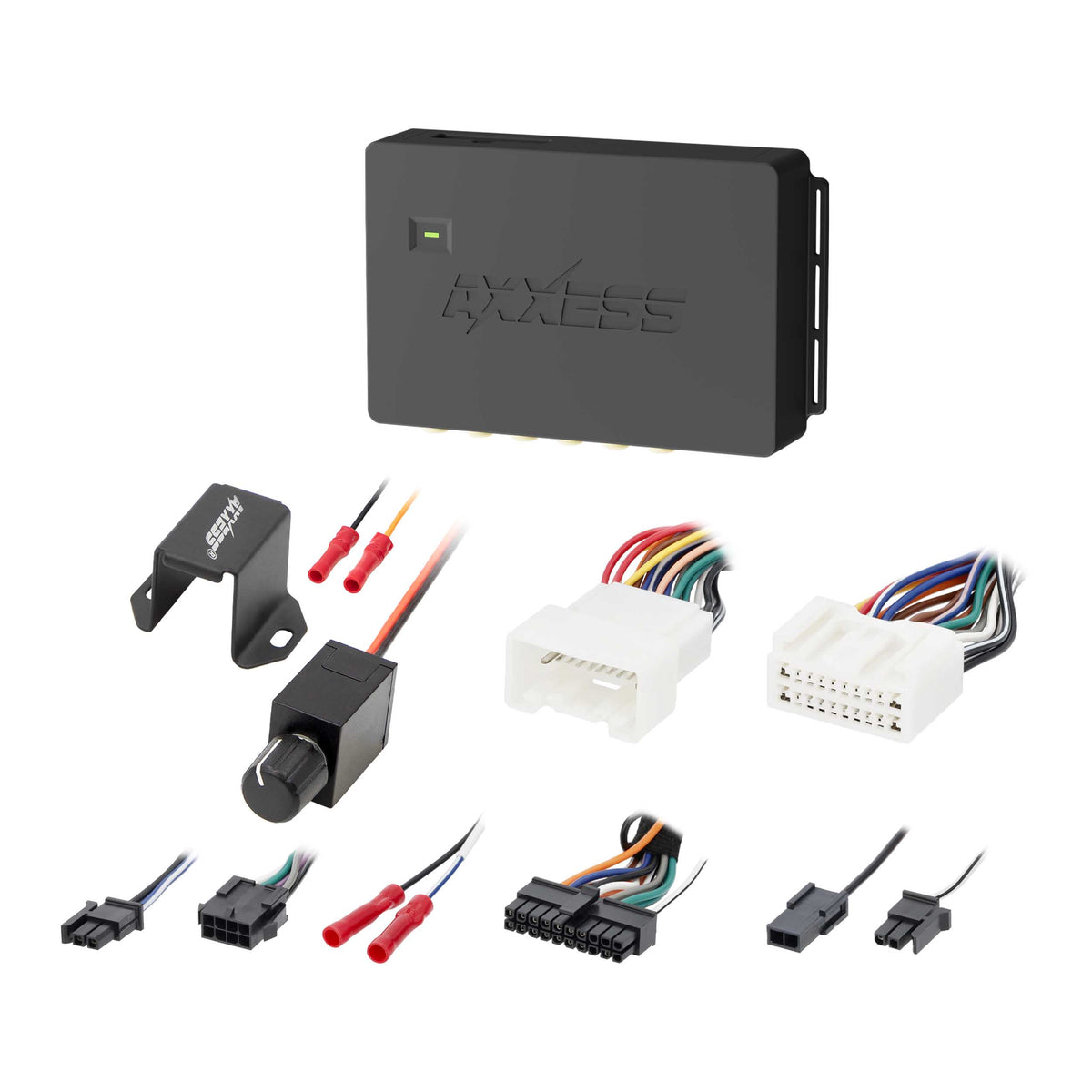

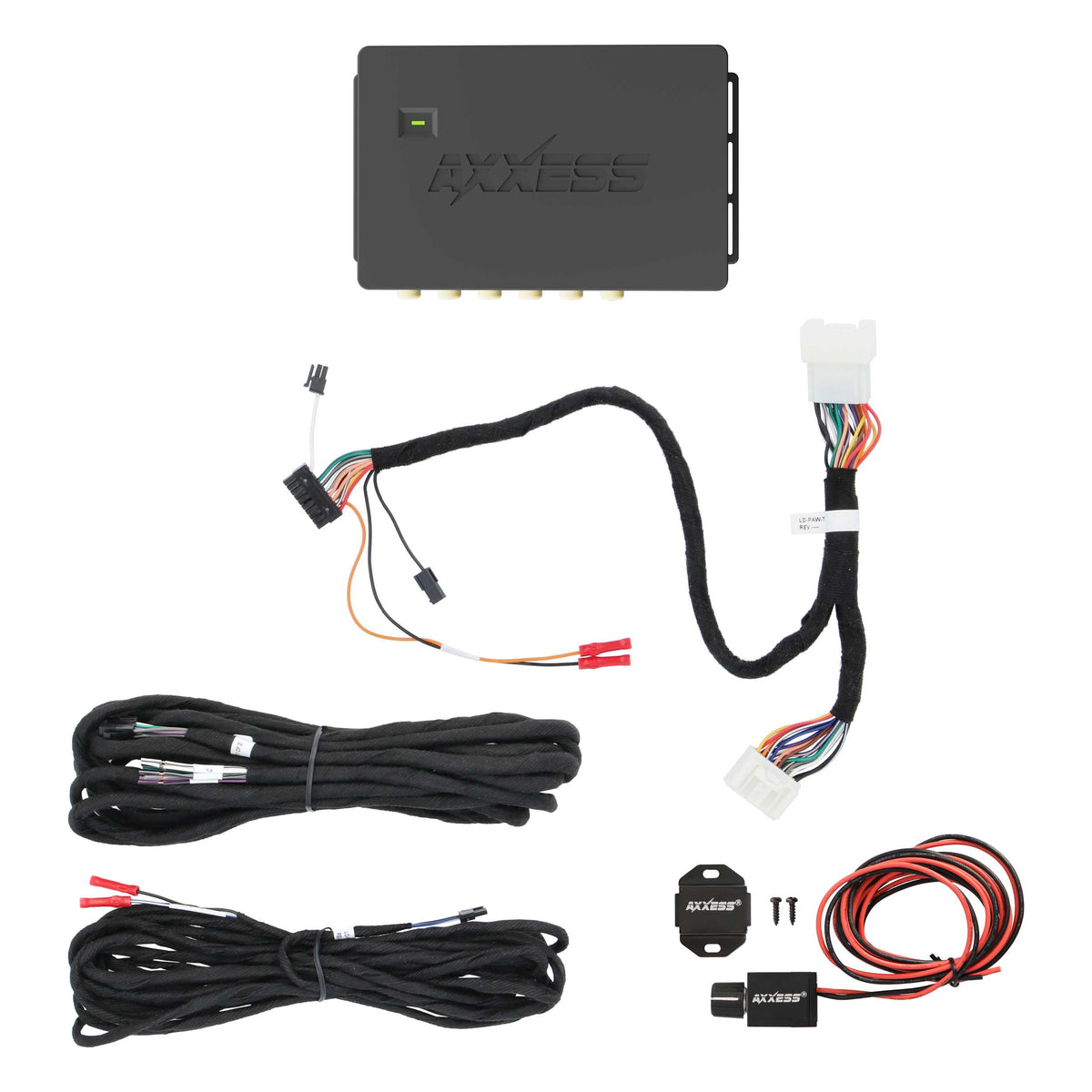

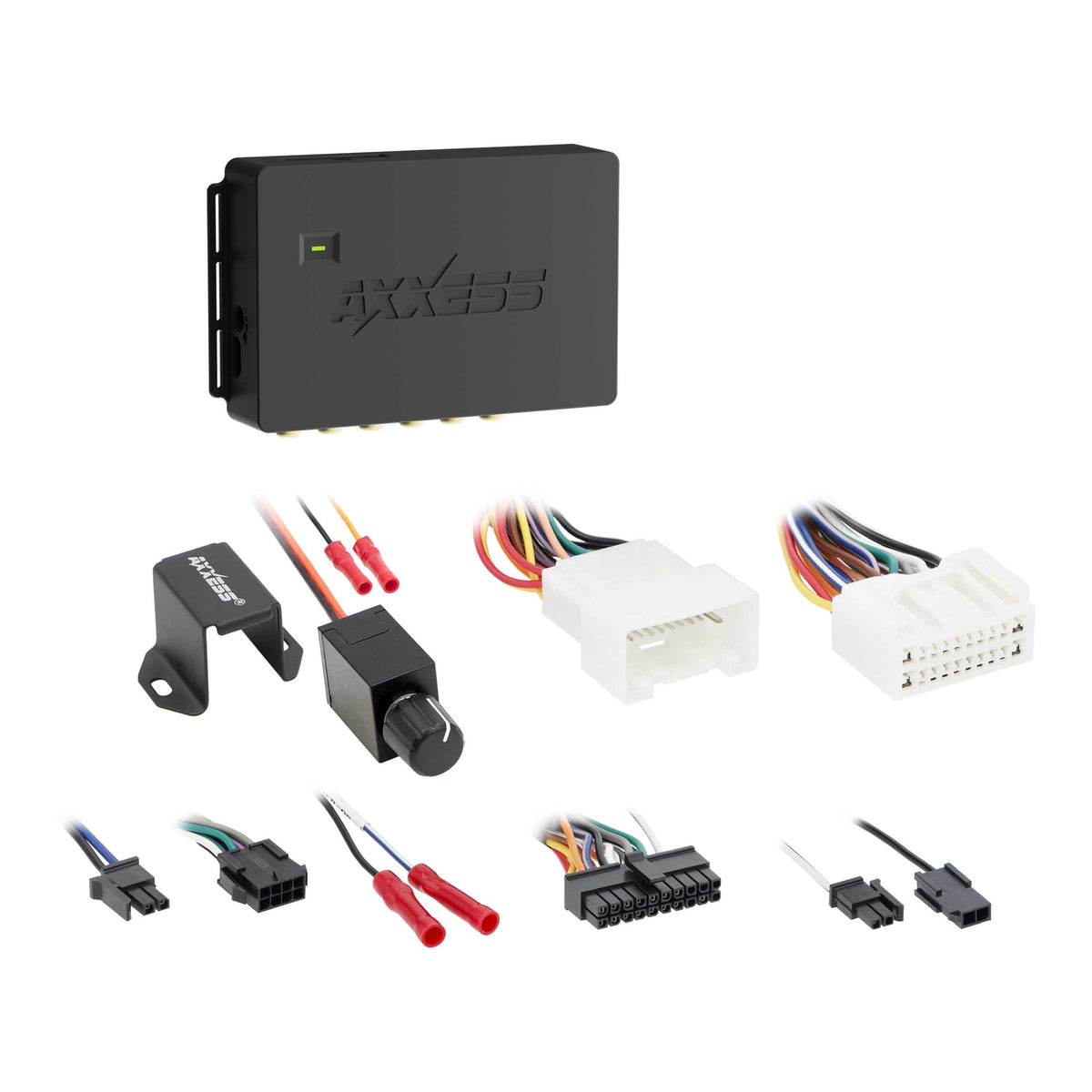

| Included | Amplifier integration interface, vehicle-specific T-harness, interface harness, bass knob, and instruction sheet |
Why Choose This Product?
The AXAMP-TY1 is designed to add aftermarket amplification without replacing the vehicle’s original radio. Its six-channel output and non-fading full-range output on channels 5 and 6 provide specified connection options for an amplified system.
Installation & Compatibility Notes
This interface is vehicle-specific for Toyota 2001–2015 and installs behind the radio. The described installation is plug-and-play, with no programming required. Check that your vehicle falls within the listed years and that your system’s connection requirements match the specifications above.
Frequently Asked Questions
Does the AXAMP-TY1 retain the factory radio?
Yes. It is designed to support aftermarket amplifier installation while retaining the original radio and vehicle features.
How many audio output channels does it provide?
It provides six channels of 5-volt RMS audio. Channels 5 and 6 have non-fading full-range output.
Does the installation require programming?
No programming is required. The interface is described as a plug-and-play installation behind the radio.
What comes with the interface?
The package includes the interface, vehicle-specific T-harness, interface harness, bass knob, and instruction sheet.
What is the warranty period?
The listed warranty is 1 year.
