Toyota 2003-2022 (non-amplified) — AXAMP-TY2
Key features
- For select Toyota 2003-2022 (non-amplified)
- Designed for non-amplified systems
- Provides 6 channels of 5-volt RMS audio
- Non-fading full range output (channels 5 and 6)
- Input: 50W per channel
- Amp turn-on trigger (DC): 250mA
Toyota 2003-2022 (non-amplified) — AXAMP-TY2 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add aftermarket amplifiers to a compatible Toyota while keeping the original radio and its features. The Axxess AXAMP-TY2 is a vehicle-specific, six-channel amplifier integration interface for 2003–2022 Toyota non-amplified systems.
Key Features & Benefits
- Six-channel, 5-volt RMS audio: Provides audio output for connecting aftermarket amplification.
- Non-fading full-range outputs: Channels 5 and 6 provide full-range audio without fading.
- External bass knob: Lets you adjust the additional audio output level.
- Plug-and-play installation: Connects behind the radio, with no programming required.
- Dual-colored LED: Provides visual feedback from the interface.

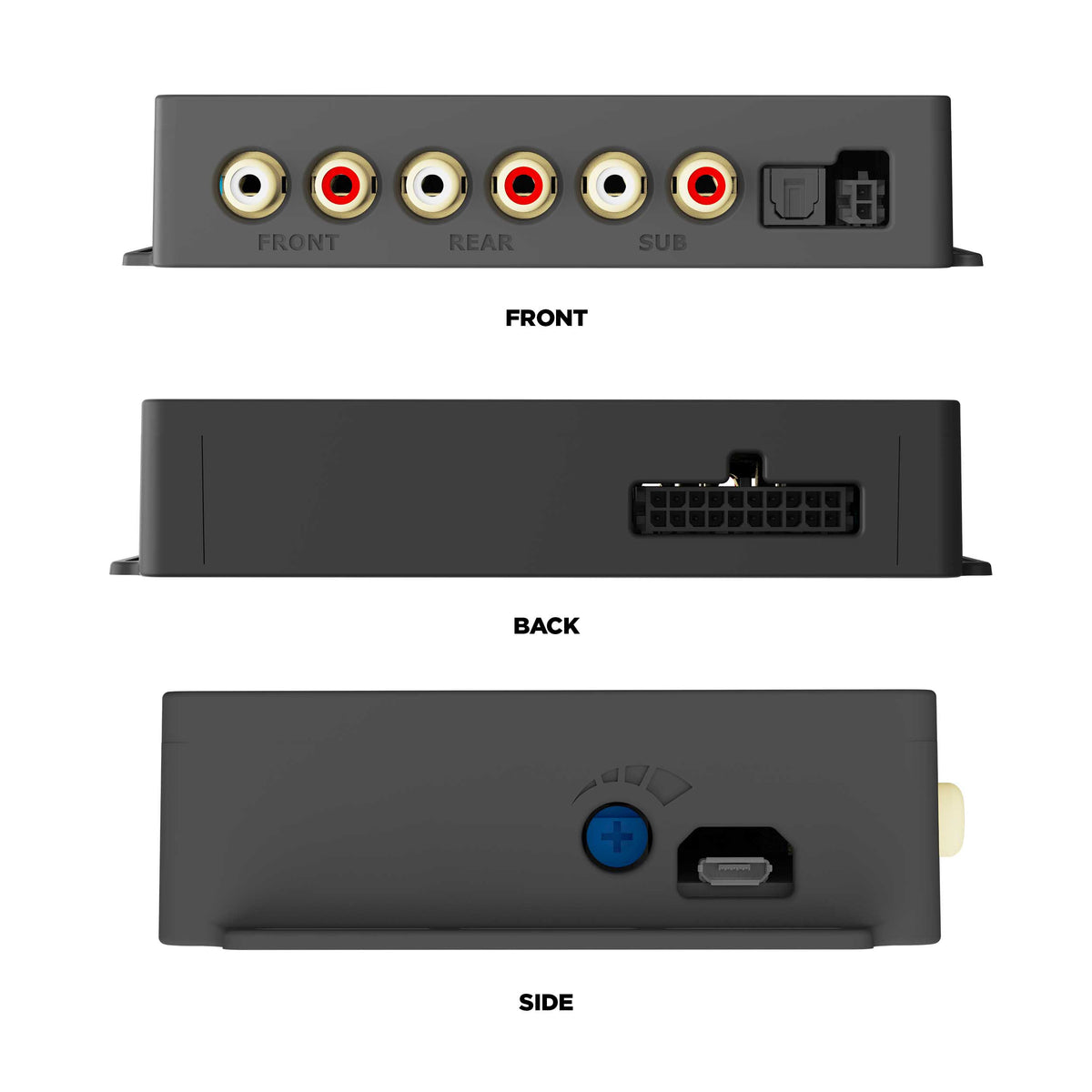

Technical Specifications
| Specification | Details |
|---|---|
| Model | AXAMP-TY2 |
| Vehicle application | Toyota 2003–2022, non-amplified |
| Audio channels | 6 |
| Audio output | 5-volt RMS |
| Non-fading full-range output | Channels 5 and 6 |
| Input | 50W per channel |
| Amp turn-on trigger (DC) | 250mA |
| S/PDIF output | 2-channel (front) |
| Warranty | 1 year |
| Installation | Plug-and-play behind the radio; no programming required |

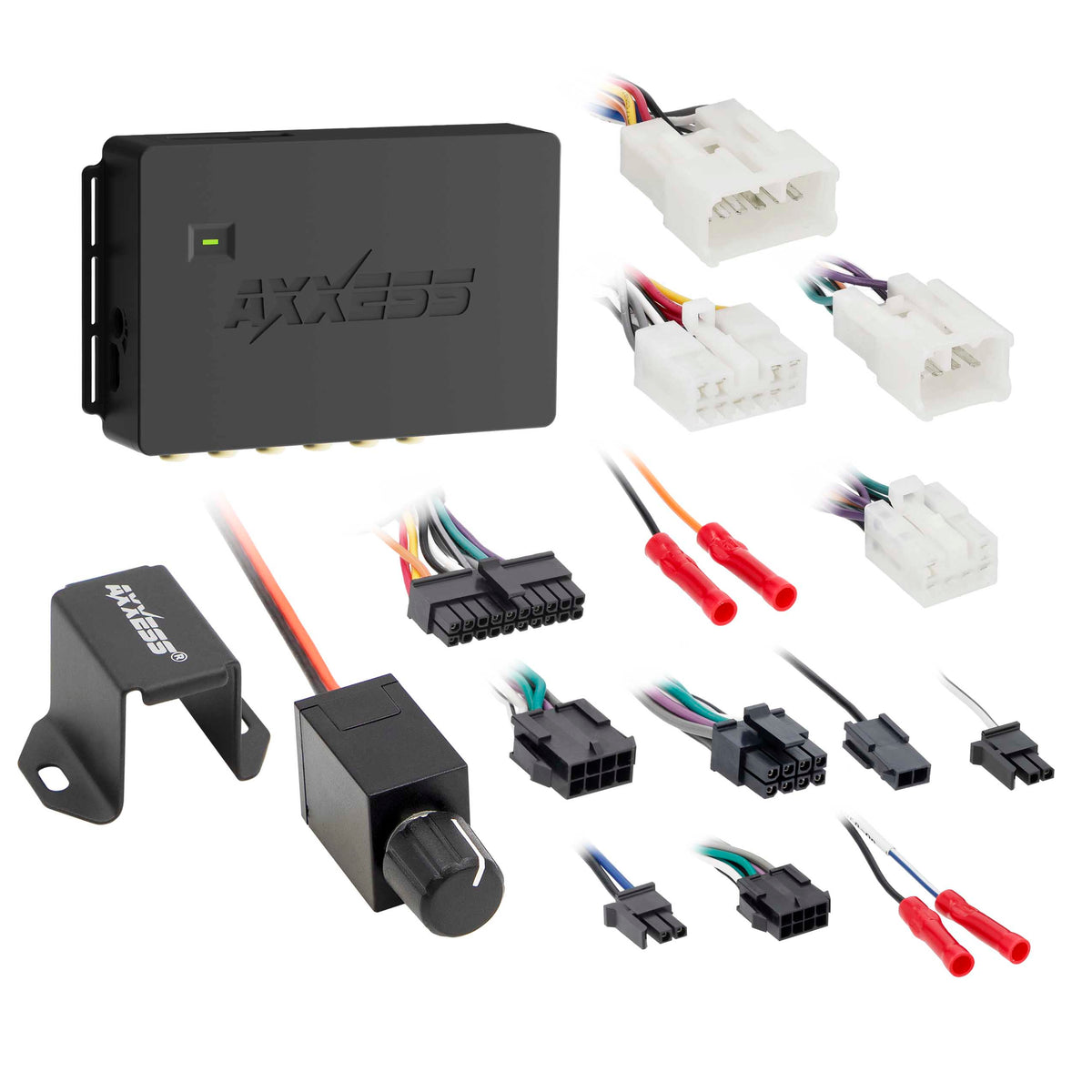

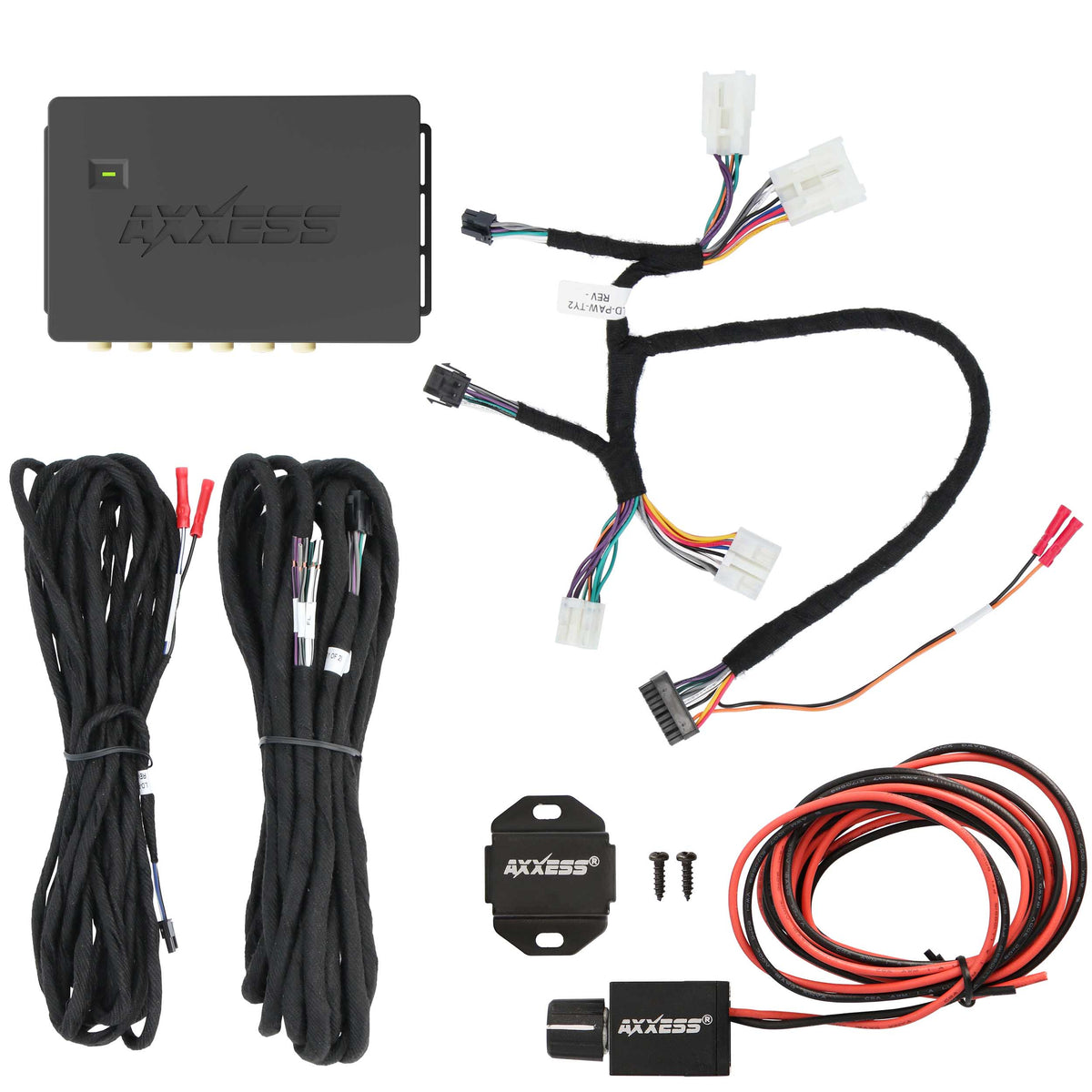

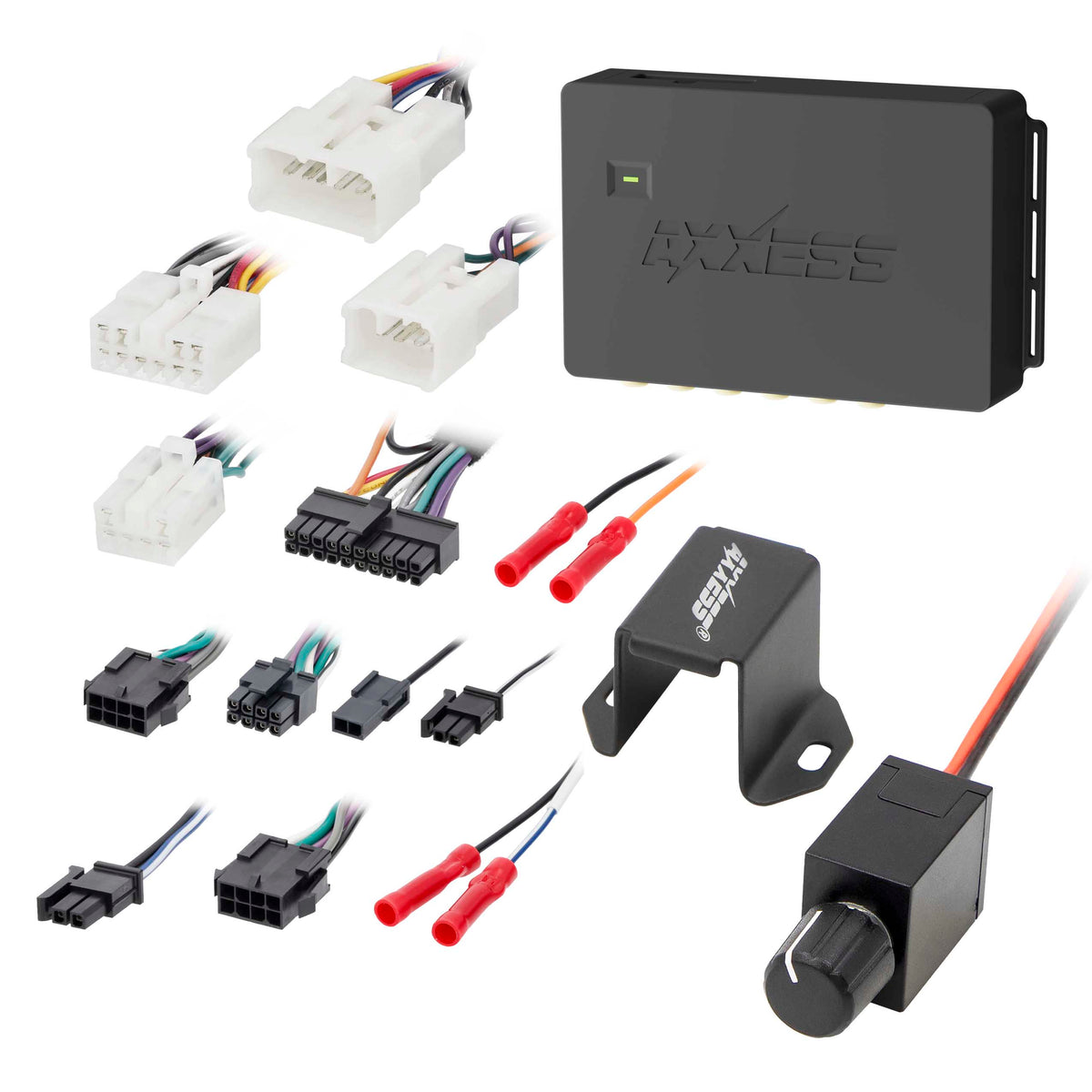

Included: amplifier integration interface, vehicle-specific T-harness, interface harness, bass knob, and instruction sheet.
Why Choose This Product?
The AXAMP-TY2 is designed to add aftermarket amplifiers while retaining the Toyota’s original radio and features. Its six-channel output and front two-channel S/PDIF output give you connection options when planning an upgraded audio system.
The included bass knob provides an external way to adjust additional audio output level from the installed system.
Installation & Compatibility Notes

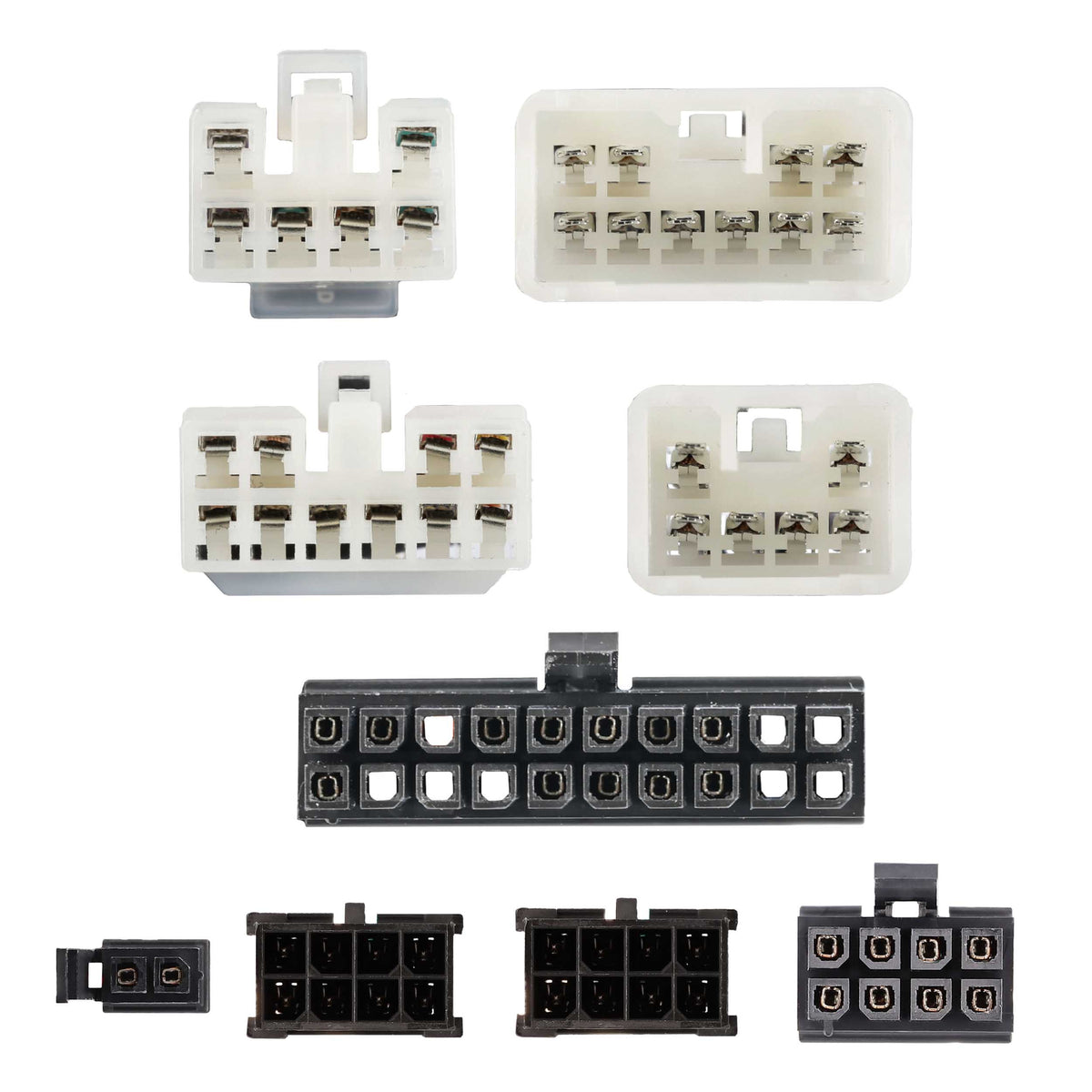

This interface is intended for Toyota vehicles from 2003 through 2022 with non-amplified systems. It installs behind the radio using the included vehicle-specific T-harness and requires no programming. Check that your vehicle has a non-amplified system before selecting this interface.
Frequently Asked Questions
Which vehicles is the AXAMP-TY2 designed for?
It is listed for 2003–2022 Toyota vehicles with non-amplified systems.
How many audio channels does the interface provide?
It provides six channels of 5-volt RMS audio. Channels 5 and 6 are non-fading full-range outputs.
Does installation require programming?
No. The interface is designed for plug-and-play installation behind the radio and requires no programming.
What comes in the package?
The package includes the amplifier integration interface, vehicle-specific T-harness, interface harness, bass knob, and instruction sheet.
