Metra | SKU:
AXAMP-TY5
$45.00 off
Toyota 2022-Up — AXAMP-TY5
Sale price
$399.99
Regular price
$444.99
Unit price
Shipping calculated at checkout.
Key features
- For select Toyota 2022-Up
- Designed for non-amplified and amplified systems
- Provides 6 channels of 5-volt RMS audio
- Non-fading full-range output (channels 5 and 6)
- Input: 50W per channel
- Amp turn on trigger (DC): 250mA
Toyota 2022-Up — AXAMP-TY5 is backordered and will ship as soon as it is back in stock.
Description
Description
The Axxess AXAMP-TY5 amplifier integration interface is listed for Toyota 2022-Up applications.
Compatibility and connections
- System requirement: non-amplified and amplified systems.
- Six audio output channels rated at 5 volts RMS.
- Channels 5 and 6 provide a non-fading, full-range output.
- Plug-in installation behind the radio.
- No initial programming required.
- Dual-colored LED feedback light.
- Input rating: 50 watts per channel.
- Amp turn on trigger (DC): 250mA.
- 2-channel S/PDIF out (front).

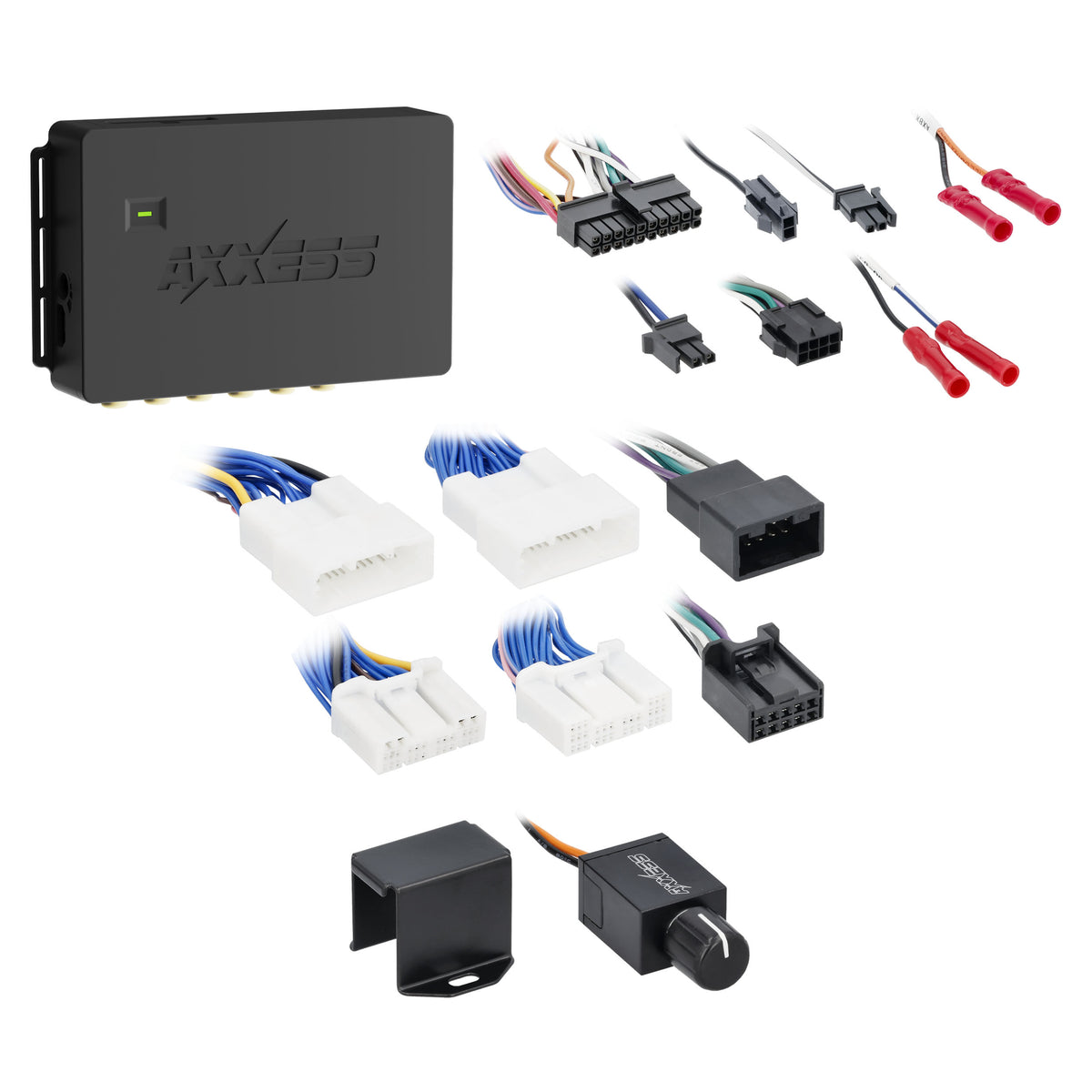

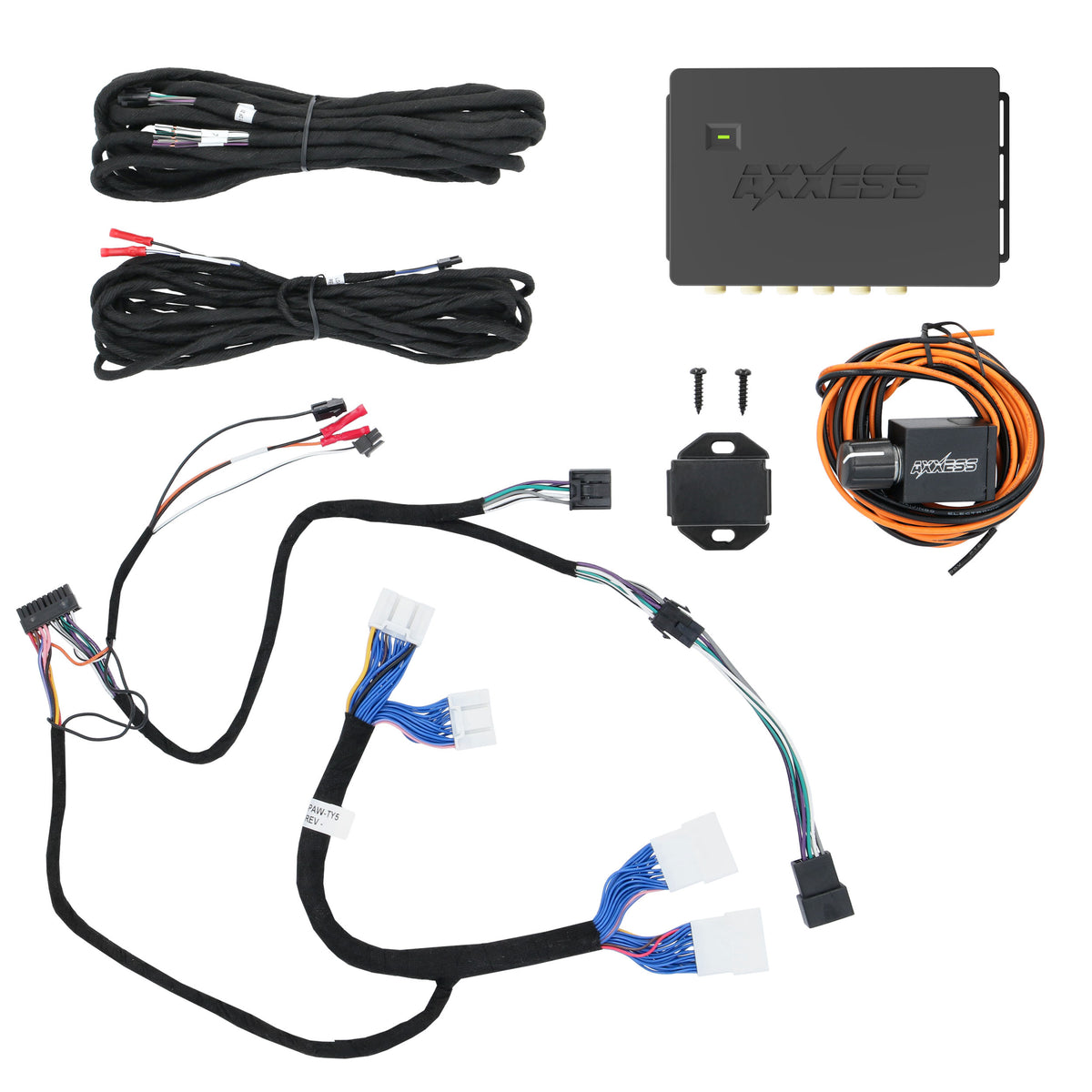

- Amplifier integration interface.

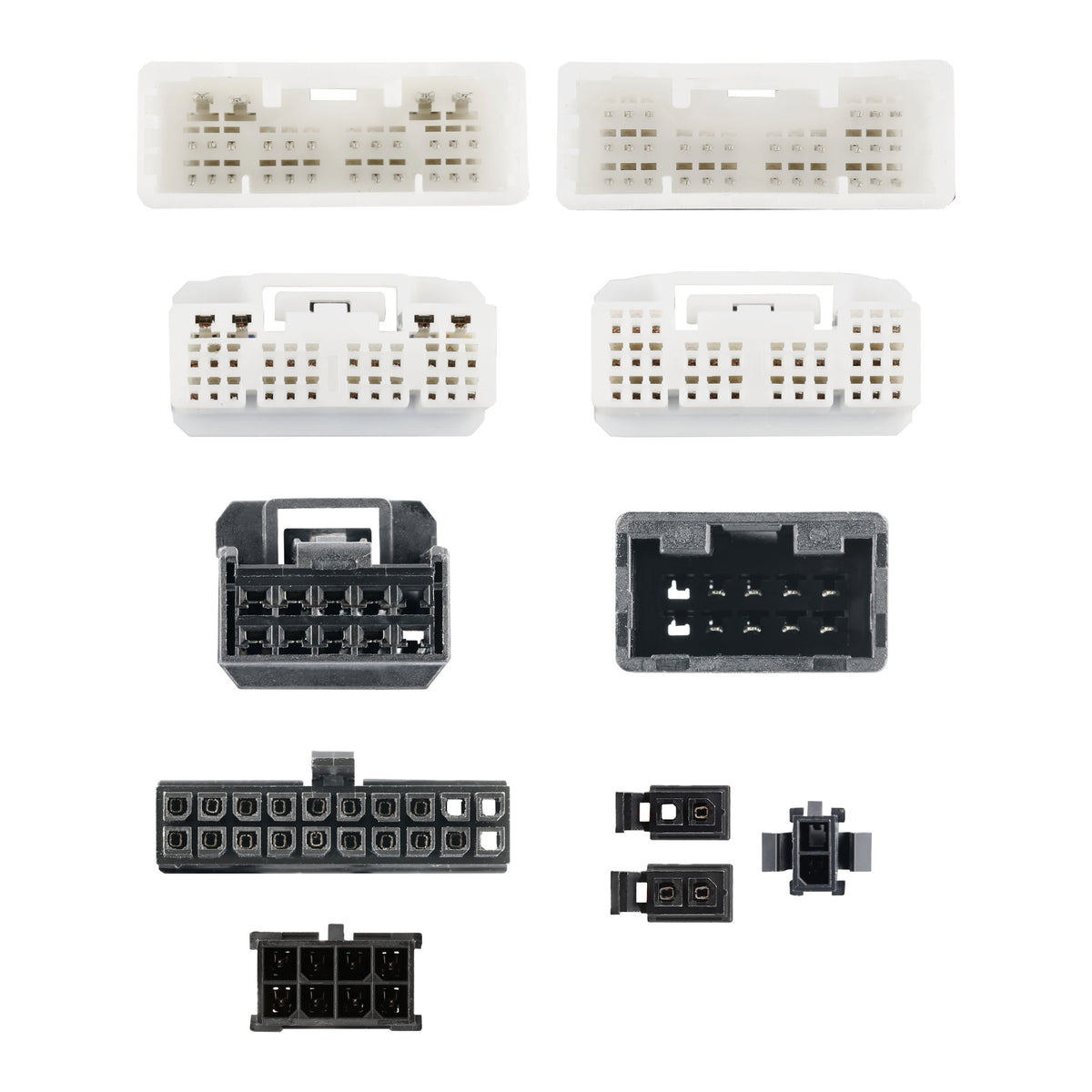

- Vehicle-specific T-harness.
- Interface harness.
- Bass knob.
- Instruction sheet.
Check whether the vehicle has a factory amplifier before ordering. Match the receiving amplifier inputs to the listed signal outputs; the interface does not supply speaker-driving amplifier power.
