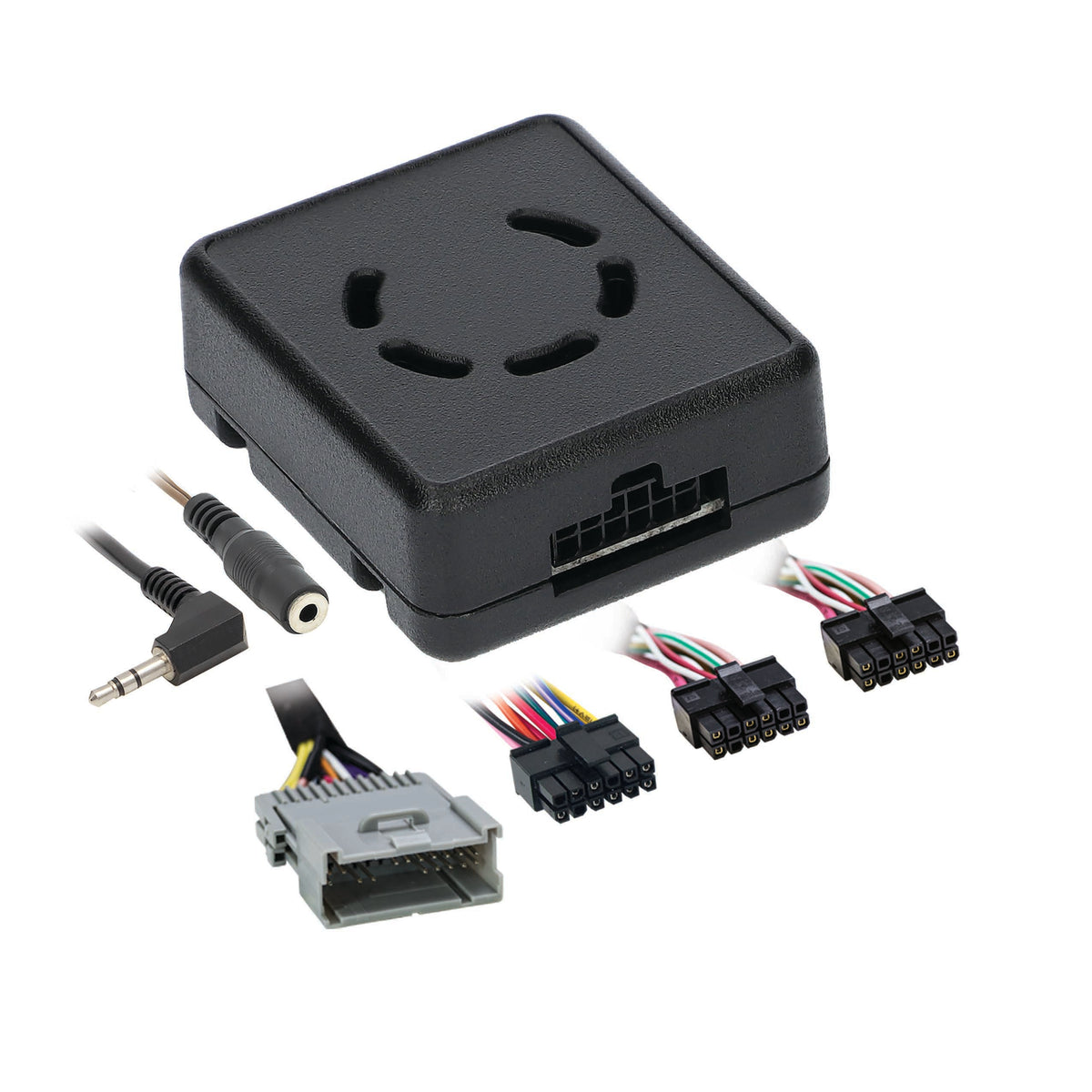

Data Interface - GM 2000-2014 — AXDI-CL2
Key features
- For select GM 2000-2014
- Designed for non-amplified systems or bypassing a factory amplifier
- Pre-wired for Axxess SWC interface (sold separately)
- Note: If your vehicle is equipped with steering wheel controls and you wish to retain them, the required steering wheel control interface must be purchased separately
- Retains R.A.P. (Retained Accessory Power); Retains all warning chimes through onboard speaker; Retains audible blind spot detection system; Retains balance & fade
- Provides accessory power (12-volt 10-amp)
Data Interface - GM 2000-2014 — AXDI-CL2 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Keep select factory features when adding an aftermarket radio to a supported GM vehicle with the AXDI-CL2 data interface. It provides retained accessory power, accessory power, and navigation-related outputs while supporting features such as factory warning chimes and audible blind spot detection in applicable vehicles.
Key Features & Benefits
- Retained accessory power: Keeps the vehicle’s R.A.P. function available after the radio installation.
- Accessory power: Supplies 12-volt, 10-amp accessory power for the aftermarket radio installation.
- Navigation outputs: Provides parking brake, reverse, and speed-sense outputs for compatible equipment.
- Factory feature retention: Retains warning chimes through an onboard speaker and audible blind spot detection in supported vehicles.
- Vehicle-specific updates: The Micro “B” USB port allows the interface to be updated with the latest vehicle applications.
- Steering wheel control preparation: It is pre-wired for an Axxess steering wheel control interface, sold separately.
Technical Specifications
| Model | AXDI-CL2 |
|---|---|
| Vehicle application | GM, 2000–2014 |
| Accessory power | 12-volt, 10-amp |
| Retained accessory power | Yes |
| NAV outputs | Parking brake, reverse, speed sense |
| Factory system design | Non-amplified systems or bypassing a factory amplifier |
| Retained features | Warning chimes through onboard speaker; audible blind spot detection system; balance and fade |
| Steering wheel control connection | Pre-wired for Axxess SWC interface; sold separately |
| Update port | Micro “B” USB |
| Warranty | 1-year limited warranty |
Why Choose This Product?
Replacing a factory radio can affect vehicle functions beyond audio. The AXDI-CL2 combines accessory power and navigation outputs with retention of select factory features, helping address those needs in one interface. Its stated system design covers non-amplified systems or installations that bypass a factory amplifier.
Installation & Compatibility Notes
This interface is listed for GM applications from 2000–2014. Check the application for your exact vehicle and radio setup before installation. It is designed for non-amplified systems or for bypassing a factory amplifier.
If you want to retain steering wheel controls, purchase the required Axxess steering wheel control interface separately. The AXDI-CL2 is pre-wired for that interface; the steering wheel control interface is not included.
Frequently Asked Questions
Does the AXDI-CL2 retain steering wheel controls by itself?
No. The required Axxess steering wheel control interface must be purchased separately.
What navigation-related outputs does it provide?
It provides outputs for the parking brake, reverse, and speed sense.
Will it retain factory warning chimes and blind spot detection?
It retains warning chimes through its onboard speaker and audible blind spot detection in supported vehicles.
Can it be used with a factory amplifier?
It is designed for non-amplified systems or for installations that bypass a factory amplifier.
