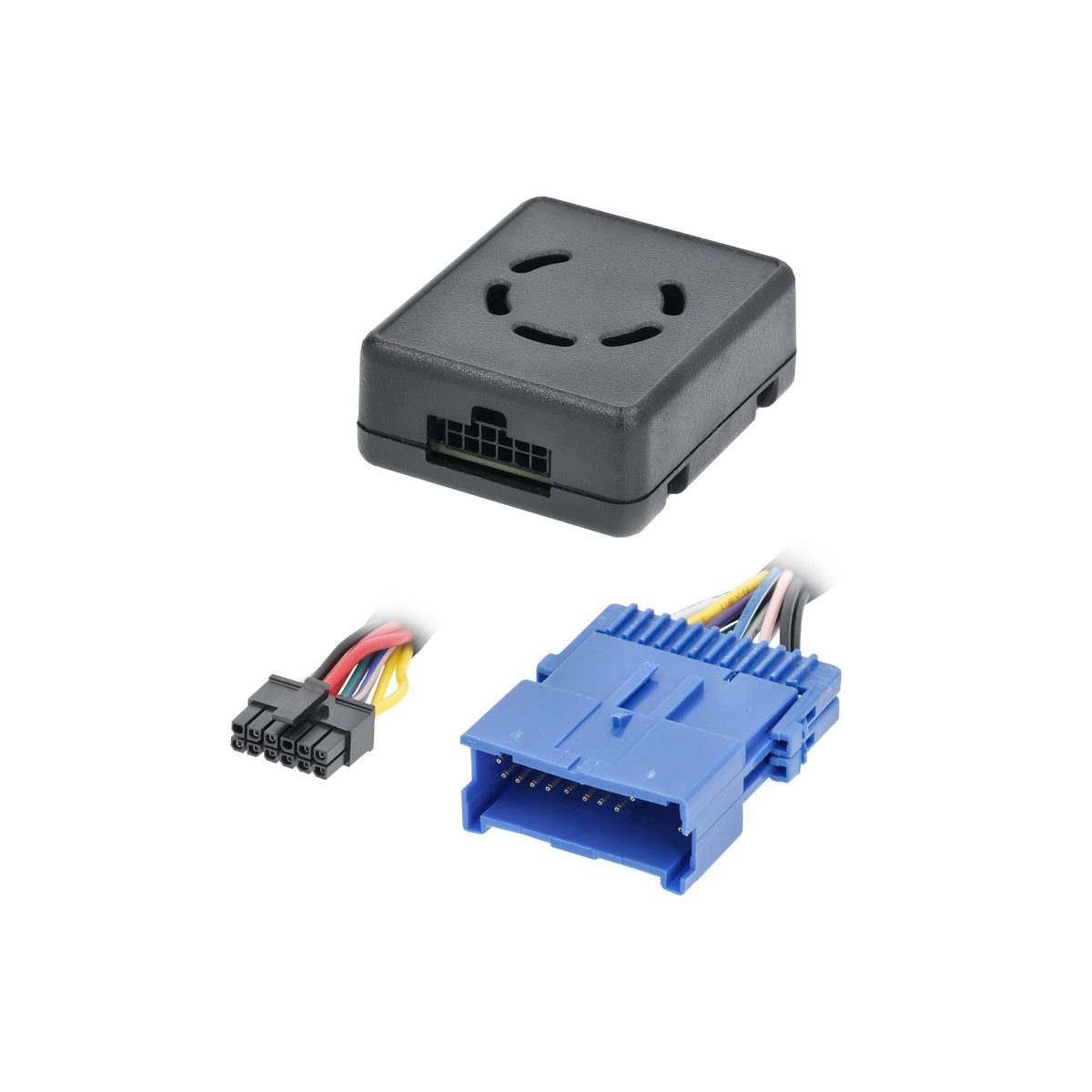

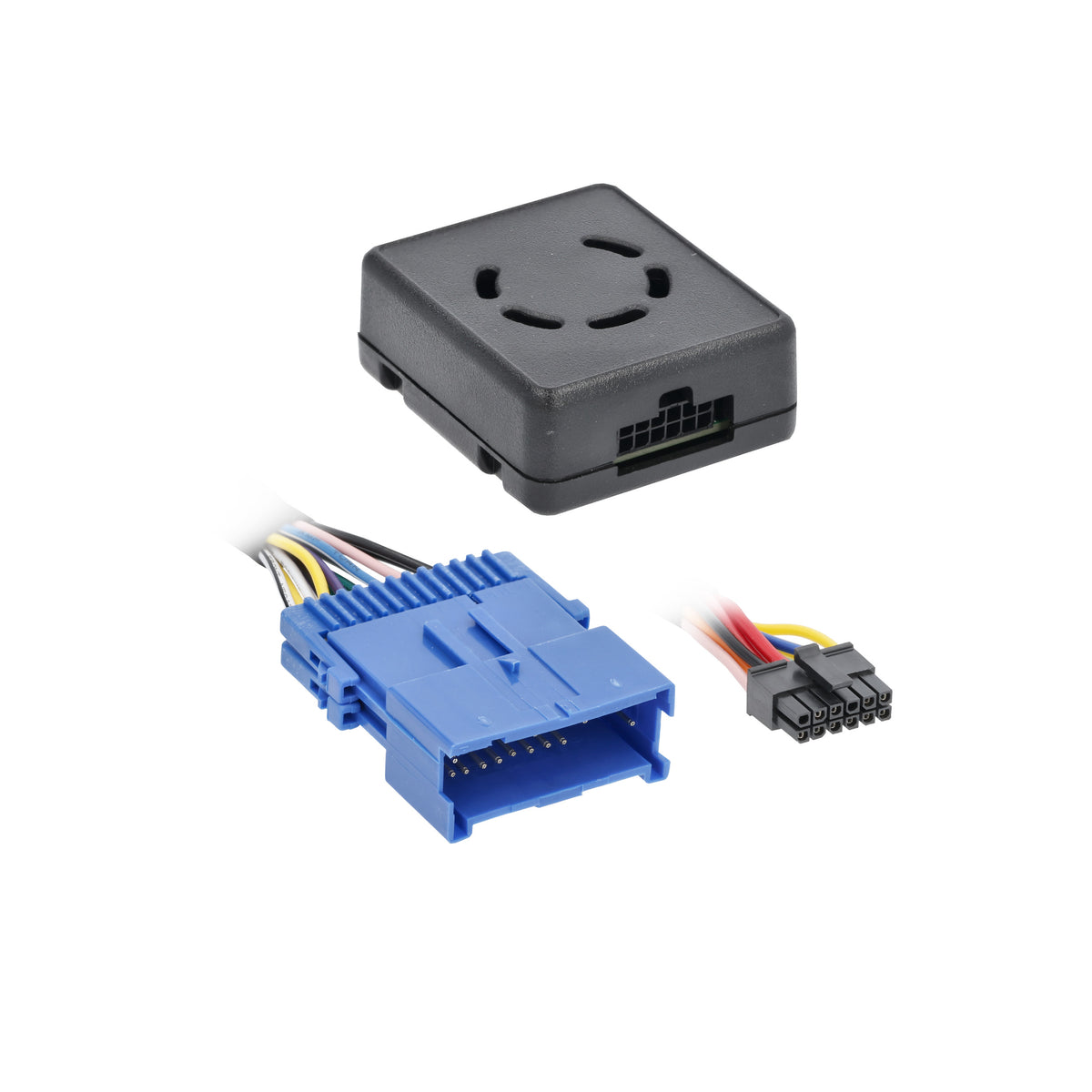

Data Interface - Chevy Equinox 2005-2006 — AXDI-GM5
Key features
- For select Chevy Equinox 2005-2006
- Designed for non-amplified systems or bypassing a factory amplifier; for vehicles without or not retaining OnStar
- Retains R.A.P. (Retained Accessory Power); Retains factory chimes; Retains all warning chimes through onboard speaker; Retains balance & fade
- Provides accessory power (12-volt 10-amp)
- Provides NAV outputs (parking brake, reverse, speed sense)
- NOT pre-wired for the Axxess SWC
Data Interface - Chevy Equinox 2005-2006 — AXDI-GM5 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Keep select factory features when installing an aftermarket radio in a 2005–2006 Chevrolet Equinox with the AXDI-GM5 data interface. It provides retained accessory power, accessory power, and navigation outputs for parking brake, reverse, and speed sense.
Key Features & Benefits
- Retained accessory power: Keeps the vehicle’s R.A.P. feature available after the radio installation.
- Accessory power: Supplies 12-volt, 10-amp accessory power.
- Navigation outputs: Provides parking brake, reverse, and speed-sense outputs.
- Factory feature retention: Retains factory chimes, warning chimes through the onboard speaker, and balance and fade.
- System flexibility: Designed for non-amplified systems or for bypassing a factory amplifier.
- USB updating: A Micro “B” USB connection supports updates.
Technical Specifications
| Product | Data interface |
|---|---|
| Model | AXDI-GM5 |
| Vehicle fitment | Chevrolet Equinox, 2005–2006 |
| System design | Non-amplified systems or bypassing a factory amplifier |
| Accessory power | 12-volt, 10-amp |
| Retained feature | Retained Accessory Power (R.A.P.) |
| NAV outputs | Parking brake, reverse, speed sense |
| Additional features | High-level speaker input; retains factory chimes, all warning chimes through onboard speaker, and balance & fade |

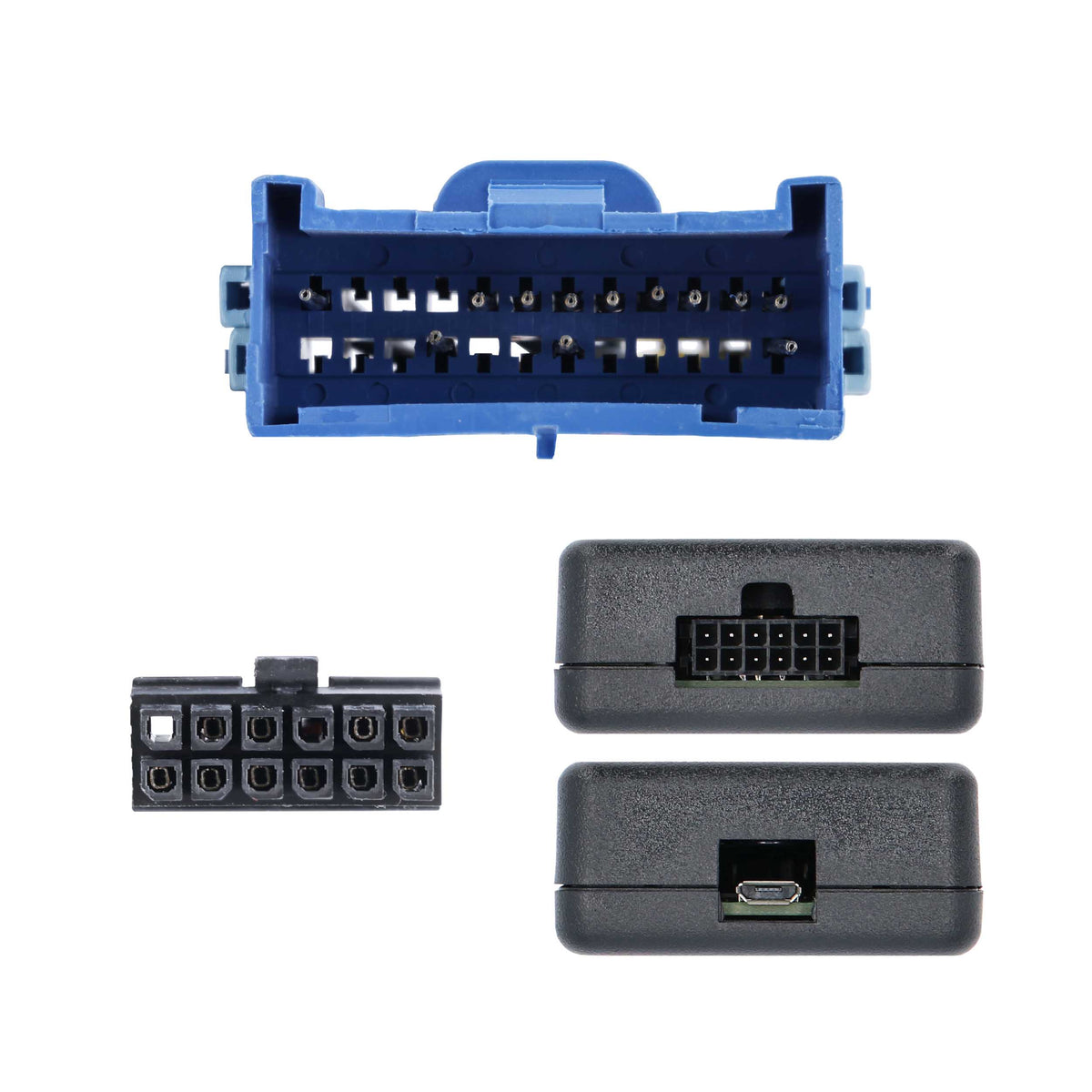

| USB connection | Micro “B” USB, updatable |
| Warranty | 1-year limited warranty |
The interface is designed for vehicles without OnStar, or where OnStar is not being retained. It is not pre-wired for the Axxess SWC.
Why Choose This Product?
The AXDI-GM5 brings key factory functions into an aftermarket-radio installation, including R.A.P., factory chimes, and balance and fade. Its high-level speaker input and support for non-amplified systems or factory-amplifier bypass provide defined installation options.
Installation & Compatibility Notes
This model is listed for 2005–2006 Chevrolet Equinox vehicles. Confirm the vehicle’s audio system configuration and whether OnStar will be retained before selecting the interface. The AXDI-GM5 is not pre-wired for the Axxess SWC.
Frequently Asked Questions
Which vehicles is the AXDI-GM5 listed for?
It is listed for the 2005–2006 Chevrolet Equinox.
Does it provide power for an aftermarket radio installation?
It provides 12-volt, 10-amp accessory power and retains R.A.P.
Which navigation outputs are included?
The interface provides parking brake, reverse, and speed-sense outputs.
Does it work with a factory-amplified system?
It is designed for non-amplified systems or for bypassing a factory amplifier.
Is the interface pre-wired for steering wheel controls?
No. It is not pre-wired for the Axxess SWC.
Does it retain OnStar?
It is designed for vehicles without OnStar or where OnStar is not being retained.
