Data Interface with SWC - GM 2016-2021 — AXDIS-GMLN10BT
Key features
- For select GM 2016-2021
- Designed for non-amplified systems with RPO IOA/IOB
- Retains R.A.P. (Retained Accessory Power); Retains and controls personalization settings via Bluetooth® wireless technology when used with the free downloadable AX-CUSTOM-BT app for smartphones and tablets; Retains audio controls on the steering wheel
- Retains OnStar® with adjustable volume or SYNC® if equipped; Retains OEM Bluetooth® connectivity if equipped; Retains safety chimes with adjustable gain control; Retains factory backup camera, 3.5mm AUX-IN jack, and balance & fade
- Provides accessory power (12-volt 10-amp)

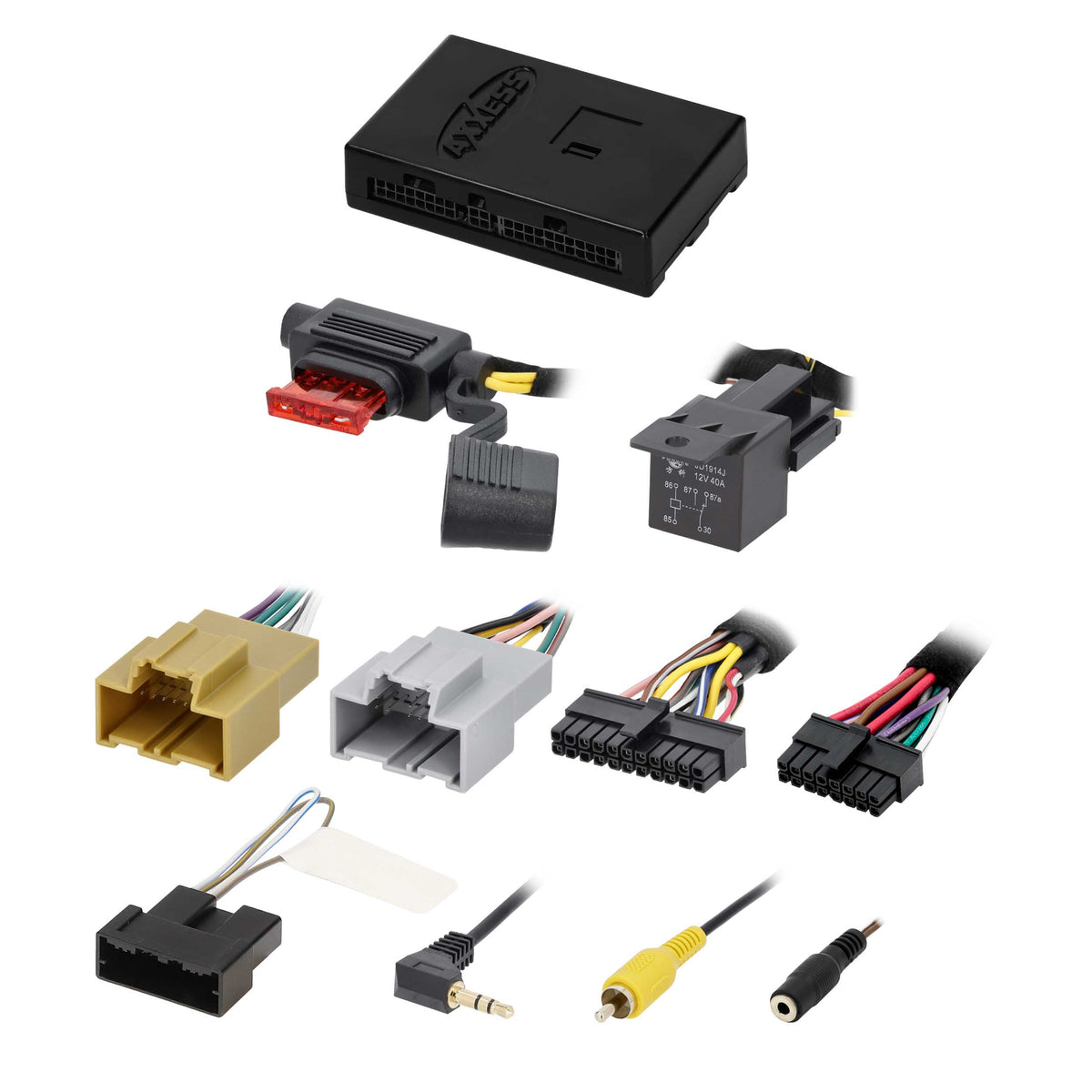

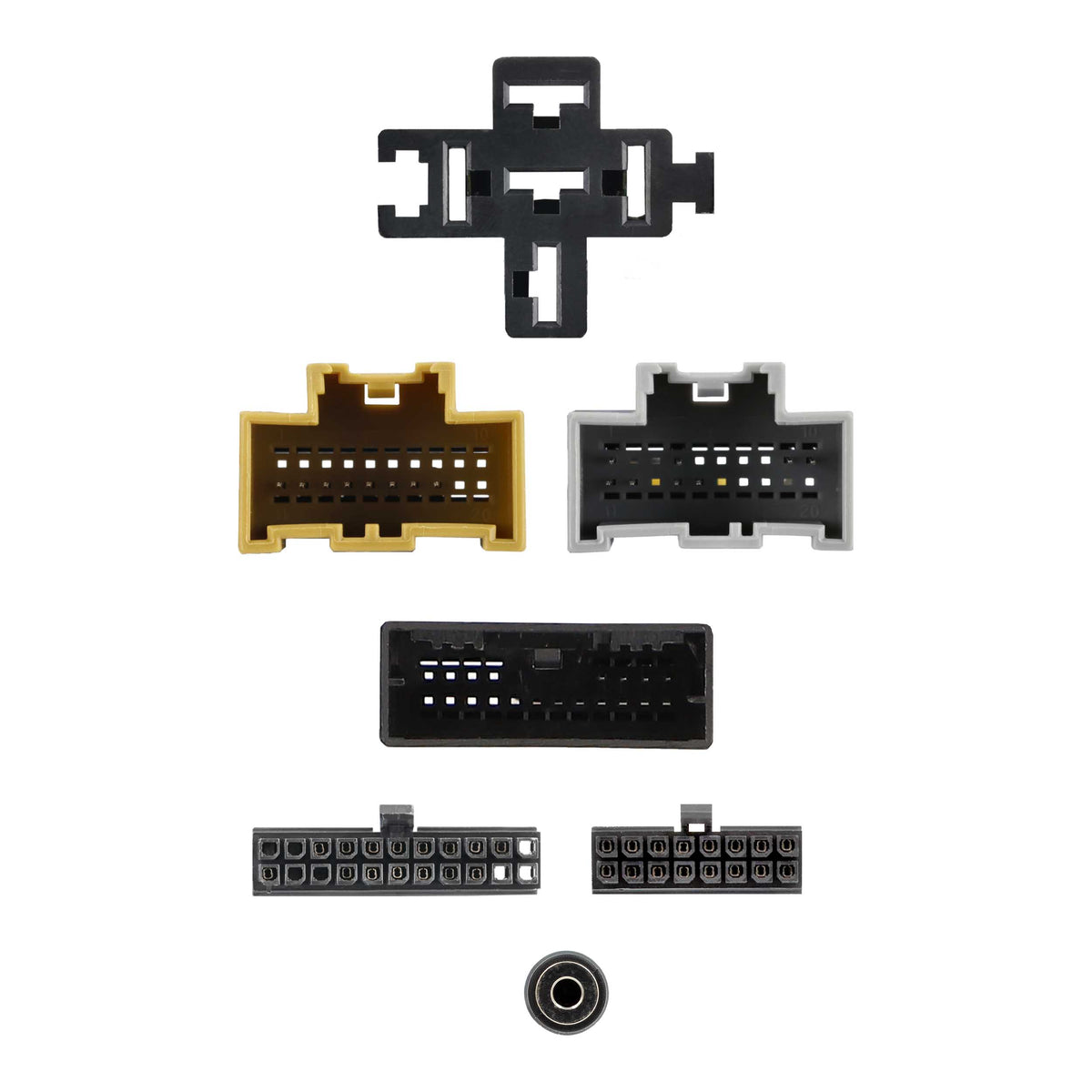

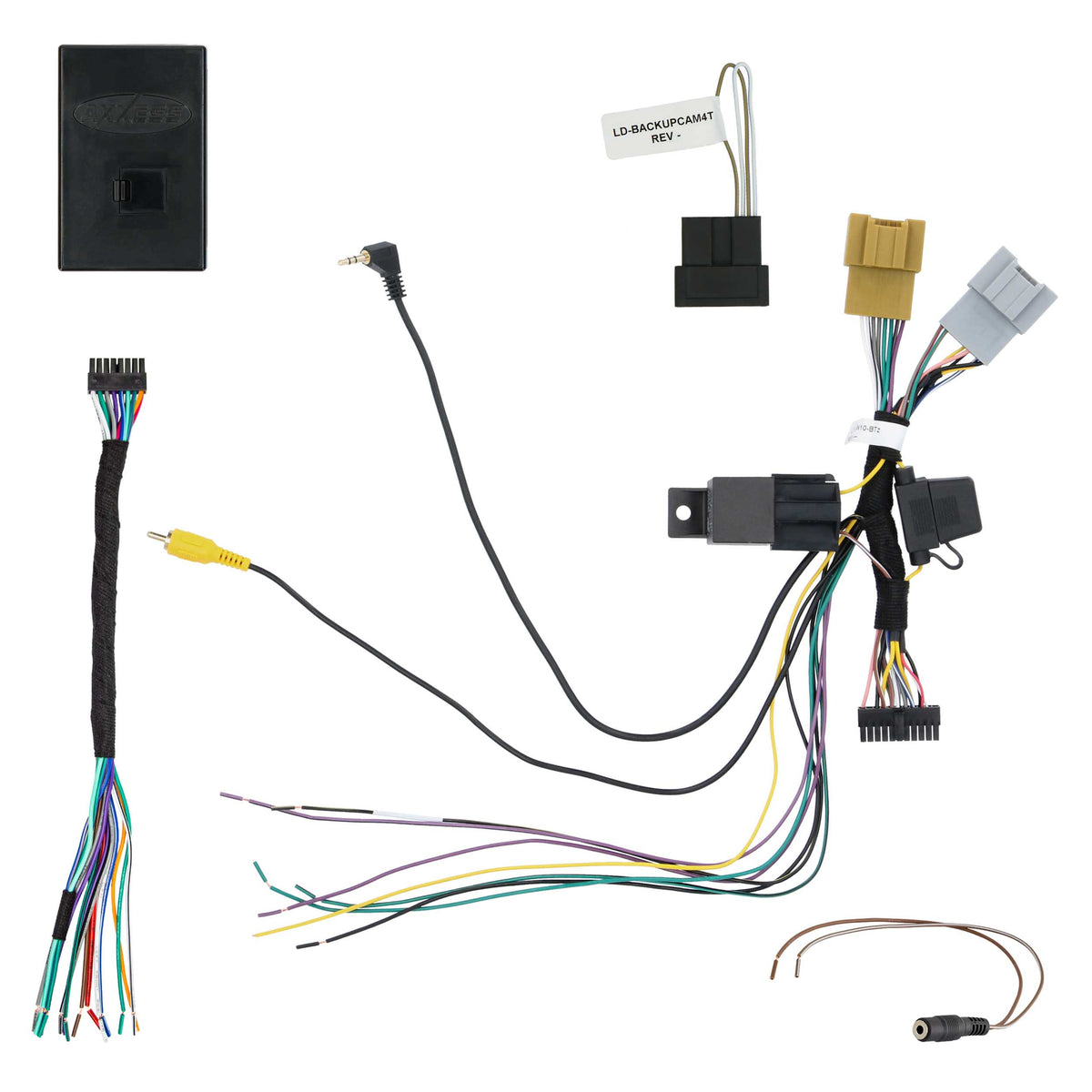

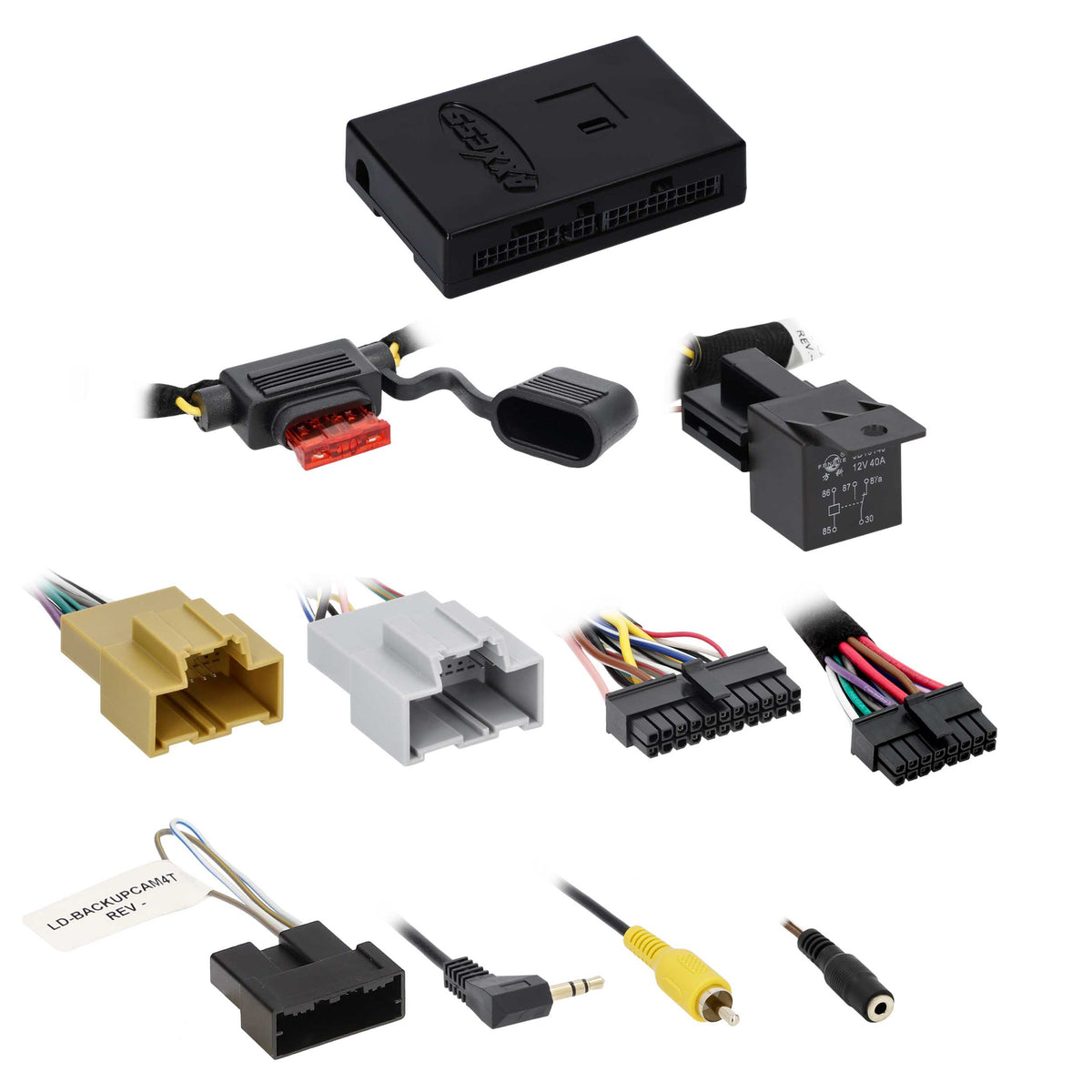

- Includes: Interface; (2) Harnesses; Female 3.5mm jack adapter; Backup camera harness
Data Interface with SWC - GM 2016-2021 — AXDIS-GMLN10BT is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Keep key factory functions when replacing the radio in a compatible GM vehicle with the AXDIS-GMLN10BT data interface. Designed for non-amplified systems with RPO IOA/IOB, it also retains steering-wheel audio controls and provides a 12-volt accessory-power output.
Key Features & Benefits
- Factory feature retention: Keeps supported features such as OnStar®, OEM Bluetooth®, safety chimes, and the backup camera.
- Steering-wheel controls: Retains audio controls, with patented auto-detect and dual-assign technology.
- Personalization access: Lets you retain and control personalization settings through the free AX-CUSTOM-BT app for smartphones and tablets.
- Useful installation outputs: Provides accessory power and NAV outputs for parking brake, reverse, and speed sense.
- Flexible audio connections: Includes high-level speaker input and retains the factory 3.5mm AUX-IN jack, if equipped.
- Adjustable chimes: Safety chimes are retained with adjustable gain control.
Technical Specifications
| Product | Data interface with steering-wheel control (SWC) |
|---|---|
| Model | AXDIS-GMLN10BT |
| Vehicle application | GM 2016–2021 |
| System compatibility | Non-amplified systems with RPO IOA/IOB |
| Accessory power | 12-volt, 10-amp |
| NAV outputs | Parking brake, reverse, speed sense |
| Steering-wheel control technology | Patented; auto-detect and dual-assign capabilities |
| Retained functions | R.A.P. (Retained Accessory Power), OnStar® with adjustable volume or SYNC® if equipped, OEM Bluetooth® connectivity if equipped, satellite radio, safety chimes, factory backup camera, 3.5mm AUX-IN jack, balance and fade |
| Personalization settings | Retained and controlled via Bluetooth® wireless technology with the free AX-CUSTOM-BT app for smartphones and tablets |
| Audio input | High-level speaker input |
| USB | Micro “B” USB; updatable |
| Warranty | 1-year limited warranty |
| Included | Interface, (2) harnesses, female 3.5mm jack adapter, backup camera harness |
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. Any use of such marks by Metra Electronics is under license. Other trademarks and trade names are those of their respective owners.
Why Choose This Product?
Replacing a factory radio can affect features you rely on every day. This interface is designed to retain a range of supported factory functions while adding the outputs needed for a replacement-radio installation.
Its steering-wheel control technology and adjustable chime gain help preserve familiar controls and alerts. The Bluetooth® app also gives you access to personalization settings after the factory radio is removed.
Installation & Compatibility Notes
This interface is designed for GM 2016–2021 vehicles with non-amplified systems and RPO IOA/IOB. Confirm your vehicle’s year, system type, and RPO before purchase; retained features can depend on factory equipment.
Use the supplied harnesses and adapters as applicable to the installation. The interface provides 12-volt, 10-amp accessory power and NAV outputs for parking brake, reverse, and speed sense.
Frequently Asked Questions
Which GM vehicles does the AXDIS-GMLN10BT support?
It is listed for GM vehicles from 2016–2021. The system must be non-amplified and have RPO IOA/IOB; check your vehicle’s configuration before ordering.
Does it retain steering-wheel audio controls?
Yes. It retains audio controls on the steering wheel and features auto-detect and dual-assign capabilities.
Can it retain OnStar® and factory Bluetooth®?
It retains OnStar® with adjustable volume or SYNC® if equipped, and OEM Bluetooth® connectivity if equipped.
What comes in the package?
The package includes the interface, two harnesses, a female 3.5mm jack adapter, and a backup camera harness.
What does the AX-CUSTOM-BT app do?
The free app for smartphones and tablets lets you retain and control personalization settings through Bluetooth® wireless technology.
