A2B DSP Data Interface - Ford 2017-2020 — AXDSPX-A2B1
Key features
- For select Ford 2017-2020
- Factory amplifier does not need to be retained

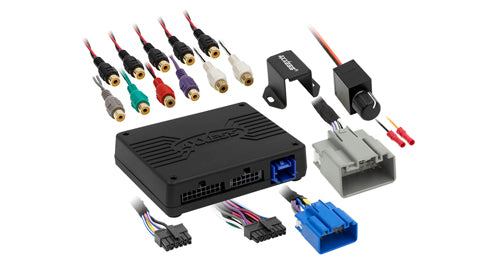

- Package includes the A2B data interface with built-in AXDSP-X technology, vehicle-specific T-harness, and an amplifier bypass harness
- Retains OE voice prompts (SYNC®) if vehicle is equipped
- Designed for select vehicles with a Sony® A2B amplifier
- Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters
A2B DSP Data Interface - Ford 2017-2020 — AXDSPX-A2B1 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The AXDSPX-A2B1 A2B DSP data interface is designed for select 2017–2020 Ford vehicles with a Sony A2B amplifier. It provides processed audio for aftermarket equipment while retaining factory voice prompts and routing chimes and prompts through the aftermarket amplifier.
Install the interface at the factory amplifier. Its built-in AXDSP-X technology provides multiple inputs, assignable outputs, and app-based sound adjustments for a tailored audio setup.
Key Features & Benefits
- Six inputs and ten assignable outputs: Direct audio to the channels in your aftermarket system.
- Selectable EQ and filters: Shape each channel with graphic or parametric equalization and high-pass, low-pass, or bandpass filters.
- Wireless app adjustments: Change settings with the free AX-DSP-XL app for smartphones and tablets.
- Factory prompt retention: Retain OE voice prompts, including SYNC® prompts when the vehicle is equipped with SYNC.
- Updateable interface: Use the Micro “B” USB connection to update the unit.
- Included bass knob: Adjust bass using the supplied knob.
Technical Specifications
| Product | A2B data interface with built-in AXDSP-X technology |
|---|---|
| Vehicle application | Ford 2017–2020; designed for select vehicles with a Sony® A2B amplifier |
| Inputs and outputs | 6 inputs and 10 individually assignable outputs |
| Equalization | Selectable 31-band graphic EQ or 5-band parametric EQ on each channel; independent equalization on each of the 10 outputs |
| Filters | High-pass, low-pass, and bandpass filters |
| Selectable slope | 12, 24, 36, or 48db per octave |
| Channel delay | Each channel can be delayed independently up to 10 ms |
| Signal control | Clipping detection and limiting circuits |
| App functions | Wireless settings adjustment; read, write, and store configurations for future recall; password-protect feature available |
| App availability | Free AX-DSP-XL app for smartphones and tablets |
| Connections and updates | Micro “B” USB updatable |
| Factory audio functions | Chimes and voice prompts go through the aftermarket amplifier; retains OE voice prompts (SYNC®) if vehicle is equipped |
| Factory amplifier | Does not need to be retained |
| Install location | At the factory amplifier |
| Package includes | A2B data interface with built-in AXDSP-X technology, vehicle-specific T-harness, and an amplifier bypass harness |
| Additional included item | Bass knob |
| Use | To be used with factory radios |
| Warranty | 1-year limited warranty |
| Patent | U.S. Patent 9,875,078 |
Why Choose This Product?
Factory radio processing can shape audio for the original speakers. This interface provides signal processing for an aftermarket audio system while preserving specified factory functions, including voice prompts and chimes through the aftermarket amplifier.
Its selectable EQ, filters, output assignment, and independent channel delay give you several tools for configuring the system around your equipment. Settings can be stored for future recall in the app.
Installation & Compatibility Notes
The interface installs at the factory amplifier and is intended for use with factory radios. The product is designed for select Ford 2017–2020 vehicles with a Sony A2B amplifier; confirm that your vehicle and factory audio configuration match before choosing it.

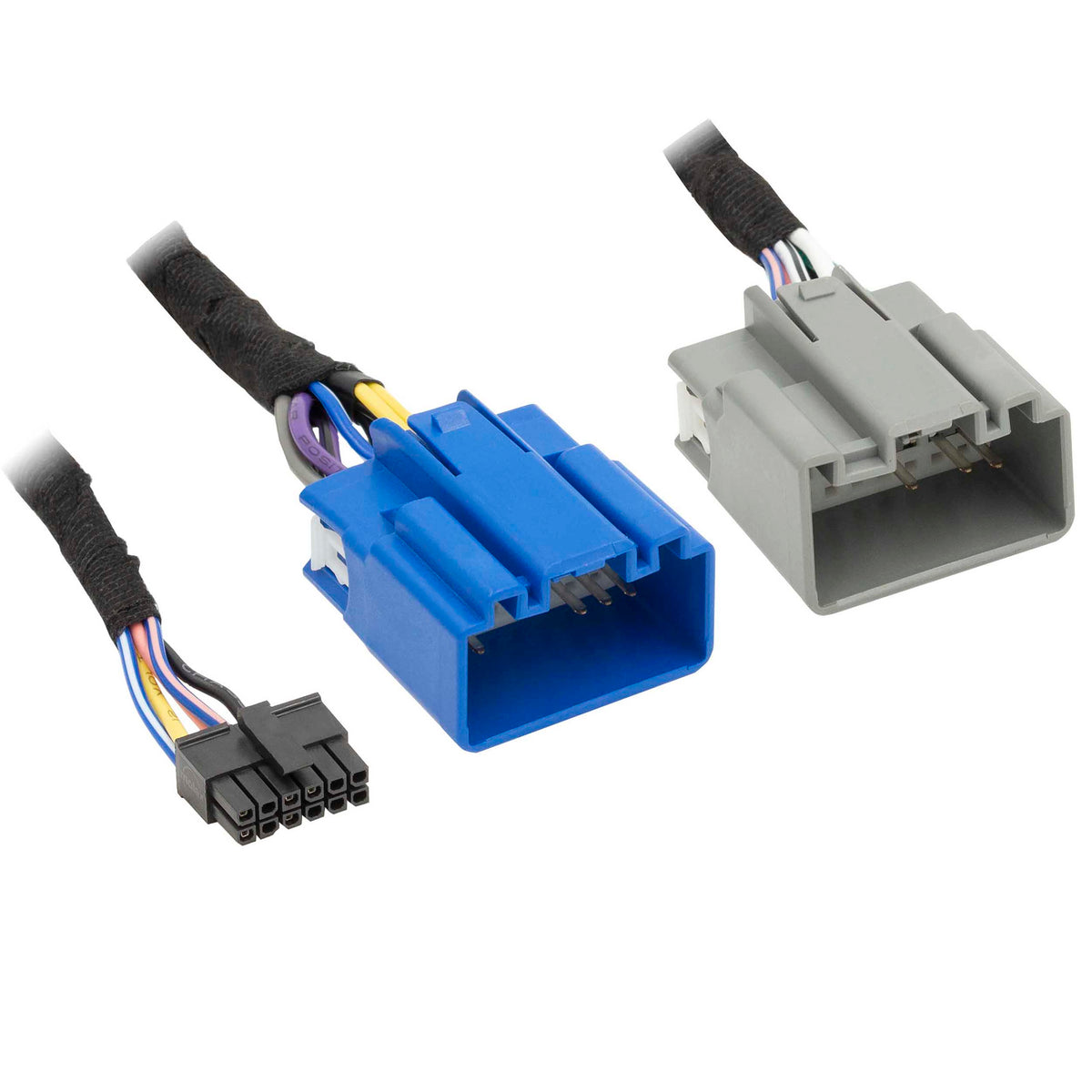

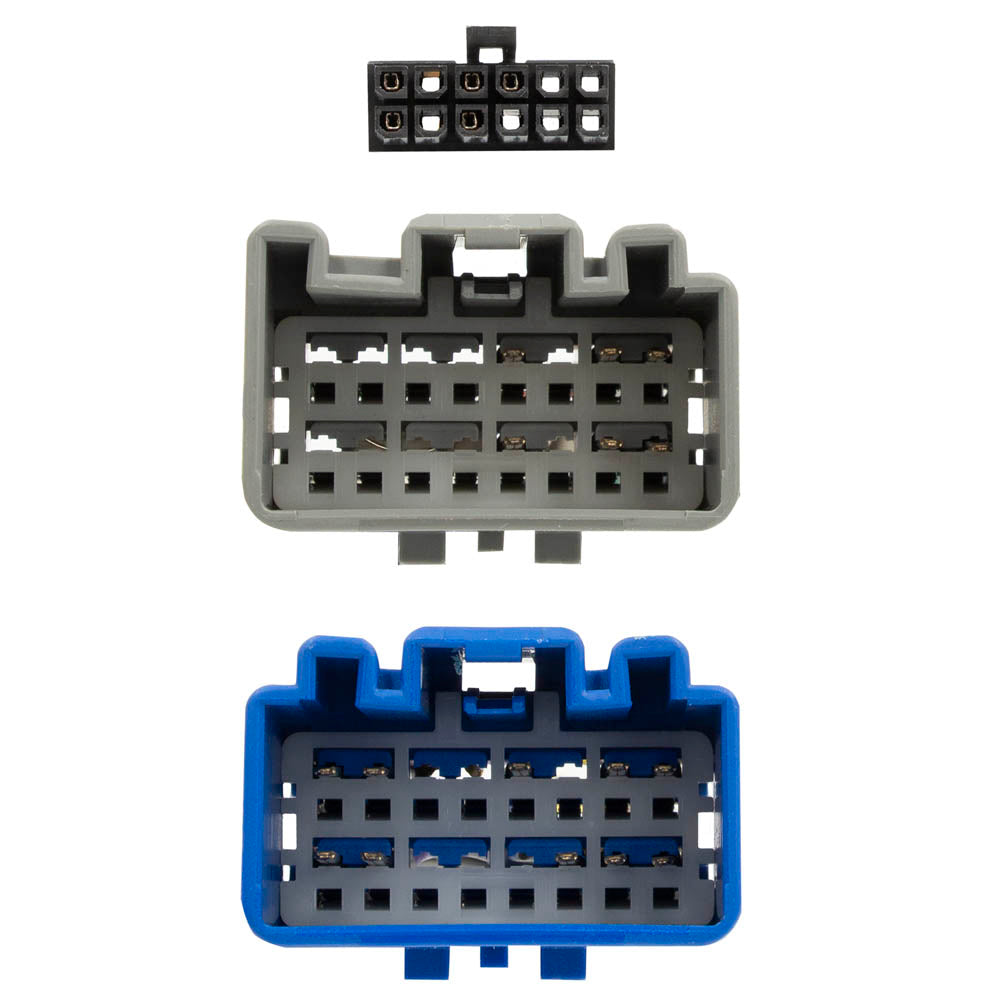

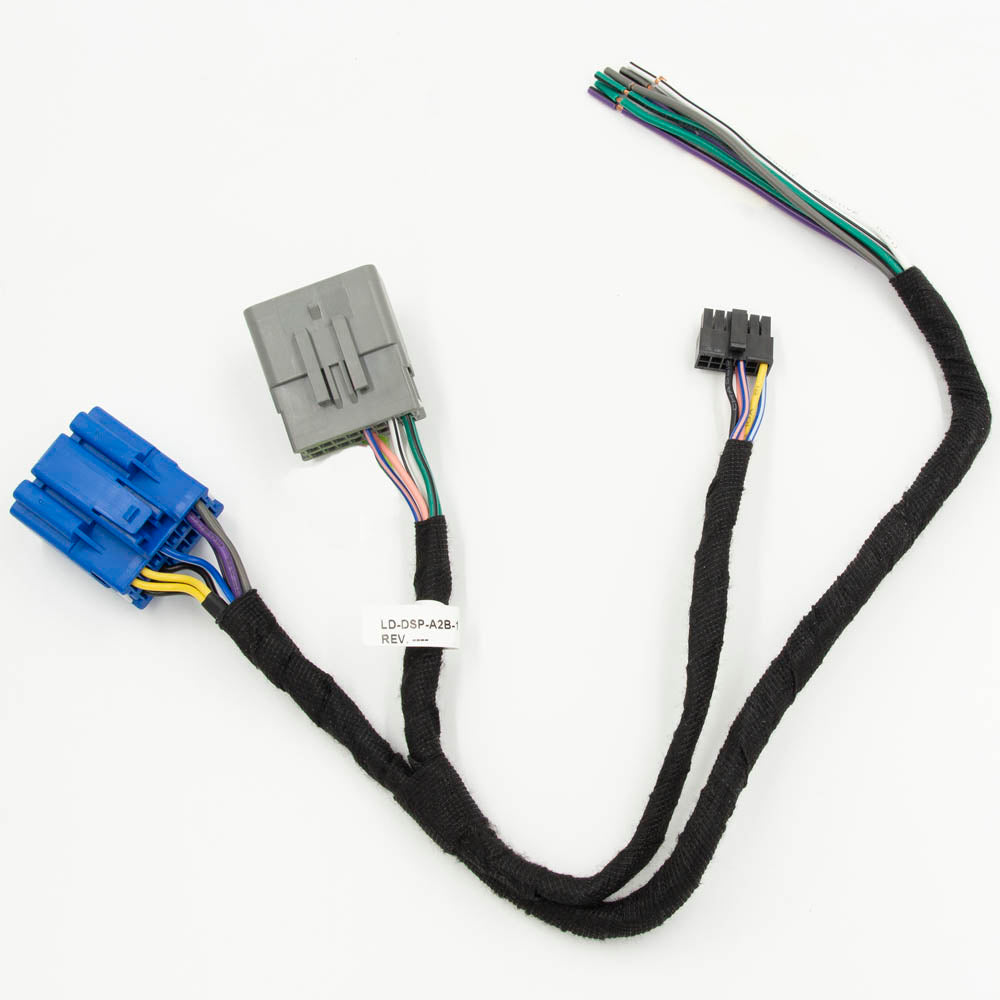

The factory amplifier does not need to be retained. The package includes a vehicle-specific T-harness and an amplifier bypass harness.
Frequently Asked Questions
Which vehicles is the AXDSPX-A2B1 designed for?
It is designed for select 2017–2020 Ford vehicles with a Sony A2B amplifier. Confirm your vehicle’s factory audio configuration before purchase.
Can I use this interface with an aftermarket radio?
The interface is specified for use with factory radios.
Does the factory amplifier have to stay installed?
No. The factory amplifier does not need to be retained.
How do I adjust the DSP settings?
Settings are adjusted wirelessly in the free AX-DSP-XL app for smartphones and tablets. The app can also read, write, and store configurations for future recall.
What comes with the interface?
The package includes the A2B data interface with built-in AXDSP-X technology, a vehicle-specific T-harness, and an amplifier bypass harness. A bass knob is included.
