A2B DSP Data Interface - Ford 2018-Up — AXDSPX-A2B2
Key features
- For select Ford 2018-Up
- Factory amplifier does not need to be retained
- Package includes the A2B data interface with built-in AXDSP-X technology, vehicle-specific T-harness, and an amplifier bypass harness
- Retains OE voice prompts (SYNC®) if vehicle is equipped
- Designed for select vehicles with a B&O A2B amplifier
- Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters
A2B DSP Data Interface - Ford 2018-Up — AXDSPX-A2B2 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get a signal tailored for aftermarket audio while keeping key factory functions with the AXDSPX-A2B2 A2B DSP data interface for select 2018-up Ford vehicles. Designed for vehicles with a B&O A2B amplifier, it combines an A2B data interface with built-in AXDSP-X technology.
Key Features & Benefits
- Factory audio integration: Retains OE voice prompts, including SYNC® prompts when the vehicle is equipped with SYNC.
- Flexible signal shaping: Choose graphic or parametric equalization and adjust the output channels independently.
- Factory amplifier bypass: The factory amplifier does not need to be retained.
- Wireless app control: Adjust settings with the free AX-DSP-XL app for smartphones and tablets.
- Included bass knob: Keep bass adjustment available as part of the system.
- Upgradeable interface: Update the interface through its Micro “B” USB connection.
Technical Specifications
| Product | A2B DSP Data Interface - Ford 2018-Up — AXDSPX-A2B2 |
|---|---|
| Vehicle application | Designed for select vehicles with a B&O A2B amplifier |
| Inputs and outputs | 6 inputs and 10 individually assignable outputs |
| Equalization | Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel, with high pass, low pass, and bandpass filters |
| Output equalization | Independent equalization on each of the 10 outputs |
| Filter slope | Selectable: 12, 24, 36, or 48 dB per octave |
| Signal delay | Each channel can be delayed independently up to 10 ms |
| Signal management | Clipping detection and limiting circuits |
| Controls and app | Bass knob included; settings adjusted wirelessly in the free AX-DSP-XL app for smartphones and tablets |
| Configuration features | Read, write, and store configurations for future recall; password-protect feature available in the app |
| Factory radio use | To be used with factory radios |
| Voice prompts | Retains OE voice prompts (SYNC®) if the vehicle is equipped with SYNC |
| Installation location | At the factory amplifier |
| Update connection | Micro “B” USB |

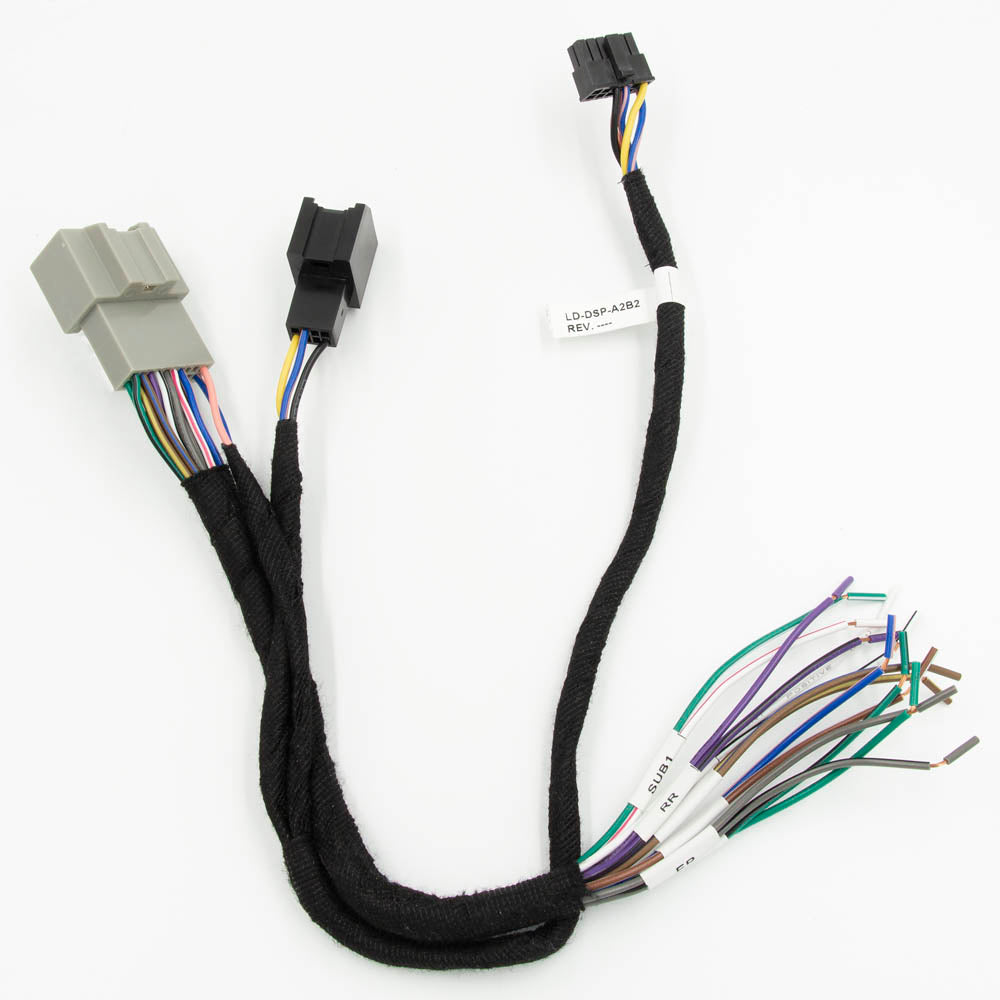

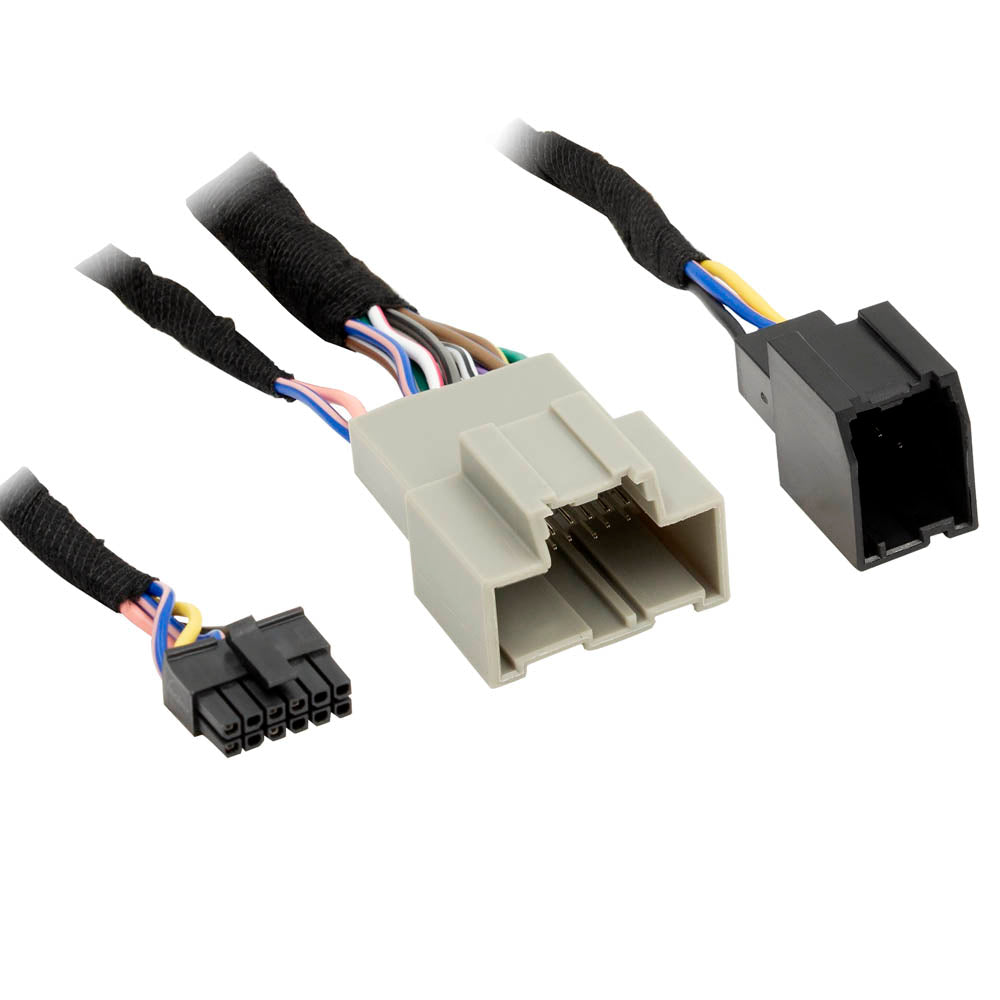

| Included items | A2B data interface with built-in AXDSP-X technology, vehicle-specific T-harness, and amplifier bypass harness |
| Factory amplifier | Does not need to be retained |
| Warranty | 1-year limited warranty |
| Patent | U.S. Patent 9,875,078 |
Why Choose This Product?
Factory radios can process audio around the limits of the original speakers. When you upgrade your audio system, the AXDSPX-A2B2 provides a way to shape the signal for aftermarket audio gear instead of relying only on those factory settings.
Its 10 individually assignable outputs, independent channel delay, and selectable EQ give you control over how the system is configured. Chimes and voice prompts can also go through the aftermarket amplifier.
Installation & Compatibility Notes
This interface is for select 2018-up Ford vehicles with a B&O A2B amplifier and a factory radio. It installs at the factory amplifier. Check that your vehicle has the required audio system before choosing this interface.
The package includes a vehicle-specific T-harness and amplifier bypass harness. The factory amplifier does not need to be retained.
Frequently Asked Questions
Will the AXDSPX-A2B2 fit every 2018-up Ford?
No. It is designed for select vehicles with a B&O A2B amplifier. Confirm your vehicle’s audio system before purchase.
Does the factory amplifier have to stay installed?
No. The factory amplifier does not need to be retained.
Will factory chimes and voice prompts still play?
Chimes and voice prompts go through the aftermarket amplifier. OE voice prompts, including SYNC® prompts, are retained if the vehicle is equipped with SYNC.
What audio adjustments can I make?
The interface offers selectable graphic or parametric EQ, high-pass, low-pass, and bandpass filters, selectable filter slopes, and independent delay for each channel.
What comes in the package?

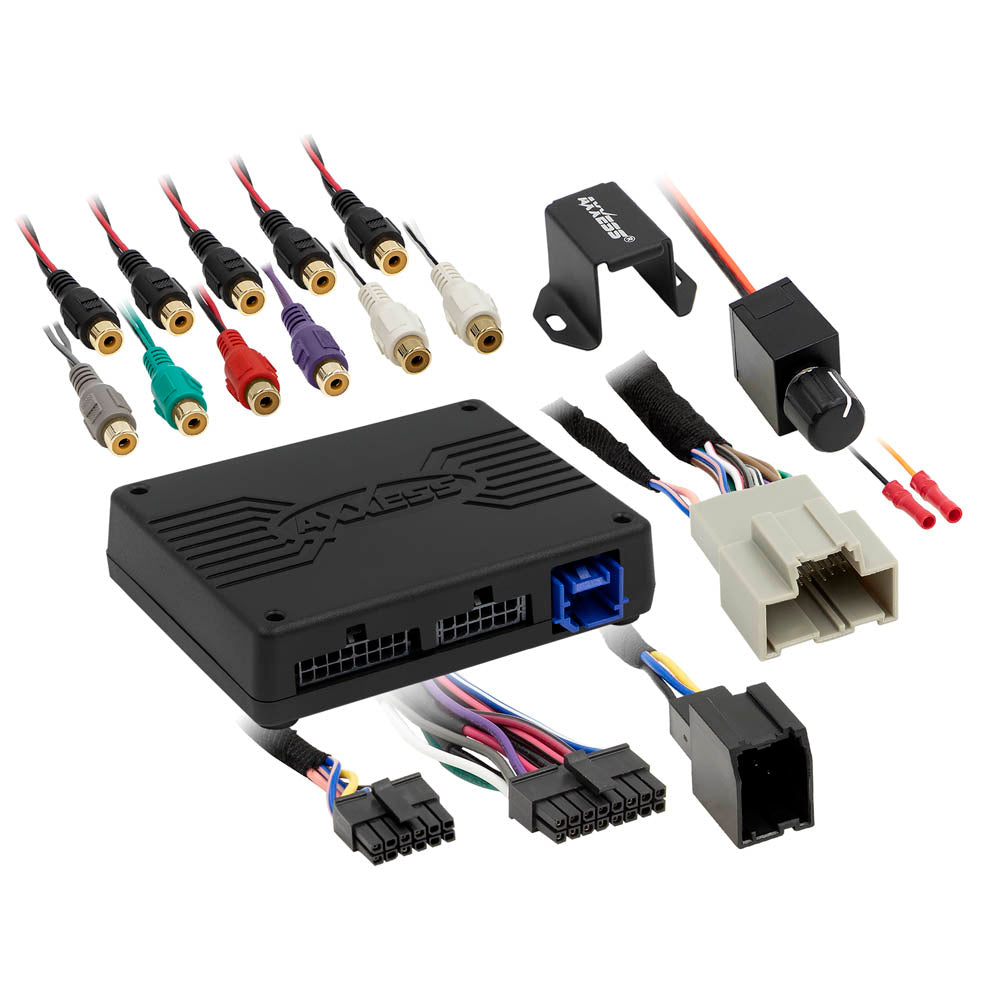

It includes the A2B data interface with built-in AXDSP-X technology, a vehicle-specific T-harness, and an amplifier bypass harness. A bass knob is also included.
How do I adjust or save settings?
Adjust settings wirelessly in the free AX-DSP-XL app for smartphones and tablets. The app can read, write, and store configurations, and offers a password-protect feature.
