DSP Data Interface - BMW | MINI 2006-2020 — AXDSPX-BM1
Key features
- For select BMW / MINI 2006-2020
- Designed for non-amplified models
- Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters
- 6 inputs and 10 individually assignable outputs
- Selectable slope (12, 24, 36, or 48db per octave)
- Independent equalization on each of the 10 outputs
DSP Data Interface - BMW | MINI 2006-2020 — AXDSPX-BM1 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get more control over your upgraded car audio with the AXDSPX-BM1 BMW | MINI DSP data interface. Designed for non-amplified models from 2006–2020, it helps address factory-radio sound processing while retaining audio system features.
Install it behind the factory radio and adjust the sound wirelessly through the free AX-DSP-XL app for smartphones and tablets.
Key Features & Benefits
- Flexible sound tuning: Choose graphic or parametric equalization to shape the system’s sound.
- Independent output control: Tune and delay outputs separately to tailor the signal sent to your audio components.
- Configuration storage: Read, write, and save settings for future recall.
- Radio flexibility: Use the interface with factory or aftermarket radios.
- Included bass knob: Adjust bass using the included control.
Technical Specifications
| Product | DSP Data Interface |
|---|---|
| Model | AXDSPX-BM1 |
| Vehicle application | BMW | MINI 2006-2020; designed for non-amplified models |

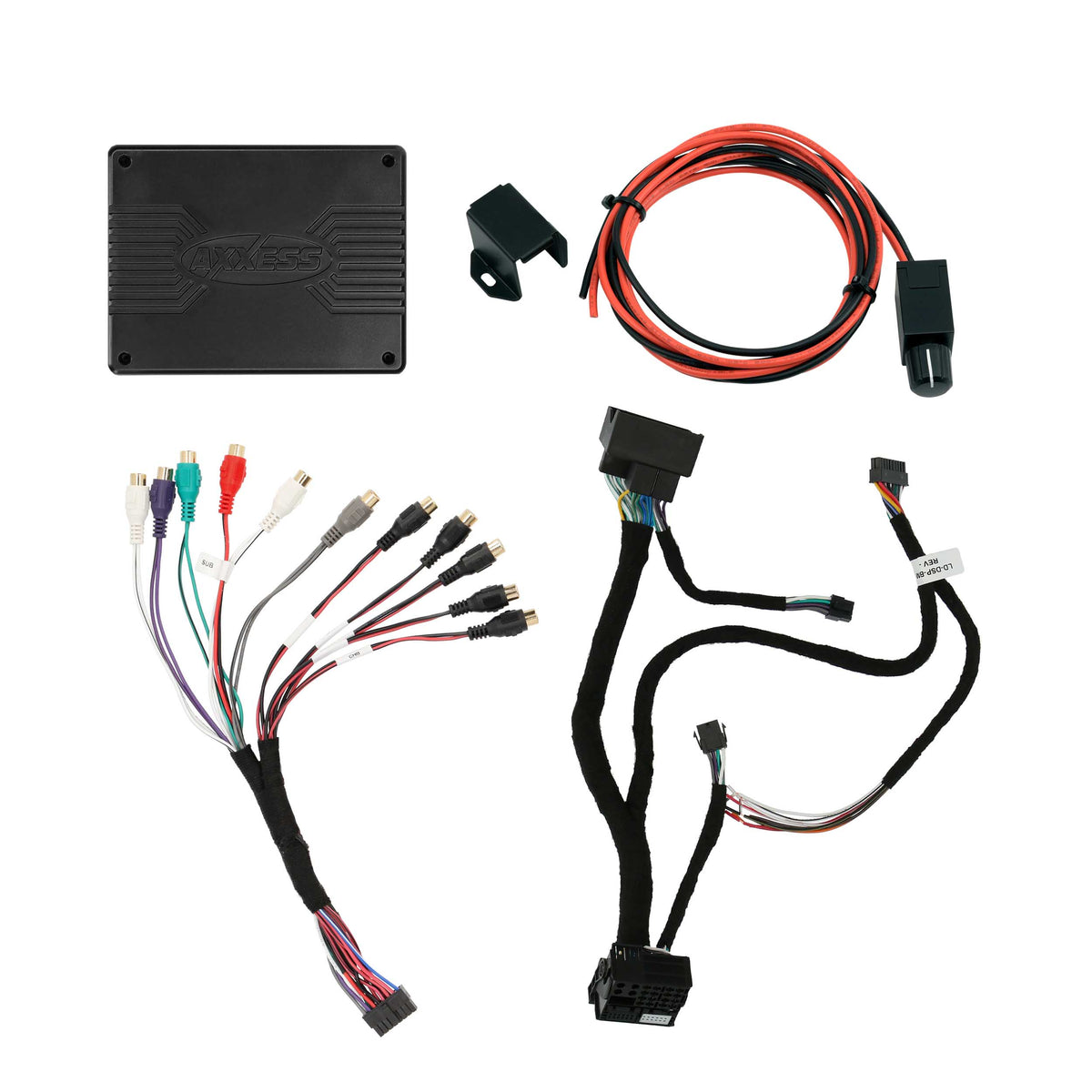

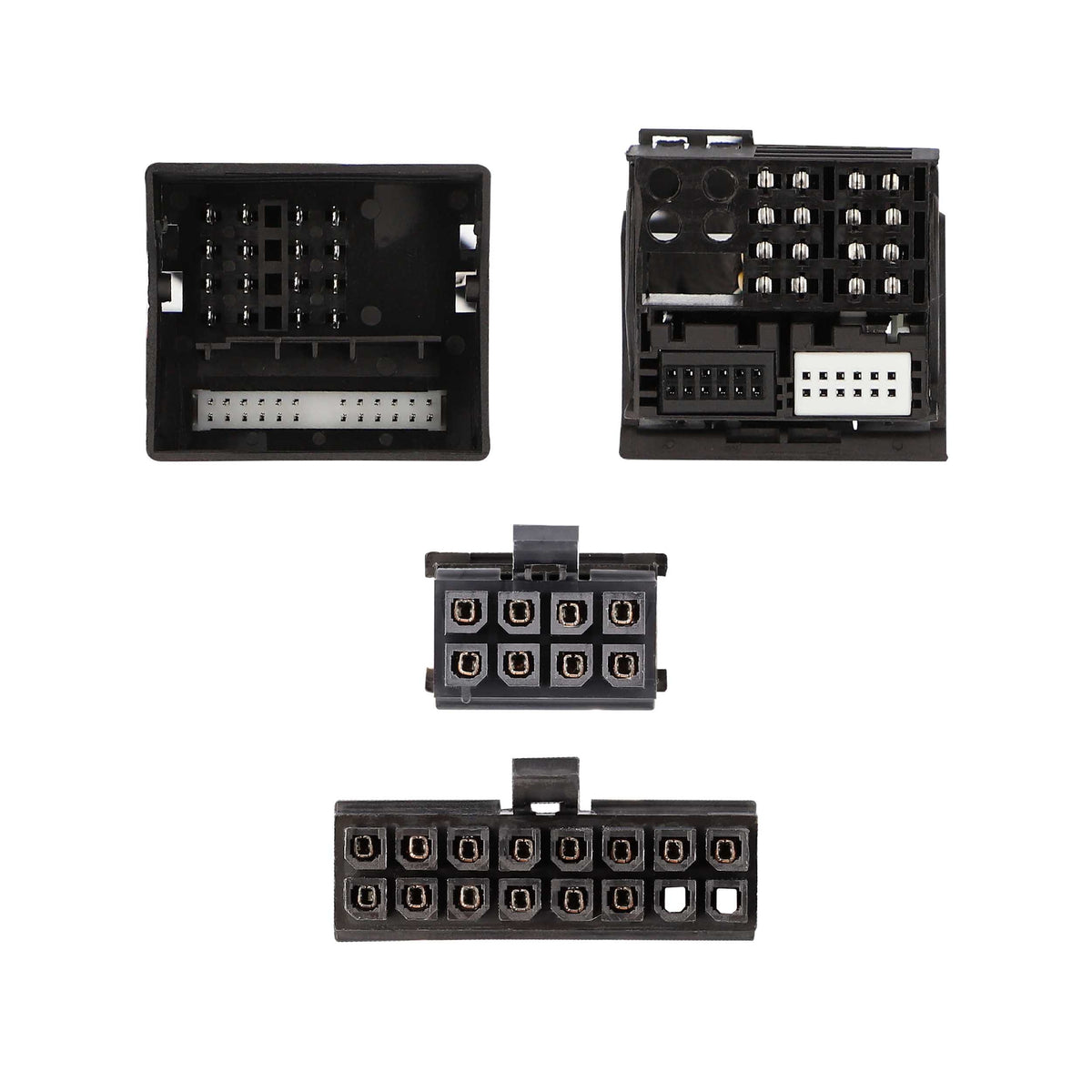

| Package includes | AXDSP-X interface and vehicle-specific T-harness |
| Installation location | At the factory radio; easy behind-the-radio installation |
| USB | Micro “B” USB updatable |
| Inputs and outputs | 6 inputs and 10 individually assignable outputs |
| Equalization | Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel; selectable Graphic or Parametric EQ; independent equalization on each of the 10 outputs |
| Filters | High pass, low pass, and bandpass filters |
| Selectable slope | 12, 24, 36, or 48db per octave |
| Channel delay | Each channel can be delayed independently up to 10 ms |
| Signal management | Clipping detection and limiting circuits |
| App | Settings adjusted wirelessly in the free AX-DSP-XL app available for smartphones and tablets; password-protect feature available in the app |
| Configuration management | Read, write, and store configurations for future recall |
| Included control | Bass knob |
| Radio compatibility | Can be used with factory and aftermarket radios |
| Warranty | 1-year limited warranty |
| Patent | U.S. Patent 9,875,078 |
Why Choose This Product?
Factory radios may process audio to suit the original speakers. That processing can limit how an upgraded system sounds. The AXDSPX-BM1 adds extensive signal adjustment, giving you control over equalization, filters, and output settings for aftermarket audio equipment.
Its multiple assignable outputs and independent adjustments let you shape different signal paths instead of applying one setting across the whole system.
Installation & Compatibility Notes
This package is designed for non-amplified BMW and MINI models from 2006–2020. It installs at the factory radio and includes a vehicle-specific T-harness. Confirm your vehicle’s year, model, and factory audio configuration before choosing the interface.
The Micro “B” USB connection supports updates. Settings are adjusted wirelessly through the AX-DSP-XL app.
Frequently Asked Questions
Does the AXDSPX-BM1 work with an aftermarket radio?
Yes. It can be used with factory and aftermarket radios.
Is this interface intended for amplified factory systems?
It is designed for non-amplified models. Check your vehicle’s factory audio configuration when selecting the interface.
What comes in the package?

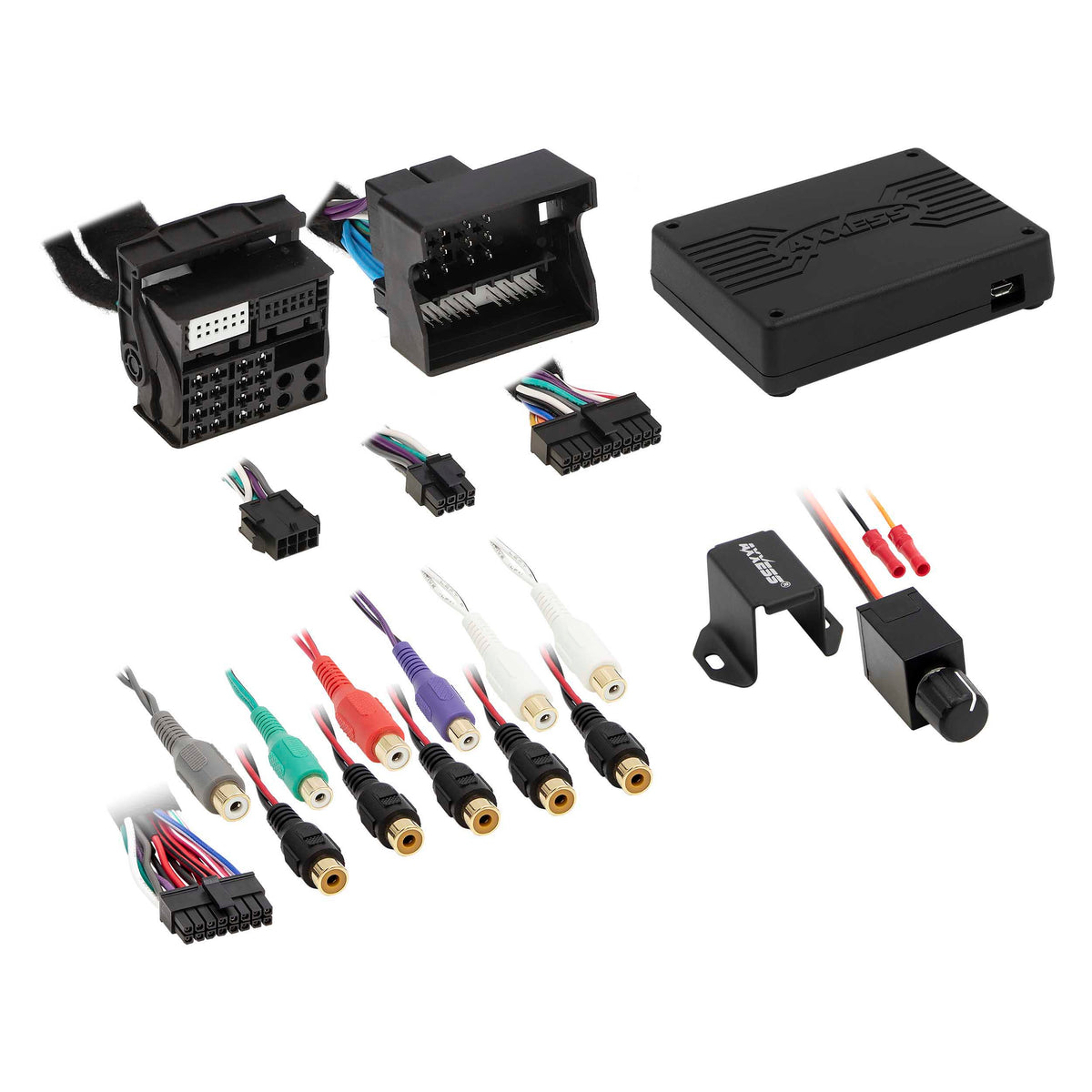

The package includes the AXDSP-X interface and vehicle-specific T-harness. A bass knob is also included.
How do I adjust the settings?
Settings are adjusted wirelessly in the free AX-DSP-XL app, available for smartphones and tablets.
Can I save different configurations?
Yes. The interface can read, write, and store configurations for future recall. The app also has a password-protect feature.
What equalization options are available?
It offers selectable 31-band graphic or 5-band parametric EQ on each channel, with independent equalization on each of the 10 outputs.
