DSP Data Interface - Chrysler 2011-2020 — AXDSPX-CH3

Product Overview

Get a customizable signal for aftermarket audio equipment with the AXDSPX-CH3 DSP data interface for Chrysler vehicles from 2011–2020. It is designed for amplified and non-amplified systems and installs at the factory radio.

The interface includes a vehicle-specific T-harness and lets you adjust settings wirelessly in the free AX-DSP-XL app for smartphones and tablets.

Key Features & Benefits

• Six inputs and ten assignable outputs: Configure signal routing for your audio system using the interface’s individually assignable outputs.
• Per-output equalization: Choose a 31-band graphic or 5-band parametric EQ and adjust each output independently.
• Adjustable filters and slopes: Select high-pass, low-pass, or bandpass filters with 12, 24, 36, or 48 dB-per-octave slopes.
• Factory alert retention: Retains factory chimes and, when equipped, Uconnect® voice prompts and parking sensor and cross path detection alerts.
• Wireless configuration: Read, write, and store settings for future recall in the app; password protection is also available.
• Included bass knob: Adjust bass with the supplied knob.

Technical Specifications

• Model: AXDSPX-CH3
• Vehicle range: Chrysler 2011–2020
• System support: Amplified and non-amplified systems
• Inputs and outputs: 6 inputs; 10 individually assignable outputs
• Equalization: Selectable 31-band graphic EQ or 5-band parametric EQ; independent equalization on each of the 10 outputs
• Filters: High-pass, low-pass, and bandpass
• Selectable slope: 12, 24, 36, or 48 dB per octave
• Channel delay: Each channel can be delayed independently up to 10 ms
• Additional processing: Chime control for Chrysler vehicles; clipping detection and limiting circuits
• Updates: Micro “B” USB updatable
• Installation location: At the factory radio
• Radio support: Can be used with factory and aftermarket radios
• Included: AXDSP-X interface, vehicle-specific T-harness, and bass knob
• Warranty: 1-year limited warranty
• Patent: U.S. Patent 9,875,078

Why Choose This Product?

Factory radio processing is designed around factory speakers. When you upgrade speakers or add aftermarket audio equipment, the AXDSPX-CH3 gives you adjustable equalization, filters, channel delay, and signal routing to shape the system’s output.

Its chime control and retention of specified factory alerts help preserve familiar vehicle sounds during an audio upgrade. Retention of Uconnect® voice prompts and alerts depends on the vehicle being equipped with them.

Installation & Compatibility Notes

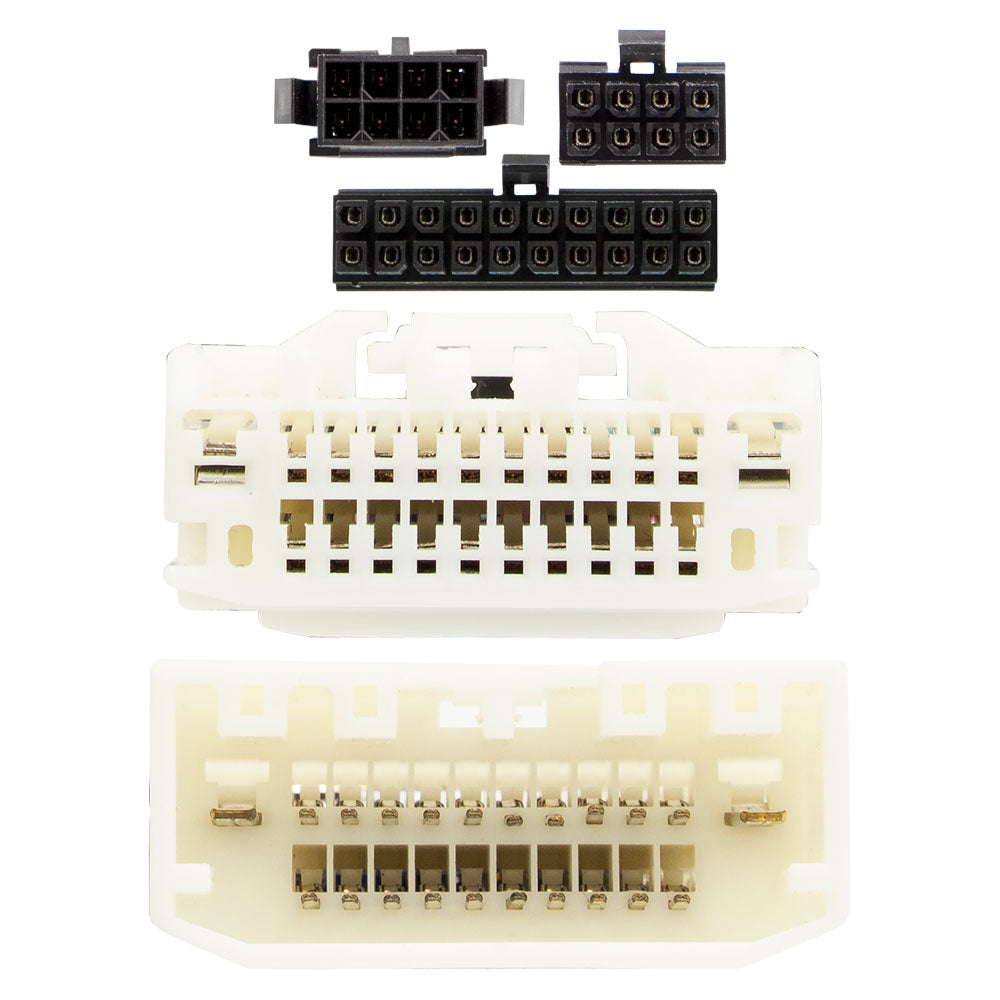

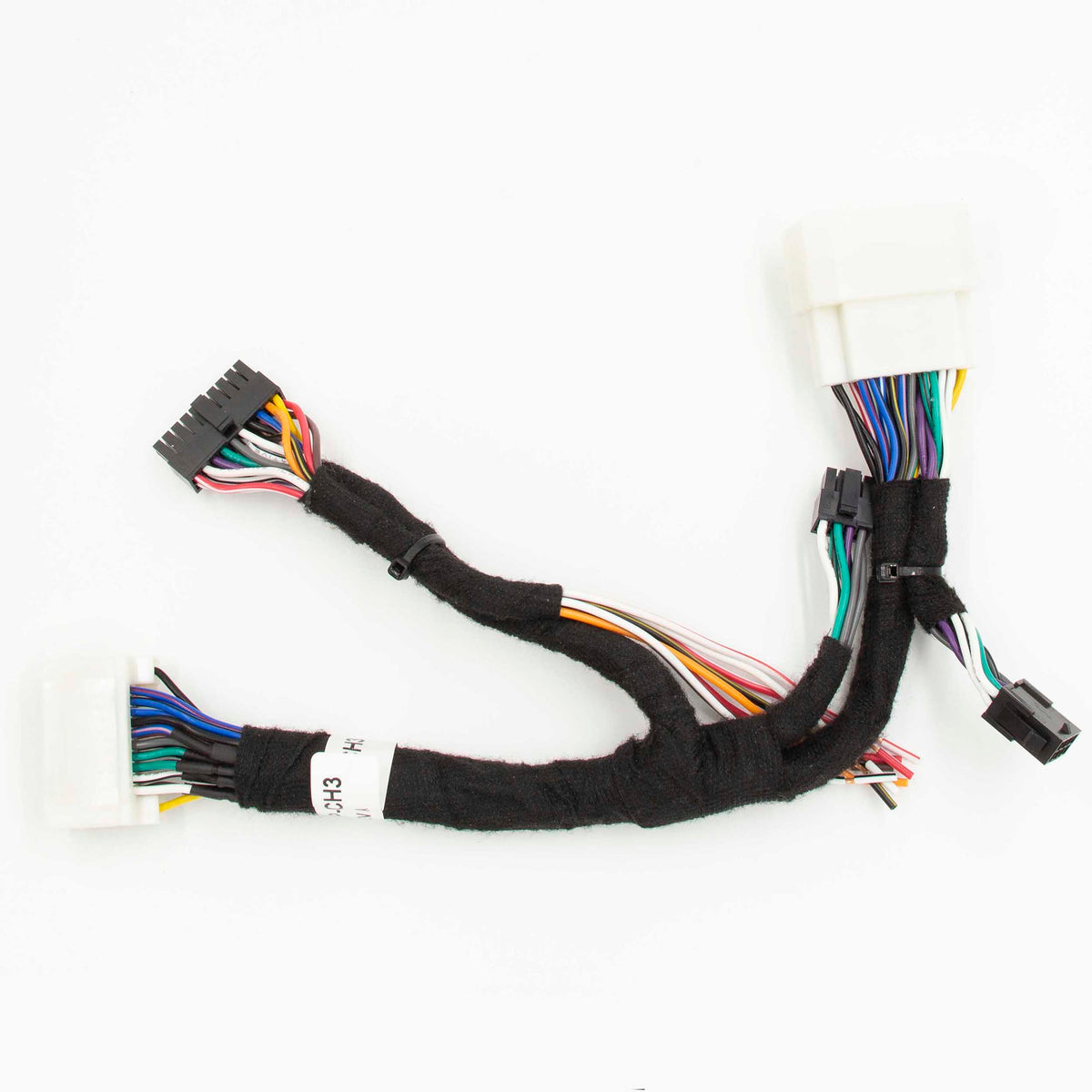

This interface is listed for Chrysler vehicles from 2011–2020 and supports amplified and non-amplified systems. It installs at the factory radio and includes a vehicle-specific T-harness.

Confirm that your vehicle and audio system match the stated application before purchase. Settings are adjusted through the free AX-DSP-XL app, and the interface can connect with factory or aftermarket radios.

Frequently Asked Questions

Does the AXDSPX-CH3 work with amplified and non-amplified systems?

Yes. It is designed for both system types.

How many outputs can I configure?

The interface has 10 individually assignable outputs and 6 inputs.

Can I adjust the sound for each output separately?

Yes. Each of the 10 outputs has independent equalization. Each channel can also be delayed independently up to 10 ms.

Does it retain factory chimes and voice prompts?

It retains factory chimes, including parking sensor and cross path detection alerts. Uconnect® voice prompts and these alerts are retained when the vehicle is equipped with them.

What comes in the package?

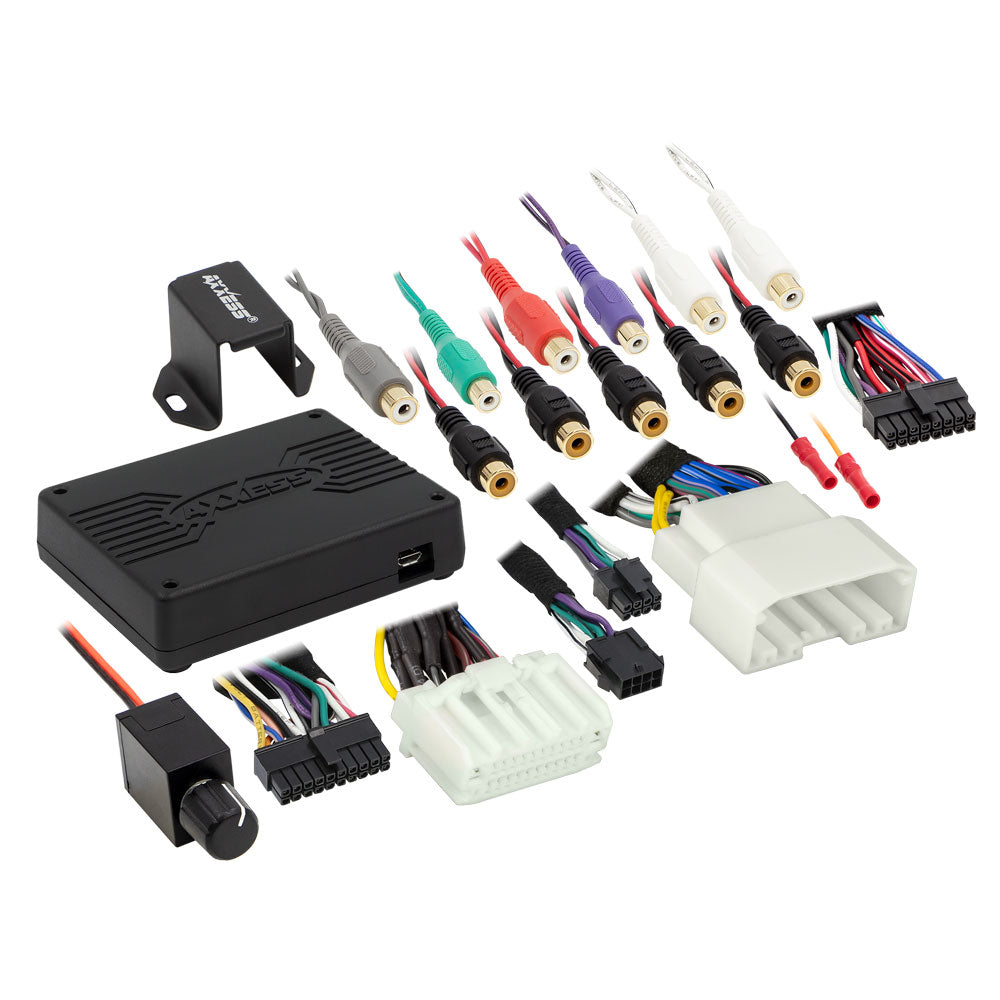

The package includes the AXDSP-X interface, vehicle-specific T-harness, and bass knob.

Where does the interface install?

It installs at the factory radio.
