DSP Data Interface - Chrysler 2007-2020 — AXDSPX-CH4
Key features
- For select Chrysler 2007-2020
- Designed for amplified and non-amplified systems
- Retains OE voice prompts (Uconnect®) if vehicle is equipped; Retains factory chimes, including parking sensor and cross path detection alerts if vehicle is equipped
- Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters
- 6 inputs and 10 individually assignable outputs
- Selectable slope (12, 24, 36, or 48db per octave)
DSP Data Interface - Chrysler 2007-2020 — AXDSPX-CH4 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get a processed audio signal ready for aftermarket audio gear with the AXDSPX-CH4 Chrysler DSP data interface. Designed for Chrysler vehicles from 2007–2020, it works with amplified and non-amplified systems and helps address factory-radio sound processing.
Install it at the factory radio, then adjust the DSP settings wirelessly in the free AX-DSP-XL app for smartphones and tablets.
Key Features & Benefits

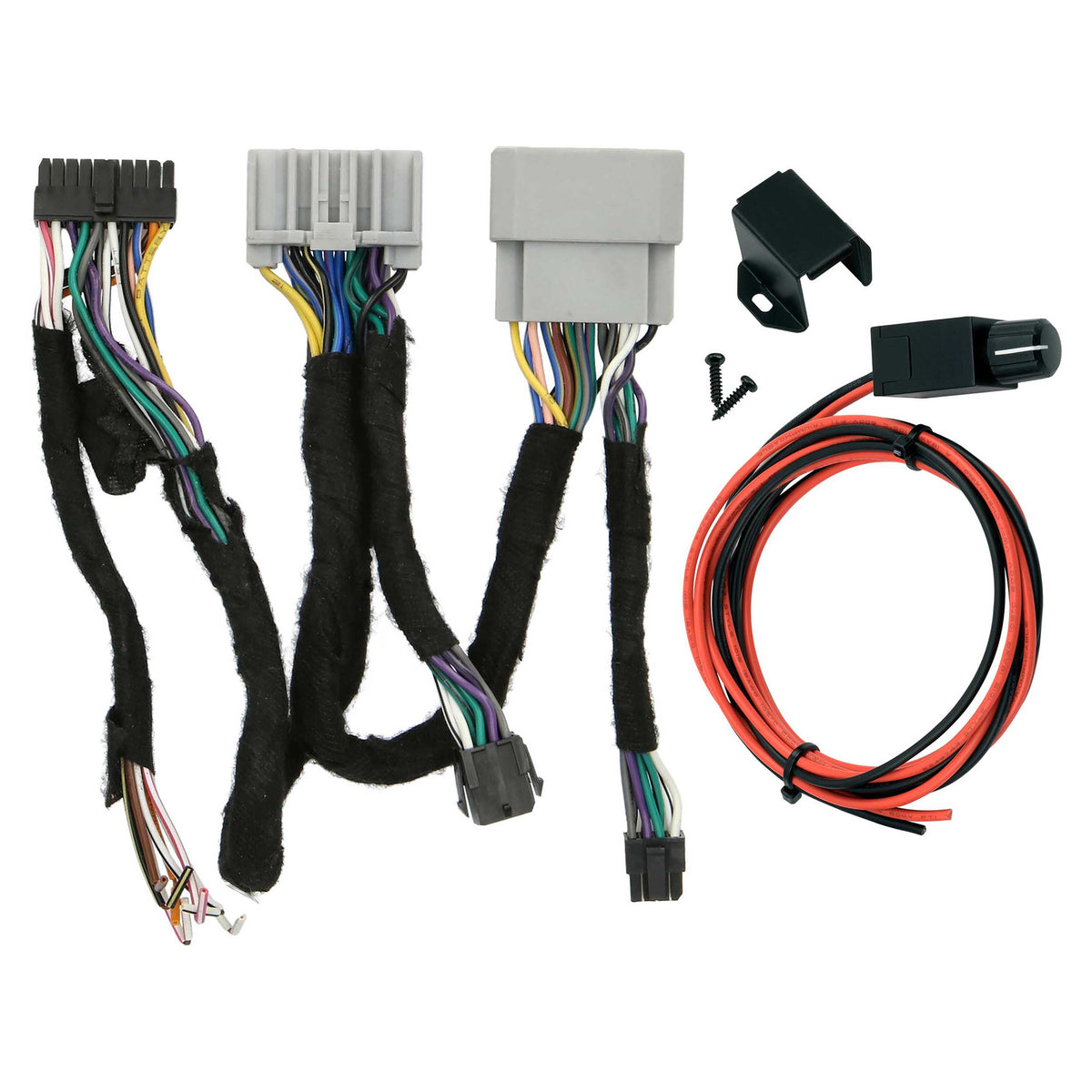

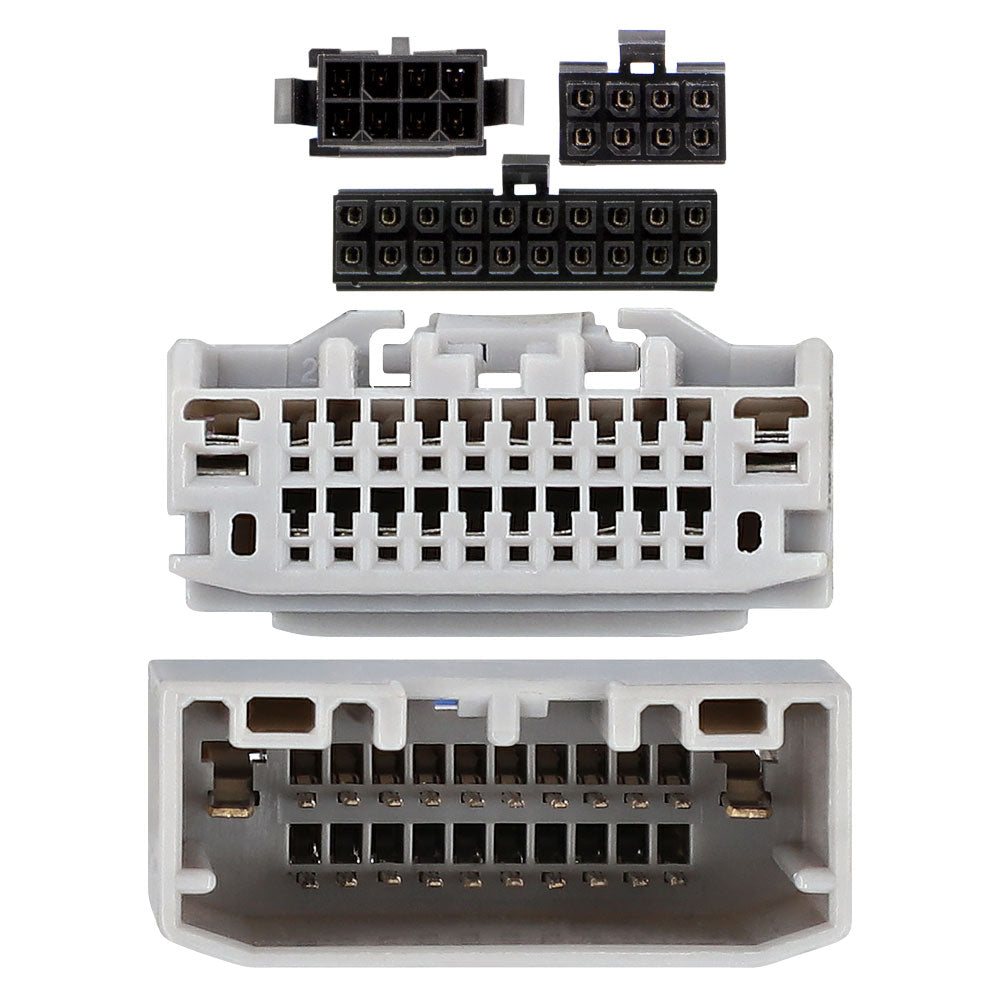

- Vehicle-specific package: Includes the AXDSP-X interface and a vehicle-specific T-harness for the stated Chrysler application.
- Flexible audio tuning: Choose graphic or parametric equalization and adjust outputs independently.
- Factory feature retention: Retains factory chimes and, when equipped, Uconnect voice prompts and specified vehicle alerts.
- Wireless configuration: Read, write, and store settings for future recall through the app.
- System monitoring: Clipping detection and limiting circuits are included.
- Included bass knob: Adds a physical bass adjustment control to the package.
Technical Specifications
| Specification | Details |
|---|---|
| Model | AXDSPX-CH4 |
| Vehicle application | Chrysler, 2007–2020 |
| System compatibility | Amplified and non-amplified systems |
| Package includes | AXDSP-X interface and vehicle-specific T-harness |
| Install location | At the factory radio |
| USB | Micro “B” USB, updatable |
| Inputs and outputs | 6 inputs and 10 individually assignable outputs |
| Equalization | Selectable 31-band graphic EQ or 5-band parametric EQ on each channel; selectable graphic or parametric EQ; independent equalization on each of the 10 outputs |
| Filters | High-pass, low-pass, and bandpass filters |
| Selectable slope | 12, 24, 36, or 48 dB per octave |
| Channel delay | Each channel can be delayed independently up to 10 ms |
| Chime control | For Chrysler vehicles |
| Detection and limiting | Clipping detection and limiting circuits |
| Bass knob | Included |
| Retained features | OE voice prompts (Uconnect®) if equipped; factory chimes, including parking sensor and cross path detection alerts, if equipped |
| App | Free AX-DSP-XL app for smartphones and tablets; settings adjusted wirelessly; read, write, and store configurations for future recall; password protection available |
| Radio compatibility | Can be used with factory and aftermarket radios |
| Warranty | 1-year limited warranty |
| Patent | U.S. Patent 9,875,078 |
Why Choose This Product?
Factory radios can process audio for the original speakers, which may affect the signal when you upgrade your system. This Chrysler-specific DSP interface provides extensive adjustment options across its outputs, so you can configure the signal for your aftermarket audio gear.
Its chime control and stated retention of factory alerts and voice prompts also address features that can matter during a sound-system upgrade. Retention of Uconnect prompts and vehicle alerts depends on the vehicle being equipped with them.
Installation & Compatibility Notes
The stated application is Chrysler model years 2007–2020, for amplified and non-amplified systems. The interface installs at the factory radio and includes a vehicle-specific T-harness. Confirm that your vehicle falls within the stated application before purchase.
Use the AX-DSP-XL app to adjust settings wirelessly. The interface can be used with factory or aftermarket radios.
Frequently Asked Questions
Which Chrysler vehicles does the AXDSPX-CH4 fit?
It is listed for Chrysler vehicles from 2007 through 2020. Check your vehicle’s model year and application before ordering.
Does it support amplified and non-amplified systems?
Yes. The listed vehicle-specific features include support for both system types.
What is included in the package?

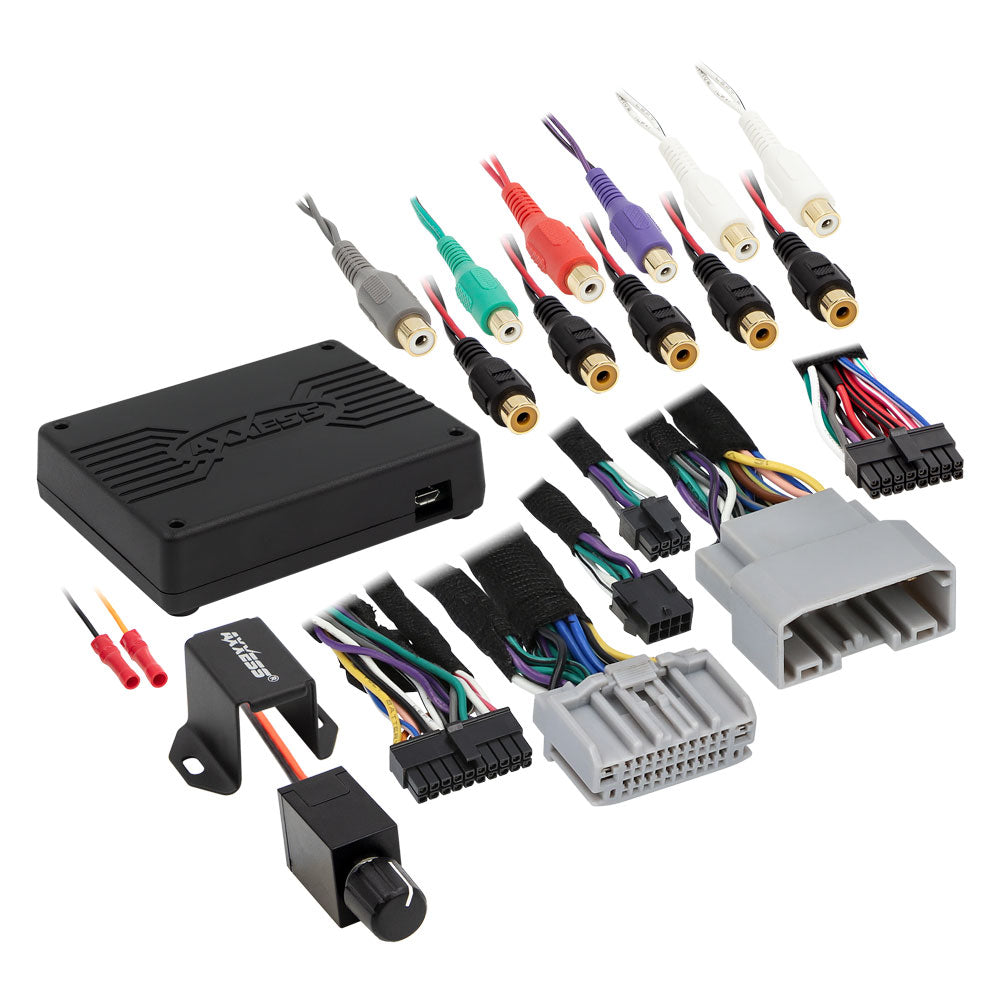

The package includes the AXDSP-X interface and a vehicle-specific T-harness. A bass knob is also included.
Can I use it with an aftermarket radio?
Yes. The interface is listed for use with factory and aftermarket radios.
Does it retain factory chimes and Uconnect voice prompts?
It retains factory chimes, including parking sensor and cross path detection alerts, if equipped. OE Uconnect voice prompts are retained if the vehicle is equipped with them.
