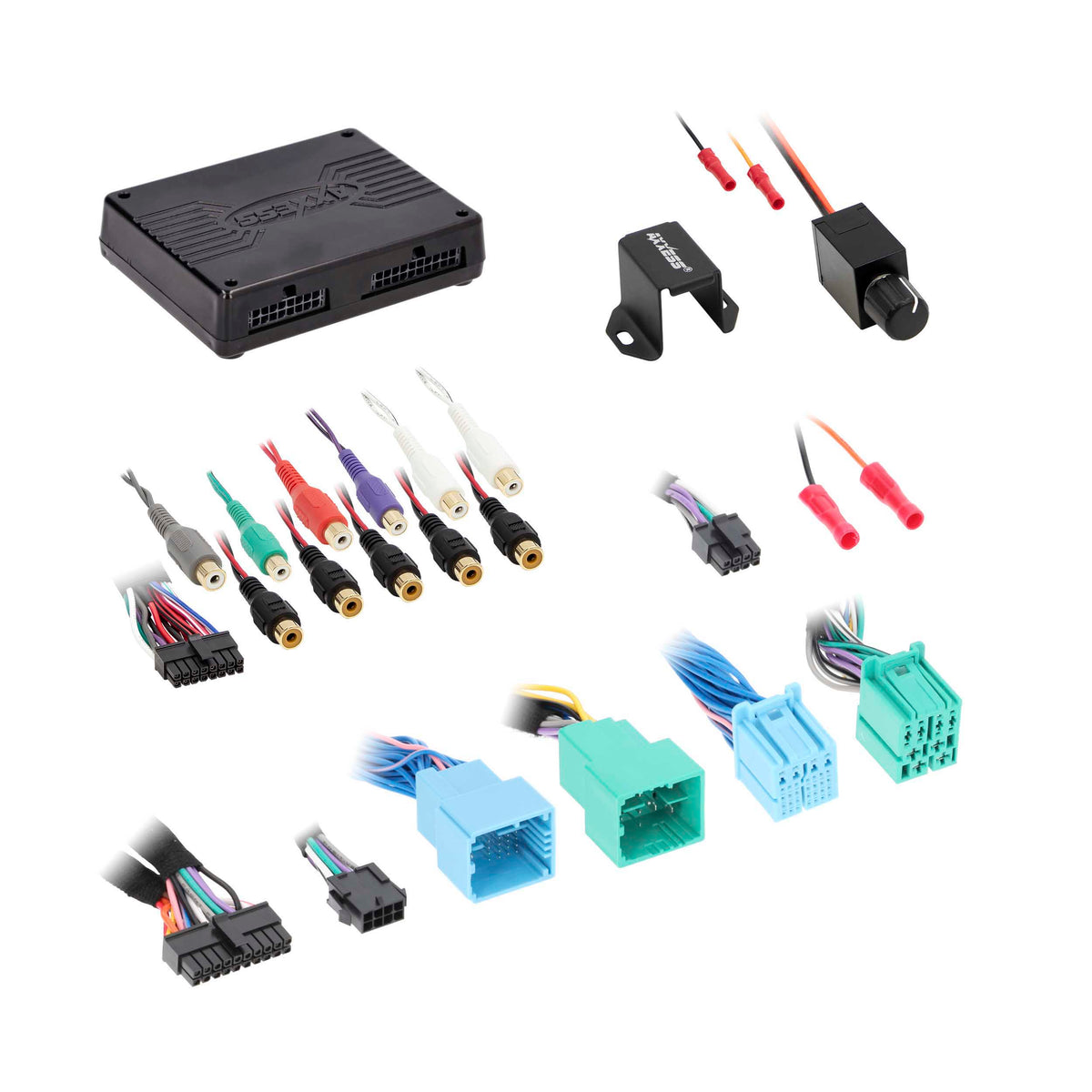

DSP Data Interface - Chrysler 2021-Up — AXDSPX-CH8
Key features
- For select Chrysler 2021-Up
- Designed for non-amplified models
- Retains OE voice prompts (Uconnect®) if vehicle is equipped; Retains factory chimes, including parking sensor and cross path detection alerts if vehicle is equipped
- 31-Band graphic EQ
- 10 individually assignable outputs
- Independent equalization on each of the 10 outputs
DSP Data Interface - Chrysler 2021-Up — AXDSPX-CH8 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get a signal-processing interface for a Chrysler 2021-Up audio system with the AXDSPX-CH8 DSP data interface. Designed for non-amplified models, it offers adjustable equalization and signal controls while retaining selected factory prompts and chimes when equipped.
Key Features & Benefits
- 10 assignable outputs: Set up outputs individually to suit your audio system.
- Per-channel tuning: Adjust equalization, filters, and time delay independently for each channel.
- Factory-sound retention: Retains Uconnect® voice prompts and factory chimes when the vehicle is equipped with them.
- Wireless adjustments: Configure settings in the free AX-DSP-XL app on a smartphone or tablet.
- Flexible installation: Use it with factory or aftermarket radios, with installation behind the radio.
Technical Specifications
| Specification | Details |
|---|---|
| Vehicle application | Chrysler 2021-Up; designed for non-amplified models |
| Signal processing | DSP (Digital Signal Processor) |
| Inputs and outputs | 6 inputs and 10 individually assignable outputs |
| Equalization | Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel; independent equalization on each of the 10 outputs |
| Filters | Independent high pass, low pass, and bandpass filters |
| Selectable slope | 12, 24, 36, or 48db per octave |
| Channel delay | Each channel can be delayed independently up to 10 ms |
| Signal control | Clipping detection and limiting circuits |
| Chime control | Chime control for Chrysler vehicles |
| Factory feature retention | Retains OE voice prompts (Uconnect®) if vehicle is equipped; retains factory chimes, including parking sensor and cross path detection alerts if vehicle is equipped |
| Adjustment app | Free AX-DSP-XL app for smartphones and tablets; settings adjusted wirelessly |
| Configuration features | Read, write, and store configurations for future recall; password protect feature available in the app |
| Installation | Easy behind the radio installation |
| Radio compatibility | Can be used with factory and aftermarket radios |
| Included item | Bass knob included |
| Warranty | 1-year limited warranty |
| Patent | U.S. Patent 9,875,078 |
Why Choose This Product?
The AXDSPX-CH8 gives you detailed control over audio signals, including separate equalization and filtering for each output. Its configuration tools also let you save settings for future recall, making it easier to return to a stored setup.
Installation & Compatibility Notes
This interface is designed for non-amplified Chrysler 2021-Up models and installs behind the radio. It can be used with factory or aftermarket radios. Confirm your vehicle’s model year and audio configuration before choosing this interface.
Frequently Asked Questions
Which vehicles is the AXDSPX-CH8 designed for?
It is listed for Chrysler 2021-Up vehicles and designed for non-amplified models. Check your vehicle’s audio configuration before purchase.
Can I use it with an aftermarket radio?
Yes. The product can be used with factory and aftermarket radios.
Does it retain factory prompts and chimes?
It retains Uconnect® voice prompts and factory chimes, including parking sensor and cross path detection alerts, if the vehicle is equipped with them.
How are the settings adjusted?
Settings are adjusted wirelessly using the free AX-DSP-XL app for smartphones and tablets. The app also supports reading, writing, and storing configurations, with password protection available.
