DSP Data Interface - Ford 2006-2014 — AXDSPX-FD1
Key features
- For select Ford 2006-2014
- Designed for amplified and non-amplified systems
- Retains OE voice prompts (SYNC®) if vehicle is equipped
- Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters
- 6 inputs and 10 individually assignable outputs
- Selectable slope (12, 24, 36, or 48db per octave)
DSP Data Interface - Ford 2006-2014 — AXDSPX-FD1 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get a signal-processing interface for your 2006–2014 Ford audio system with the AXDSPX-FD1. It helps address factory radio sound processing when adding aftermarket audio gear, while retaining OE SYNC® voice prompts if equipped.
The package is designed for amplified and non-amplified systems. Its interface and vehicle-specific T-harness install at the factory radio.
Key Features & Benefits
- Flexible equalization: Choose a 31-band graphic EQ or 5-band parametric EQ for channel-by-channel sound adjustment.
- Ten assignable outputs: Connect and tune multiple audio channels independently.
- Wireless app control: Adjust settings in the free AX-DSP-XL smartphone and tablet app.
- Saved configurations: Read, write, and store settings for future recall through the app.
- Installation flexibility: Use with factory or aftermarket radios in amplified or non-amplified systems.
- Included bass knob: Make bass adjustments with the supplied knob.
Technical Specifications
| Product | DSP Data Interface — AXDSPX-FD1 |
|---|---|
| Vehicle application | Ford 2006–2014 |
| System support | Designed for amplified and non-amplified systems; can be used with factory and aftermarket radios |

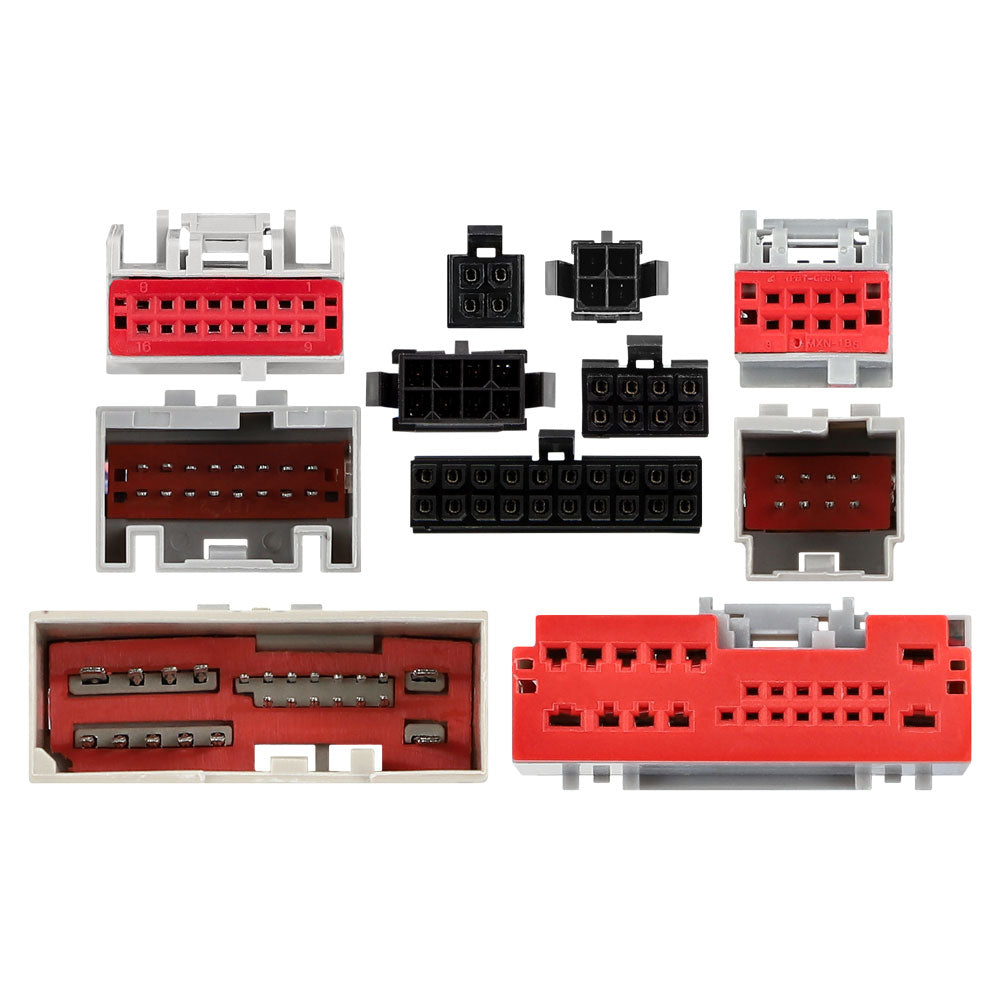

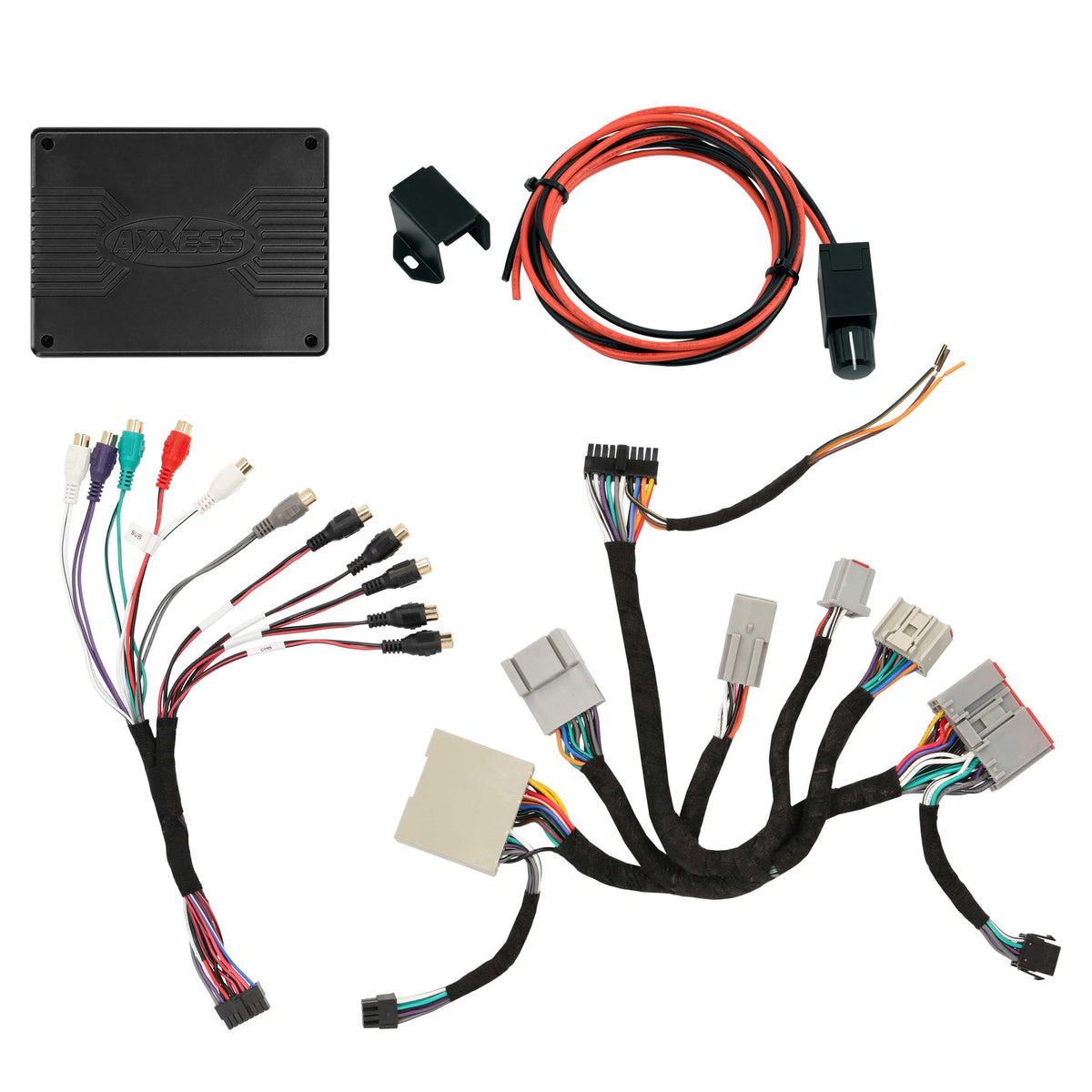

| Package includes | AXDSP-X interface and vehicle-specific T-harness |
| Installation location | At the factory radio; easy behind-the-radio installation |
| Update connection | Micro “B” USB updatable |
| Inputs and outputs | 6 inputs and 10 individually assignable outputs |
| Equalization | Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel; selectable Graphic or Parametric EQ; independent equalization on each of the 10 outputs |
| Filters | High pass, low pass, and bandpass filters |
| Selectable slope | 12, 24, 36, or 48db per octave |
| Channel delay | Each channel can be delayed independently up to 10 ms |
| Signal management | Clipping detection and limiting circuits |
| Included control | Bass knob included |
| Retained vehicle feature | Retains OE voice prompts (SYNC®) if vehicle is equipped |
| App features | Settings adjusted wirelessly in the free AX-DSP-XL app for smartphones and tablets; read, write, and store configurations for future recall; password protect feature available |
| Warranty | 1-year limited warranty |
| Patent | U.S. Patent 9,875,078 |
Why Choose This Product?
Factory radios can process audio to suit the original speakers. When you upgrade audio equipment, that processing may affect the signal reaching it. The AXDSPX-FD1 provides equalization, filters, channel delay, and signal management tools to adjust your system.
Its ten individually assignable outputs and independent output equalization give you control over multiple channels. You can also save configurations for later recall in the app.
Installation & Compatibility Notes
This interface is specified for Ford vehicles from 2006 through 2014 and installs at the factory radio using the included vehicle-specific T-harness. It is designed for amplified and non-amplified systems and can be used with factory or aftermarket radios.
Confirm your vehicle’s year and audio system configuration before purchase. SYNC® voice prompt retention applies if the vehicle is equipped with SYNC®.
Frequently Asked Questions
Which vehicles does the AXDSPX-FD1 fit?
It is listed for Ford vehicles from 2006–2014. Check your vehicle’s year and system configuration before ordering.
Can I use it with an aftermarket radio?
Yes. The interface can be used with factory and aftermarket radios.
What equalization options are available?
It offers a selectable 31-band graphic EQ or 5-band parametric EQ on each channel, with independent equalization on each of its ten outputs.
Does it retain factory SYNC® voice prompts?
It retains OE voice prompts if the vehicle is equipped with SYNC®.
What comes in the package?

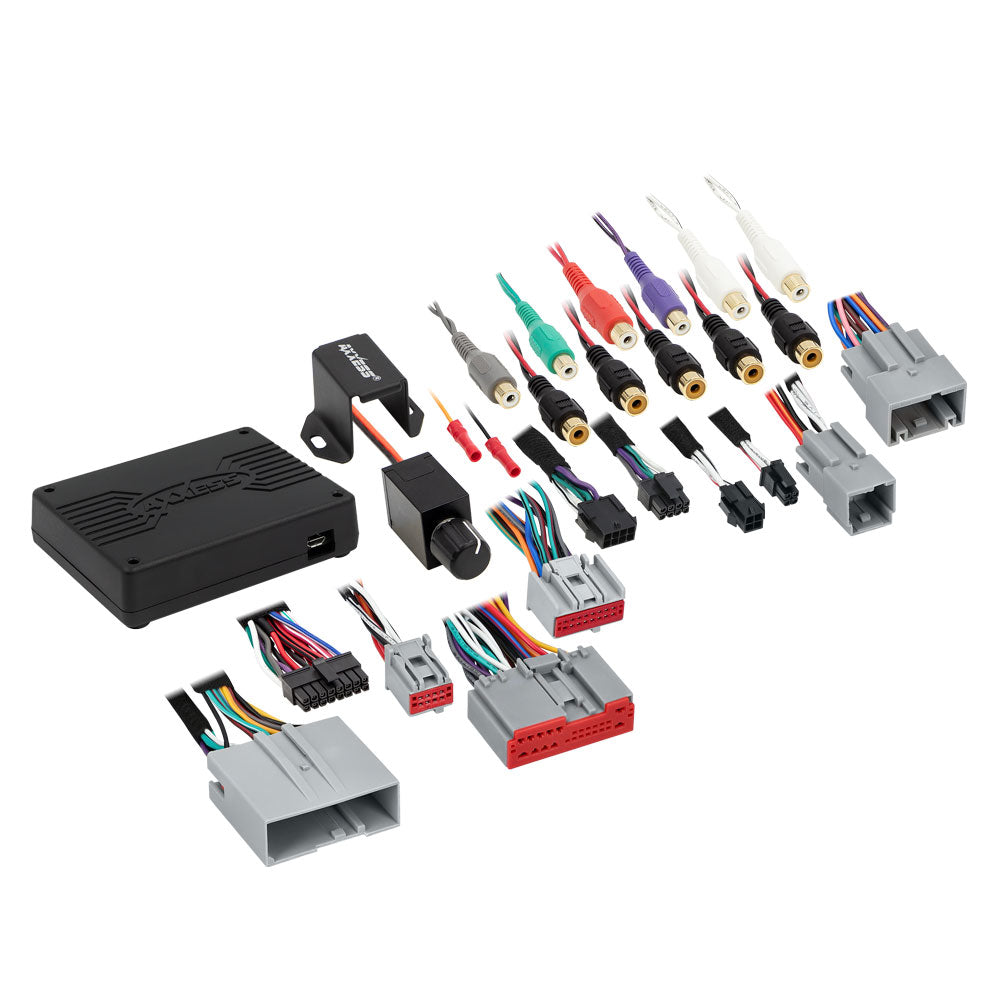

The package includes the AXDSP-X interface and vehicle-specific T-harness. A bass knob is also included.
