DSP Data Interface - Ford 2011-2023 — AXDSPX-FD2
Key features
- For select Ford 2011-2023
- Designed for amplified and non-amplified systems
- Retains OE voice prompts (SYNC®) if vehicle is equipped
- Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters
- 6 inputs and 10 individually assignable outputs
- Selectable slope (12, 24, 36, or 48db per octave)
DSP Data Interface - Ford 2011-2023 — AXDSPX-FD2 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get a DSP data interface for a Ford 2011–2023 audio upgrade with the AXDSPX-FD2. It provides six inputs, ten assignable outputs, and adjustable signal processing for factory or aftermarket radios.
Factory radio processing is designed around factory speakers. This interface gives you tools to shape the signal for aftermarket audio equipment while retaining select factory features, including SYNC® voice prompts when equipped.
Key Features & Benefits
- Flexible equalization: Choose graphic or parametric EQ settings to adjust the system’s sound.
- Ten assignable outputs: Route audio to individual outputs and adjust their equalization independently.
- Wireless app control: Adjust settings with the free AX-DSP-XL app on a smartphone or tablet.
- Configuration storage: Read, write, and save settings for future recall.
- Factory feature retention: Retain OE SYNC® voice prompts when the vehicle is equipped with SYNC®.
Technical Specifications
| Product | DSP Data Interface — AXDSPX-FD2 |
|---|---|
| Vehicle application | Ford 2011–2023 |
| System design | Designed for amplified and non-amplified systems |
| Radio compatibility | Can be used with factory and aftermarket radios |
| Inputs and outputs | 6 inputs and 10 individually assignable outputs |
| Equalization | Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel; selectable Graphic or Parametric EQ; independent equalization on each of the 10 outputs |
| Filters | High pass, low pass, and bandpass filters |
| Selectable slope | 12, 24, 36, or 48 dB per octave |
| Channel delay | Each channel can be delayed independently up to 10 ms |
| Signal protection | Clipping detection and limiting circuits |
| Included control | Bass knob |
| Factory voice prompts | Retains OE voice prompts (SYNC®) if vehicle is equipped |
| App control | Settings adjusted wirelessly in the free AX-DSP-XL app, available for smartphones and tablets; password protection available in the app |
| Configuration management | Read, write, and store configurations for future recall |
| Update connection | Micro “B” USB updatable |
| Installation location | At the factory radio; easy behind-the-radio installation |

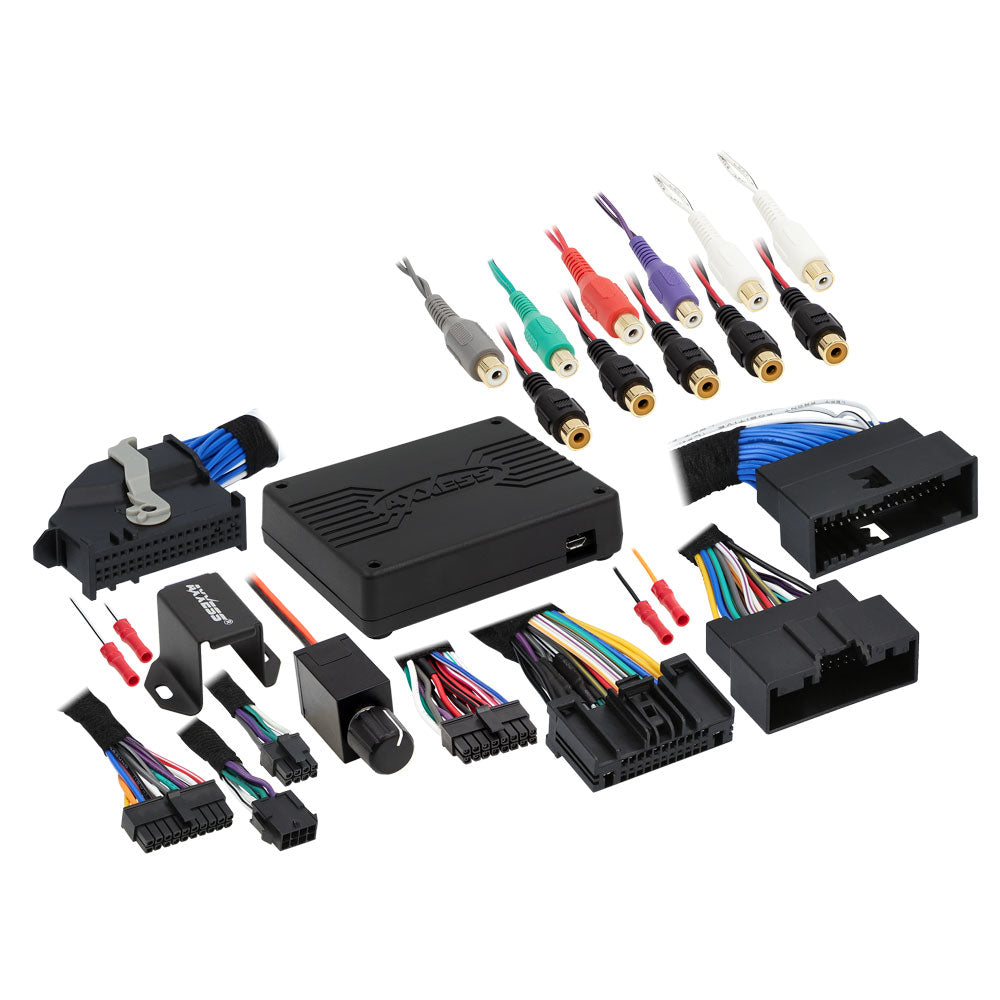

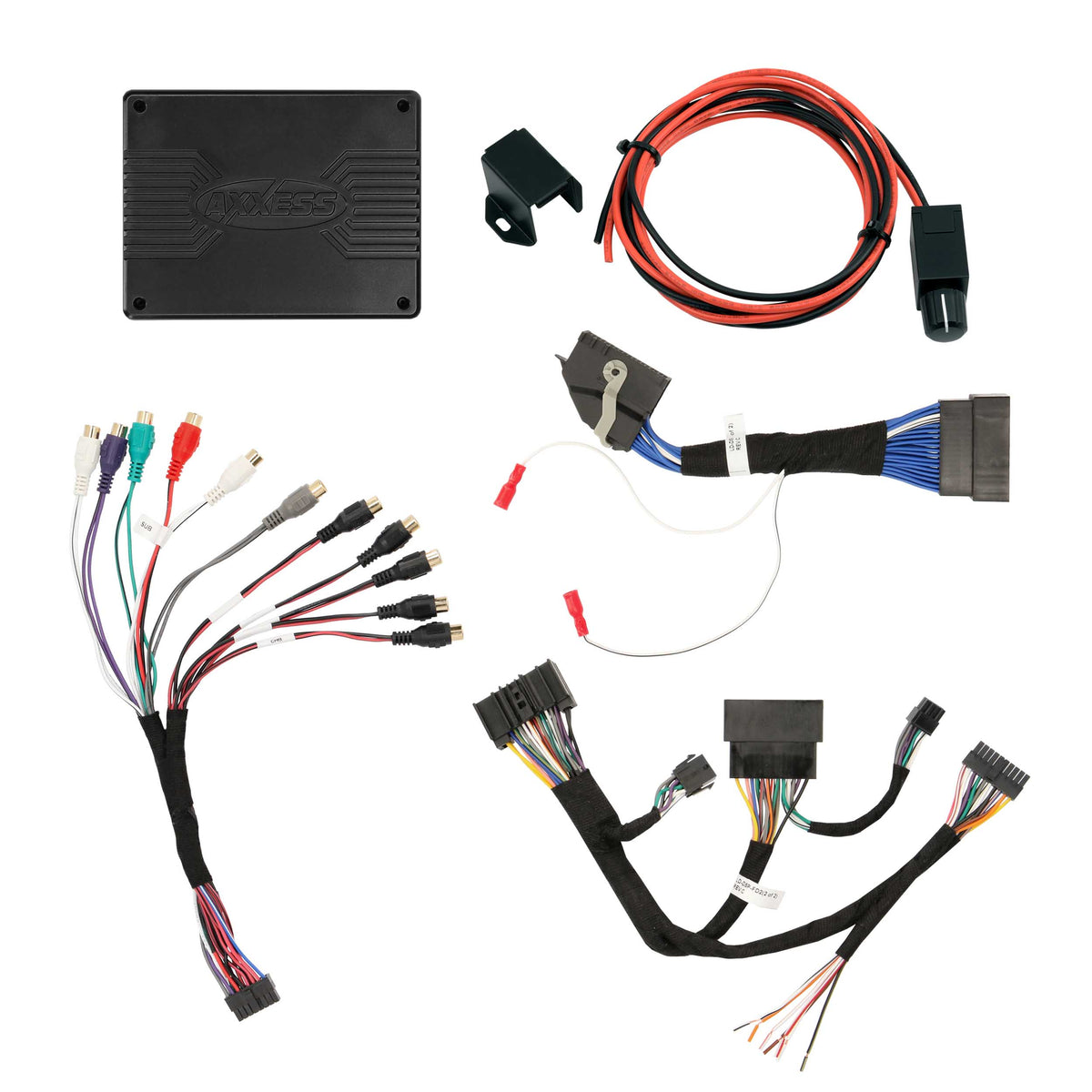

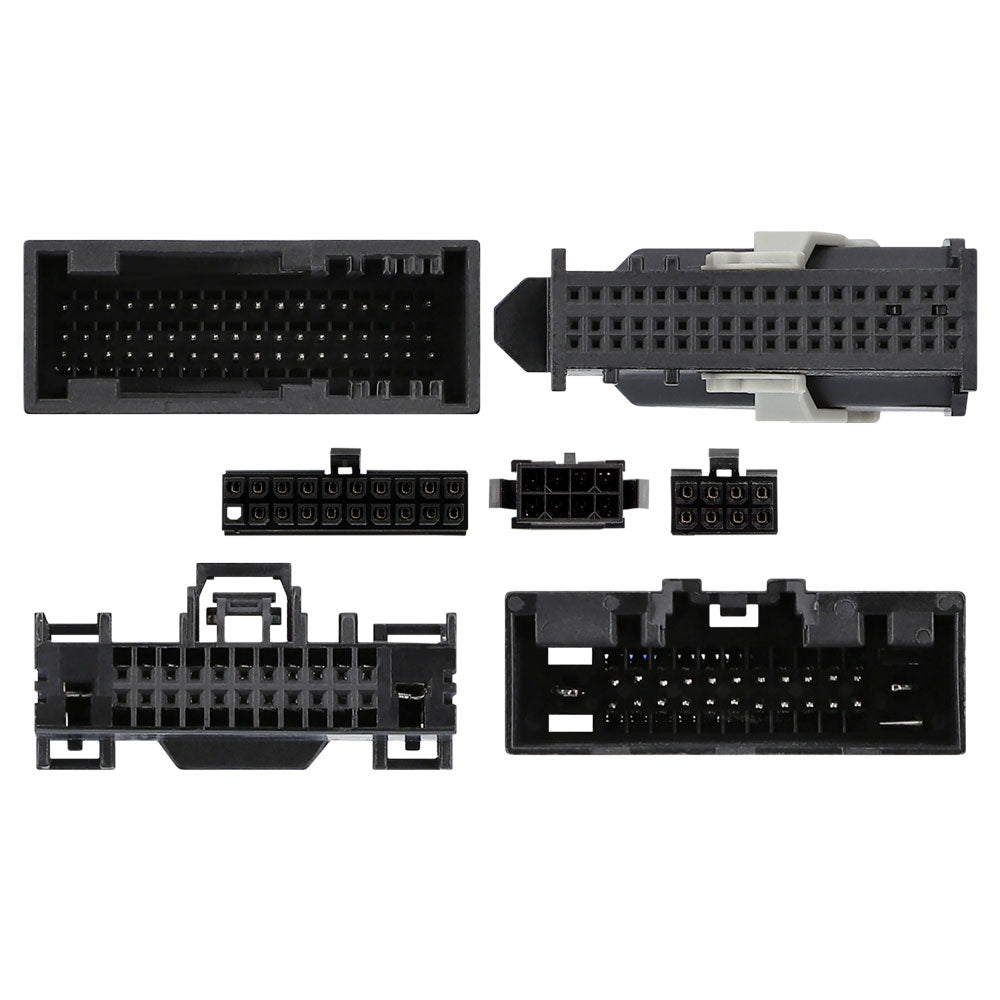

| Package includes | AXDSP-X interface and vehicle-specific T-harness |
| Warranty | 1-year limited warranty |
| Patent | U.S. Patent 9,875,078 |
Why Choose This Product?
The AXDSPX-FD2 combines signal adjustment and vehicle-specific integration in one package. Its selectable EQ, filters, output assignment, and independent channel delay give you multiple ways to configure an audio system around your equipment.
Clipping detection and limiting circuits are built in, and the included bass knob adds a direct level control. You can also save configurations to recall later.
Installation & Compatibility Notes
The interface installs at the factory radio, behind the radio, and includes a vehicle-specific T-harness. The product is designed for amplified and non-amplified systems and can be used with factory or aftermarket radios.
Confirm your Ford’s model year, audio system, and radio setup match the product application before purchase. The AXDSPX-FD2 is updatable through its Micro “B” USB connection.
Frequently Asked Questions
Can I use the AXDSPX-FD2 with an aftermarket radio?
Yes. The product details state that it can be used with factory and aftermarket radios.
What equalization options does it offer?
It offers selectable 31-band Graphic EQ or 5-band parametric EQ on each channel, plus high-pass, low-pass, and bandpass filters.
What comes in the package?
The package includes the AXDSP-X interface and a vehicle-specific T-harness. A bass knob is also included.
Does it retain factory SYNC® voice prompts?
It retains OE voice prompts if the vehicle is equipped with SYNC®.
Where does the interface install?
It installs behind the factory radio. Check the vehicle’s year and audio configuration against the product application before choosing it.
