DSP Data Interface - Ford 2018-2026 — AXDSPX-FD3
Key features
- For select Ford 2018-2026
- Designed for non-amplified systems
- Retains OE voice prompts (SYNC®) if vehicle is equipped
- Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters
- 6 inputs and 10 individually assignable outputs
- Selectable slope (12, 24, 36, or 48db per octave)
DSP Data Interface - Ford 2018-2026 — AXDSPX-FD3 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get a cleaner signal for aftermarket audio gear with the AXDSPX-FD3 DSP data interface for Ford 2018–2026 vehicles. Designed for non-amplified systems, it provides adjustable sound processing while retaining select factory features, including SYNC® voice prompts when equipped.
Key Features & Benefits

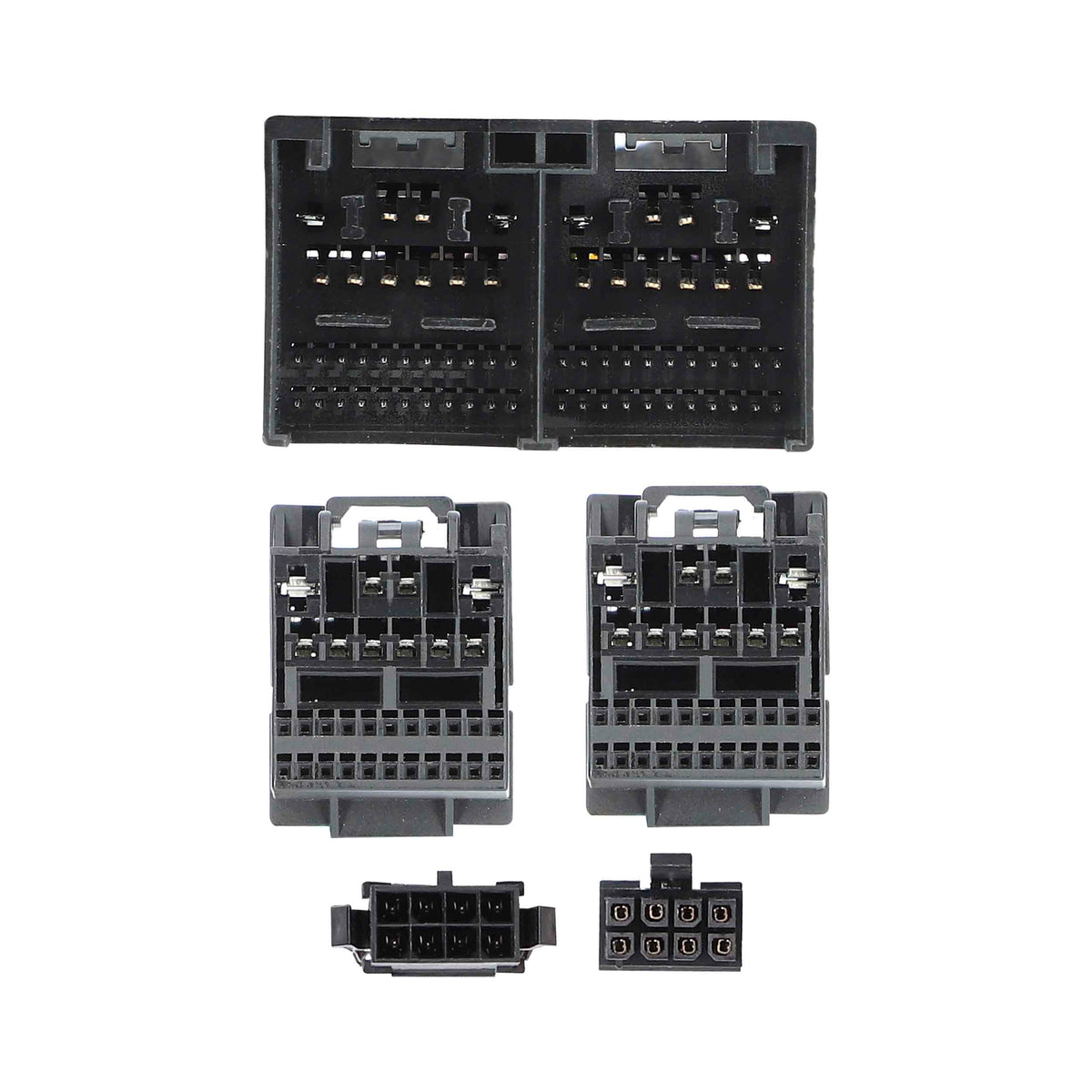

- Vehicle-specific T-harness: The included harness supports installation at the factory radio.
- Flexible sound tuning: Choose a 31-band graphic EQ or 5-band parametric EQ, with filters for shaping each channel.
- Ten assignable outputs: Route the six inputs to individually assignable outputs for your audio system setup.
- Wireless app adjustments: Change settings using the free AX-DSP-XL app for smartphones and tablets.
- Configuration storage: Read, write, and save settings for future recall; password protection is available in the app.
- Included bass knob: Adjust bass with the knob supplied in the package.
Technical Specifications
| Product | DSP Data Interface - Ford 2018-2026 — AXDSPX-FD3 |
|---|---|
| System design | Designed for non-amplified systems |

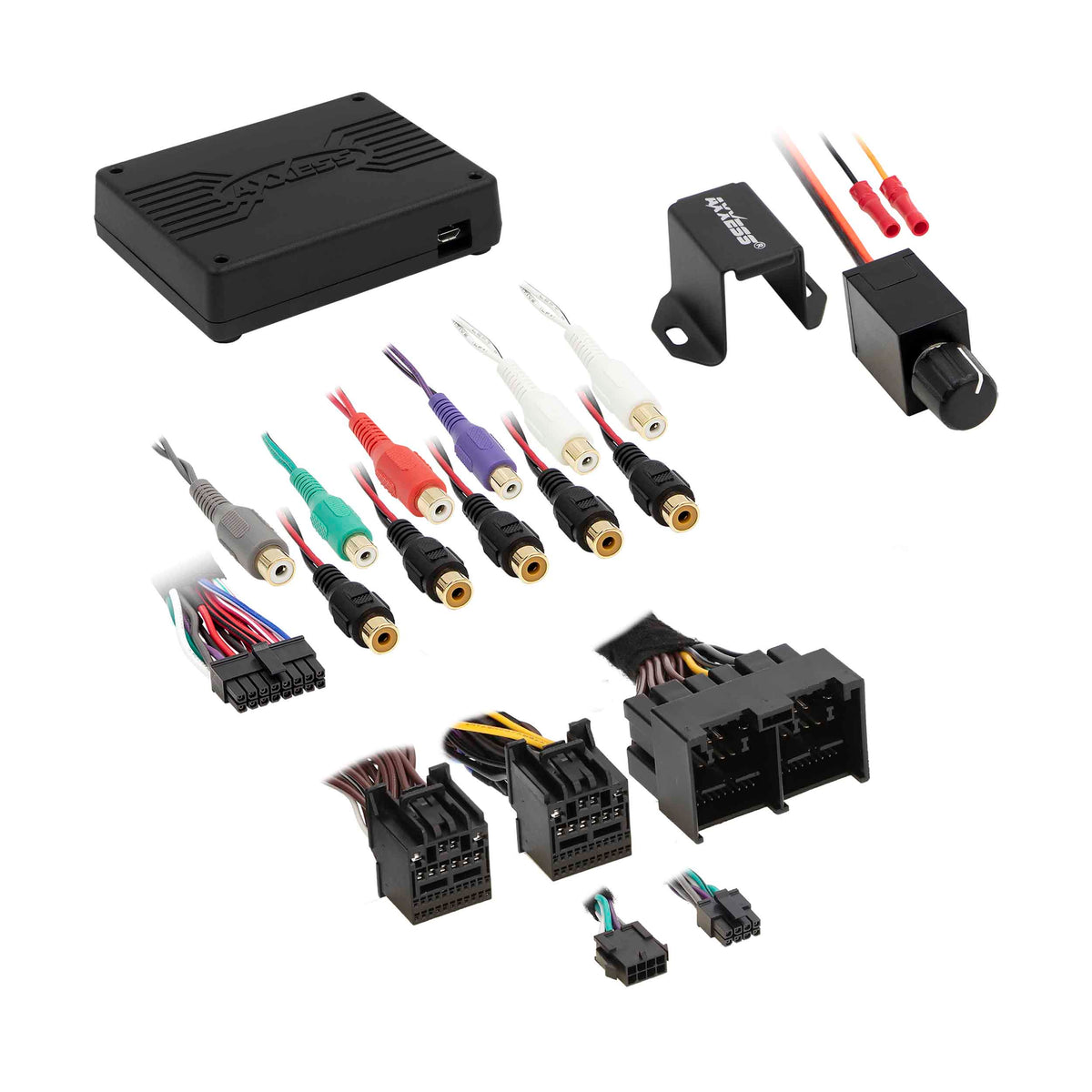

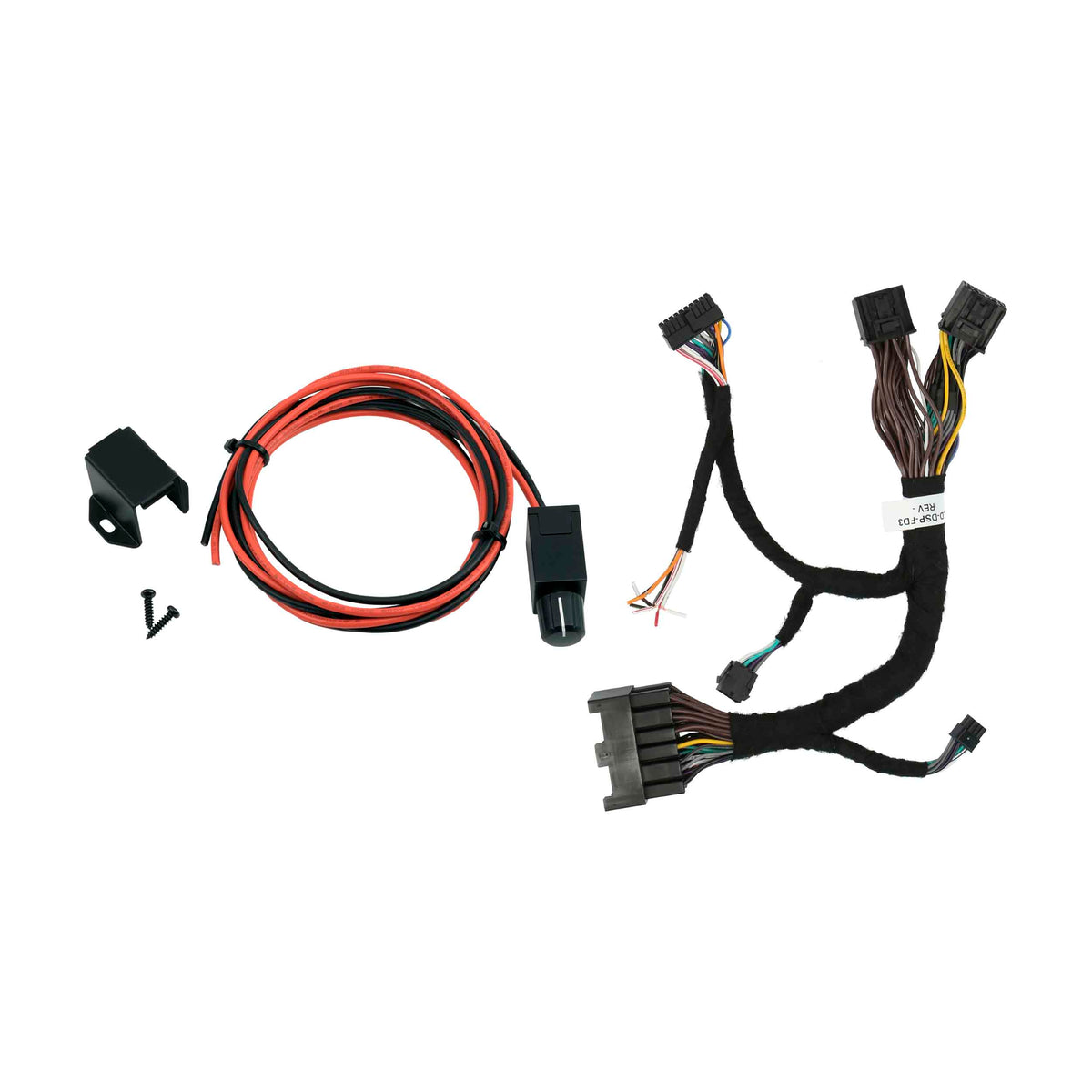

| Package includes | AXDSP-X interface and vehicle-specific T-harness; bass knob included |
| Installation location | At the factory radio; easy behind-the-radio installation |
| USB connection | Micro “B” USB, updatable |
| Inputs and outputs | 6 inputs and 10 individually assignable outputs |
| Equalization | Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel; selectable Graphic or Parametric EQ; independent equalization on each of the 10 outputs |
| Filters | High pass, low pass, and bandpass filters |
| Selectable slope | 12, 24, 36, or 48db per octave |
| Channel delay | Each channel can be delayed independently up to 10ms |
| Signal control | Clipping detection and limiting circuits |
| Factory feature retention | Retains OE voice prompts (SYNC®) if vehicle is equipped |
| Settings and app | Settings adjusted wirelessly in the free AX-DSP-XL app, available for smartphones and tablets; password-protect feature available in the app |
| Radio compatibility | Can be used with factory and aftermarket radios |
| Warranty | 1-year limited warranty |
| Patent | U.S. Patent 9,875,078 |
Why Choose This Product?
Factory radio processing is designed around factory speakers. When you add aftermarket audio gear, that processing can limit the signal reaching it. The AXDSPX-FD3 provides EQ, filters, output assignment, and independent channel delay so you can shape the system’s signal to suit your setup.
Its app-based controls let you adjust settings wirelessly, while configuration storage makes it possible to save settings for later recall. The interface can be used with factory and aftermarket radios.
Installation & Compatibility Notes
This interface is listed for Ford 2018–2026 vehicles and is designed for non-amplified systems. It installs at the factory radio using the included vehicle-specific T-harness. Check your vehicle’s year and audio configuration before purchase.
Micro “B” USB supports updates. Settings are adjusted through the free AX-DSP-XL app for smartphones and tablets.
Frequently Asked Questions
Is the AXDSPX-FD3 intended for amplified factory systems?
It is designed for non-amplified systems.
Can I use it with an aftermarket radio?
Yes. The interface can be used with factory and aftermarket radios.
How many inputs and outputs does it have?
It has 6 inputs and 10 individually assignable outputs.
Can I save my audio settings?
Yes. You can read, write, and store configurations for future recall. The app also offers a password-protect feature.
Does it retain factory voice prompts?
It retains OE SYNC® voice prompts if the vehicle is equipped with SYNC®.
