DSP Data Interface - GM 2016-2019 — AXDSPX-GL10
Key features
- For select GM 2016-2019
- Designed for non-amplified systems
- Retains OE voice prompts (OnStar®) if vehicle is equipped; Retains factory chimes, including parking sensor and cross path detection alerts if vehicle is equipped
- Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters
- 6 inputs and 10 individually assignable outputs
- Selectable slope (12, 24, 36, or 48db per octave)
DSP Data Interface - GM 2016-2019 — AXDSPX-GL10 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get a DSP data interface designed to overcome factory radio processing and provide clean signals for aftermarket audio gear. The AXDSPX-GL10 is specified for GM 2016–2019 non-amplified systems and includes a vehicle-specific T-harness. Its 10 assignable outputs give you independent control over the audio channels.
Key Features & Benefits
- Flexible signal control: Choose graphic or parametric equalization and adjust each output independently.
- Detailed tuning: Select crossover filters and slopes to shape the signal for your audio system.
- Wireless adjustments: Configure settings in the free AX-DSP-XL app for smartphones and tablets.
- Factory feature retention: Retains factory chimes and, when equipped, OE voice prompts and specified alerts.

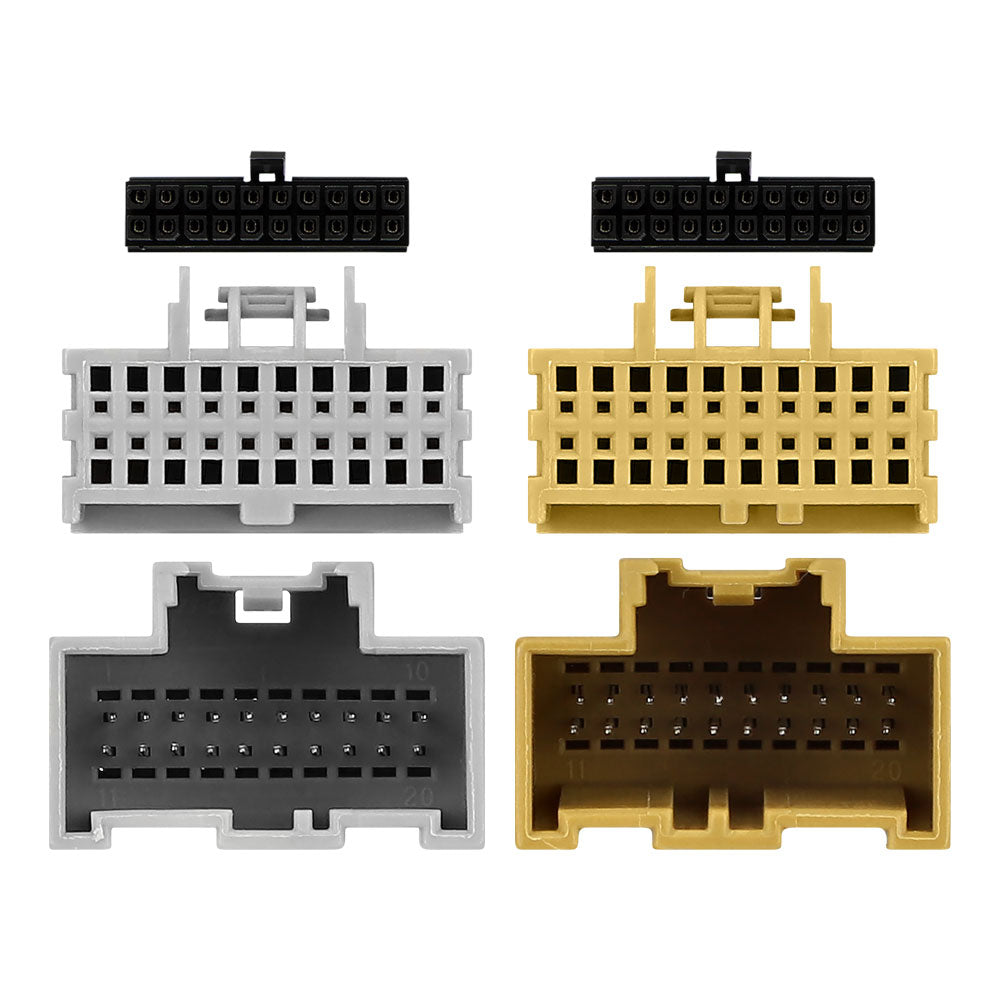

- Behind-radio installation: The interface and vehicle-specific T-harness are intended for installation at the factory radio.
Technical Specifications
| Product model | AXDSPX-GL10 |
|---|---|
| Vehicle application | GM 2016–2019 |
| System type | Designed for non-amplified systems |

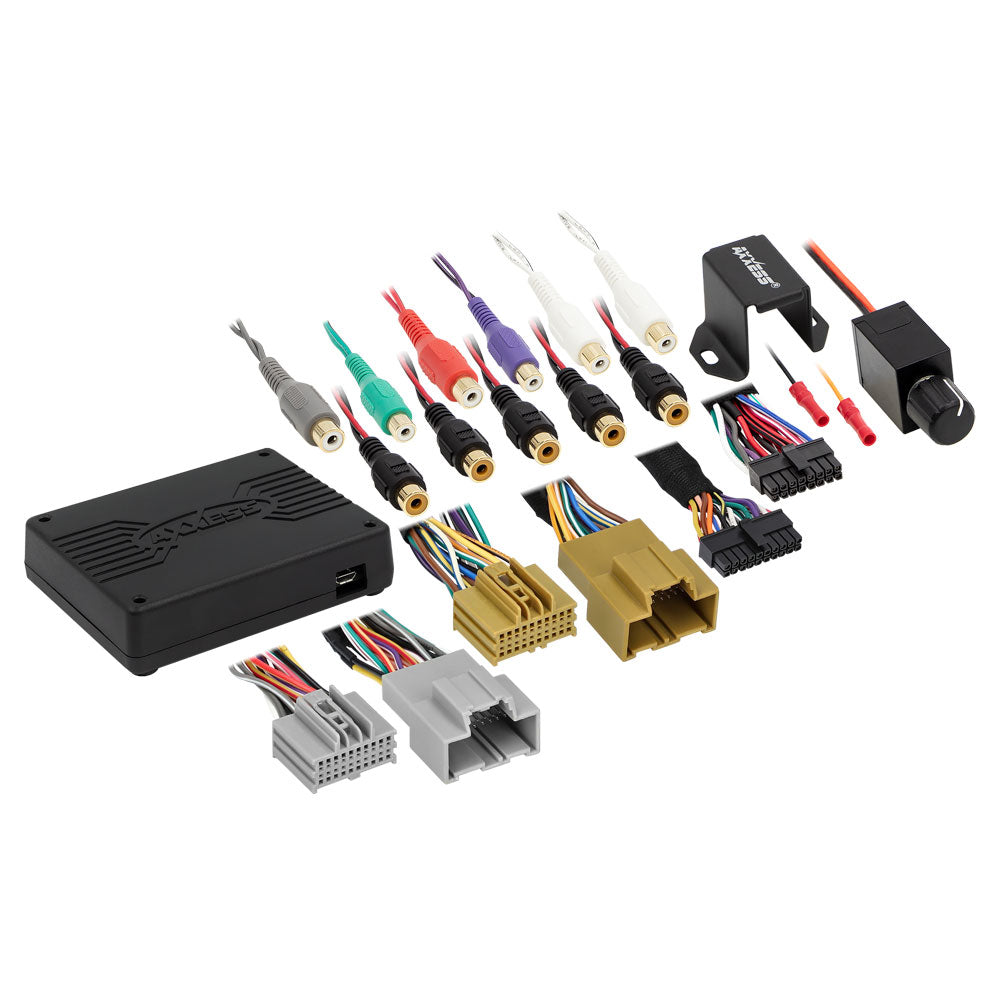

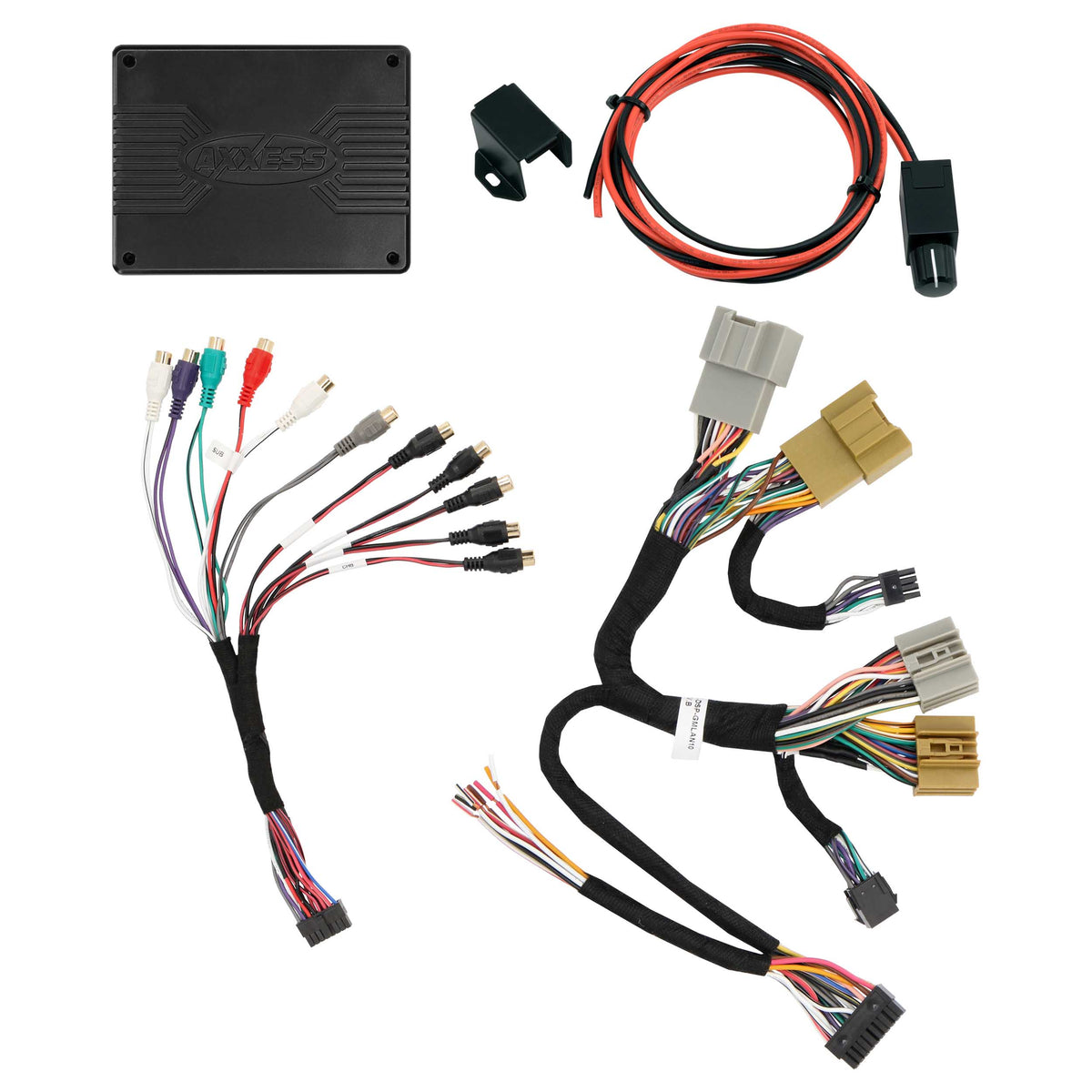

| Package includes | AXDSP-X interface and vehicle-specific T-harness |
| Inputs and outputs | 6 inputs and 10 individually assignable outputs |
| Equalization | Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel; selectable Graphic or Parametric EQ; independent equalization on each of the 10 outputs |
| Filters | High pass, low pass, and bandpass filters |
| Selectable slope | 12, 24, 36, or 48db per octave |
| Channel delay | Each channel can be delayed independently up to 10 ms |
| Chime features | Chime control for GM vehicles; retains factory chimes, including parking sensor and cross path detection alerts if vehicle is equipped |
| Voice prompts | Retains OE voice prompts (OnStar®) if vehicle is equipped |
| Adjustment and app | Settings adjusted wirelessly in the free AX-DSP-XL app available for smartphones and tablets |
| Configuration features | Read, write, and store configurations for future recall; password protect feature available in the app |
| Connections and installation | Internal header port for adding interface modules; Micro “B” USB updatable; install location: at the factory radio; easy behind the radio installation |
| Radio compatibility | Can be used with factory and aftermarket radios |
| Included accessory | Bass knob |
| Clipping protection | Clipping detection and limiting circuits |
| Warranty | 1-year limited warranty |
| Patent | U.S. Patent 9,875,078 |
Why Choose This Product?
Factory radio processing is designed around factory speakers. This DSP interface is intended to help address that processing when you upgrade audio equipment, while retaining selected factory features when the vehicle is equipped for them.
Its channel-by-channel equalization, independent delay, and selectable filters give you several ways to adjust the signal. The app also lets you save configurations for future recall.
Installation & Compatibility Notes
This product is specified for GM 2016–2019 non-amplified systems. Confirm your vehicle’s year and system type before purchase. Installation is at the factory radio, and the package includes a vehicle-specific T-harness.
The interface can be used with factory or aftermarket radios. Retention of OE voice prompts and specified factory alerts depends on the vehicle being equipped with those features.
Frequently Asked Questions
Is the AXDSPX-GL10 intended for amplified systems?
It is designed for non-amplified systems.
Can I use it with an aftermarket radio?
Yes. The product details state that it can be used with factory and aftermarket radios.
How do I adjust the DSP settings?
Settings are adjusted wirelessly through the free AX-DSP-XL app for smartphones and tablets.
What comes in the package?
The package includes the AXDSP-X interface and vehicle-specific T-harness. A bass knob is also included.
