DSP Data Interface - GM 2010-2017 — AXDSPX-GL44
Key features
- For select GM 2010-2017
- Designed for amplified and non-amplified systems
- Retains OE voice prompts (OnStar®) if vehicle is equipped; Retains factory chimes, including parking sensor and cross path detection alerts if vehicle is equipped
- Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters
- 6 inputs and 10 individually assignable outputs
- Selectable slope (12, 24, 36, or 48db per octave)
DSP Data Interface - GM 2010-2017 — AXDSPX-GL44 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The AXDSPX-GL44 DSP data interface helps you get a cleaner signal for upgraded audio gear in GM vehicles from 2010–2017. It is designed for amplified and non-amplified systems and can be used with factory or aftermarket radios.
Key Features & Benefits
- Audio adjustment: Choose graphic or parametric equalization to shape the system’s sound.
- Flexible outputs: Assign six inputs to 10 outputs and adjust each output independently.
- Factory feature retention: Retains OnStar voice prompts and factory alerts when the vehicle is equipped with them.
- Wireless settings: Adjust settings in the free AX-DSP-XL app for smartphones and tablets.
- Convenient setup: The package includes the AXDSP-X interface and vehicle-specific T-harness for installation behind the factory radio.
Technical Specifications
| Specification | Details |
|---|---|
| Vehicle range | GM 2010–2017 |
| System support | Designed for amplified and non-amplified systems |
| Inputs and outputs | 6 inputs and 10 individually assignable outputs |
| Equalization and filters | Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters |
| EQ selection | Selectable Graphic or Parametric EQ |
| Output equalization | Independent equalization on each of the 10 outputs |
| Selectable slope | 12, 24, 36, or 48db per octave |
| Channel delay | Each channel can be delayed independently up to 10 ms |
| GM chime control | Yes |
| Clipping protection | Clipping detection and limiting circuits |
| Controls and updates | Bass knob included; Micro “B” USB updatable |
| Factory feature retention | Retains OE voice prompts (OnStar®) if vehicle is equipped; retains factory chimes, including parking sensor and cross path detection alerts if vehicle is equipped |
| App | Settings adjusted wirelessly in the free AX-DSP-XL app available for smartphones and tablets; password protect feature available in the app |
| Configuration storage | Read, write, and store configurations for future recall |
| Radio support | Can be used with factory and aftermarket radios |
| Install location | At the factory radio; easy behind the radio installation |

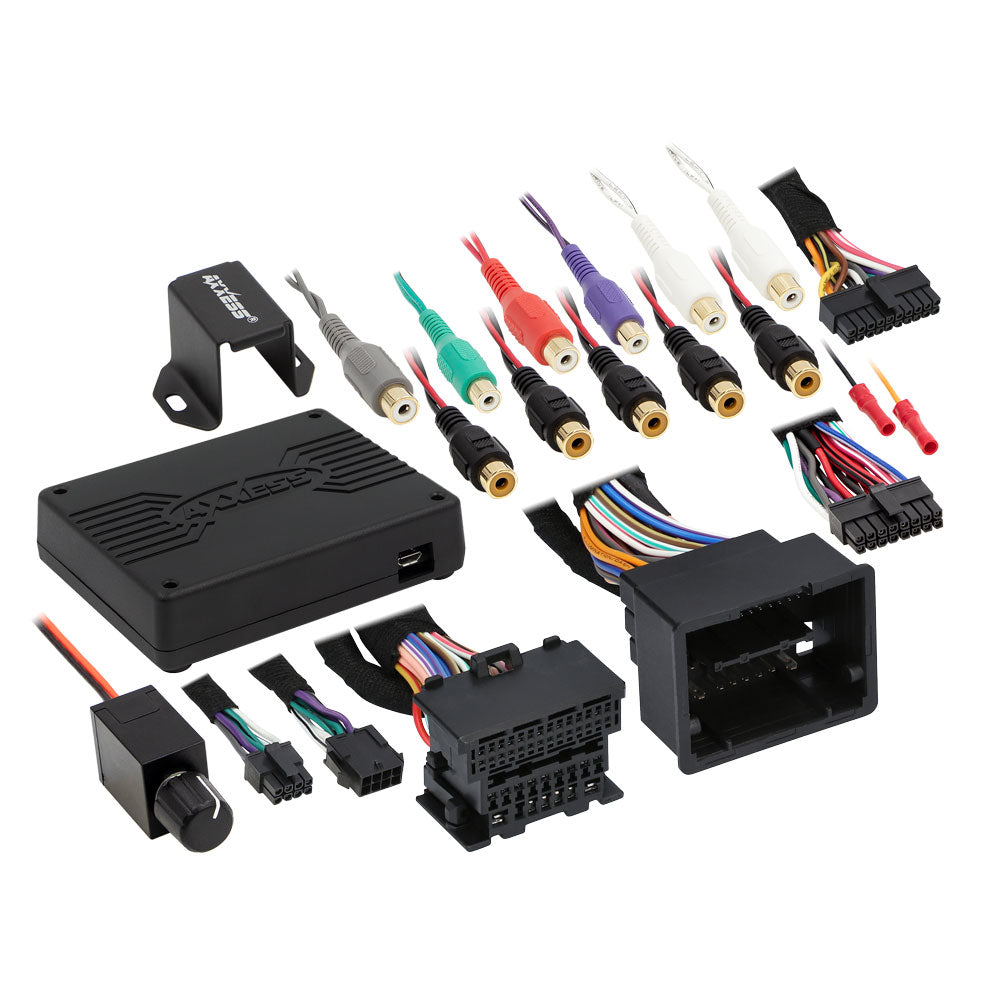

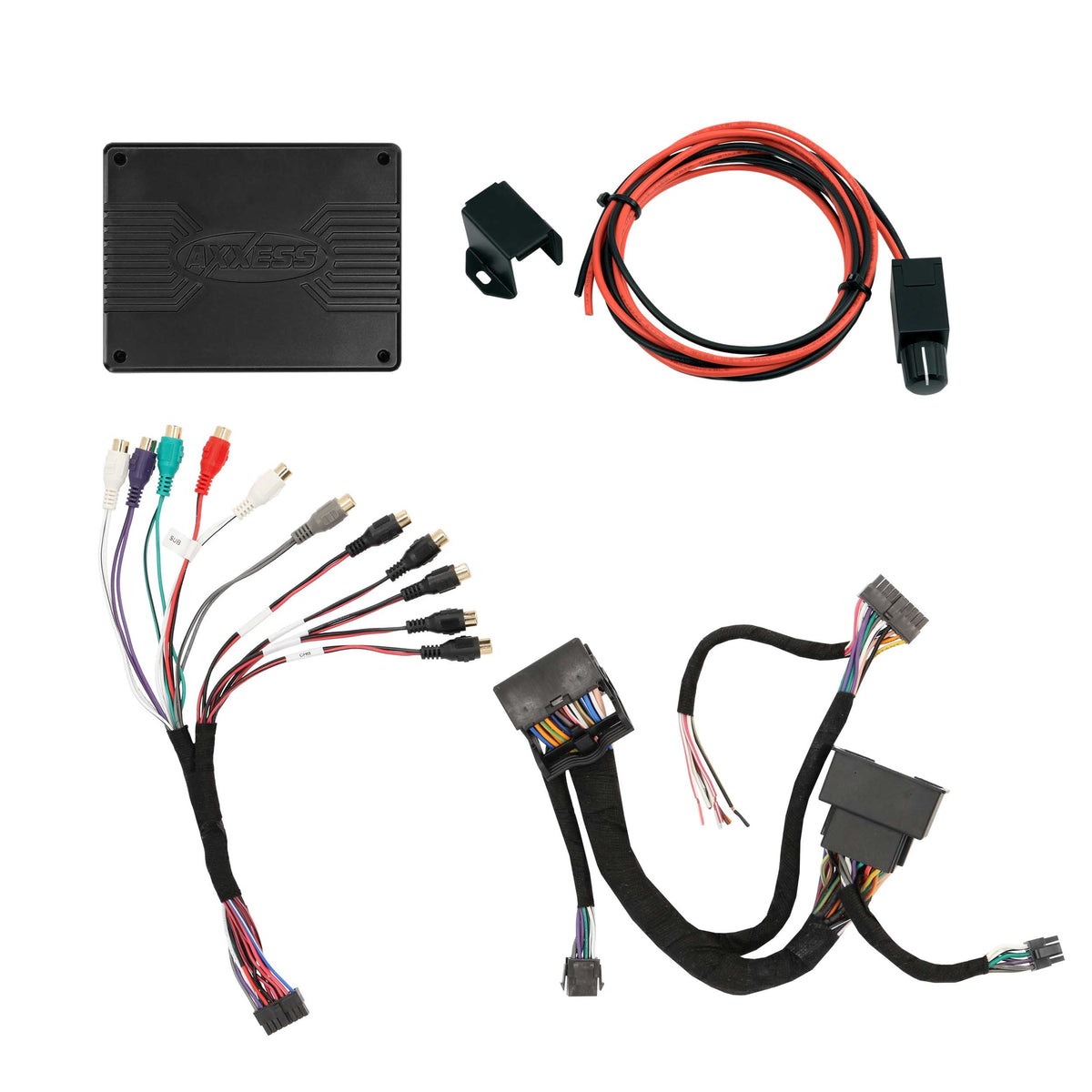

| Package includes | AXDSP-X interface and vehicle-specific T-harness |
| Warranty | 1-year limited warranty |
| Patent | U.S. Patent 9,875,078 |
Why Choose This Product?
Factory radio sound processing is designed around factory speakers. When you upgrade speakers or add audio equipment, the AXDSPX-GL44 gives you equalization, filtering, output assignment, and channel delay adjustments to tailor the signal for your system.
Its chime control and retention of supported factory prompts and alerts help preserve useful vehicle sounds during an audio upgrade.
Installation & Compatibility Notes
This interface is specified for GM vehicles from 2010–2017 and installs at the factory radio. It supports amplified and non-amplified systems, as well as factory and aftermarket radios. Check your vehicle’s year and audio-system configuration before selecting an interface.
Frequently Asked Questions
Does the AXDSPX-GL44 work with an amplified factory system?
Yes. It is designed for both amplified and non-amplified systems.
Can I use it with an aftermarket radio?
Yes. The interface can be used with factory and aftermarket radios.
Which factory sounds can it retain?
It retains OnStar® voice prompts when equipped, plus factory chimes including parking sensor and cross path detection alerts when equipped.
What is included in the package?
The package includes the AXDSP-X interface and a vehicle-specific T-harness. A bass knob is also included.
