DSP Data Interface - Hyundai | Kia 2013-2020 — AXDSPX-HK3
Key features
- For select Hyundai / Kia 2013-2020
- Designed for non-amplified systems
- Retains OE voice prompts (Blue Link®/UVO®) if vehicle is equipped
- Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters
- 6 inputs and 10 individually assignable outputs
- Selectable slope (12, 24, 36, or 48db per octave)
DSP Data Interface - Hyundai | Kia 2013-2020 — AXDSPX-HK3 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get a signal shaped for aftermarket audio gear with the AXDSPX-HK3 DSP data interface for Hyundai and Kia vehicles from 2013–2020. It is designed for non-amplified systems and helps address the factory radio’s sound processing while retaining select original-equipment features.
Key Features & Benefits

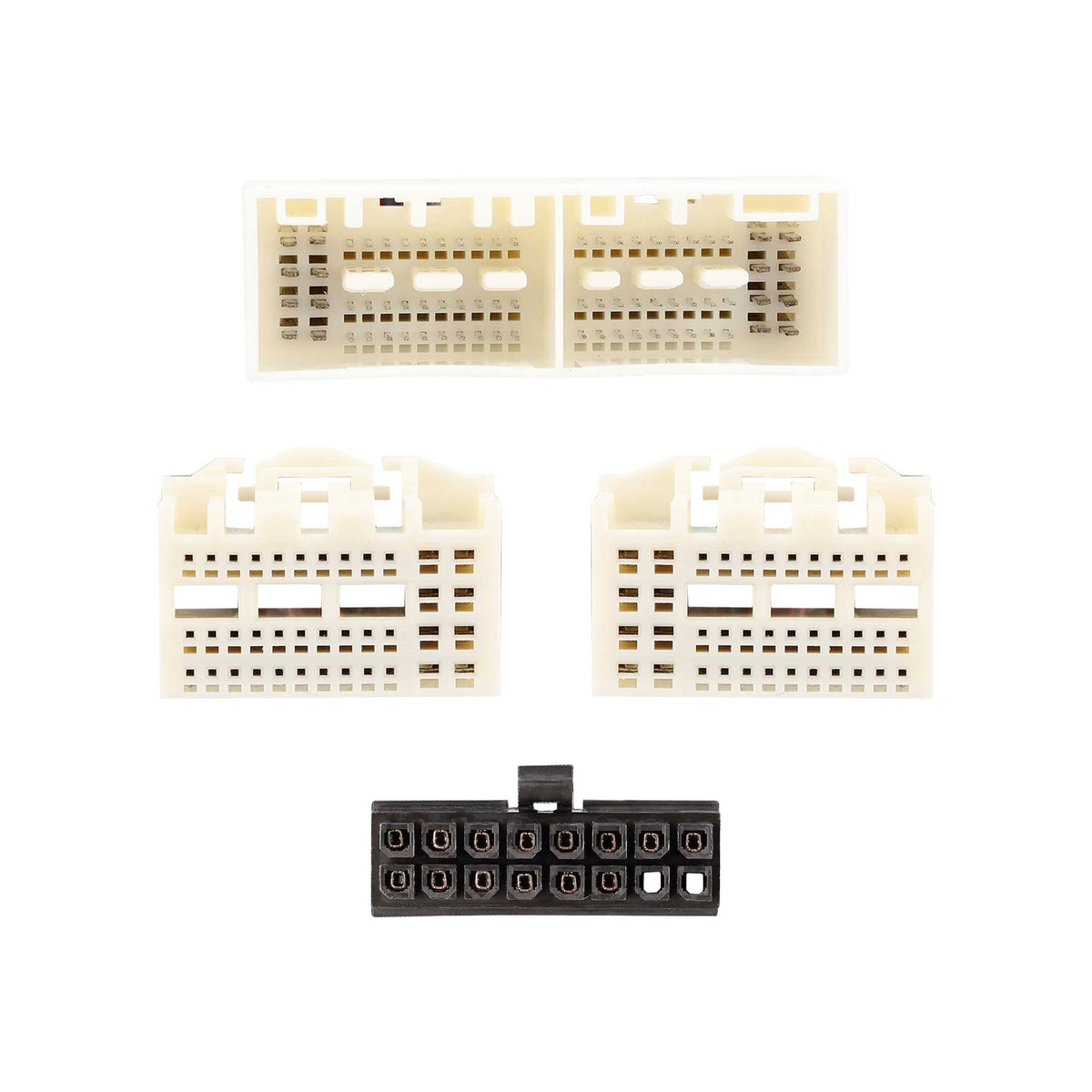

- Vehicle-specific T-harness: The package includes the AXDSP-X interface and a vehicle-specific T-harness for installation at the factory radio.
- Flexible sound tuning: Choose graphic or parametric equalization, then adjust each output independently.
- Six inputs and ten outputs: Assign the outputs individually to suit your audio system’s signal-routing needs.
- Retained voice prompts: Blue Link®/UVO® voice prompts are retained if the vehicle is equipped with them.
- Wireless app adjustments: Configure settings with the free AX-DSP-XL app for smartphones and tablets.
- Included bass knob: Adjust bass using the knob supplied with the interface.
Technical Specifications
| Specification | Details |
|---|---|
| Model | AXDSPX-HK3 |
| Product type | DSP data interface |
| Vehicle range | Hyundai | Kia 2013-2020 |
| System type | Designed for non-amplified systems |
| Included components | AXDSP-X interface and vehicle-specific T-harness |
| Installation location | At the factory radio |
| Update connection | Micro “B” USB |
| Inputs | 6 |
| Outputs | 10 individually assignable outputs |
| Equalization | Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel; selectable Graphic or Parametric EQ; independent equalization on each of the 10 outputs |
| Filters | High pass, low pass, and bandpass filters |
| Selectable slope | 12, 24, 36, or 48db per octave |
| Channel delay | Each channel can be delayed independently up to 10 ms |
| Signal control | Clipping detection and limiting circuits |
| Bass knob | Included |
| Voice prompts | Retains OE voice prompts (Blue Link®/UVO®) if vehicle is equipped |
| App | Free AX-DSP-XL app for smartphones and tablets; settings adjusted wirelessly |
| Configuration features | Read, write, and store configurations for future recall; password protect feature available in the app |
| Radio compatibility | Can be used with factory and aftermarket radios |
| Installation | Easy behind the radio installation |
| Warranty | 1-year limited warranty |
| Patent | U.S. Patent 9,875,078 |
Why Choose This Product?
Factory radios can process audio for the original speakers. When you upgrade speakers or add aftermarket audio gear, that factory tuning may limit the sound you want. The AXDSPX-HK3 provides extensive equalization, filters, output assignment, and channel delay for system adjustments.
Its configuration tools also let you read, write, and store settings for future recall. This is useful when you want to keep a configuration available while making changes to your setup.
Installation & Compatibility Notes
This interface is designed for non-amplified Hyundai and Kia systems in the 2013–2020 range, with installation at the factory radio. Confirm your vehicle’s year and system type before purchase. It can be used with factory and aftermarket radios.
The included interface is updated through Micro “B” USB. Settings are adjusted wirelessly through the AX-DSP-XL app on a smartphone or tablet.
Frequently Asked Questions
Which vehicles is the AXDSPX-HK3 designed for?
It is listed for Hyundai and Kia vehicles from 2013–2020 and is designed for non-amplified systems. Confirm your vehicle’s system type before selecting it.
Can I use it with an aftermarket radio?
Yes. The interface can be used with factory and aftermarket radios.
What comes in the package?

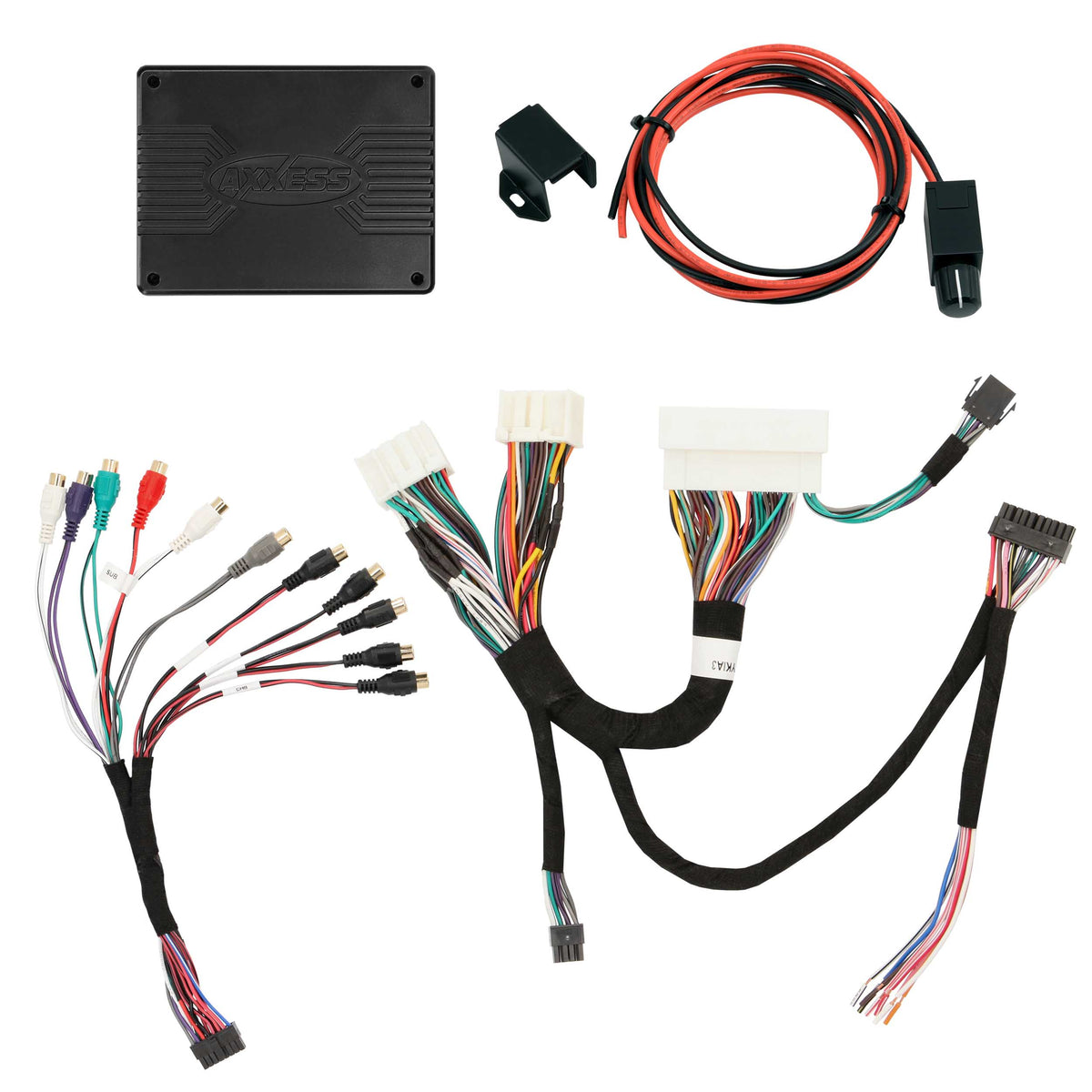

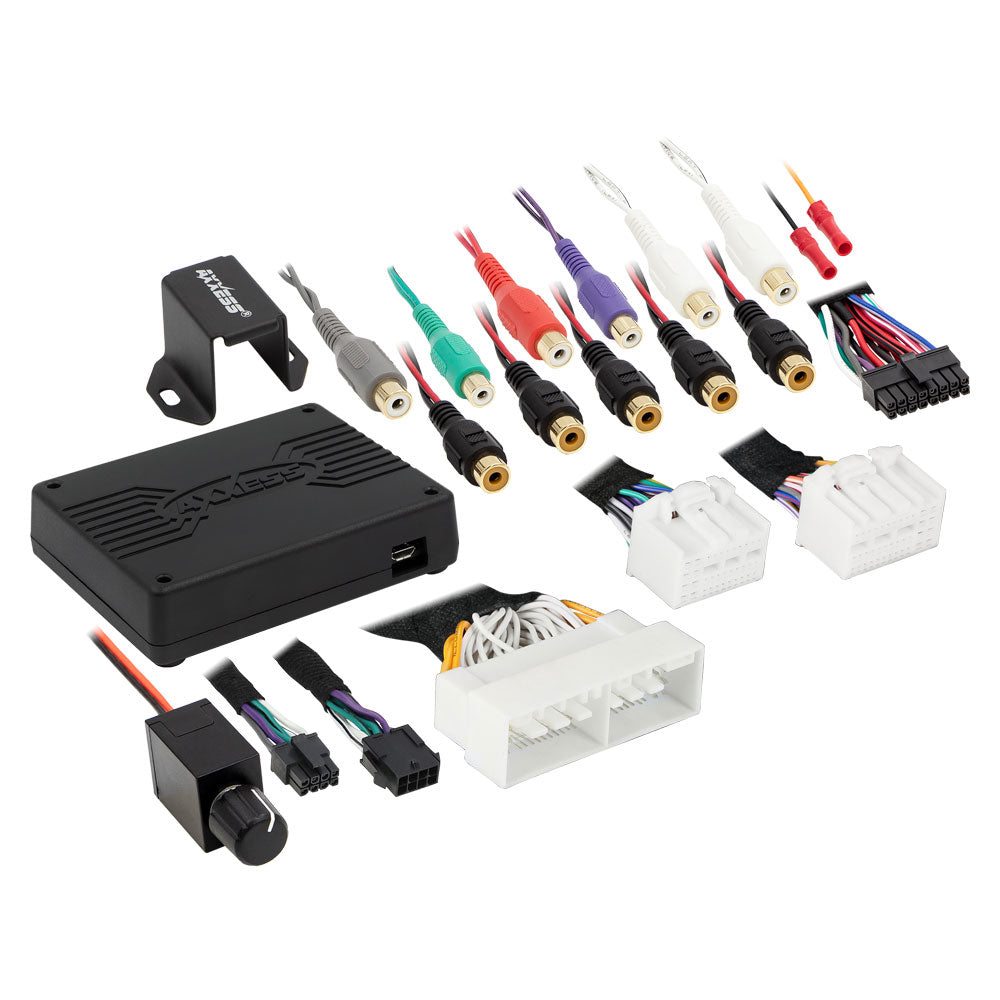

The package includes the AXDSP-X interface and vehicle-specific T-harness. A bass knob is also included.
How do I adjust the DSP settings?
Settings are adjusted wirelessly in the free AX-DSP-XL app, available for smartphones and tablets.
Can I update the interface?
Yes. The interface is Micro “B” USB updatable.
Does it retain factory voice prompts?
It retains OE Blue Link®/UVO® voice prompts if the vehicle is equipped with them.
