DSP Data Interface - Nissan 2008-2017 — AXDSPX-NI2

Overcome the factory radio’s built-in “audio processing” with our patented digital signal processor, or “DSP”, vehicle-specific packages. Factory radios have built-in sound processing designed to make your mass-produced factory speakers sound as good as they can without breaking. This means that if you upgrade to aftermarket speakers, your factory radio will process the sound according to factory settings, and your system just won’t sound as great as you hoped. To remove the limitations of the factory radio and get clean signals for aftermarket audio gear, you will need a sound processor like our line of patented DSP products. Our DSP is unlike any other on the market, offering not only great sound improvements but also retaining many of the features commonly lost when upgrading a sound system.
Vehicle-specific Features:
Designed for non-amplified systems

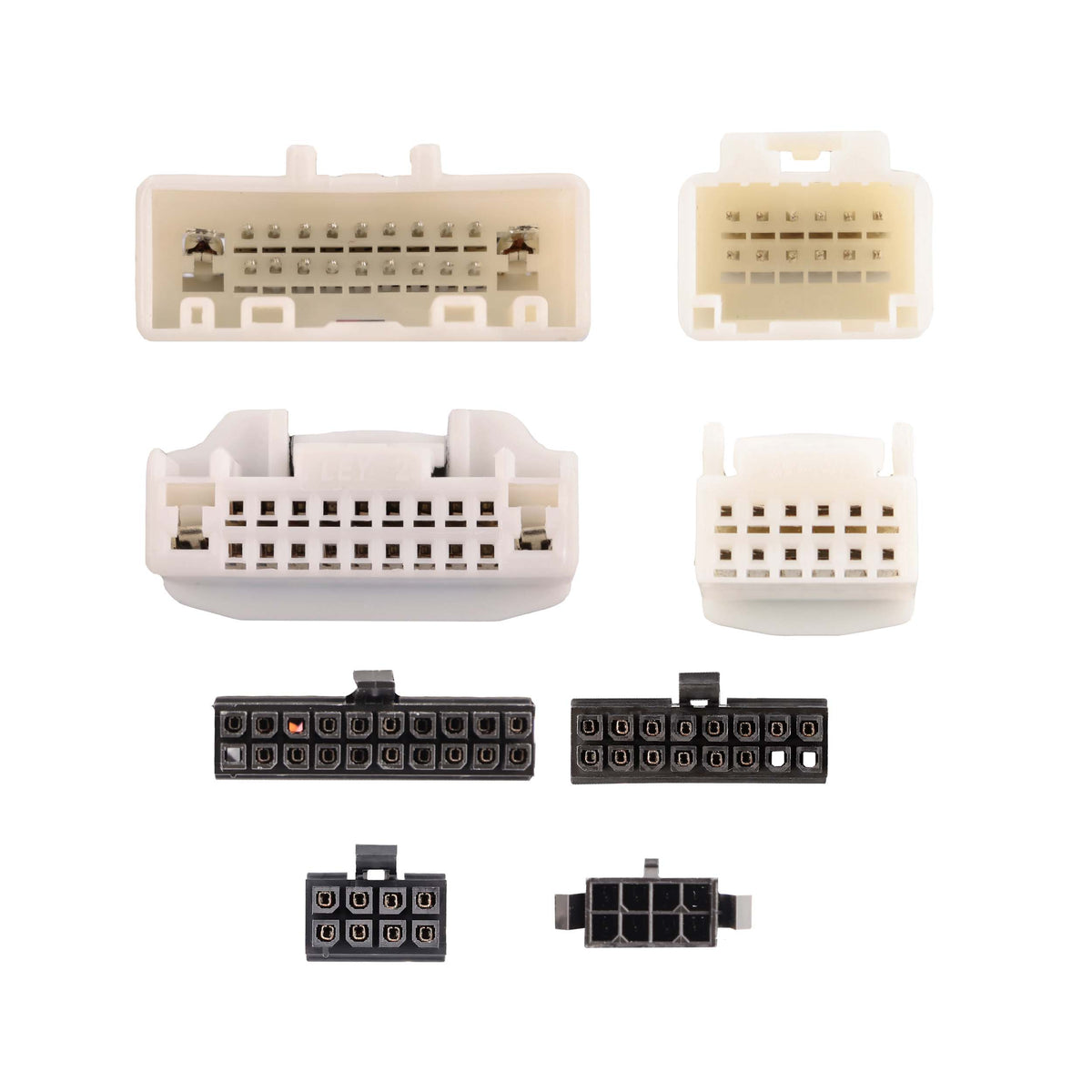

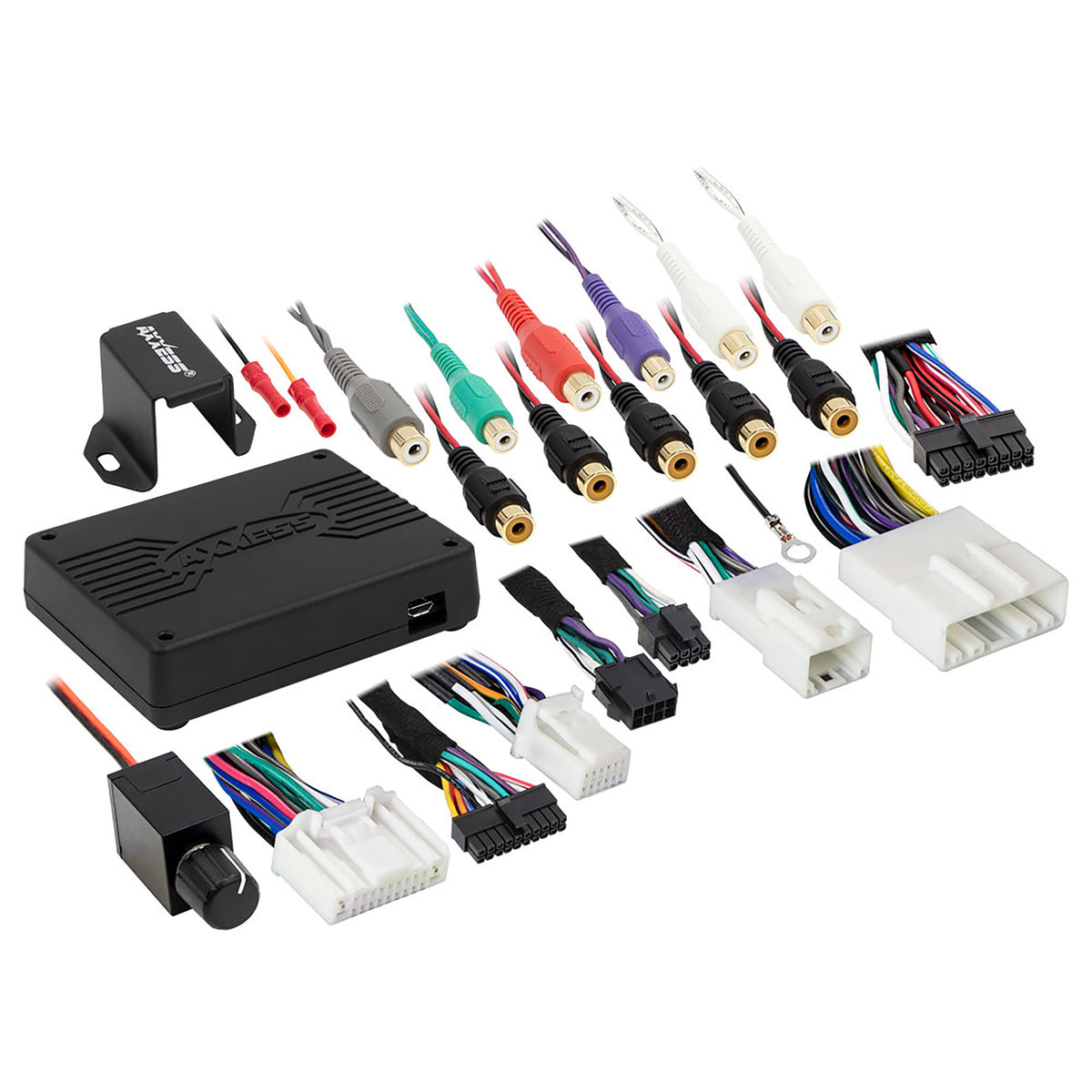

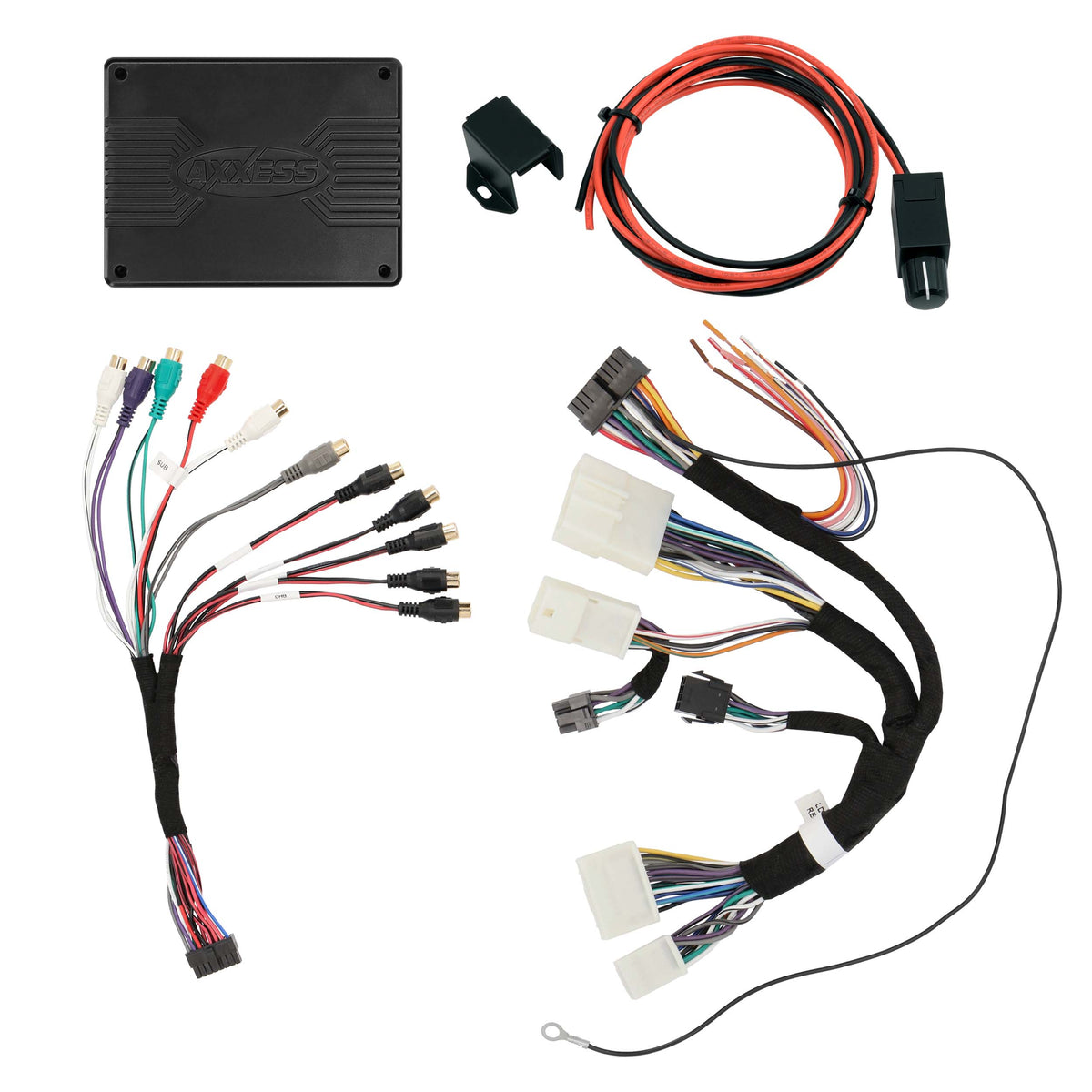

Package includes the AXDSP-X interface and vehicle-specific T-harness
Install location: At the factory radio
Micro “B” USB updatable
1-year limited warranty
Specifications:
Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters
6 inputs and 10 individually assignable outputs
Selectable slope (12, 24, 36, or 48db per octave)
Selectable Graphic or Parametric EQ
Independent equalization on each of the 10 outputs
Each channel can be delayed independently up to 10 ms
Clipping detection and limiting circuits
Bass knob included
Settings adjusted wirelessly in the free AX-DSP-XL app available for smartphones and tablets
Easy behind the radio installation
Can be used with factory and aftermarket radios
Read, write, and store configurations for future recall
Password protect feature available in the app
U.S. Patent 9,875,078
