DSP Data Interface - Scion | Subaru | Toyota 2003-2022 — AXDSPX-TY2
Key features
- For select Scion / Subaru / Toyota 2003-2022
- Designed for non-amplified systems
- Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters
- 6 inputs and 10 individually assignable outputs
- Selectable slope (12, 24, 36, or 48db per octave)
- Independent equalization on each of the 10 outputs
DSP Data Interface - Scion | Subaru | Toyota 2003-2022 — AXDSPX-TY2 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get a cleaner signal for aftermarket audio equipment while keeping your factory radio in place with the AXDSPX-TY2 DSP data interface. Designed for non-amplified Scion, Subaru, and Toyota systems from 2003–2022, it combines a digital signal processor with a vehicle-specific T-harness.
Factory radio sound processing is tailored to factory speakers. This interface gives you tools to shape the signal for your audio system, with settings adjusted wirelessly through the free AX-DSP-XL app.
Key Features & Benefits
- Selectable EQ: Choose graphic or parametric equalization to adjust the sound across the processor’s outputs.
- Flexible signal routing: Six inputs and ten individually assignable outputs give you options for configuring your system.
- Output control: Adjustable filters, slopes, and independent channel delay help tailor signal processing to your setup.
- Wireless app settings: Adjust settings from a smartphone or tablet using the free AX-DSP-XL app.
- Configuration storage: Read, write, and save configurations for future recall.
- Included bass knob: A bass knob is included with the processor.
Technical Specifications
| Specification | Details |
|---|---|
| Vehicle application | Scion, Subaru, and Toyota, 2003–2022 |
| System type | Designed for non-amplified systems |
| Installation location | At the factory radio; easy behind-the-radio installation |

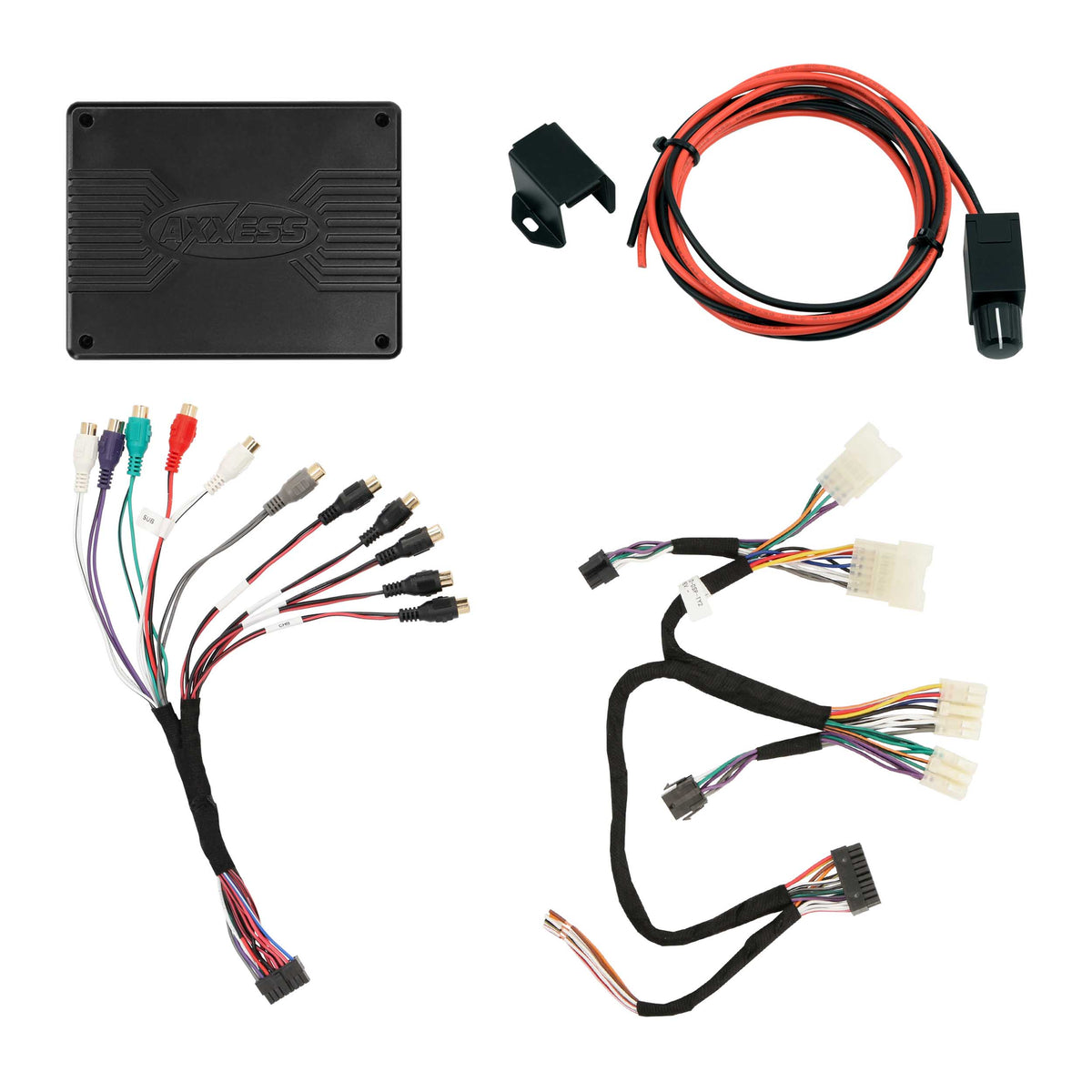

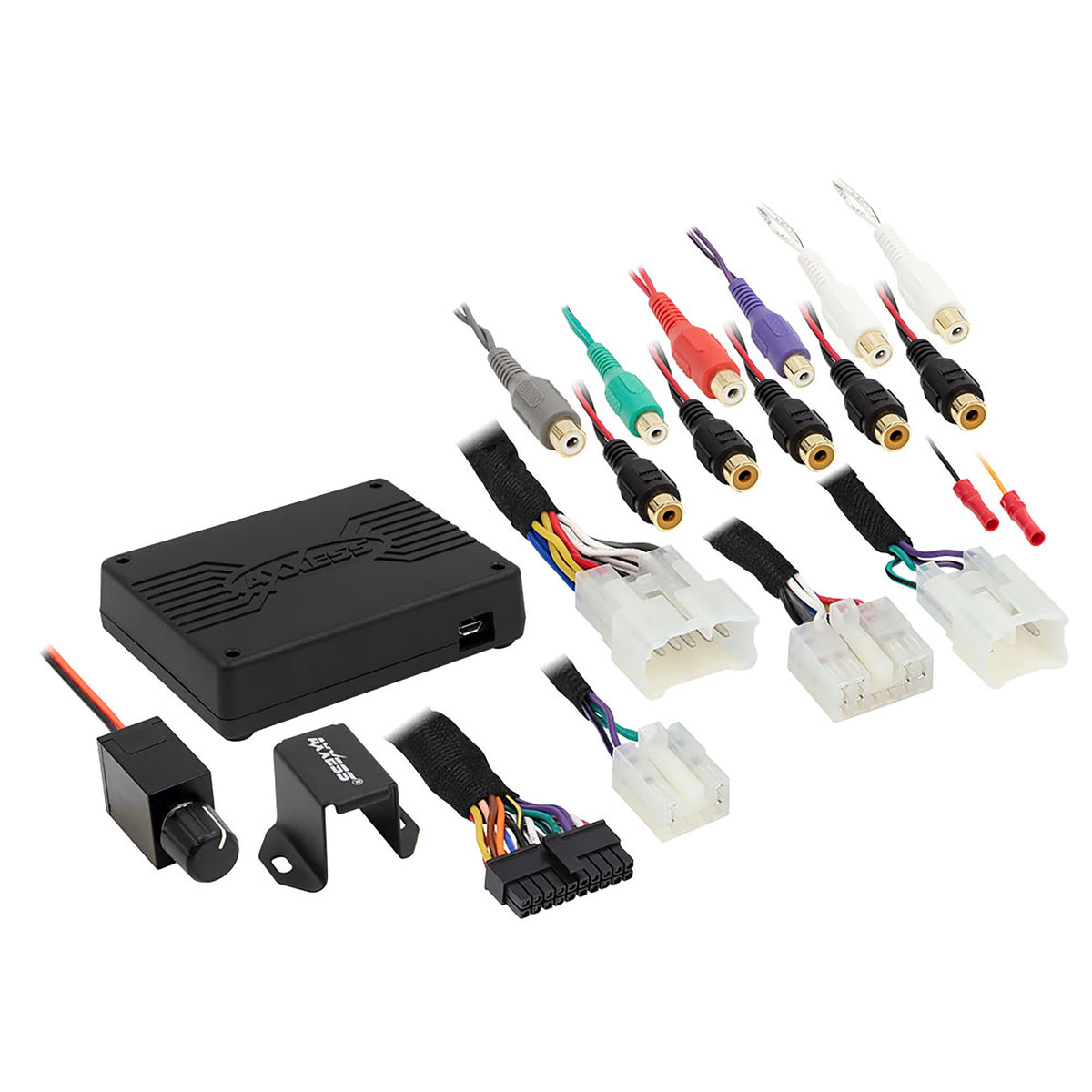

| Package includes | AXDSP-X interface and vehicle-specific T-harness |
| USB connection | Micro “B” USB; updatable |
| Equalization | Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel, with high pass, low pass, and bandpass filters |
| EQ selection | Selectable Graphic or Parametric EQ |
| Inputs and outputs | 6 inputs and 10 individually assignable outputs |
| Output equalization | Independent equalization on each of the 10 outputs |
| Selectable slope | 12, 24, 36, or 48db per octave |
| Channel delay | Each channel can be delayed independently up to 10 ms |
| Signal monitoring | Clipping detection and limiting circuits |
| Settings control | Adjusted wirelessly in the free AX-DSP-XL app, available for smartphones and tablets |
| Configuration features | Read, write, and store configurations for future recall; password protection available in the app |
| Radio compatibility | Can be used with factory and aftermarket radios |
| Warranty | 1-year limited warranty |
| Patent | U.S. Patent 9,875,078 |
Why Choose This Product?
The AXDSPX-TY2 is built for a specific audio-upgrade challenge: factory radio processing may shape sound for factory speakers. Its signal-processing controls give you more ways to adjust the signal for aftermarket audio gear, while the vehicle-specific T-harness supports installation at the factory radio.
Clipping detection and limiting circuits add signal-management features, and password protection in the app lets you protect saved settings. The processor can also be used with factory or aftermarket radios.
Installation & Compatibility Notes
This interface is designed for non-amplified Scion, Subaru, and Toyota systems within the 2003–2022 application range. Check that the exact vehicle and radio match the intended application before installation.
Installation is at the factory radio, behind the radio. The package includes the AXDSP-X interface and vehicle-specific T-harness. The unit can be updated through its Micro “B” USB connection.
Frequently Asked Questions
Which vehicles is the AXDSPX-TY2 designed for?
It is listed for Scion, Subaru, and Toyota applications from 2003–2022. It is designed for non-amplified systems.
Can I use it with an aftermarket radio?
Yes. The interface can be used with factory and aftermarket radios.
What EQ options does the processor offer?
It offers a selectable 31-band Graphic EQ or 5-band parametric EQ on each channel, along with high pass, low pass, and bandpass filters.
What comes in the package?
The package includes the AXDSP-X interface and a vehicle-specific T-harness. A bass knob is also included.
Can I save my settings?
Yes. You can read, write, and store configurations for future recall. The app also offers a password-protect feature.
Where is the interface installed?
It installs at the factory radio, behind the radio.
