DSP Data Interface - Toyota 2020-Up — AXDSPX-TY5
Key features
- For select Toyota 2020-Up
- Designed for amplified and non-amplified systems
- Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters
- 6 inputs and 10 individually assignable outputs
- Selectable slope (12, 24, 36, or 48db per octave)
- Independent equalization on each of the 10 outputs
DSP Data Interface - Toyota 2020-Up — AXDSPX-TY5 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get a cleaner signal for aftermarket audio equipment while keeping your Toyota’s factory radio in the system. The AXDSPX-TY5 DSP data interface for Toyota 2020-Up is designed for amplified and non-amplified systems, with signal processing and audio adjustments available through a free smartphone or tablet app.

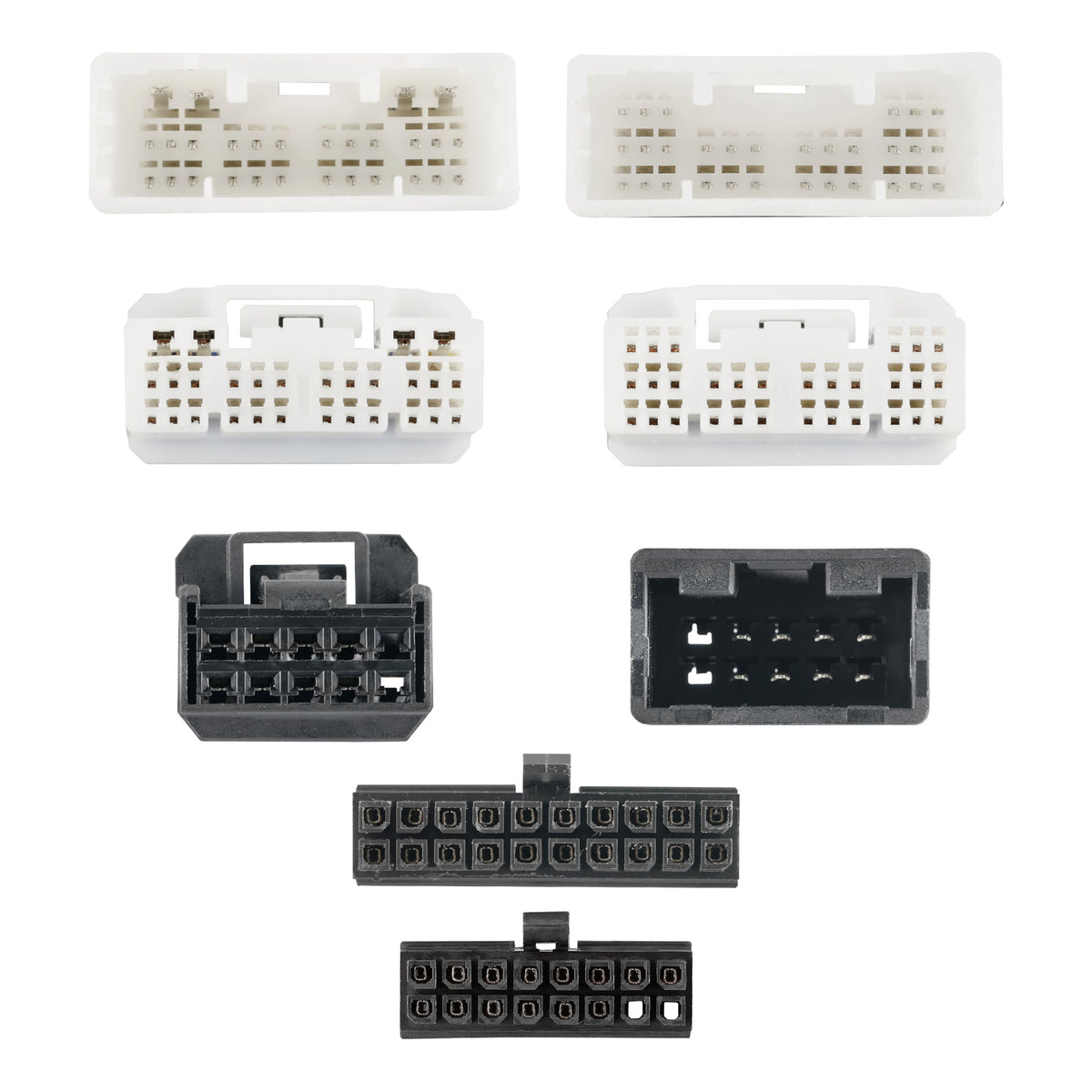

Its vehicle-specific T-harness supports an installation at the factory radio. Use the interface with a factory or aftermarket radio and tune the system’s outputs to suit your audio setup.
Key Features & Benefits
- Six inputs and 10 outputs: Assign inputs across 10 individually configurable outputs for flexible system setup.
- Independent output tuning: Adjust equalization on each output and delay each channel independently up to 10 ms.
- Selectable equalization: Choose a 31-band graphic EQ or 5-band parametric EQ on each channel.
- Multiple filter slopes: Select 12, 24, 36, or 48 db per octave for high-pass, low-pass, and bandpass filters.
- Wireless app adjustments: Configure settings with the free AX-DSP-XL app for smartphones and tablets.
- Setup tools: Clipping detection, limiting circuits, a bass knob, and password protection support system adjustment.
Technical Specifications
| Product | DSP Data Interface - Toyota 2020-Up — AXDSPX-TY5 |
|---|---|
| System design | Designed for amplified and non-amplified systems |
| Inputs and outputs | 6 inputs and 10 individually assignable outputs |
| Equalization | Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel; selectable Graphic or Parametric EQ; independent equalization on each of the 10 outputs |
| Filters | High pass, low pass, and bandpass filters |
| Selectable slope | 12, 24, 36, or 48db per octave |
| Channel delay | Each channel can be delayed independently up to 10 ms |
| Additional functions | Clipping detection and limiting circuits; password protect feature available in the app |
| App and connection | Settings adjusted wirelessly in the free AX-DSP-XL app available for smartphones and tablets; Micro “B” USB updatable |
| Installation location | At the factory radio; easy behind the radio installation |
| Radio compatibility | Can be used with factory and aftermarket radios |

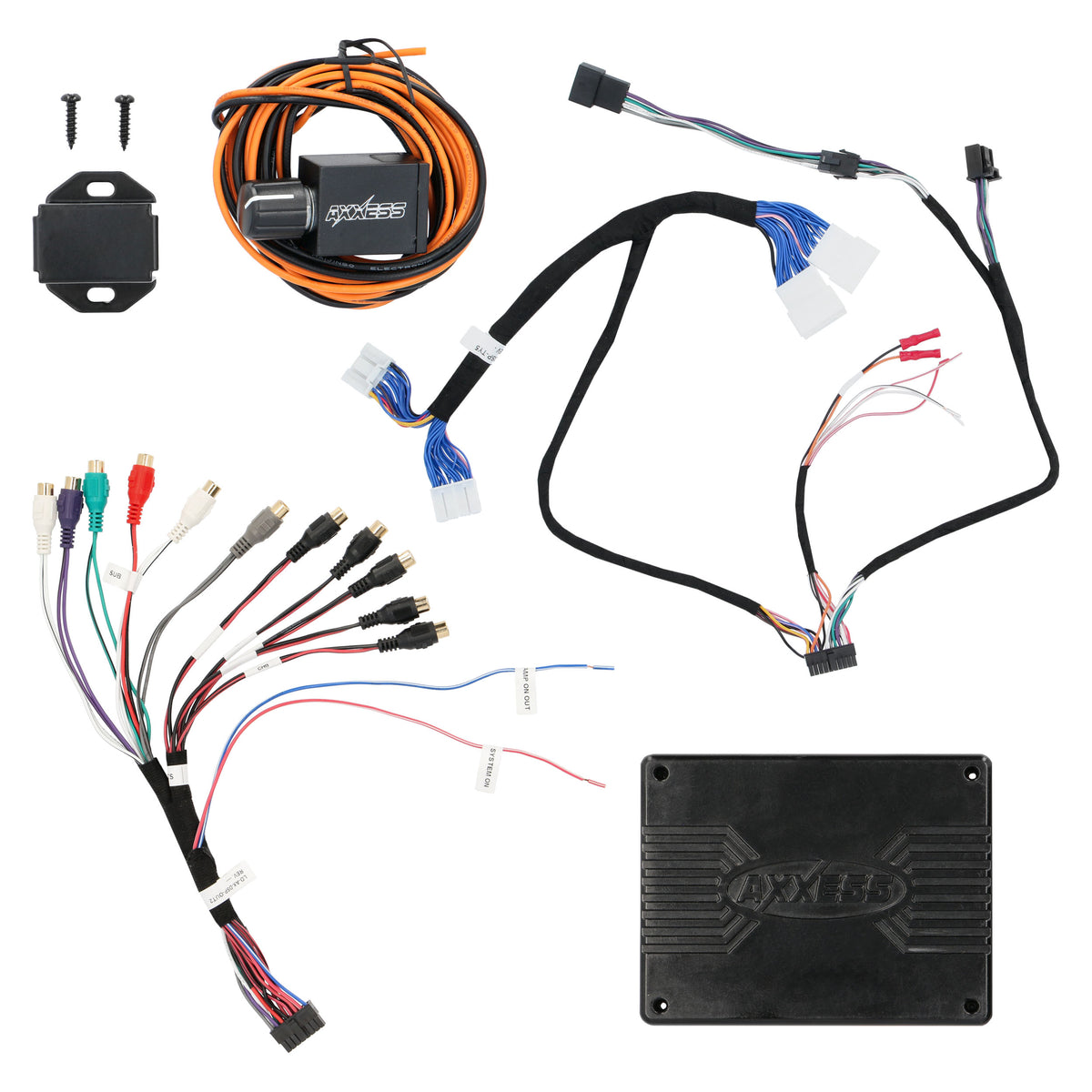

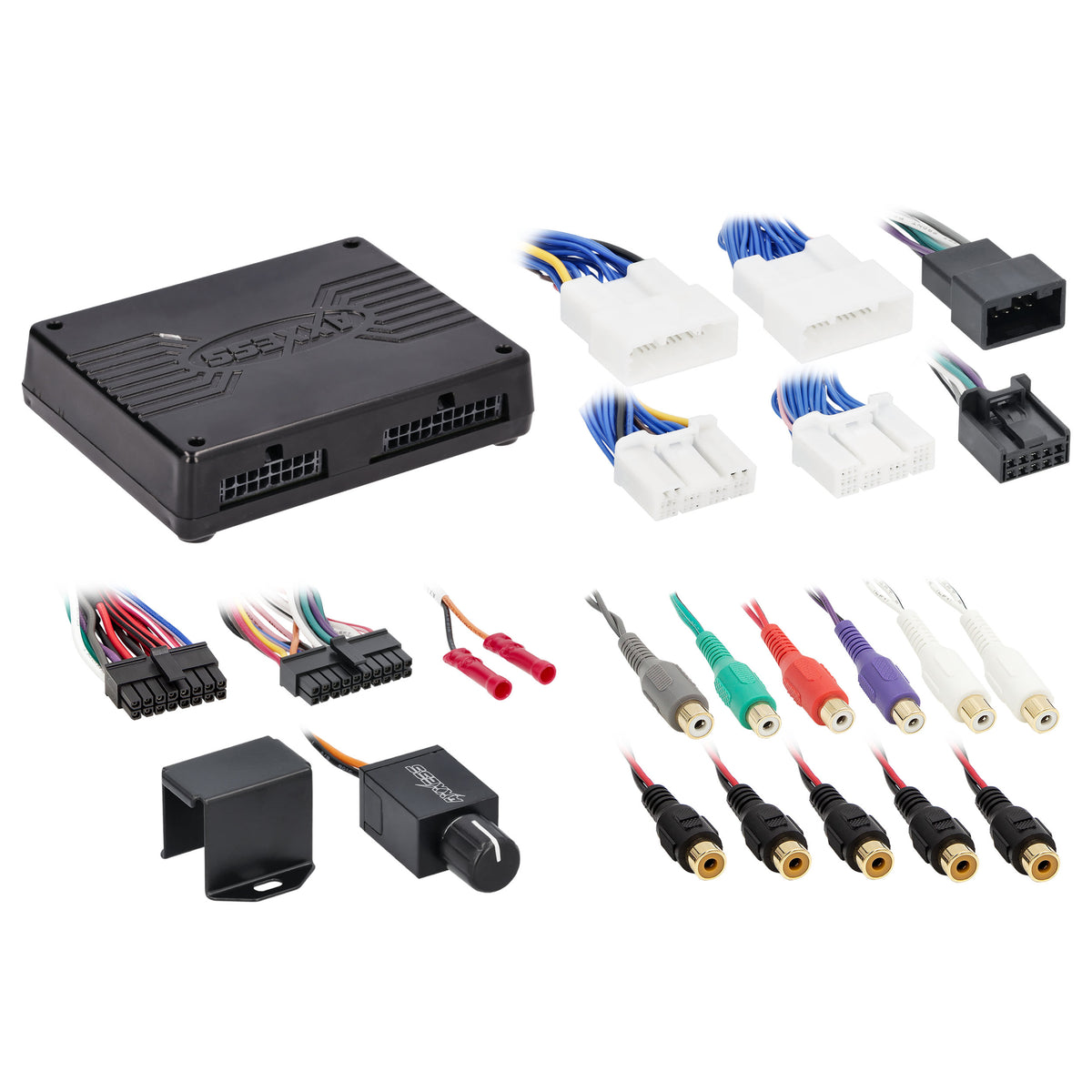

| Package includes | AXDSP-X interface, vehicle-specific T-harness, and bass knob |
| Warranty | 1-year limited warranty |
| Patent | U.S. Patent 9,875,078 |
Why Choose This Product?
A factory radio may process audio for the original speakers, which can limit the signal available after an upgrade. The AXDSPX-TY5 is designed to address that processing and provide adjustment options for aftermarket audio equipment. Its multiple inputs, assignable outputs, independent equalization, and channel delay give you detailed control over system tuning.
The interface is also designed to retain many features commonly lost when upgrading a sound system. Its clipping detection and limiting circuits add tools for managing signal levels during setup.
Installation & Compatibility Notes
The package includes the AXDSP-X interface and a vehicle-specific T-harness. The stated installation location is at the factory radio, with an easy behind-the-radio installation. The interface is designed for Toyota 2020-Up applications and amplified or non-amplified systems.
Check that the interface matches your vehicle and audio system before purchase. It can be used with factory and aftermarket radios. The Micro “B” USB connection supports updates.
Frequently Asked Questions
Can I use the AXDSPX-TY5 with an aftermarket radio?
Yes. It can be used with factory and aftermarket radios.
Does this interface support amplified and non-amplified systems?
Yes. It is designed for both system types.
How do I adjust the audio settings?
Settings are adjusted wirelessly through the free AX-DSP-XL app for smartphones and tablets.
What comes in the package?
The package includes the AXDSP-X interface, a vehicle-specific T-harness, and a bass knob.
What equalization and filter controls are available?
Choose a 31-band graphic EQ or 5-band parametric EQ on each channel. High-pass, low-pass, and bandpass filters are available, with selectable slopes of 12, 24, 36, or 48db per octave.
