Add-A-Sub 2-Channel Line Output Converter - Ford 2011-Up — AXLOC-FD2
Key features
- For select Ford 2011-Up
- Designed for non-amplified vehicles
- Allows for the installation of an amplifier for speakers or subwoofers
- Note: A single pole double throw (SPDT) relay is recommended when installing multiple amplifiers
- Designed to provide (2) channels of low-level audio output from the factory system
- 12v-500mA remote wire activated with signal sense
Add-A-Sub 2-Channel Line Output Converter - Ford 2011-Up — AXLOC-FD2 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add an amplifier to a compatible Ford factory audio system with the AXLOC-FD2 2-channel line output converter. Its T-harness provides two channels of low-level audio output, and the included gain controller lets you adjust the overall output.
Key Features & Benefits
- T-harness design: Connects with the factory system to support adding an amplifier for speakers or subwoofers.
- Two-channel output: Provides two channels of low-level audio from the factory system.
- Gain controller included: Adjust the converter’s overall output.
- Signal-sensing remote wire: The 12V-500mA remote wire is activated with signal sense.
- Vehicle application: Designed for 2011-up Ford vehicles with non-amplified factory systems.
Technical Specifications
| Model | AXLOC-FD2 |
|---|---|
| Product type | 2-channel line output converter |
| Vehicle application | Ford 2011-up; designed for non-amplified vehicles |
| Audio output | 2 channels of low-level audio output from the factory system |
| Power | 55 watts per channel |
| Remote wire | 12V-500mA; activated with signal sense |

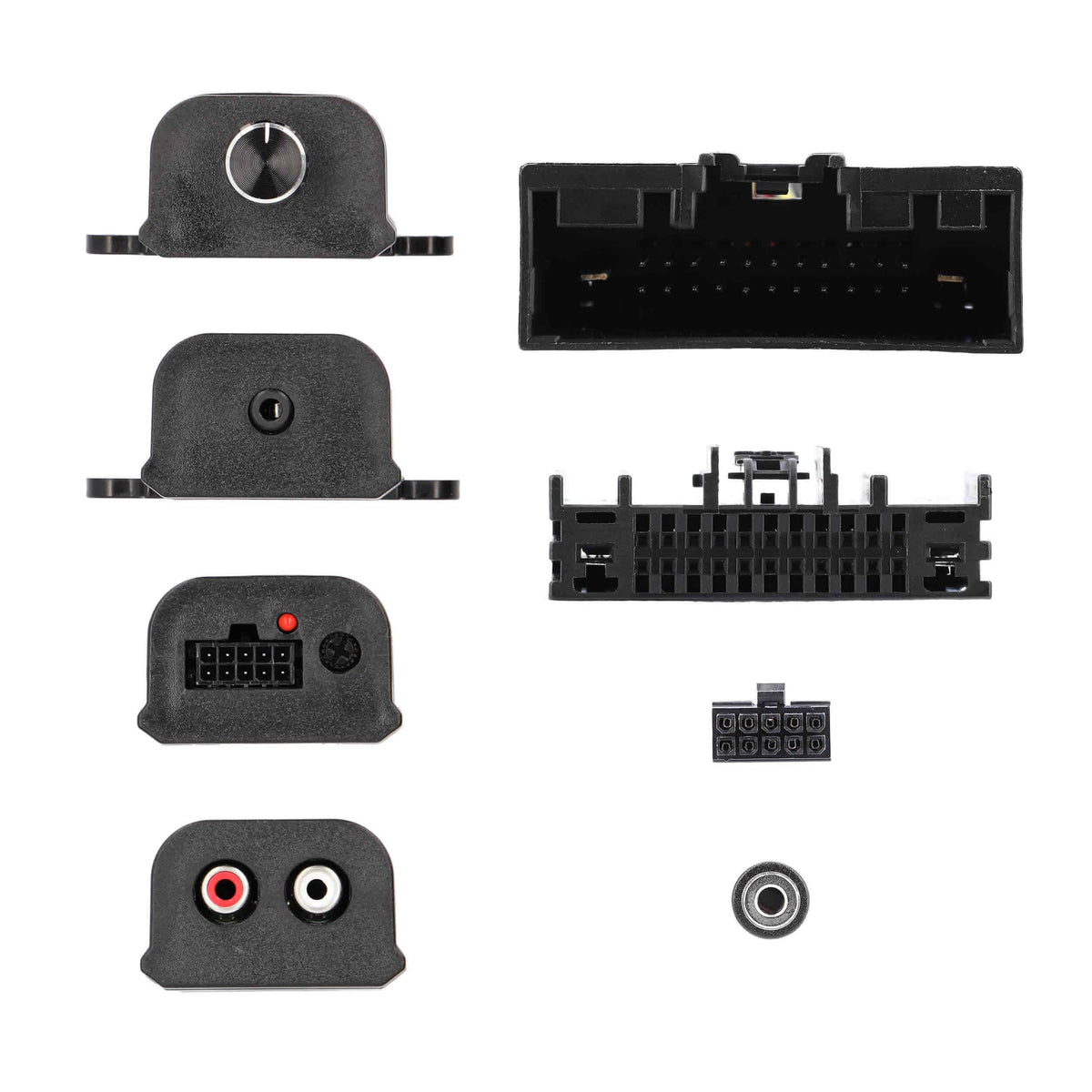

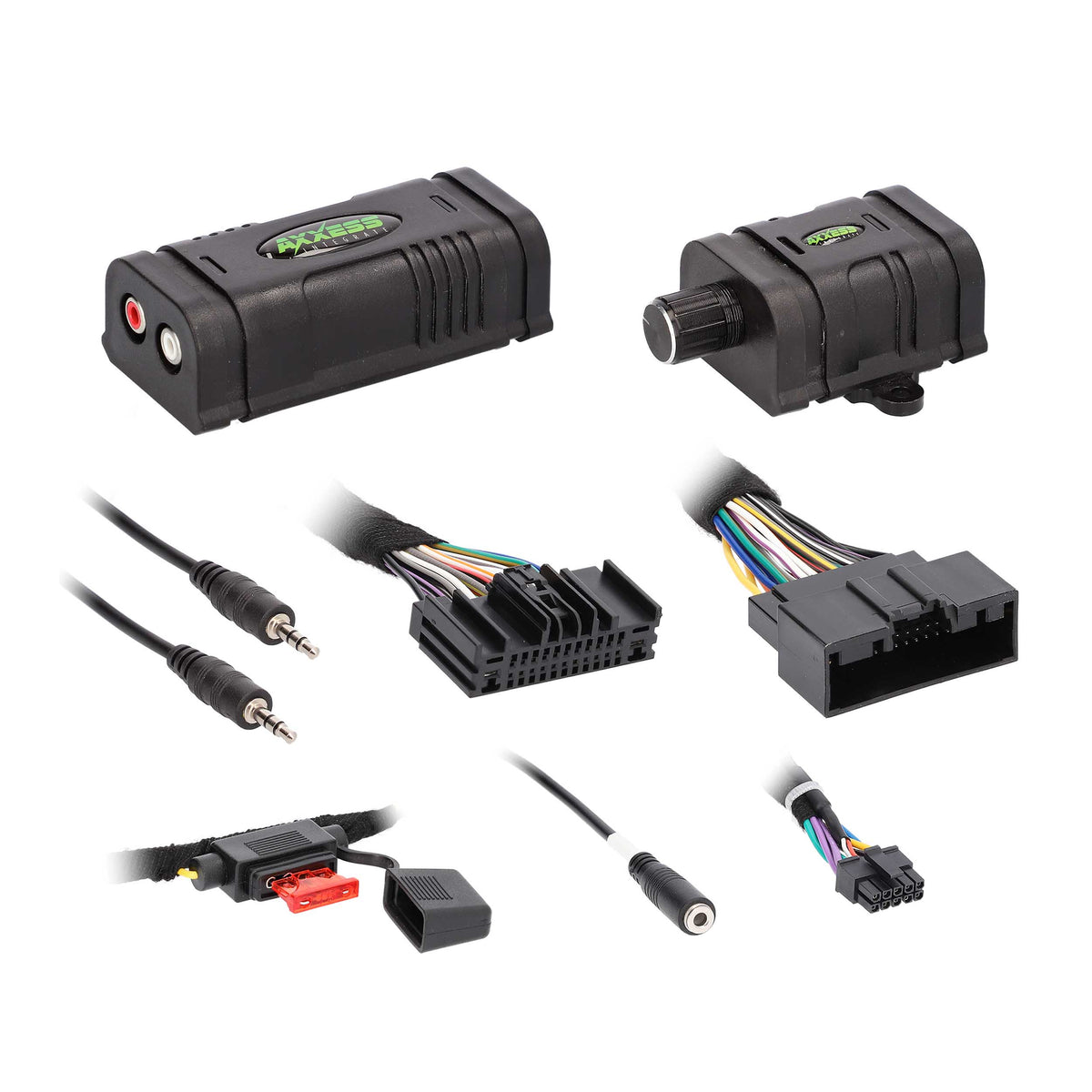

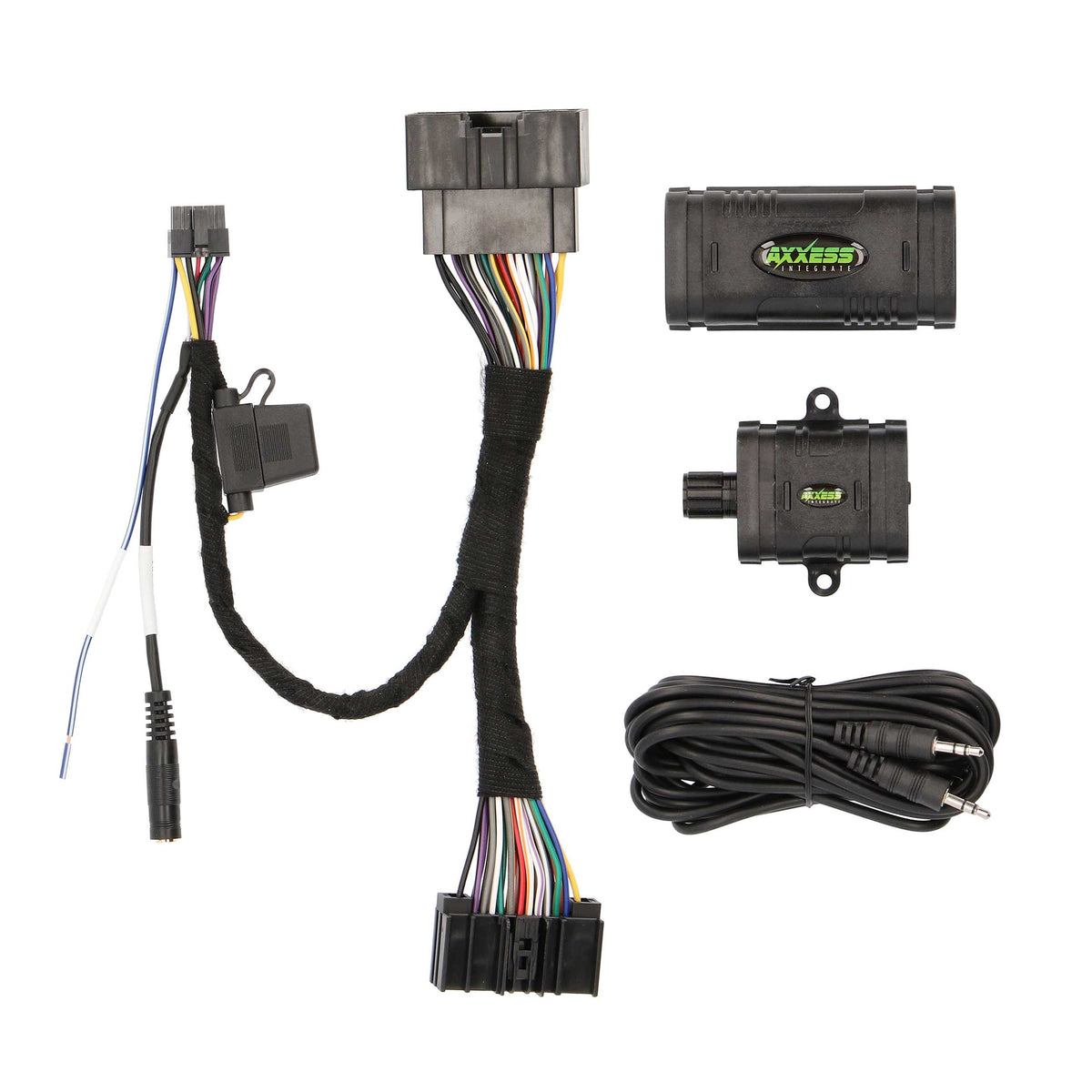

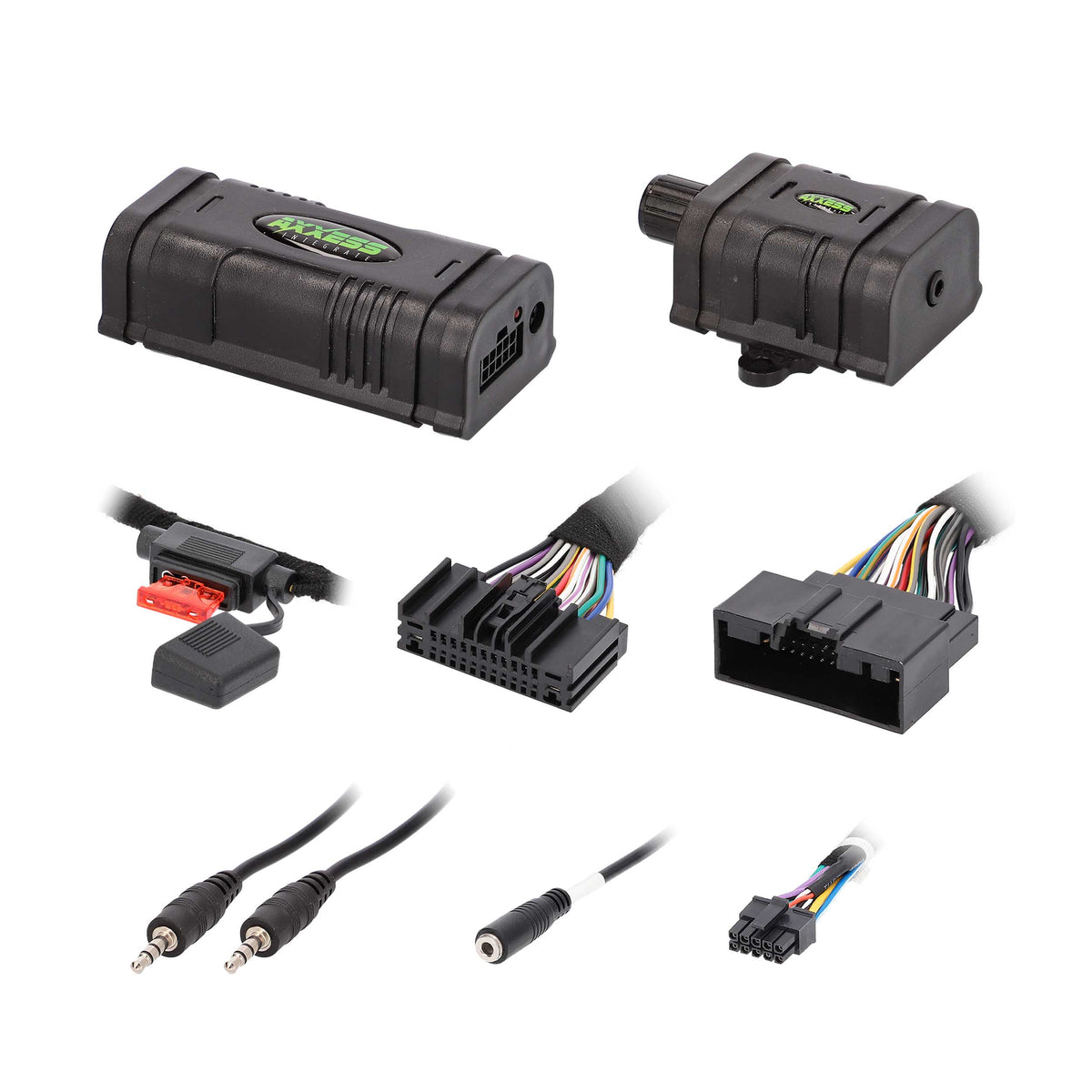

| Included components | AXLOC-FD2 wiring harness, gain controller, 12V-500mA remote wire, auxiliary cable |
| Installation note | A single pole double throw (SPDT) relay is recommended when installing multiple amplifiers. |
Why Choose This Product?
The AXLOC-FD2 is designed to add an amplifier to a non-amplified Ford factory audio system. Its two-channel low-level output supports an amplifier for subwoofers or speakers, while the included gain controller provides an adjustment for overall output.
Installation & Compatibility Notes
This converter is designed for 2011-up Ford vehicles with non-amplified factory systems. Confirm your vehicle’s model year and factory audio configuration before choosing it.
If you plan to install multiple amplifiers, a single pole double throw (SPDT) relay is recommended. The wiring harness, gain controller, remote wire, and auxiliary cable are included.
Frequently Asked Questions
How many output channels does the AXLOC-FD2 provide?
It provides two channels of low-level audio output from the factory system.
What does the 55-watt-per-channel rating refer to?
The product details list the converter as rated at 55 watts per channel.
Which vehicles is this line output converter designed for?
It is designed for 2011-up Ford vehicles with non-amplified factory systems. Check your vehicle’s year and audio configuration before installation.
Can I use it when installing multiple amplifiers?
A single pole double throw (SPDT) relay is recommended when installing multiple amplifiers.
What comes with the converter?
The listed components are the AXLOC-FD2 wiring harness, gain controller, 12V-500mA remote wire, and auxiliary cable.
