Radio Status Control Harness - Chrysler 2021-Up — AXRSCH-CH8
Key features
- For select Chrysler 2021-Up
- Designed for non-amplified and amplified systems
- Allows a visual of HVAC and gauges on the aftermarket radio screen
- Allows adjustment of HVAC functions through the aftermarket radio screen
- Allows for auto stop/start override
- Requires the AXRSC radio status control interface
Radio Status Control Harness - Chrysler 2021-Up — AXRSCH-CH8 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Keep key Chrysler factory controls and vehicle information available after installing a select aftermarket radio with the AXRSCH-CH8 radio status control harness. Designed for Chrysler vehicles from 2021-up, it works with the AXRSC radio status control interface, sold separately.
See HVAC information and gauges on the aftermarket radio screen, adjust HVAC functions there, and retain steering-wheel audio controls and factory personalization settings.
Key Features & Benefits
- Factory information on screen: Retains vehicle information and settings for display and control through the aftermarket radio screen.
- HVAC and gauge access: View HVAC functions and gauges, then adjust HVAC functions through the aftermarket screen.
- Retained controls: Keeps R.A.P. (Retained Accessory Power), steering-wheel audio controls, and OE personalization settings.
- Integrated outputs: Provides 12-volt, 10-amp accessory power and NAV outputs for parking brake, reverse, and speed sense.
- System support: Designed for select aftermarket radios and amplified or non-amplified systems; supports single- and dual-zone vehicles.
- Chimes and start/stop: Retains safety chimes through the included external speaker and allows auto stop/start override.
Technical Specifications
| Product | Radio Status Control Harness |
|---|---|
| Model | AXRSCH-CH8 |
| Vehicle application | Chrysler 2021-up |
| Required interface | AXRSC radio status control interface, sold separately |
| Radio compatibility | Select aftermarket radios |
| System compatibility | Amplified and non-amplified systems; single- and dual-zone vehicles |
| Accessory power | 12-volt, 10-amp |
| Retained functions | R.A.P. (Retained Accessory Power), steering-wheel audio controls, OE personalization settings, and safety chimes |
| NAV outputs | Parking brake, reverse, and speed sense |
| Other function | Allows auto stop/start override |
| Installation | Plug-n-play |
| Warranty | 1 year |

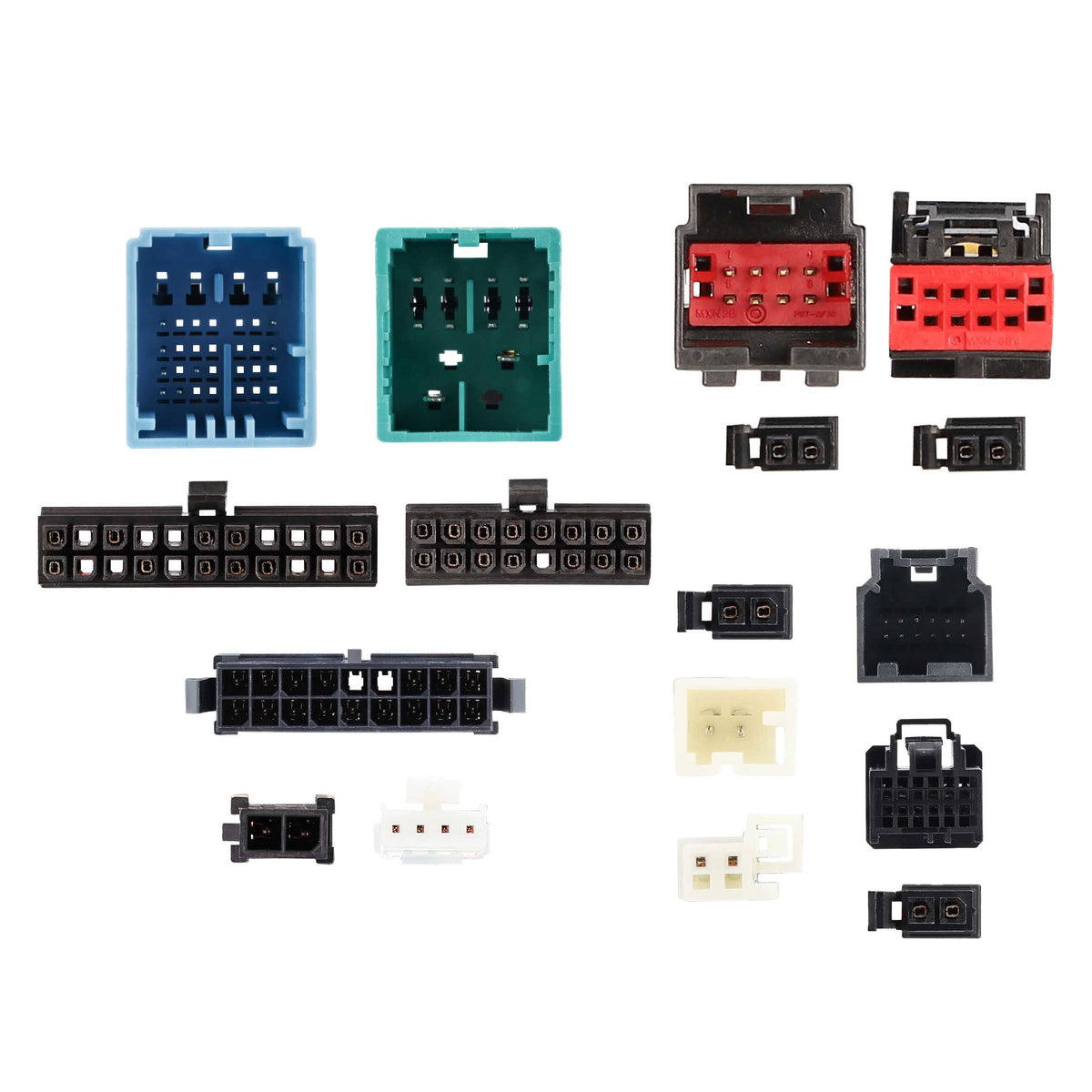

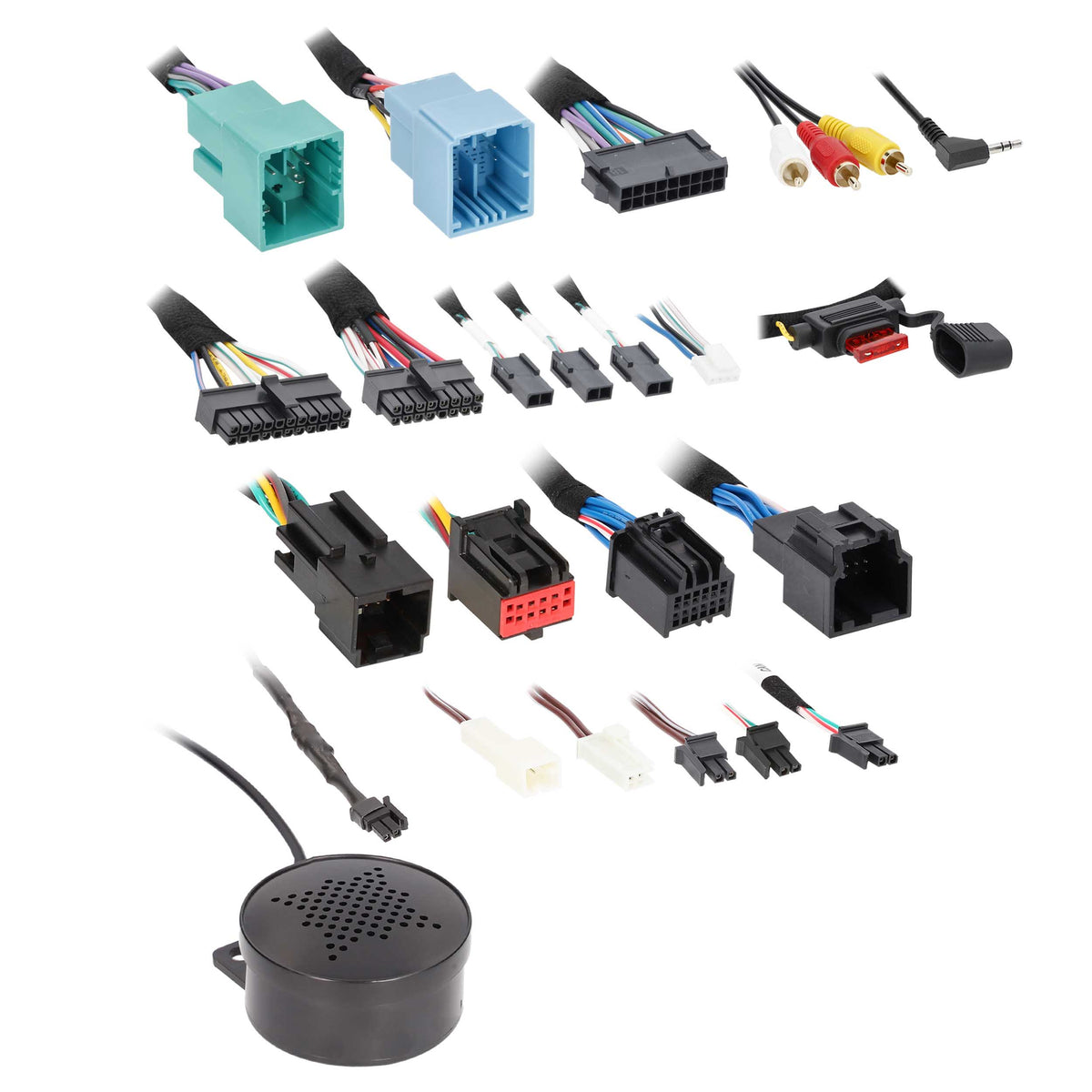

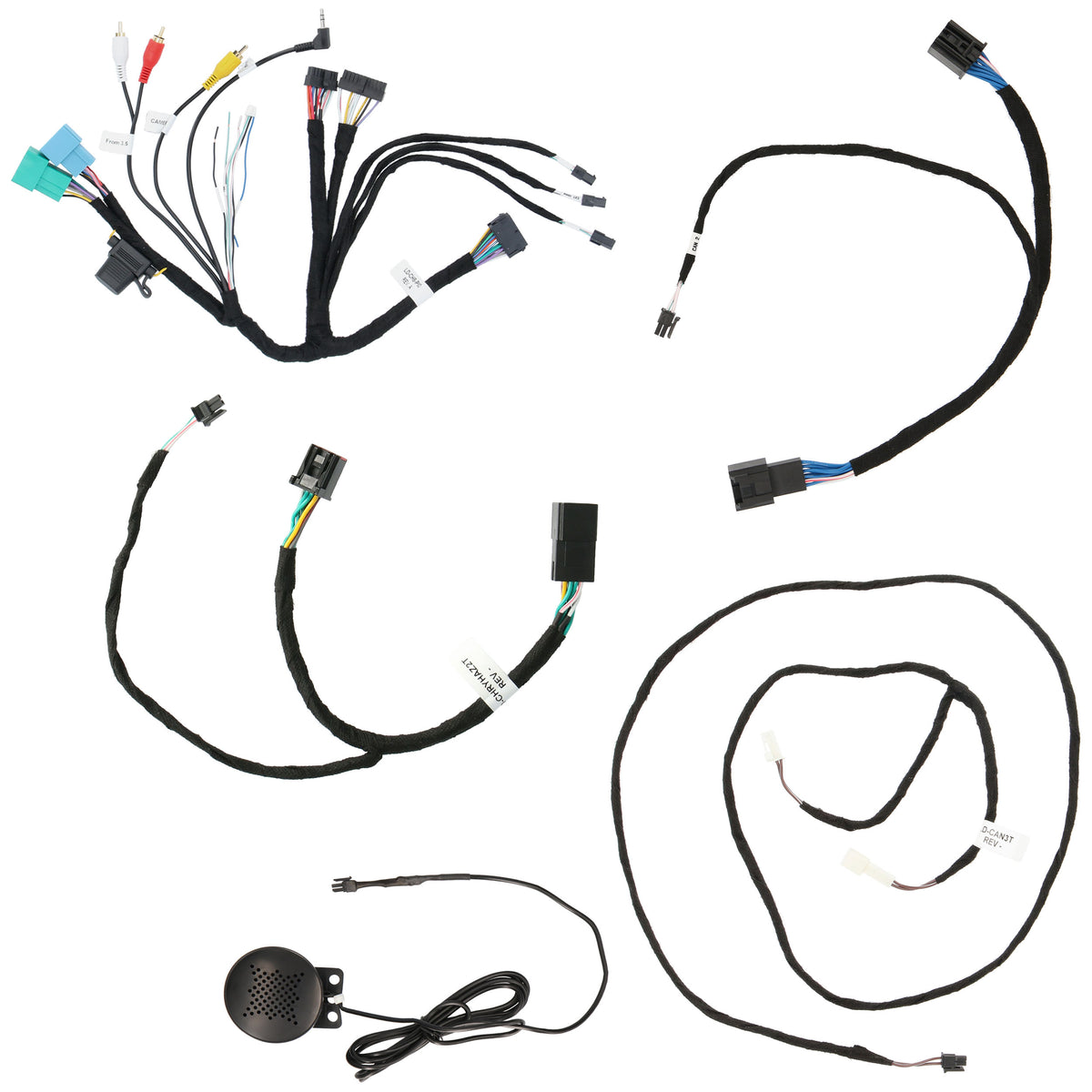

| Included | Vehicle-specific harness, vehicle-specific T-harness, CAN T-harness, external speaker, and step-by-step instructions |
Why Choose This Product?
Replacing a factory radio can affect access to vehicle information and settings. This harness is designed to keep those functions available through a compatible aftermarket radio, while its included external speaker supports safety-chime retention.
Its built-in integration also provides accessory power and navigation-related outputs, bringing several connection needs into the radio installation. Radio-specific accessory harnesses are available separately to pair with this harness.
Installation & Compatibility Notes
The AXRSC radio status control interface is required and sold separately. This harness is intended for Chrysler 2021-up vehicles and select aftermarket radios. Check your vehicle and radio application before purchase.
Radio-specific accessory harnesses are also sold separately. The product is described as plug-n-play and includes step-by-step instructions.
Frequently Asked Questions
Does the AXRSCH-CH8 work by itself?
No. It must be used with the AXRSC radio status control interface, which is sold separately.
Which aftermarket radios does it support?
It is designed for select aftermarket radios. Check that your specific radio is supported before purchase.
Does it support amplified systems?
Yes. The harness is designed for both amplified and non-amplified systems.
What vehicle functions can remain available?
It supports retained accessory power, steering-wheel audio controls, safety chimes, and OE personalization settings. It also allows HVAC functions to be viewed and adjusted through the aftermarket radio screen.
What comes in the package?
The package includes a vehicle-specific harness, vehicle-specific T-harness, CAN T-harness, external speaker, and step-by-step instructions. Radio-specific accessory harnesses are available separately.
Does it provide parking brake and reverse outputs?
Yes. Its NAV outputs include parking brake, reverse, and speed sense.
