Data Interface with SWC - Audi 2002-2013 — AXTC-A12
Key features
- For select Audi 2002-2013
- Designed for non-amplified systems
- Retains R.A.P. (Retained Accessory Power); Retains settings, even after battery disconnection; Retains balance & fade
- Provides accessory power (12-volt 10-amp)
- Provides 12-volt illumination output

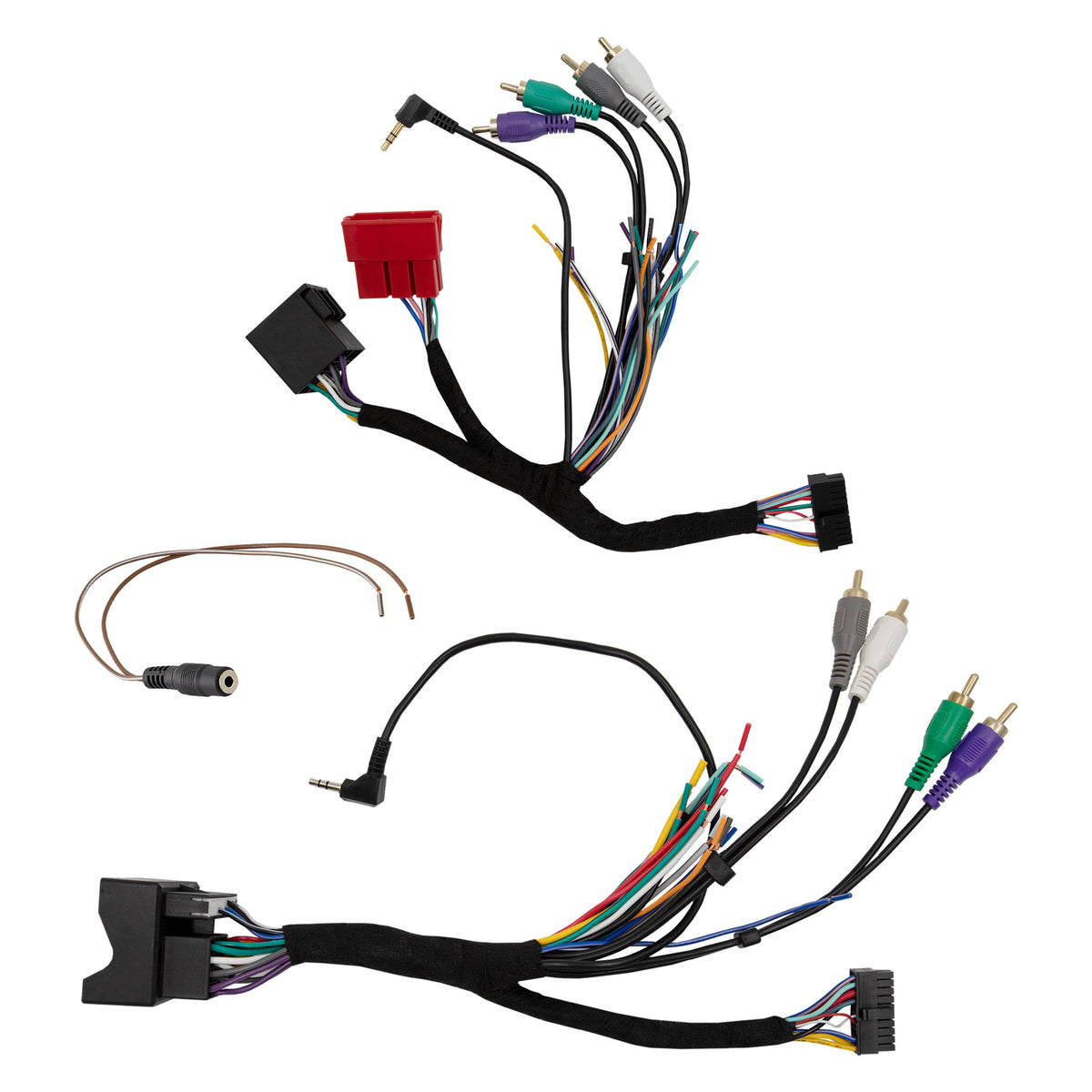

- (2) Harnesses
Data Interface with SWC - Audi 2002-2013 — AXTC-A12 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Keep key factory functions when upgrading the radio in a non-amplified 2002–2013 Audi. The AXTC-A12 data interface with steering wheel control supports accessory power, retained accessory power, navigation outputs, and steering wheel control features.
Key Features & Benefits
- Automatic detection: Detects the vehicle type, radio connection, and preset controls to simplify setup.
- Steering wheel control options: Retains steering wheel controls and lets you dual-assign buttons.
- Radio upgrade support: Designed to work with major radio brands and can be manually programmed for most vehicles.
- Retained settings: Keeps settings after the vehicle battery is disconnected.
Technical Specifications
| Specification | Details |
|---|---|
| Model | AXTC-A12 |
| Vehicle application | Audi 2002–2013 |
| System type | Designed for non-amplified systems |
| Accessory power | 12-volt 10-amp |
| Retained accessory power | Retains R.A.P. (Retained Accessory Power) |
| Navigation outputs | Parking brake, reverse, and speed sense |
| Steering wheel controls | Built-in SWC; ability to dual-assign steering wheel control buttons |
| Auto-detect | Automatically detects the vehicle type, radio connection, and preset controls |
| Manual programming | Can be manually programmed for most vehicles |
| Illumination output | 12-volt illumination output |
| Balance and fade | Retains balance and fade |
| Updating | Micro “B” USB updatable |
| Warranty | 1-year limited warranty |

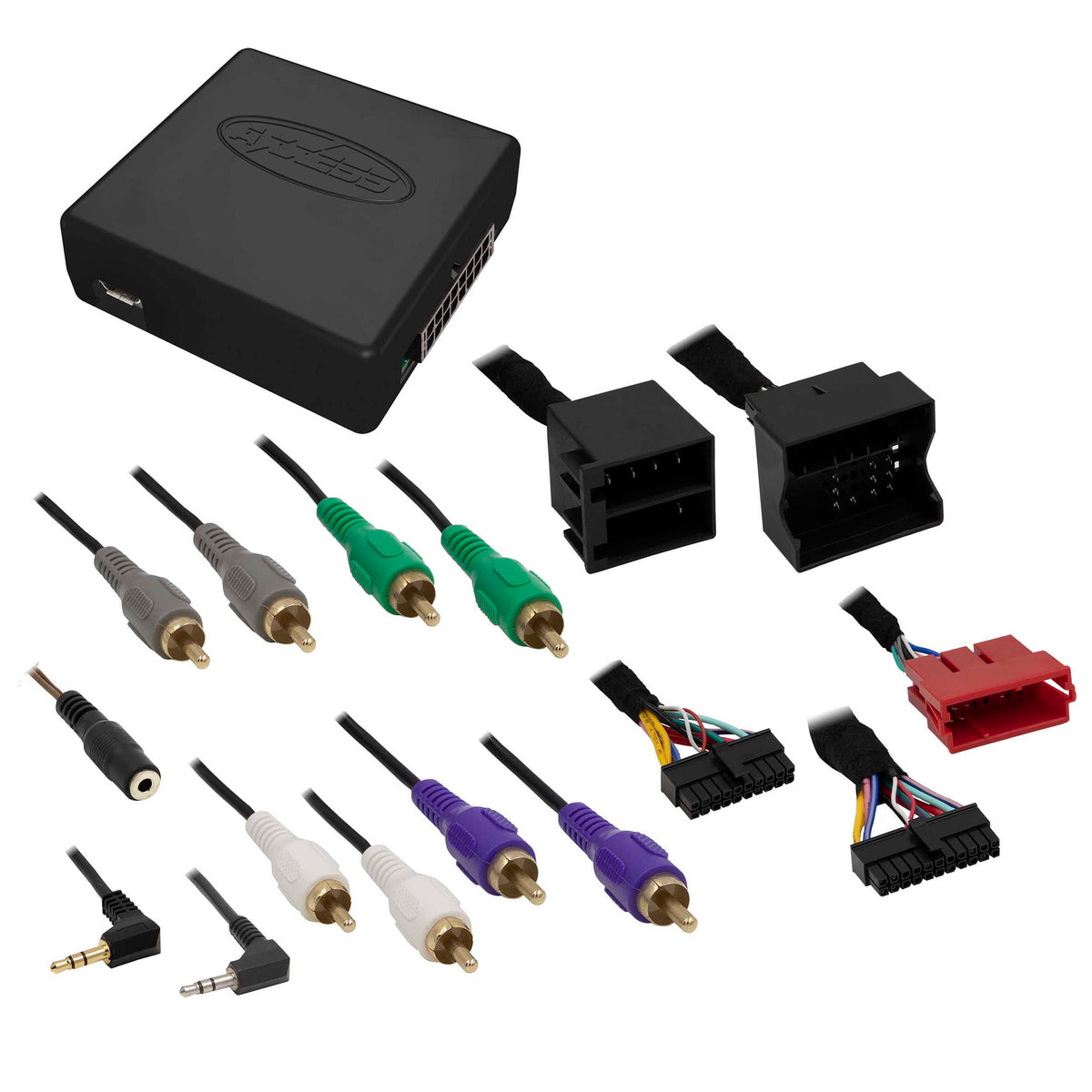

| Included items | Interface, (2) harnesses, 3.5mm adapter |
Why Choose This Product?
The AXTC-A12 brings several factory functions into a radio upgrade, including retained accessory power, balance and fade, and steering wheel controls. Its auto-detect feature handles vehicle and radio connection detection, while manual programming is also available for most vehicles.
Installation & Compatibility Notes
This interface is designed for non-amplified systems in Audi vehicles from 2002–2013. Confirm your vehicle’s year and audio system type before choosing it. The listed package includes an interface, two harnesses, and a 3.5mm adapter.
Frequently Asked Questions
Will the AXTC-A12 retain steering wheel controls?
Yes. It includes built-in steering wheel control features and allows buttons to be dual-assigned.
What navigation outputs does the interface provide?
It provides parking brake, reverse, and speed sense outputs.
Does it support retained accessory power?
Yes. It retains R.A.P. (Retained Accessory Power).
What is included with the AXTC-A12?
The listed included items are the interface, two harnesses, and a 3.5mm adapter.
Can the interface be updated?
Yes. It is updatable through Micro “B” USB.
