Ford 2005-2014 — MET-FD4
Key features
- For select Ford 2005-2014
- Designed for non-amplified and Shaker amplified systems
- Retains audio controls on the steering wheel
- Provides accessory power (12-volt)
- All outputs are 250mA

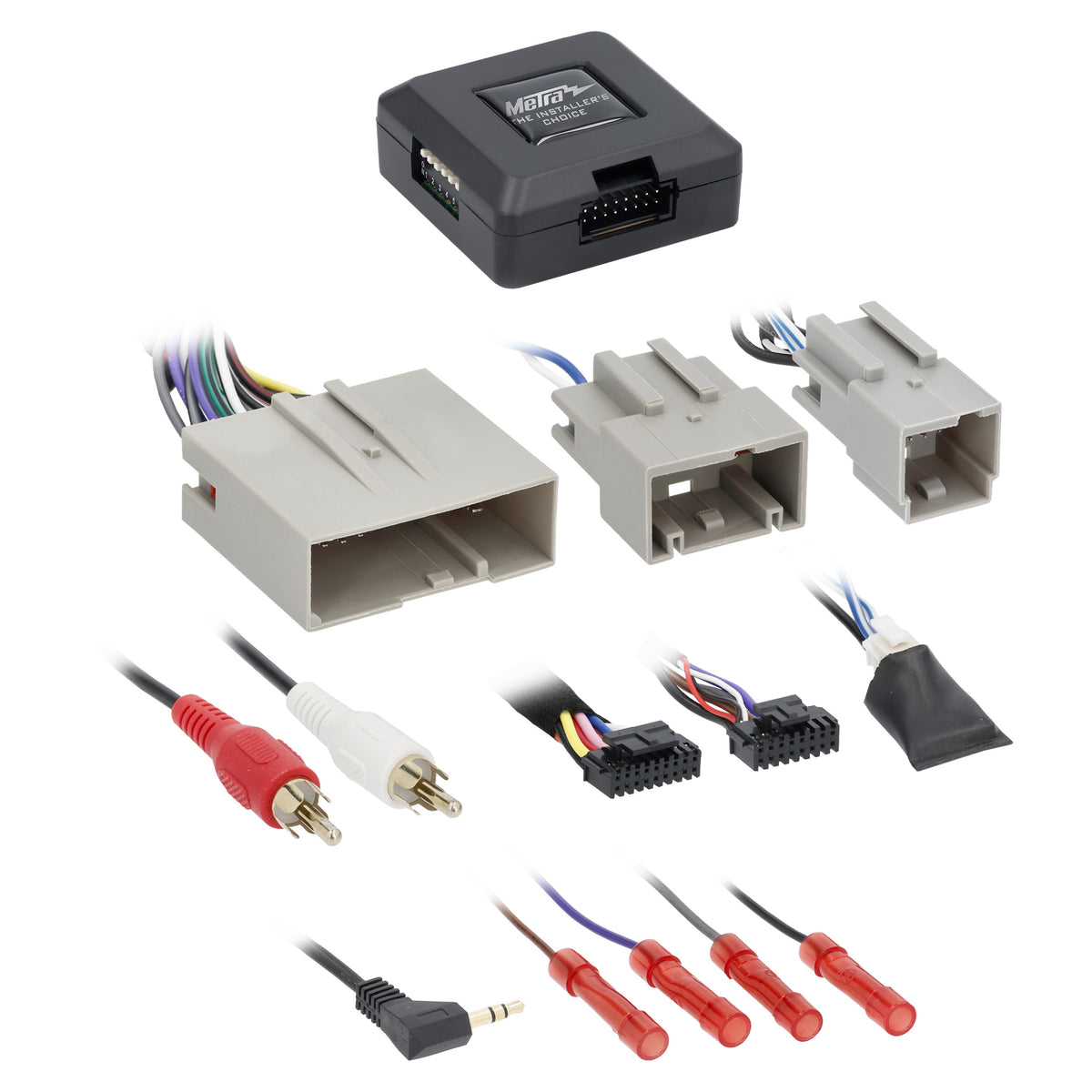

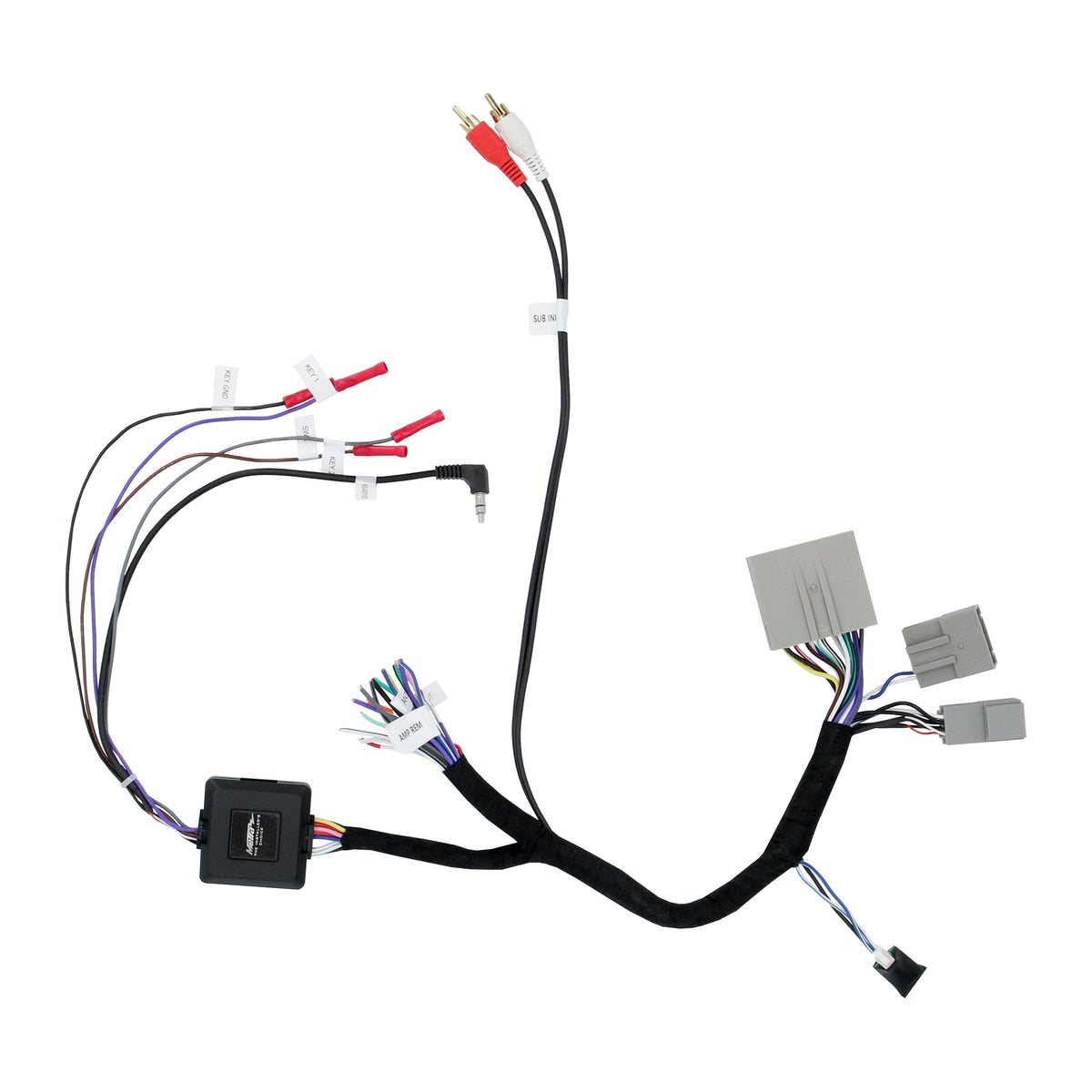

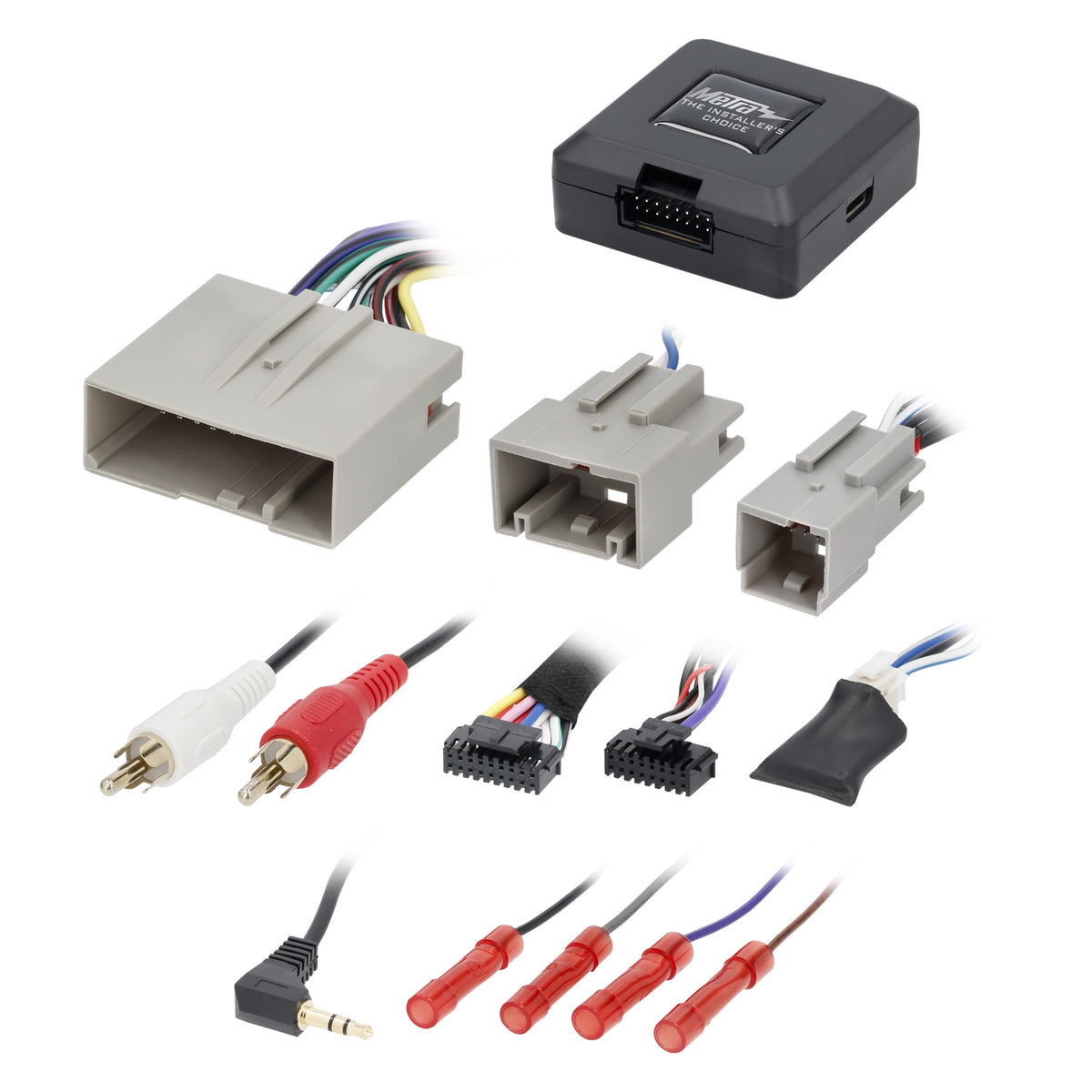

- Includes: MET-FD4 interface; Vehicle-specific harness; 3.5mm pigtail; Step-by-step instructions
Ford 2005-2014 — MET-FD4 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Keep key audio and vehicle connections working when installing an aftermarket stereo in a Ford 2005-2014 with the MET-FD4 interface. It is designed for non-amplified and Shaker amplified systems, with support for steering wheel audio controls and navigation-related outputs.
Key Features & Benefits
- System support: Designed for non-amplified and Shaker amplified systems.
- Accessory power: Provides 12-volt accessory power for the installation.
- Steering wheel controls: Retains audio controls, with DIP switches for SWC configuration.
- NAV outputs: Provides parking brake, reverse, and speed sense outputs.
- USB updates: Type "C" USB updatability supports interface updates.
- Included components: The package includes the interface, vehicle-specific harness, 3.5mm pigtail, and step-by-step instructions.
Technical Specifications
| Specification | Details |
|---|---|
| Model | MET-FD4 |
| Vehicle range | Ford 2005-2014 |
| System compatibility | Non-amplified and Shaker amplified systems |
| Accessory power | 12-volt |
| Steering wheel control configuration | DIP switches |
| NAV outputs | Parking brake, reverse, and speed sense |
| USB update type | Type "C" |
| Output rating | All outputs are 250mA |
| Warranty | 1-year warranty |
| Included | MET-FD4 interface, vehicle-specific harness, 3.5mm pigtail, step-by-step instructions |
Why Choose This Product?
The MET-FD4 combines several installation connections in one interface. Its support for steering wheel audio controls and navigation-related outputs helps preserve those functions when fitting an aftermarket stereo.
DIP switches provide a way to configure steering wheel control settings. Type "C" USB updatability is also built into the interface.
Installation & Compatibility Notes
Match the vehicle year and audio system to the listed Ford 2005-2014 range and supported non-amplified or Shaker amplified systems before purchase. The package includes a vehicle-specific harness, a 3.5mm pigtail, and step-by-step instructions.
All outputs are rated at 250mA. Confirm that the connected equipment is appropriate for these output ratings and the intended installation.
Frequently Asked Questions
Which Ford vehicles is the MET-FD4 designed for?
It is listed for Ford vehicles from 2005-2014. Confirm your vehicle's year and audio system before selecting the interface.
Does it support Shaker amplified systems?
Yes. The interface is designed for both non-amplified and Shaker amplified systems.
Can I retain steering wheel audio controls?
Yes. It retains audio controls on the steering wheel, and DIP switches are provided for SWC configuration.
What is included in the package?
The package includes the MET-FD4 interface, vehicle-specific harness, 3.5mm pigtail, and step-by-step instructions.
