Nemesis Audio NA-K3000D 3000W RMS @ 1-Ohm Class D 1-Channel Monoblock Car Amplifier Made In Korea Team Series
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 900.0 W
- RMS output at 2 ohms: 1800 W
- RMS output at 1 ohm: 3000 W
Nemesis Audio NA-K3000D 3000W RMS @ 1-Ohm Class D 1-Channel Monoblock Car Amplifier Made In Korea Team Series is backordered and will ship as soon as it is back in stock.
Nemesis Audio NA-K3000D 3000W RMS @ 1-Ohm Class D 1-Channel Monoblock Car Amplifier Made In Korea Team Series is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

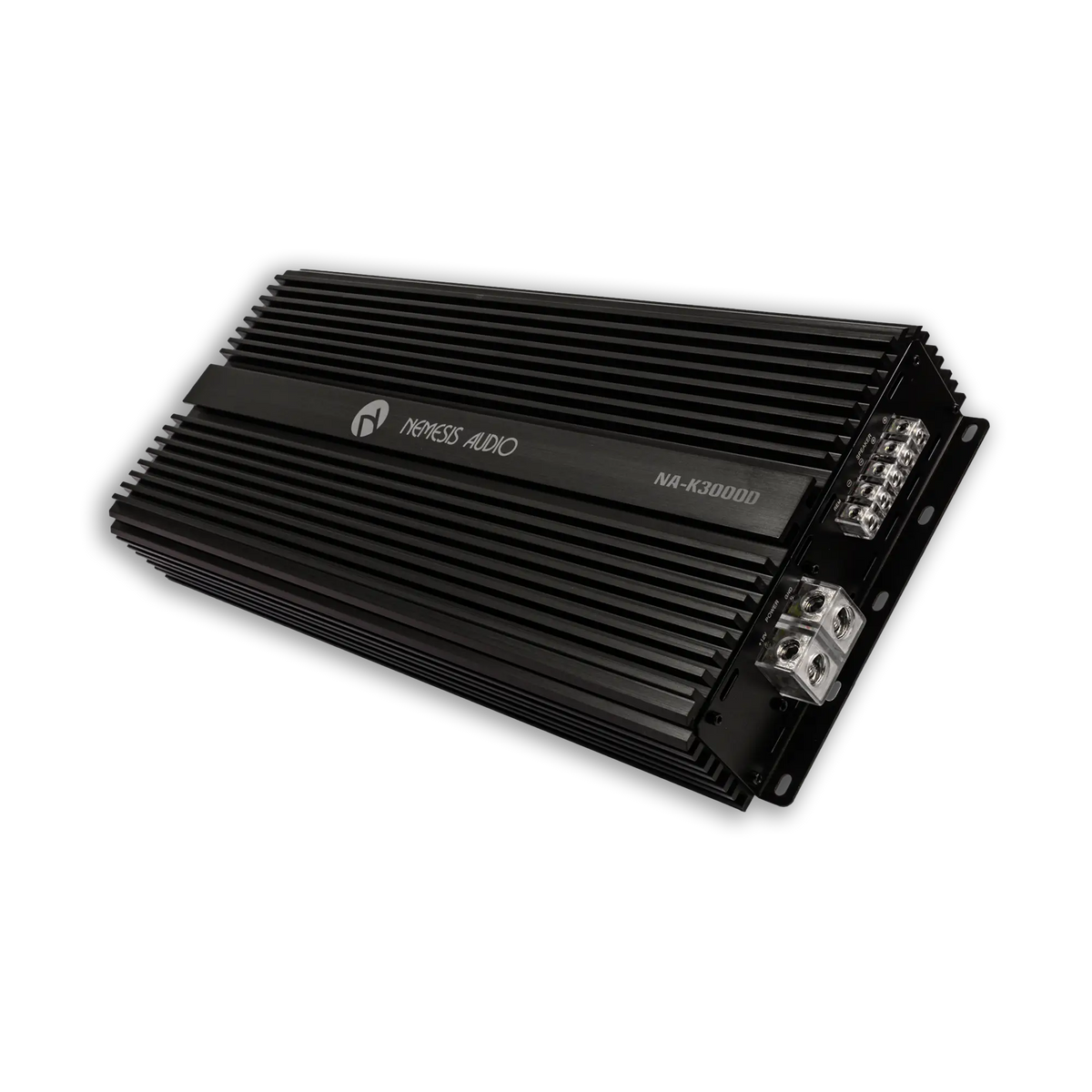

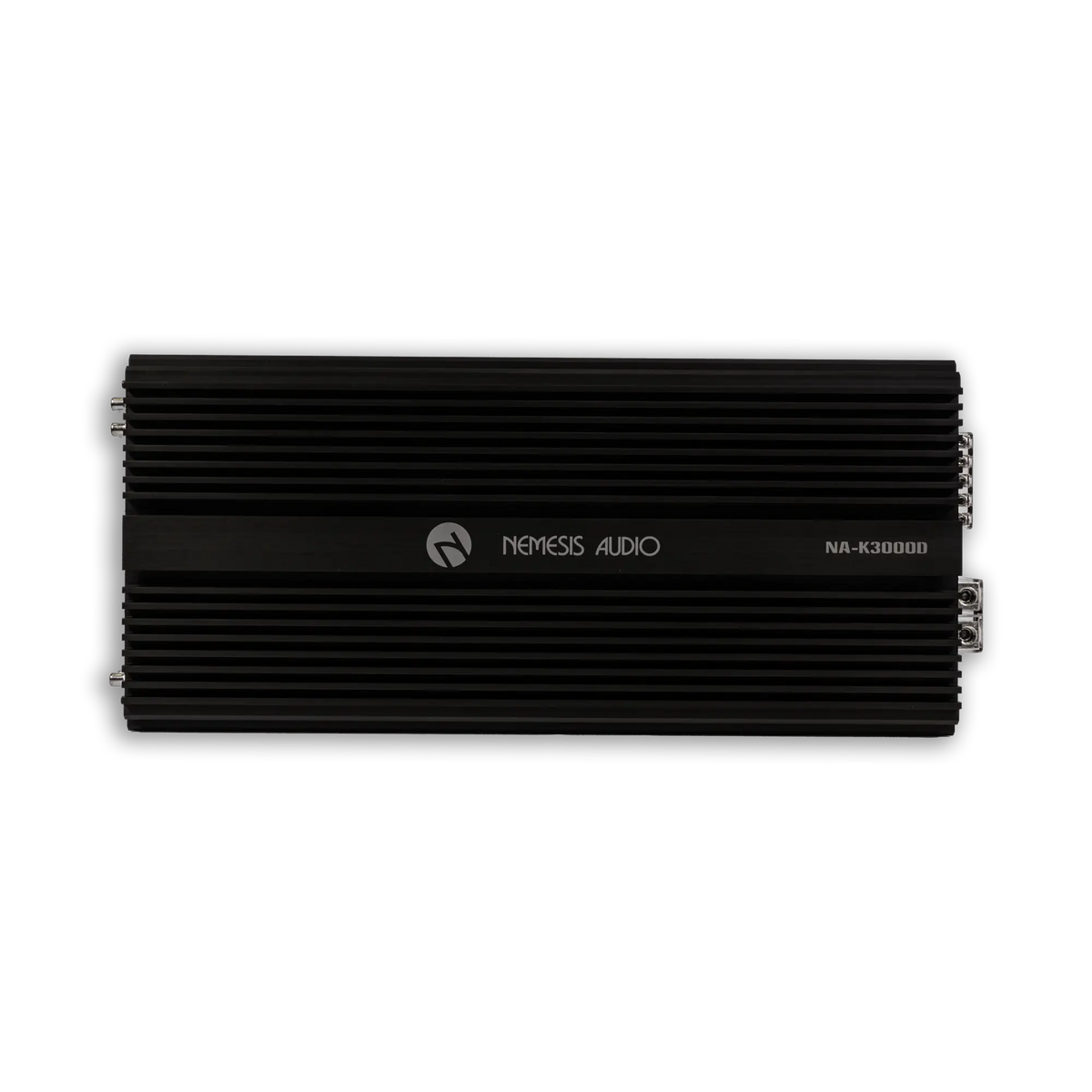

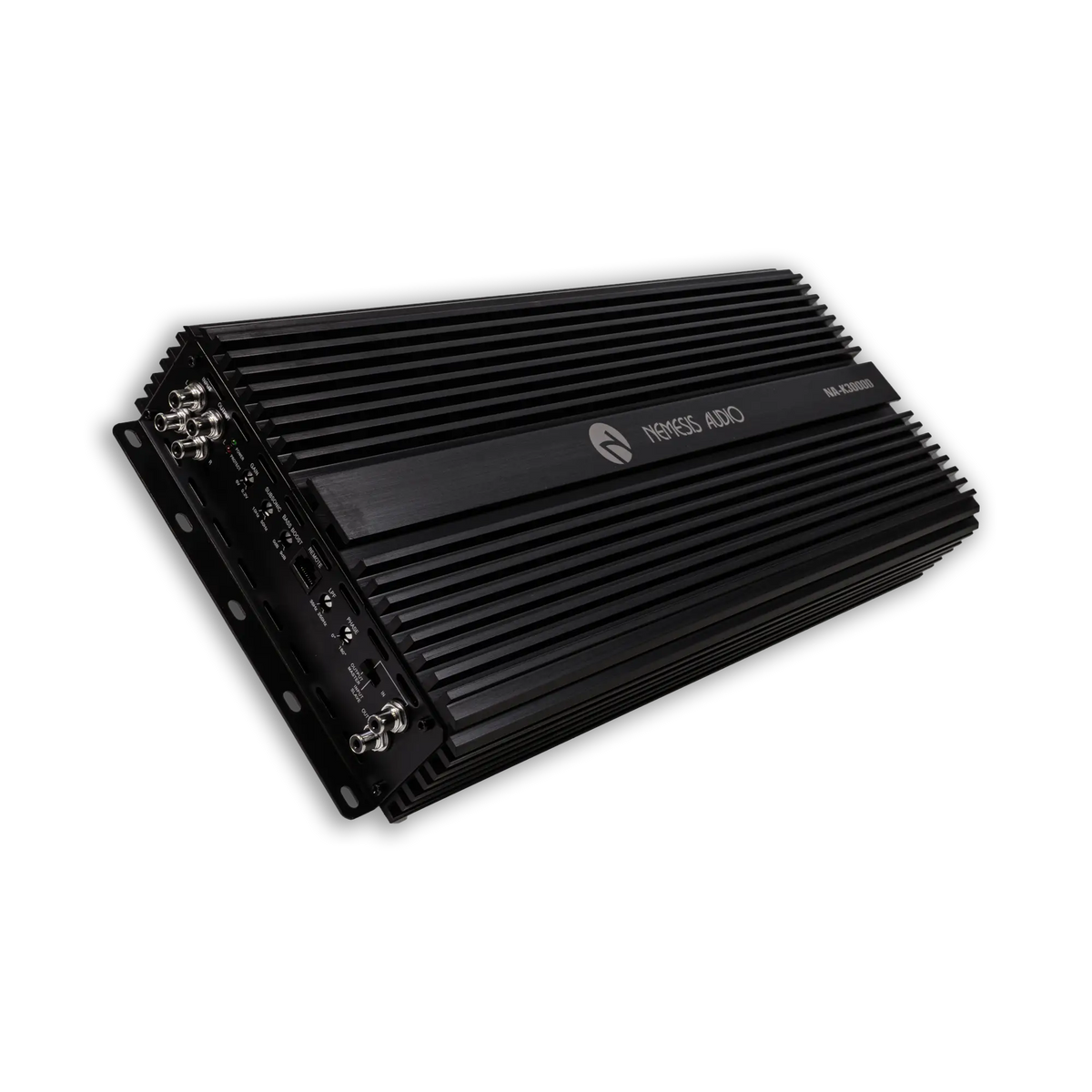

Build a dedicated subwoofer system around the Nemesis Audio NA-K3000D, a 1-channel Class D monoblock car amplifier made in Korea. It delivers up to 3,000W RMS at 1 ohm, with selectable filtering and a remote gain control with clipping indicator.
Key Features & Benefits
- High output: The 1-ohm rating provides 3,000W RMS x1 for subwoofer systems designed to use that load.
- Multiple load ratings: Choose from listed 1-, 2- and 4-ohm outputs when planning a compatible setup.
- Strappable operation: The amplifier is rated for 6,000W RMS x1 at 2 ohms in a strapped configuration.
- Adjustable filtering: Subsonic and low-pass filters help shape the bass range for your system.
- Remote gain control: Adjust gain from the remote control and monitor its clipping indicator.
Technical Specifications
| Brand | Nemesis Audio |
|---|---|
| Model | NA-K3000D |
| Amplifier type | Class D |
| Channel configuration | 1-channel monoblock |
| Origin | Made in Korea |
| 1-ohm RMS | 3,000W x1 |
| 2-ohm RMS | 1,800W x1 |
| 4-ohm RMS | 900W x1 |
| 2-ohm RMS strappable power | 6,000W x1 |
| Frequency response | 10 Hz–250 Hz |
| Signal-to-noise ratio | 95 dB |
| Subsonic filter | 10 Hz–50 Hz @ 24 dB/Oct |
| Low-pass filter | 35 Hz–250 Hz @ 24 dB/Oct |
| Gain control | Remote gain control with clipping indicator |
Why Choose This Product?
The NA-K3000D combines several stated power ratings with a 10 Hz–250 Hz frequency response for dedicated sub-bass applications. Its adjustable subsonic and low-pass filters give you control over the bass bandwidth, while the remote gain control makes output adjustments accessible from the listening position.
For larger systems, its strappable rating offers a higher-power option in a paired configuration. Match the amplifier’s load and power ratings to the subwoofers and system design you intend to use.
Installation & Compatibility Notes
Confirm your subwoofer load and power handling against the amplifier’s ratings before installation. The 6,000W RMS x1 rating applies to a 2-ohm strapped configuration. Plan for the vehicle electrical system and installation requirements associated with your chosen setup.
Frequently Asked Questions
What is the NA-K3000D’s rated output at 1 ohm?
It is rated at 3,000W RMS x1 at 1 ohm.
What does it produce at 2 or 4 ohms?
The listed ratings are 1,800W RMS x1 at 2 ohms and 900W RMS x1 at 4 ohms.
How much power is listed for strapped operation?
The amplifier is rated for 6,000W RMS x1 at 2 ohms in a strapped configuration.
What should I check when matching subwoofers?
Check the subwoofer system’s impedance and power handling against the amplifier’s ratings, along with the requirements of your planned installation.
Can I adjust the bass range?
Yes. The amplifier has a 10 Hz–50 Hz subsonic filter and a 35 Hz–250 Hz low-pass filter, both rated at 24 dB/Oct.
