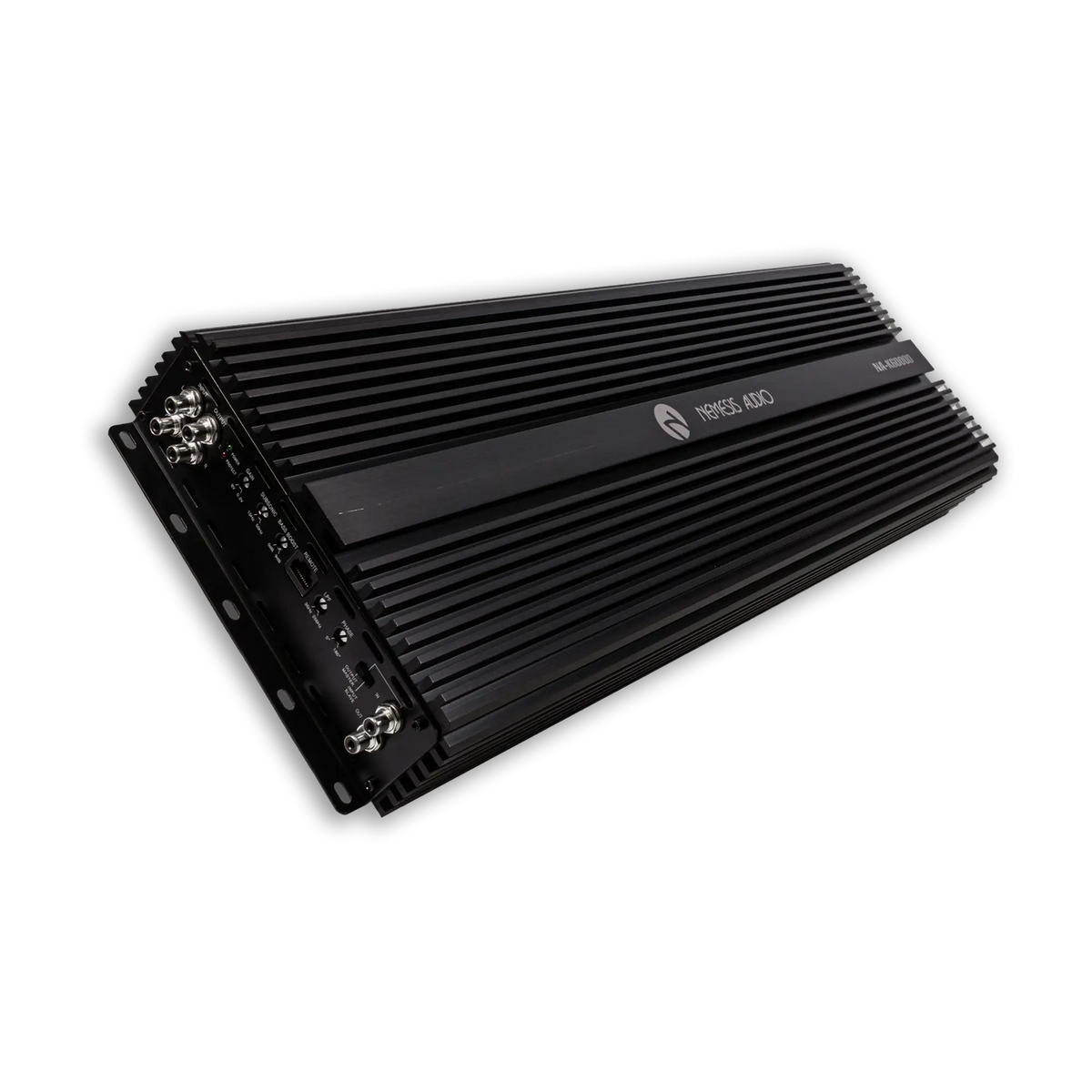

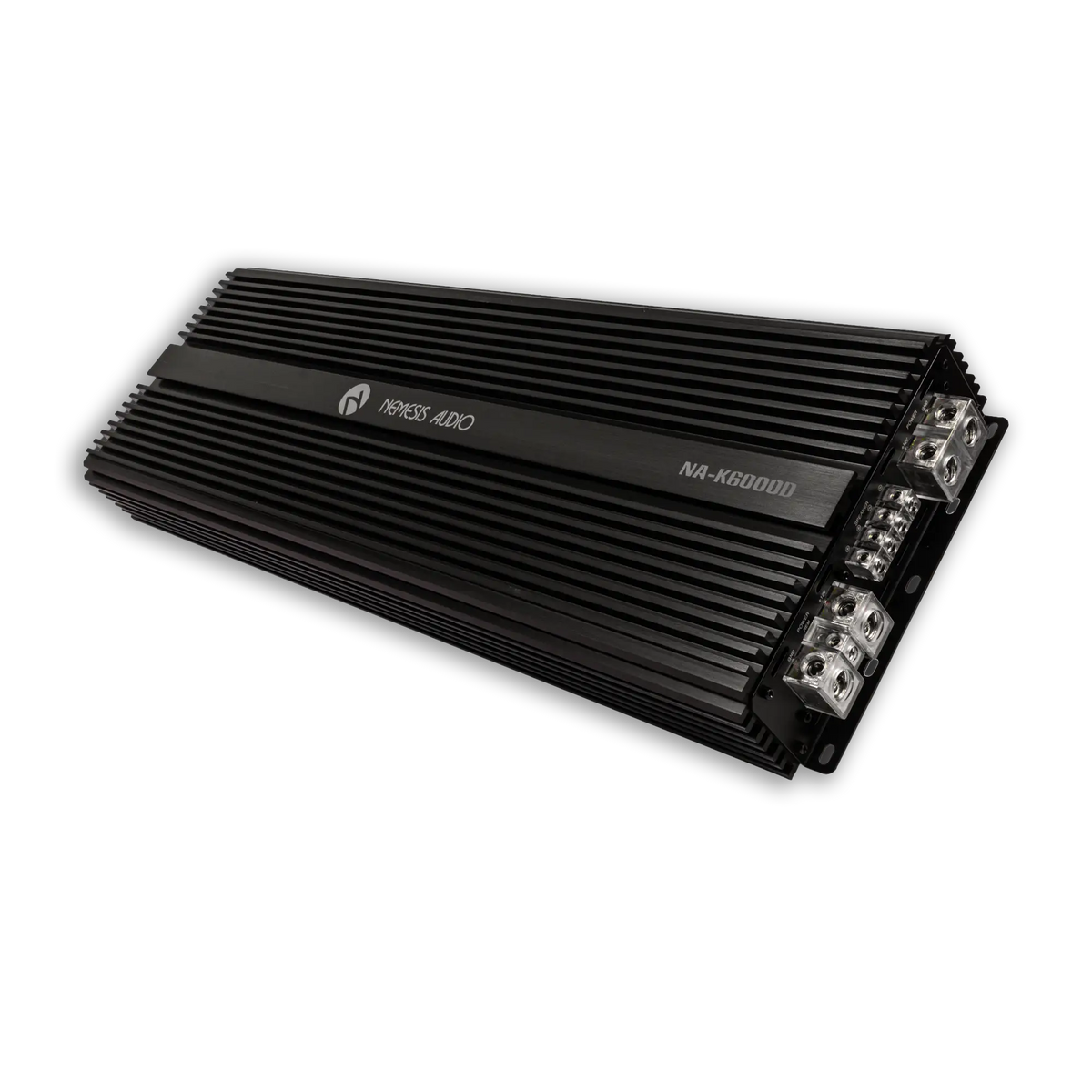

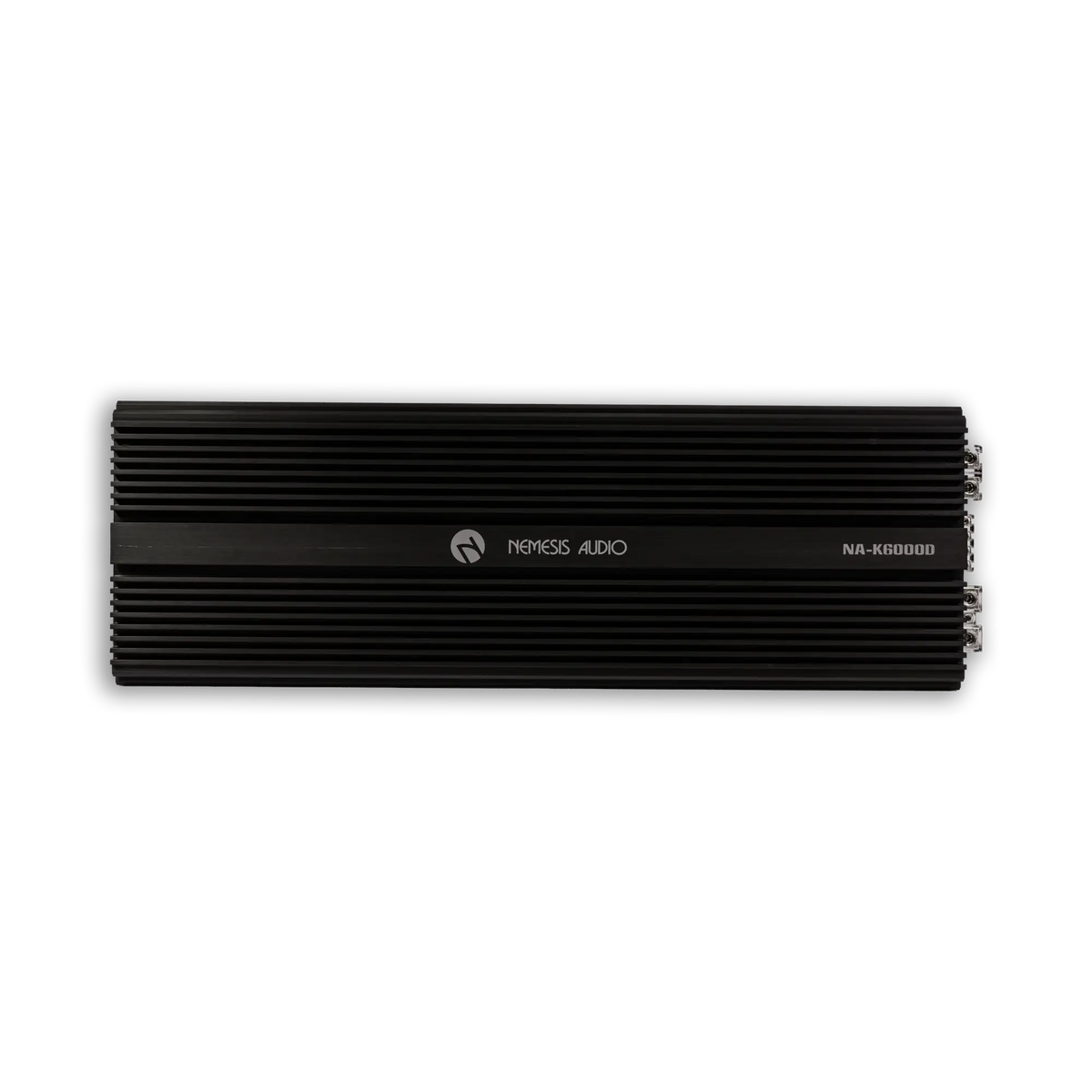

Nemesis Audio NA-K6000D 6000W @ 1-Ohm Class D 1-Channel Monoblock Car Amplifier Made In Korea Team Series
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 1800.0 W
- RMS output at 2 ohms: 3600 W
- RMS output at 1 ohm: 6000 W
Nemesis Audio NA-K6000D 6000W @ 1-Ohm Class D 1-Channel Monoblock Car Amplifier Made In Korea Team Series is backordered and will ship as soon as it is back in stock.
Nemesis Audio NA-K6000D 6000W @ 1-Ohm Class D 1-Channel Monoblock Car Amplifier Made In Korea Team Series is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a subwoofer system around the Nemesis Audio NA-K6000D, a Class D, 1-channel monoblock car amplifier rated at 6,000W RMS at 1 Ohm. Made in Korea and part of the Team Series, it offers selectable impedance power ratings and adjustable bass filters for subwoofer-focused builds.
Key Features & Benefits
- Multiple impedance ratings: Choose between listed RMS outputs at 1, 2, or 4 Ohms to match your system design.
- Strappable output: The listed 2-Ohm strapped rating is 12,000W x 1 for a strappable configuration.
- Adjustable bass filters: Set the subsonic and low-pass filters to shape the amplifier’s frequency range.
- Variable bass boost: The 0–9dB adjustment at 45Hz lets you tailor bass response.
- Wide input sensitivity range: The 6V–0.2V range supports integration with a range of head-unit and preamp outputs.
Technical Specifications
| Model | NA-K6000D |
| Series | Team Series |
| Amplifier Type | Class D |
| Channel Configuration | 1-Channel Monoblock |
| Origin | Made in Korea |
| 1-Ohm RMS Power | 6,000W x 1 |
| 2-Ohm RMS Power | 3,600W x 1 |
| 4-Ohm RMS Power | 1,800W x 1 |
| 2-Ohm RMS Strappable Power | 12,000W x 1 |
| Frequency Response | 10Hz–250Hz |
| Signal to Noise Ratio | 95dB |
| Damping Factor | 400dB |
| Efficiency (4-Ohm 100Hz) | 90% |
| Input Sensitivity | 6V–0.2V |
| Subsonic Filter | 10Hz–50Hz @ 24dB/Oct |
| Bass Boost | 0–9dB @ 45Hz |
| Low Pass Filter | 35Hz–250Hz @ 24dB |
| Strappable Connection | 0 Gauge Power & Ground Input |
| Working Voltage | 10V–16V |
Why Choose This Product?
The NA-K6000D pairs high listed RMS output at 1 Ohm with additional ratings at 2 and 4 Ohms. Its subsonic filter, low-pass filter, and bass boost give you several controls for shaping the amplifier’s output around your subwoofer system.
The listed 90% efficiency is measured at 4 Ohms and 100Hz. A 95dB signal-to-noise ratio and 400dB damping factor are also included in the specifications.
Installation & Compatibility Notes
Plan your system around the amplifier’s 10V–16V working voltage and 0 Gauge power and ground input for strappable connections. Confirm your subwoofer load and intended configuration against the power ratings before installation.
The input sensitivity range is 6V–0.2V. Check that your head-unit or preamp output can be matched within this range.
Frequently Asked Questions
What is the NA-K6000D’s RMS output at 1 Ohm?
Its listed 1-Ohm RMS output is 6,000W x 1.
What power is listed at 2 and 4 Ohms?
The amplifier is rated at 3,600W x 1 RMS at 2 Ohms and 1,800W x 1 RMS at 4 Ohms.
What frequency range do the filters cover?
The subsonic filter adjusts from 10Hz to 50Hz at 24dB/Oct. The low-pass filter adjusts from 35Hz to 250Hz at 24dB.
What working voltage does this amplifier support?
The specified working voltage is 10V–16V.
