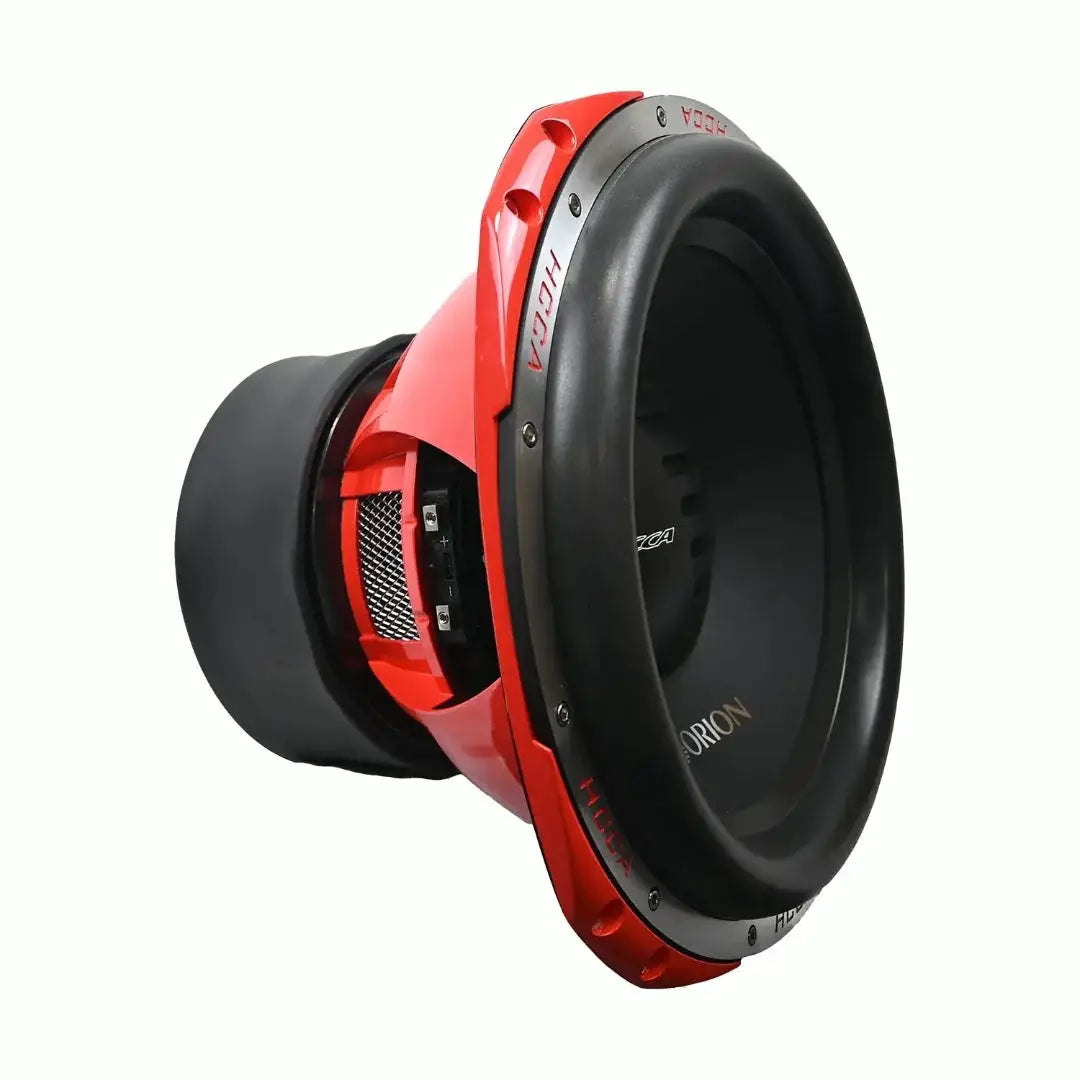

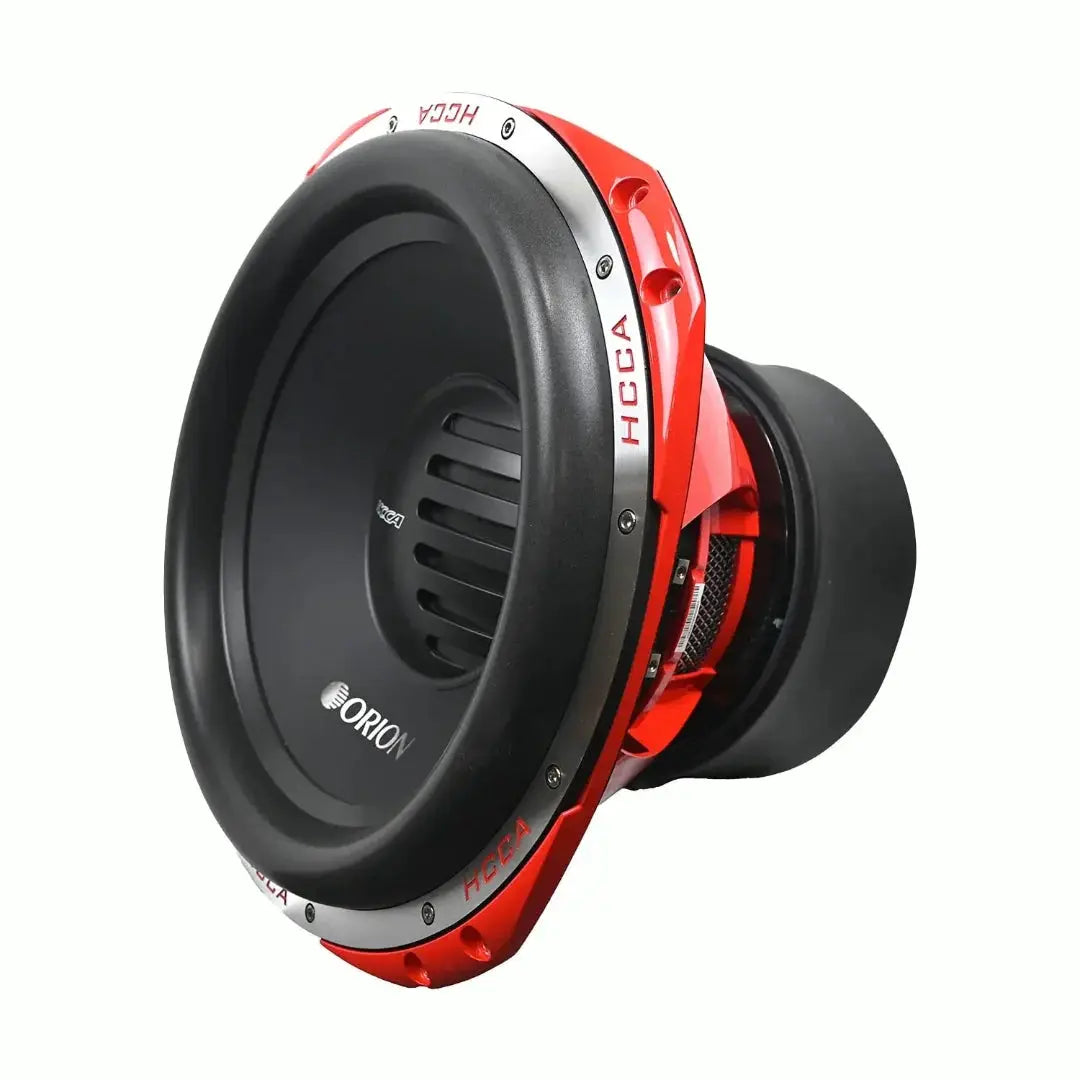

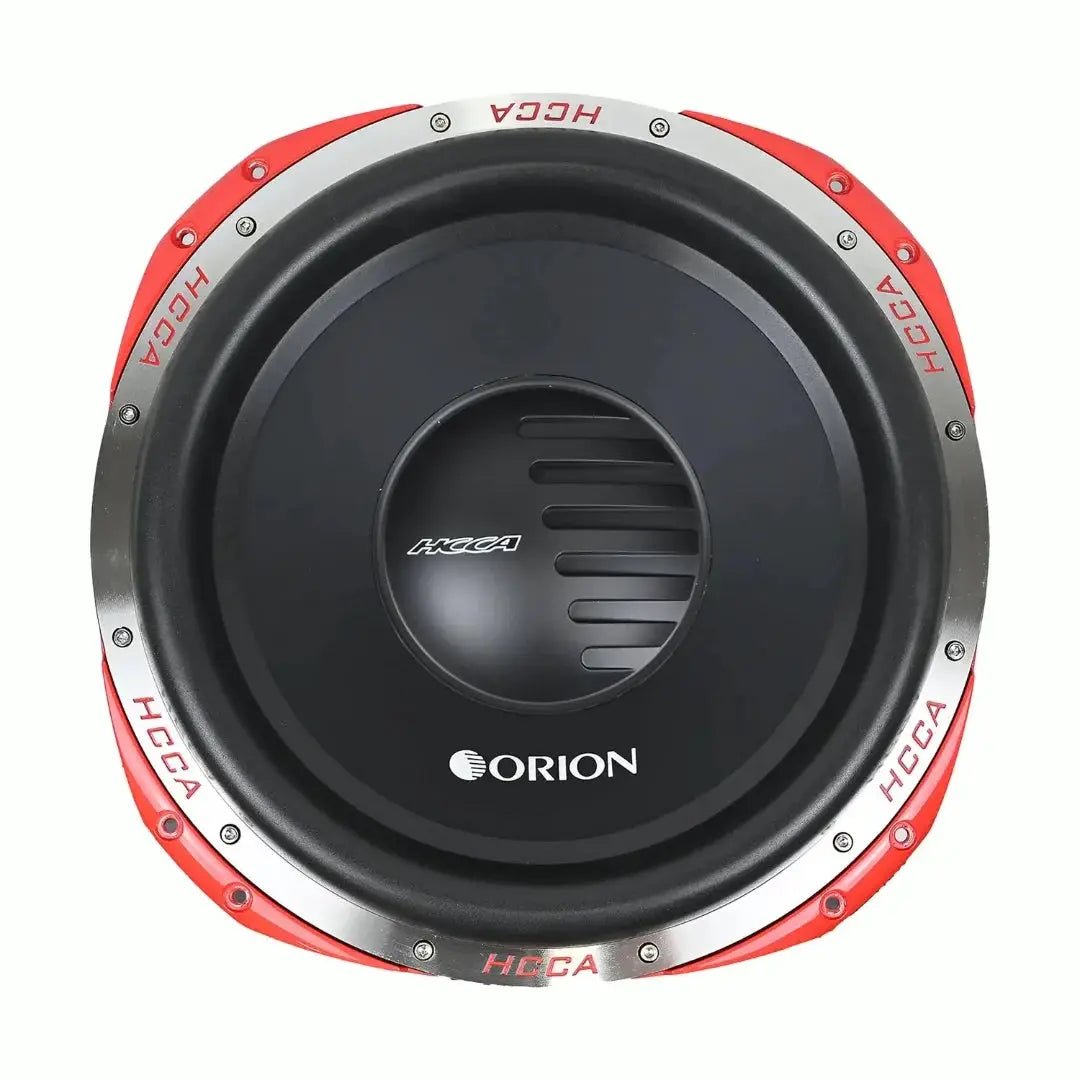

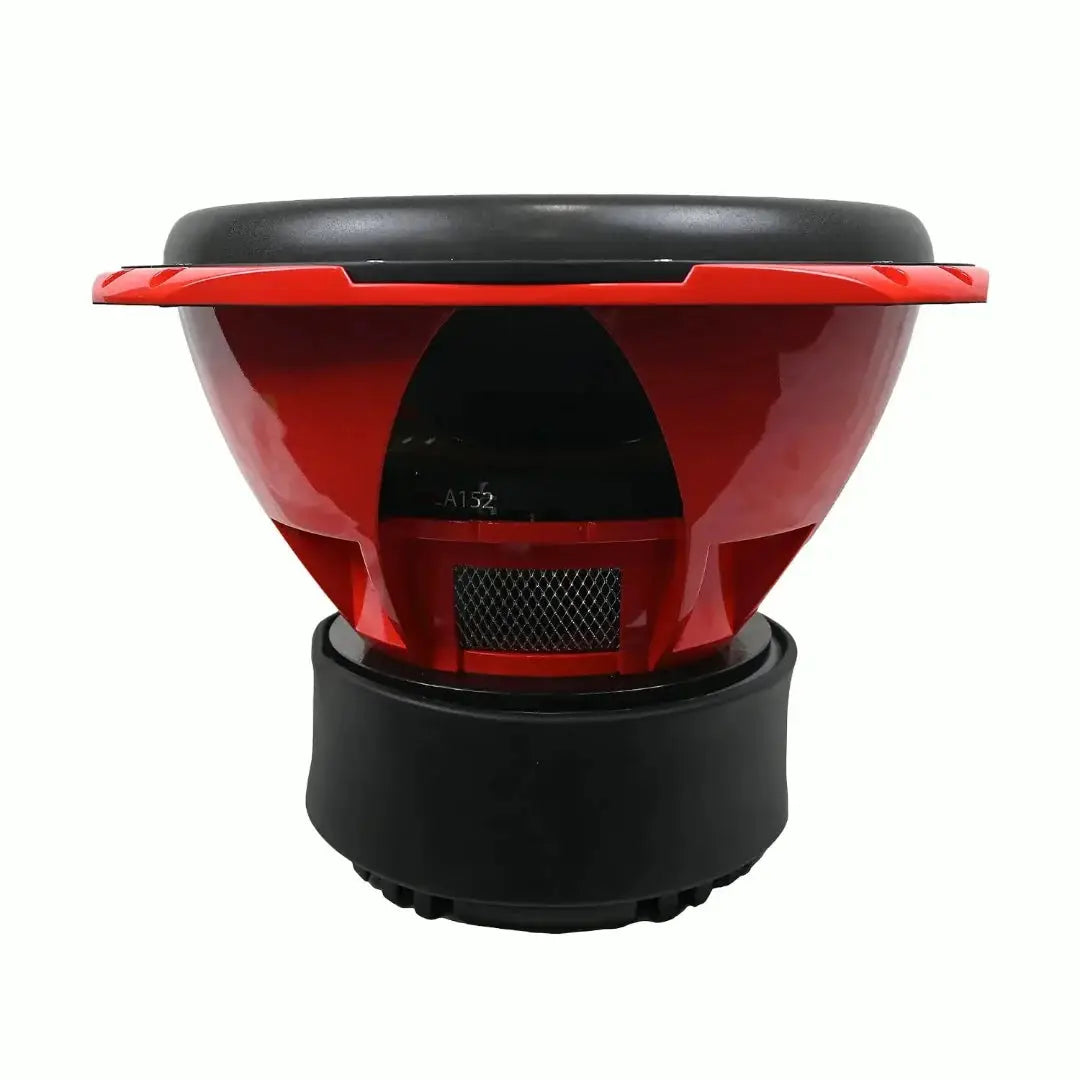

Orion HCCA152 – 15 Inch Dual 2 Ohm High-Performance Subwoofer | 2500W RMS Bass Power
Key features
- Subwoofer size: 15.0 inches
- RMS power per subwoofer: 2500 W
- Voice-coil options: D2
- Voice-coil diameter: 4 inches
- Surround: NBR foam
- Dust cap: Polypropylene
Orion HCCA152 – 15 Inch Dual 2 Ohm High-Performance Subwoofer | 2500W RMS Bass Power is backordered and will ship as soon as it is back in stock.
Orion HCCA152 – 15 Inch Dual 2 Ohm High-Performance Subwoofer | 2500W RMS Bass Power is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring deep, controlled bass to a high-output system with the Orion HCCA152 15-inch dual 2-ohm subwoofer. Its 2500W RMS power handling, 4-inch high-temperature voice coil, and 445 oz triple-stack ceramic magnet are built for demanding daily-driven and multi-sub setups.
Key Features & Benefits
- Dual 2-ohm voice coil: Offers wiring flexibility when matching the subwoofer to an amplifier load.
- High-temperature 4-inch voice coil: Helps dissipate heat during extended high-power use.
- Moisture- and UV-resistant paper cone: Combines automotive-environment durability with the stiffness needed for controlled cone movement.
- NBR foam surround: Supports controlled excursion for a tight, predictable bass response.
- Polypropylene dustcap: Adds cone strength during high excursion.
- Sealed or ported enclosure use: Gives you two enclosure approaches for tailoring bass response to your build.
Technical Specifications
| Specification | Value |
|---|---|
| Subwoofer size | 15" |
| Voice coil configuration | Dual 2 ohm |
| Power handling | 2500W RMS / 10000W peak |
| Voice coil diameter | 4" |
| Sensitivity | 87.2 dB |
| Frequency response | 21 Hz - 100 Hz |
| Mounting depth | 294 mm (11.575") |
| Cutout | 383 mm (15.07") |
| Overall diameter | 422 mm (16.61") |
| Magnet | 445 oz triple-stack ceramic magnet |
| Cone | Moisture- and UV-resistant paper |
| Surround | NBR foam |
| Dustcap | Polypropylene |
| Enclosure types | Sealed and ported |
Why Choose This Product?
The HCCA152 is designed for systems that need substantial low-frequency output while retaining controlled bass. Its large magnetic motor, high-temperature voice coil, and durable cone and surround materials support sustained output across its 21 Hz–100 Hz frequency response.
Use it in a high-power daily-driven build or consider it for a multi-sub configuration. Its dual 2-ohm voice coil provides options for matching amplifier loads, while sealed and ported enclosures let you choose between different approaches to bass response.
Installation & Compatibility Notes
Check the 294 mm (11.575") mounting depth, 383 mm (15.07") cutout, and 422 mm (16.61") overall diameter against your available installation space. Plan the amplifier and wiring around the dual 2-ohm voice coil and the intended system load. The HCCA152 is specified for sealed or ported enclosures.
Frequently Asked Questions
What are the Orion HCCA152’s RMS and peak power ratings?
It is rated for 2500W RMS and 10000W peak power handling.
What does the dual 2-ohm voice coil offer?
It provides wiring flexibility and helps you match amplifier loads in a high-power system.
What enclosure types can I use?
The HCCA152 is optimized for sealed and ported enclosures.
How much mounting space does it need?
Its mounting depth is 294 mm (11.575"), cutout is 383 mm (15.07"), and overall diameter is 422 mm (16.61").
What frequency range is listed for this subwoofer?
Its specified frequency response is 21 Hz - 100 Hz.
Explore More
Shop the Orion HCCA152 at 12 Volt Outlet. Want to learn more about Orion? Explore our Orion brand profile.
Recommended Monoblock Amplifiers
Power-matched options for one subwoofer or one complete loaded enclosure. We aim to include same-brand choices when their ratings qualify.
Loading amplifier suggestions…
Suggestions use 75–125% of the subwoofer’s RMS rating at the wiring load shown. Check wiring, enclosure needs, electrical capacity and installation space. Set gain and filters correctly to avoid overpowering the subwoofer. Buying more than one subwoofer changes the match.
