Power Acoustik RZ5-2500D Class D 5-Channel Car Amplifier
Power Acoustik RZ5-2500D Class D 5-Channel Car Amplifier is backordered and will ship as soon as it is back in stock.
Power Acoustik RZ5-2500D Class D 5-Channel Car Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Power Acoustik RZ5-2500D gives your system four speaker channels and a dedicated subwoofer channel from one chassis. Part of the RZ family, it provides the channel layout and adjustable controls needed to build an aftermarket car audio system around your speakers and installation space.
For the RZ5-2500D, channel layout and speaker impedance matter together: adding drivers changes the load seen by each channel. Plan the final wiring first, then compare the appropriate manufacturer RMS rating with the connected speakers’ requirements.
Key Features
- Speaker-level and RCA inputs support integration with compatible factory or aftermarket source units.

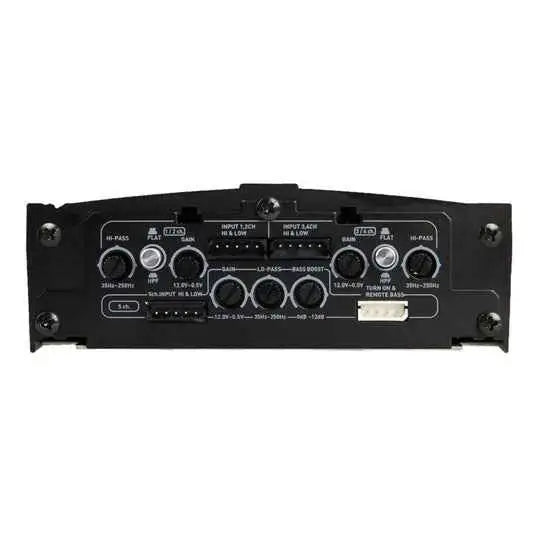

- Adjustable high-pass and low-pass filtering helps match the amplifier output to the connected drivers.
- Built-in protection monitors short-circuit, thermal and overload conditions.
- A compact chassis offers additional mounting flexibility when installation space is limited.
Technical Specifications
| Specification / detail | Manufacturer-listed information |
|---|---|
| Max Power | 2,500 Watts |
| RMS Bridged @ 4Ω | 300W x 2 + 600W (2Ω) |
| RMS Power @ 2Ω | 150W x 4 + 600W |
| RMS Power @ 4Ω | 100W x 4 + 400W |
| Dimensions (4.75″w x 1.625″h) | 12.25″ |
Why Choose the RZ5-2500D?
The RZ5-2500D suits a build that needs a single-chassis amplifier for main speakers and a dedicated subwoofer channel. Its published operating points are RMS Bridged @ 4Ω: 300W x 2 + 600W (2Ω); RMS Power @ 2Ω: 150W x 4 + 600W; RMS Power @ 4Ω: 100W x 4 + 400W. Choose the rating corresponding to your actual wired load rather than treating the maximum figure as usable continuous output.
Installation & Compatibility Notes
Confirm the final load impedance, mounting clearance, ventilation, power cable and fuse requirements before installation. A suitable wiring kit and any vehicle-specific integration parts should be selected for your particular system.
Frequently Asked Questions
What RMS output does the RZ5-2500D list?
RMS Bridged @ 4Ω: 300W x 2 + 600W (2Ω); RMS Power @ 2Ω: 150W x 4 + 600W; RMS Power @ 4Ω: 100W x 4 + 400W. These are manufacturer ratings, not independent bench-test results.
What system layout is the RZ5-2500D intended for?
Its five-channel layout supports main speakers and a dedicated subwoofer channel.
How much mounting space does the RZ5-2500D require?
12.25″. Allow additional room for connectors, cable bends and airflow; chassis dimensions alone do not include that installation clearance.
Can the RZ5-2500D accept speaker-level audio?
Speaker-level and RCA inputs support integration with compatible factory or aftermarket source units. Confirm signal voltage, channel routing and any factory processing before connecting it to an OEM system; an input type alone does not guarantee vehicle compatibility.
How should I set up the RZ5-2500D before listening?
Start with conservative gain and tone settings, check the wiring and load, then configure the documented crossover controls for the connected drivers. Bass boost is not extra clean power and should not be used to compensate for an incorrect enclosure or gain setting.
