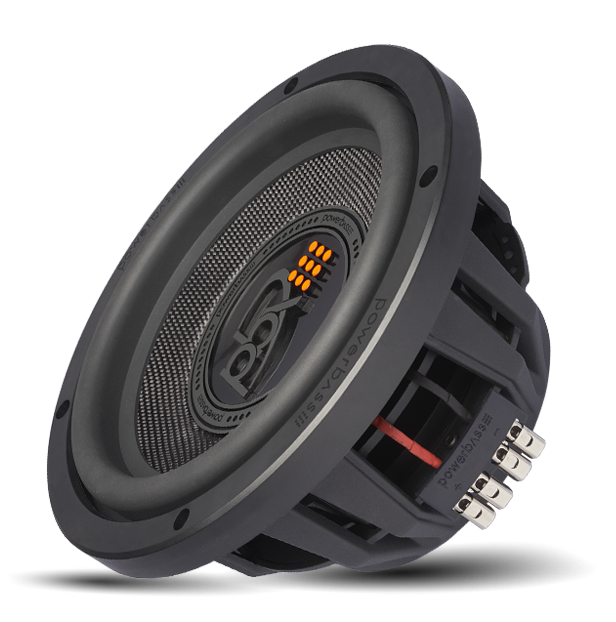

PowerBass 2XL-1040D 10" Subwoofer
Key features
- Subwoofer size: 10.0 inches
- RMS power per subwoofer: 400 W
- Voice-coil options: D4
- Mounting depth: 4.75 in
- Voice-coil diameter: 2.5 in
- Cone material: Woven Glass Fiber and Kraft Paper
PowerBass 2XL-1040D 10" Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get controlled, tight bass in a compact sealed-enclosure build with the PowerBass 2XL-1040D 10-inch subwoofer. Its dual 4-ohm voice coils offer wiring flexibility, while its compact design suits installations where space is limited.
Use it in a small sealed enclosure for a car audio system planned around accurate bass. Its design is intended for compact installs, including tight under-seat or trunk spaces.
Key Features & Benefits
- Dual 4-ohm voice coils: Provide wiring flexibility for matching the subwoofer load to your amplifier and system design.
- 400W RMS power handling: Supports sustained bass output, with up to 800W peak power for brief dynamic transients.
- Reinforced cone: The woven glass fiber cone with pressed kraft paper reinforcement is designed to resist flex and maintain clarity during high excursions.
- Cooling features: The vented 2.5-inch BKSV voice coil former and perimeter Aero-Vent cooling vents help dissipate heat during demanding playback.
- Rigid cast aluminum basket: The non-resonance DDC-coated basket is designed to minimize cabinet-induced coloration and resist corrosion.
- Compact sealed-box design: Its small footprint and sealed-enclosure optimization make it suitable for space-conscious builds.
Technical Specifications
| Specification | Details |
|---|---|
| Brand and model | PowerBass 2XL-1040D |
| Product type | 10" subwoofer |
| Voice coils | Dual 4-ohm |
| Power handling | 400W RMS continuous; up to 800W peak |
| Enclosure design | Optimally designed for small sealed enclosures |
| Cone | Woven glass fiber cone with pressed kraft paper reinforcement |
| Surround | Nitrile Butadiene Rubber (NBR) |
| Voice coil former | 2.5" vented BKSV |
| Voice coil cooling | Perimeter Aero-Vent cooling vents |
| Basket | Non Resonance DDC coated cast aluminum |
| Motor structure | XTRA XTRA Large Double Stacked Motor Structures |
| Input terminals | Square spring loaded nickel plated |
Why Choose This Product?
The 2XL-1040D combines a compact footprint with features designed for controlled bass in a small sealed box. Its double-stacked motor structure is designed to increase drive force and control, while the NBR surround supports excursion across varied temperatures and loads.
Cooling vents around the coil assembly promote convection, and the vented voice coil former aids heat dissipation. These design details make the subwoofer a considered option for demanding listening sessions in a space-conscious system.
Installation & Compatibility Notes
Plan the system around a small sealed enclosure and an amplifier load compatible with the subwoofer's dual 4-ohm voice coils. Confirm the amplifier's supported load and your intended wiring configuration before installation.
For an under-seat or trunk installation, check the available space and enclosure clearance against your vehicle and box dimensions before purchase. The product details do not specify mounting dimensions.
Frequently Asked Questions
What is the PowerBass 2XL-1040D's power handling?
It is rated for 400W RMS continuous power and up to 800W peak power.
What impedance are the voice coils?
The subwoofer has dual 4-ohm voice coils. Confirm your wiring plan produces a load supported by your amplifier.
What type of enclosure is it designed for?
It is optimally designed for a small sealed enclosure.
Can it be used in a tight under-seat or trunk installation?
Its compact design is intended for tight installations. Check available clearance against the subwoofer and enclosure dimensions for your planned setup.
