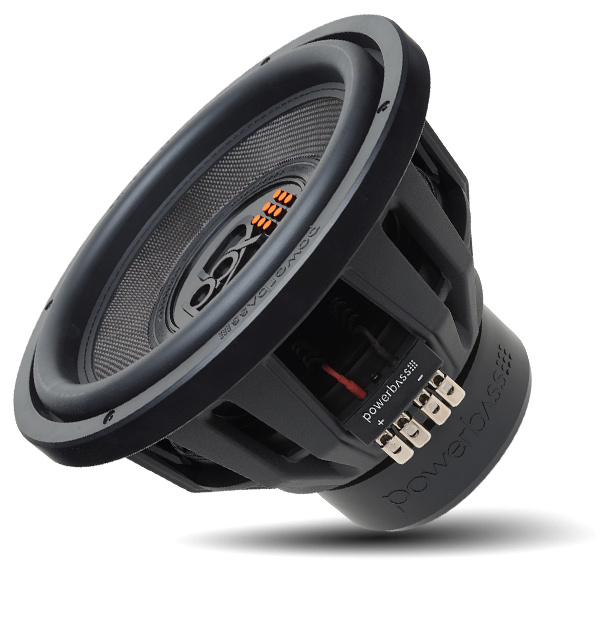

PowerBass 2XL-1240DS 12" Subwoofer
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 650 W
- Voice-coil options: D4
- Mounting depth: 8.6 in
- Voice-coil diameter: 2.5 in
- Cone material: Woven Glass Fiber and Kraft Paper
PowerBass 2XL-1240DS 12" Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring substantial low-frequency output to your car audio system with the PowerBass 2XL-1240DS 12-inch subwoofer. Its dual 4-ohm voice coils, 650W RMS power handling, and compatibility with sealed or ported enclosures give you options when planning a high-output bass setup.
Key Features & Benefits
- Dual 4-ohm voice coils: Choose a wiring configuration that suits your amplifier and system plan.
- 650W RMS power handling: Supports sustained power for demanding listening sessions.
- Woven glass fiber cone: Pressed kraft paper reinforcement adds stiffness for controlled cone movement.
- NBR surround: Supports long excursion while helping keep the cone centered.
- Vented voice coil cooling: A 2.5-inch vented BKSV voice coil former and perimeter Aero-Vent cooling vents help manage heat.
- Cast aluminum basket: The non-resonance DDC-coated basket is designed to minimize vibration.
Technical Specifications
| Model | PowerBass 2XL-1240DS |
|---|---|
| Product type | 12-inch subwoofer |
| Impedance | Dual 4-ohm |
| Power handling | 650W RMS / 1300W max |
| Cone | Woven glass fiber with pressed kraft paper reinforcement |
| Surround | Nitrile butadiene rubber (NBR) |
| Voice coil | 2.5-inch vented BKSV voice coil former |
| Cooling and venting | Perimeter Aero-Vent voice coil cooling vents |
| Basket | Non-resonance DDC-coated cast aluminum |
| Motor structure | XTRA large double-stacked motor structures |
| Terminals | Square spring-loaded, nickel-plated input terminals |
| Enclosure compatibility | Sealed or ported enclosures |
Why Choose This Product?
The 2XL-1240DS combines a reinforced cone, substantial motor structure, and cooling features in a subwoofer designed for high-output bass. Its sealed or ported enclosure compatibility lets you choose between enclosure approaches as you plan your installation.
Installation & Compatibility Notes
Match the amplifier and wiring plan to the subwoofer’s dual 4-ohm impedance and 650W RMS power handling. Choose a sealed or ported enclosure for your build, and check the installation space and enclosure requirements before purchase.
Spring-loaded input terminals provide the connection points. Confirm your planned wiring configuration and amplifier load before connecting the system.
Frequently Asked Questions
What is the PowerBass 2XL-1240DS power rating?
It is rated at 650W RMS and 1300W max. Use the RMS rating when matching sustained amplifier output.
What does dual 4-ohm impedance mean?
The subwoofer has two 4-ohm voice coils, allowing wiring configuration choices. Confirm the resulting load is suitable for your amplifier.
Can this subwoofer go in a sealed or ported enclosure?
Yes. It is designed for use in either sealed or ported enclosures.
What should I check before installation?
Check available mounting space, enclosure requirements, amplifier compatibility, and the wiring configuration for your system.
Explore More
Shop the PowerBass 2XL-1240DS at 12 Volt Outlet. Want to learn more about PowerBass? Explore our PowerBass brand profile.
Recommended Monoblock Amplifiers
Power-matched options for one subwoofer or one complete loaded enclosure. We aim to include same-brand choices when their ratings qualify.
Loading amplifier suggestions…
Suggestions use 75–125% of the subwoofer’s RMS rating at the wiring load shown. Check wiring, enclosure needs, electrical capacity and installation space. Set gain and filters correctly to avoid overpowering the subwoofer. Buying more than one subwoofer changes the match.
