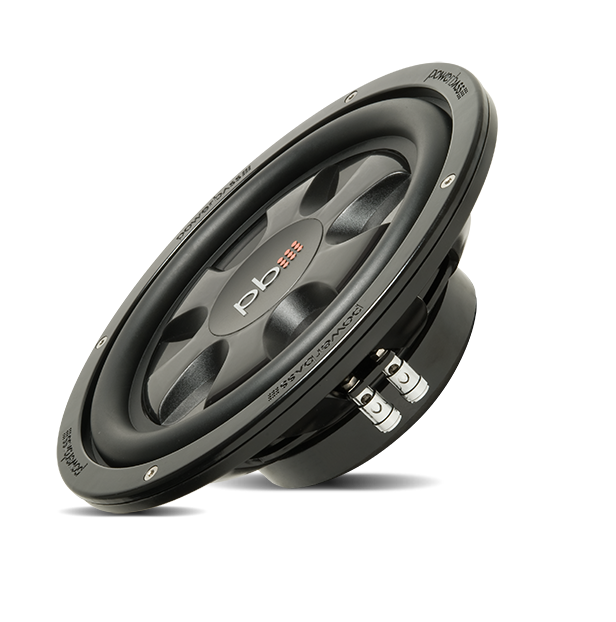

PowerBass S-10TD 10" Shallow Mount Subwoofer
Key features
- Subwoofer size: 10.0 inches
- RMS power per subwoofer: 275 W
- Voice-coil options: D4
- Mounting depth: 3.25 in
- Voice-coil diameter: 2 in
- Cone material: Injection molded Polypropylene
PowerBass S-10TD 10" Shallow Mount Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get low-frequency bass into a compact car audio installation with the PowerBass S-10TD 10-inch shallow-mount subwoofer. Its 3.25-inch mounting depth and dual 4-ohm voice coils suit space-conscious builds, including small sealed enclosures.
Key Features & Benefits
- Shallow profile: The 3.25-inch mounting depth helps accommodate installations with limited depth.
- Power handling: The 275W RMS and 550W maximum ratings help you match the subwoofer with an appropriate amplifier.
- Vented voice coil: The 2-inch KSV voice coil former is designed to dissipate heat during sustained output.
- Durable construction: The polypropylene cone, composite turbine basket, and rubber surround support controlled cone movement.
- Enclosure planning: Thiele/Small parameters provide useful data when designing or selecting an enclosure.
Technical Specifications
| Specification | Value |
|---|---|
| Product type | 10-inch thin-mount dual 4-ohm subwoofer |
| Power handling | 275W RMS / 550W Max |
| Mounting depth | 3.25" |
| Cutout diameter | 9 3/16" (233.0 mm) |
| Voice coil | 2" vented KSV voice coil former |
| Cone | Injection molded polypropylene |
| Frame and basket | Polycarbonate/glass fiber composite turbine basket |
| Surround | Large roll rubber surround |
| Magnet size | 116 oz |
| Frequency response | 33 Hz – 400 Hz |
| Sensitivity | 90 dB |
| Terminals | Chrome push terminals |
| Xmax | 6.8 mm |
| BL | 16.41 |
| Fs | 37 Hz |
| Qts | 0.804 |
| Qes | 0.93 |
| Qms | 5.8 |
| Mms | 166.4 g |
| Cms | 111.4 μM/N |
| Vas | 20.86 Ltr |
| Sd | 363 cm² |
Why Choose This Product?
The S-10TD is designed for car audio builds where installation depth is limited but bass is still a priority. Its shallow format and stated optimization for small sealed enclosures make it a practical option to consider when planning a compact setup.
The cone, surround, and composite basket are built around controlled movement and durable construction. Its frequency response extends from 33 Hz to 400 Hz, covering deep bass through the low midrange.
Installation & Compatibility Notes
Allow for the 3.25-inch mounting depth and 9 3/16-inch cutout diameter when checking enclosure space. Confirm the available opening and clearance before installation.
The subwoofer has dual 4-ohm voice coils. Check the amplifier’s supported load and the intended wiring configuration before connecting it. Use the 275W RMS rating when comparing amplifier output; the 550W Max figure is a separate rating.
Frequently Asked Questions
What enclosure is the S-10TD designed for?
It is optimized for small sealed enclosures.
How much mounting space does it need?
Plan for a 3.25-inch mounting depth and a 9 3/16-inch (233.0 mm) cutout diameter.
What amplifier power should I consider?
Its power ratings are 275W RMS and 550W Max. Match the amplifier to the RMS rating and the load supported by your planned wiring.
What should I check with its dual 4-ohm voice coils?
Confirm that your amplifier supports the final load created by your chosen voice-coil wiring configuration.
What is included with the subwoofer?
Check the product package details before ordering to confirm the included items.
