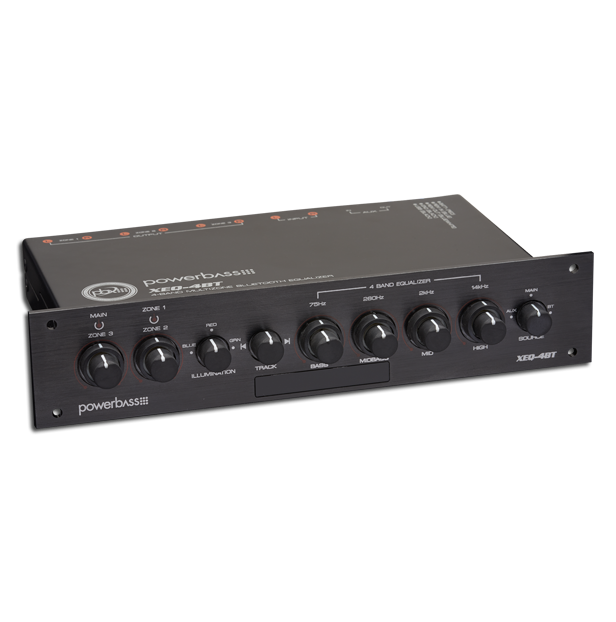

PowerBass XEQ-4BT 4 Band, 3 Zone, Bluetooth Power Sports Equalizer
Key features
- Equalizer: 4 bands with independent EQ for 2 zones
- Outputs: 3 zones with individual and master volume controls
- Source selection: Bluetooth, 3.5 mm auxiliary and RCA
- Subwoofer crossover: selectable 80 or 120 Hz
- Illumination: selectable red, blue or green
- Circuit protection: conformal-coated PCB
PowerBass XEQ-4BT 4 Band, 3 Zone, Bluetooth Power Sports Equalizer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Give your UTV, boat, or RV audio system independent zone adjustments and front-panel source controls with the PowerBass XEQ-4BT 4-band, 3-zone Bluetooth powersports equalizer. Its built-in Bluetooth, selectable subwoofer crossover, and adjustable EQ bands make it easier to shape system sound from the equalizer itself.
Key Features & Benefits
- Four-band EQ: Adjust Bass, Mid-Bass, Mid, and High frequencies across two EQ zones.
- Three-zone volume: Set each zone’s loudness and use master volume to manage overall output.
- Built-in Bluetooth: Play audio wirelessly and control tracks from the front panel without an external head unit.
- Multiple front-panel inputs: Switch among Bluetooth, Aux, and RCA sources at the equalizer.
- Selectable illumination: Choose red, blue, or green panel lighting to suit your cockpit lighting.
- Conformal-coated PCB: The coating protects the circuitry from moisture and dust in harsh environments.
Technical Specifications
| Product type | 4-band, 3-zone active equalizer |
|---|---|
| EQ channels | Dual 4-band EQ channels; independent control of Bass, Mid-Bass, Mid, and High across two zones |
| Volume control | Three-zone volume control and master volume |
| Sources | Built-in Bluetooth, Aux, and RCA; front-panel input selector |
| Front-panel controls | Track Up/Down selector; Red, Blue, or Green tri-illumination selector |
| Output signal | 6V RMS output; maximum output 10 Vrms |
| Frequency response | 20 Hz–40 kHz |
| Subwoofer crossover | Selectable 120 Hz or 80 Hz |
| Pre-graphic frequencies | 70 Hz, 250 Hz, 2 kHz, and 1.4 kHz |
| Power supply | Bi-Polar PWM power supply; 11–15V DC, negative ground |
| Signal-to-noise ratio | >100 dB |
| THD | 0.05% |
| Channel separation | >75 dB |
| Construction | Conformal-coated PCB to protect circuitry from moisture and dust |
| Dimensions | 1.3" H × 6.8" W × 4.2" D |
Why Choose This Product?
The XEQ-4BT combines source selection, track controls, EQ adjustments, and zone volume in one front-panel unit. This gives you practical access to key system controls in a multi-zone UTV, boat, or RV audio setup. Its selectable crossover also provides two options for integrating a subwoofer with the rest of the system.
Installation & Compatibility Notes
Plan space for the 1.3" H × 6.8" W × 4.2" D unit and confirm your system uses 11–15V DC negative ground. The equalizer includes Bluetooth, Aux, and RCA source options. Check your system’s connections and installation space before purchase.
Frequently Asked Questions
Does the XEQ-4BT have built-in Bluetooth?
Yes. Bluetooth is built in, and track Up/Down controls are available on the front panel.
How many zones can I control?
The equalizer has three-zone volume control and master volume. Its dual 4-band EQ channels provide independent frequency control across two zones.
Which subwoofer crossover settings are available?
You can select a 120 Hz or 80 Hz subwoofer crossover.
What power connection does it require?
It is specified for 11–15V DC with negative ground.
