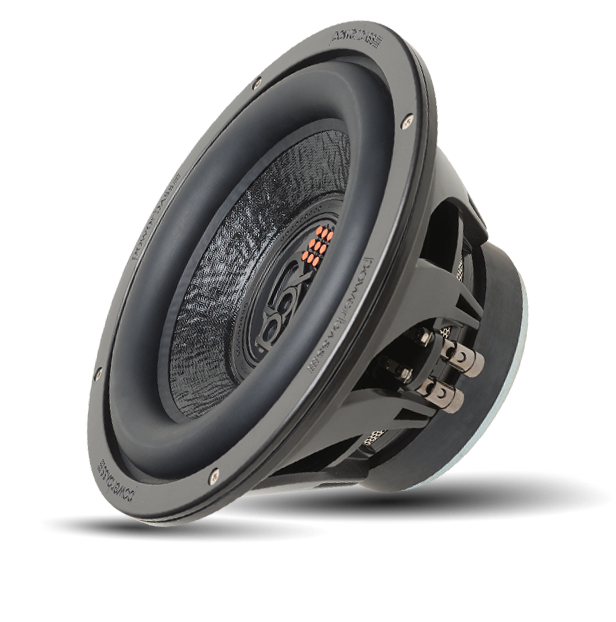

PowerBass XL-1044D 10" Subwoofer
Key features
- Subwoofer size: 10.0 inches
- RMS power per subwoofer: 350 W
- Voice-coil options: D4
- Mounting depth: 5.25 in
- Voice-coil diameter: 2 in
- Cone material: Non Pressed Paper
PowerBass XL-1044D 10" Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The PowerBass XL-1044D is a 10-inch dual 4-ohm car subwoofer for adding substantial bass where enclosure space is limited. It handles 350 W RMS and 700 W maximum, with cooling features designed to support demanding listening.
Its dual voice coils offer wiring options for matching the subwoofer to your amplifier and enclosure impedance. The XL-1044D is designed for use in either a small sealed or ported enclosure.
Key Features & Benefits
- Dual 4-ohm voice coils: Give you wiring options when matching the subwoofer to your amplifier and enclosure impedance.
- Large-roll Santoprene surround: Supports controlled cone movement across a wide excursion range.
- Vented voice coil former: The 2.0-inch BASV former aids heat dissipation during high-power use.
- Aero-Vent cooling: Perimeter voice coil cooling vents help manage heat during sustained listening.
- Coated paper cone: The proprietary non-pressed paper DDC-coated cone is designed for stiffness and damping.
- Low-resonance basket: The polycarbonate and glass fiber frame is designed to reduce coloration.
Technical Specifications
| Model | XL-1044D |
|---|---|
| Product type | 10-inch dual 4-ohm subwoofer |
| Power handling | 350 W RMS / 700 W max |
| RMS rating | Continuous power capability |
| Maximum rating | Peak power for short, dynamic transients |
| Surround | NEW Large Roll Santoprene Surround |
| Cone | Proprietary Non-pressed Paper DDC Coated Cone |
| Voice coil former | 2.0" Vented BASV Voice Coil Former |
| Cooling | Perimeter Aero-Vent Voice Coil Cooling Vents |
| Basket | Proprietary Non Resonance Polycarbonate/Glass Fiber Basket |
| Terminals | Chrome Push Terminals |
| Enclosure compatibility | Optimally Designed for Both Small Sealed or Ported Enclosures |
Why Choose This Product?
The XL-1044D combines a compact 10-inch format with enclosure options suited to builds where space matters. Its dual 4-ohm coils provide flexibility for amplifier and enclosure impedance matching, while the vented former and perimeter cooling vents address heat during high-power use.
The coated cone and non-resonance basket focus on controlled, low-coloration bass. Chrome push terminals provide the connection point for your installation.
Installation & Compatibility Notes
Plan your enclosure around the subwoofer’s 10-inch size and choose a small sealed or ported design. Check the enclosure opening and available space for your specific installation before purchase.
Match the dual 4-ohm voice coils’ wiring configuration to the impedance your amplifier supports. Consider the 350 W RMS rating when selecting supporting equipment; the 700 W max rating describes peak power for short, dynamic transients.
Frequently Asked Questions
What does dual 4-ohm mean?
The subwoofer has two 4-ohm voice coils. Their wiring options can help match the subwoofer to your amplifier and enclosure impedance.
How should I interpret the power ratings?
It is rated for 350 W RMS continuous power and 700 W max for short, dynamic transients.
What enclosure types can I use?
The XL-1044D is designed for small sealed or ported enclosures. Choose an enclosure that suits your available space and installation plan.
What should I check before installing it?
Check the available enclosure space and opening, then confirm that your amplifier supports the impedance resulting from your chosen voice-coil wiring.
Explore More
Shop the PowerBass XL-1044D at 12 Volt Outlet. Want to learn more about PowerBass? Explore our PowerBass brand profile.
Recommended Monoblock Amplifiers
Power-matched options for one subwoofer or one complete loaded enclosure. We aim to include same-brand choices when their ratings qualify.
Loading amplifier suggestions…
Suggestions use 75–125% of the subwoofer’s RMS rating at the wiring load shown. Check wiring, enclosure needs, electrical capacity and installation space. Set gain and filters correctly to avoid overpowering the subwoofer. Buying more than one subwoofer changes the match.
