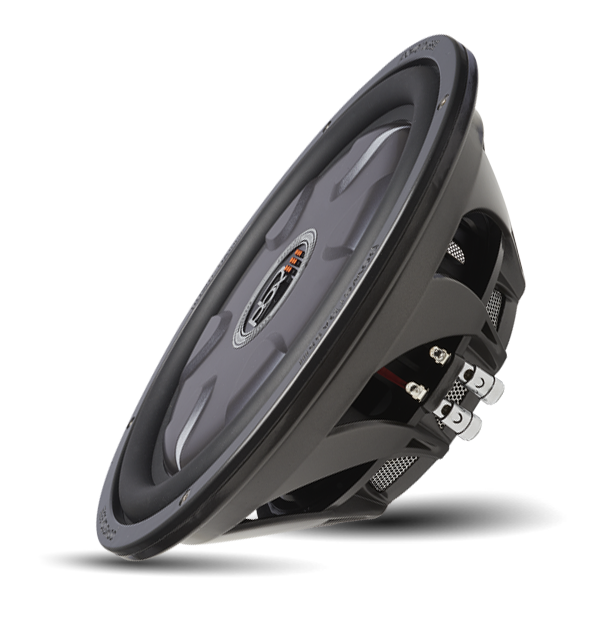

PowerBass XL-1240T 12" Shallow Mount Subwoofer
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 400 W
- Voice-coil options: S4
- Mounting depth: 3.8 in
- Voice-coil diameter: 2 in
- Cone material: Injection Polypropylene
PowerBass XL-1240T 12" Shallow Mount Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Make room for deep, controlled bass in a tight automotive space with the PowerBass XL-1240T 12-inch shallow-mount subwoofer. Its 3.8-inch mounting depth and flat cone design suit compact sealed enclosures where a standard 12-inch woofer may not fit.
Key Features & Benefits
- Compact mounting depth: The 3.8-inch profile helps accommodate space-limited vehicle installations.
- 400W RMS power handling: The subwoofer is rated for 400 watts RMS and 800 watts maximum.
- Flat molded cone: The single-piece injection-molded design provides a stiff, uniform cone.
- Composite basket: Its poly/glass fiber basket supports high excursion and helps minimize unwanted resonances.
- Vented voice coil: The 2-inch KSV voice coil former supports heat dissipation during sustained bass.
Technical Specifications
| Specification | Value |
|---|---|
| Model | XL-1240T |
| Product type | 12-inch shallow-mount subwoofer |
| Power handling | 400 Watts RMS / 800 Watts Max |
| Nominal impedance | 4 Ohms |
| Mounting depth | 3.8" |
| Cutout diameter | 11" (281mm) |
| Cone design | Proprietary Single Piece Injection Molded Flat Cone |
| Basket | Proprietary Composite Poly/Glass Fiber Basket |
| Voice coil | 2" Vented KSV Voice Coil Former |
| Voice coil size | 2" |
| Magnet size | 140 oz |
| Sensitivity | 89 dB (1W/1M) |
| Frequency range | 33 Hz - 450 Hz |
| Dust cap | PBX logo dust cap |
Why Choose This Product?
The XL-1240T is designed for listeners who want a 12-inch subwoofer in a compact sealed build. Its shallow profile addresses tight installation space, while the rigid cone and composite basket support controlled bass performance.
The 4-ohm nominal impedance and 400-watt RMS rating help you assess whether the subwoofer suits your amplifier and system plan. Its stated frequency range extends from deep bass through mid-bass notes.
Installation & Compatibility Notes
Allow for the 3.8-inch mounting depth and 11-inch (281mm) cutout diameter when planning the enclosure. The source describes use in a compact sealed enclosure and space-limited automotive installations.
Check that your amplifier is designed for a 4-ohm load and can support the subwoofer’s power rating. Confirm enclosure and vehicle space before installation.
Frequently Asked Questions
What is the PowerBass XL-1240T’s power handling?
It is rated at 400 watts RMS and 800 watts maximum.
What amplifier load should I check for?
The subwoofer has a nominal impedance of 4 ohms. Check that your amplifier supports a 4-ohm load.
How much mounting space does it require?
The mounting depth is 3.8 inches, and the cutout diameter is 11 inches (281mm).
What enclosure type is described for this subwoofer?
The product details describe use in a compact sealed enclosure.
What frequency range is listed?
The stated frequency range is 33 Hz - 450 Hz.
