PowerBass XL-1244D 12" Subwoofer
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 400 W
- Voice-coil options: D4
- Mounting depth: 5.75 in
- Voice-coil diameter: 2 in
- Cone material: Non Pressed Paper
PowerBass XL-1244D 12" Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description

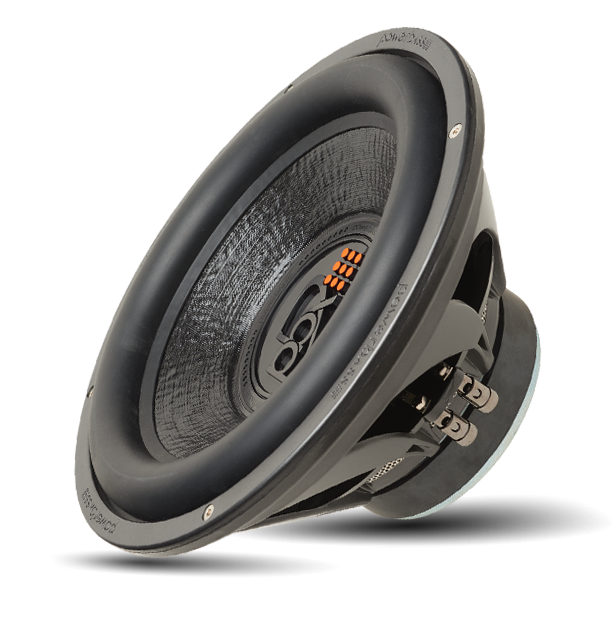

PowerBass XL-1244D 12-inch dual 4-ohm subwoofer
The PowerBass XL-1244D is a 12-inch subwoofer for a properly designed sealed or ported enclosure. Its DDC-coated, non-pressed paper cone is supported by a large-roll Santoprene surround and a composite polycarbonate/glass-fiber basket. A vented 2-inch voice-coil former and perimeter cooling openings form part of the driver’s thermal-management design.
- Rated power handling: 400 watts RMS and 800 watts maximum.
- Two 4-ohm voice coils for compatible series or parallel wiring.
- Published mounting depth of 5.75 inches.
- Chrome push terminals for the amplifier-to-subwoofer connection.
The D suffix identifies the dual-voice-coil model. Connect both coils and verify the completed load against the amplifier’s ratings. Choose enclosure volume and tuning from the instructions for this exact model rather than using the specifications of the single-coil XL-1244.
Recommended Monoblock Amplifiers
Power-matched options for one subwoofer or one complete loaded enclosure. We aim to include same-brand choices when their ratings qualify.
Loading amplifier suggestions…
Suggestions use 75–125% of the subwoofer’s RMS rating at the wiring load shown. Check wiring, enclosure needs, electrical capacity and installation space. Set gain and filters correctly to avoid overpowering the subwoofer. Buying more than one subwoofer changes the match.
