Resilient Sounds Dual 10" Platinum v2 Ported Enclosure
Key features
Empty enclosure; drivers and amplifier not included
- Net volume (total): 3 ft³
- Compatible woofer size: 10 inches
- Woofer mounting capacity: 2
- Port tuning: 32 Hz
- Port area (total): 43.44 in²
- Finish: Carbon gray stain with polyurethane topcoat
Resilient Sounds Dual 10" Platinum v2 Ported Enclosure is backordered and will ship as soon as it is back in stock.
Resilient Sounds Dual 10" Platinum v2 Ported Enclosure is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring deep, controlled bass to a high-power car audio build with the Resilient Sounds Dual 10" Platinum v2 Ported Enclosure. Its 3.0 cubic foot interior is tuned to 32 Hz and designed specifically for the Platinum v2 10" subwoofer.
Rigid Russian Baltic Birch construction, internal bracing, and a clean carbon gray finish make this a purpose-built enclosure for a considered installation. Pre-wired connections simplify hooking up your system.
Key Features & Benefits
- 32 Hz tuning: Supports lower bass frequencies in a vented enclosure.
- 43.44 sq in port area: Provides the specified vent cross-section for airflow at the target tuning.
- 17-ply Baltic Birch: The 1" panels are designed to minimize flex under demanding output.
- Reinforced structure: A 1" front baffle and center baffle brace add rigidity where it matters.

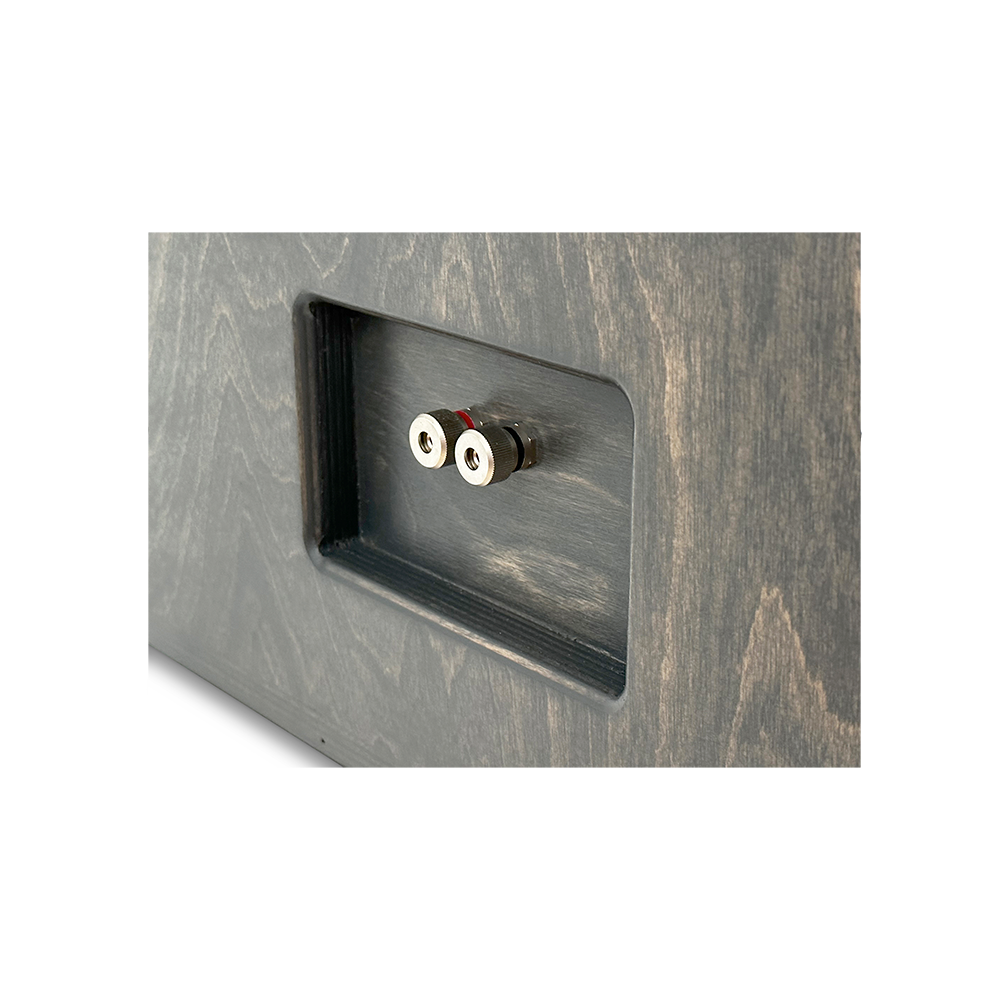

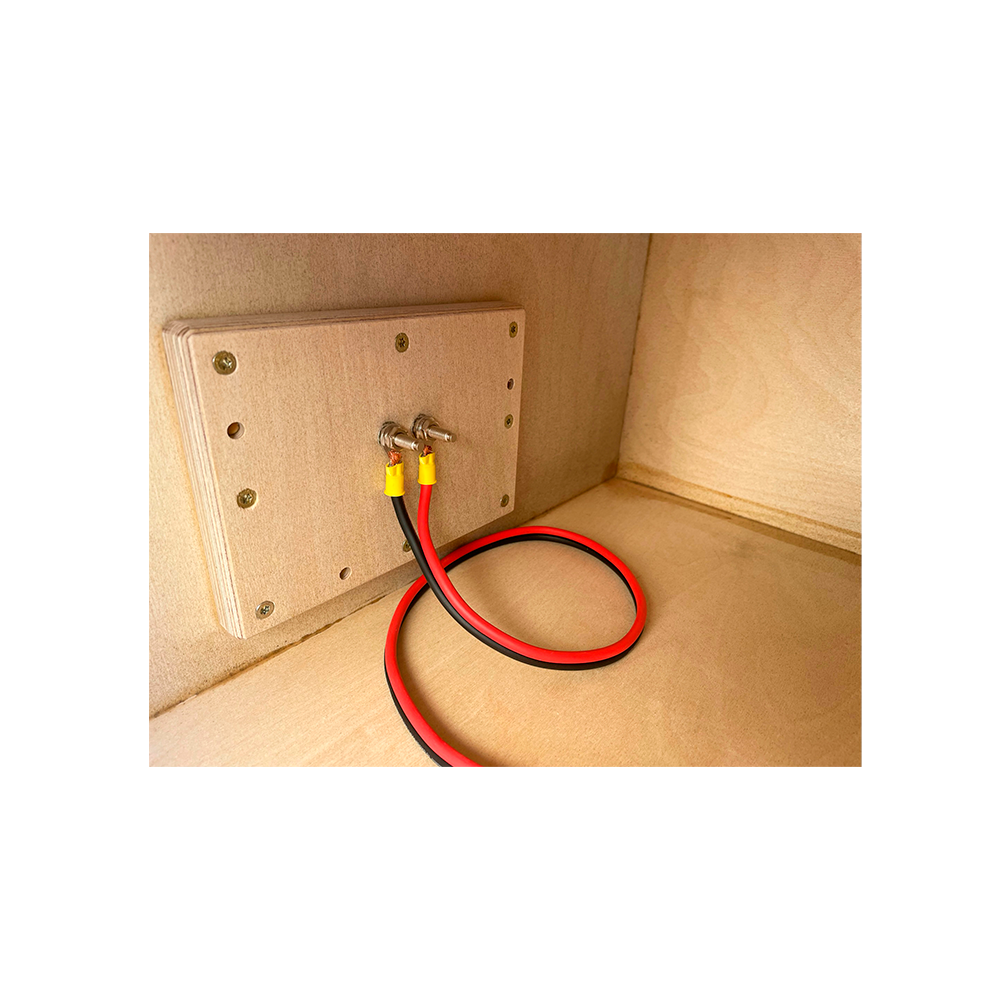

- Ready-to-wire connection: Pre-wired 10ga OFC wiring and a metal binding post provide a direct connection point.
- Finished exterior: Carbon gray stain, polyurethane topcoat, and no visible exterior screw holes create a clean install appearance.
Technical Specifications
| Specification | Details |
|---|---|
| Product | Resilient Sounds Dual Platinum v2 10" Ported Enclosure |
| Net volume | 3.0 cubic feet |
| Tuning | 32 Hz |
| Port area | 43.44 sq in |
| Port size | 12.0" x 3.62" |
| Cutout | 9.438" |
| Construction | 1" (24mm) Russian Baltic Birch, 17 ply |
| Front baffle | 1" (24mm) |
| Center baffle brace | 1" (24mm) |
| Finish | Carbon gray stain with polyurethane topcoat |
| Wiring | Pre-wired 10ga OFC with metal binding post |
| Power rating | High power systems |
| Dimensions | Height 14.0", Width 31.375", Depth 23.0" |
| Exterior design | Zero visible screw holes on the exterior |
| Assembly | Fully glued with Titebond III |
| Origin | Handcrafted in the USA |
| Lead time | Built to order. Ships in 2-3 weeks |
Why Choose This Product?
This enclosure brings together a specified internal volume, port geometry, and 32 Hz tuning for the Platinum v2 10" subwoofer. Its 1" Baltic Birch panels, front baffle, and center brace are designed to limit enclosure flex in a high-power system.
The fully glued construction and Titebond III assembly support airtight integrity. With its stain, polyurethane topcoat, and concealed exterior screw holes, the enclosure also keeps the finished installation looking neat.
Installation & Compatibility Notes
This enclosure is designed for the Resilient Sounds Platinum v2 10" subwoofer. Check that the subwoofer’s required cutout matches the listed 9.438" cutout, and measure the installation space against the enclosure’s height, width, and depth.
It is pre-wired with 10ga OFC wiring and a metal binding post. The enclosure is built to order and ships in 2-3 weeks.
Frequently Asked Questions
Which subwoofer is this enclosure designed for?
It is engineered specifically for the Resilient Sounds Platinum v2 10" subwoofer.
What are the enclosure’s tuning and net volume?
It has a net volume of 3.0 cubic feet and is tuned to 32 Hz.
What space should I allow for installation?
The enclosure measures 14.0" high, 31.375" wide, and 23.0" deep. Check those dimensions against your available trunk or cargo space.
What wiring connection does it have?
It comes pre-wired with 10ga OFC wiring and a metal binding post.
How long is the build lead time?
This enclosure is built to order and ships in 2-3 weeks.
