Resilient Sounds Dual 12" Gold v2 Ported Enclosure
Key features
Empty enclosure; drivers and amplifier not included
- Net volume (total): 4 ft³
- Compatible woofer size: 12 inches
- Woofer mounting capacity: 2
- Port tuning: 33 Hz
- Port area (total): 57.38 in²
- Finish: Carbon gray stain with polyurethane topcoat
Resilient Sounds Dual 12" Gold v2 Ported Enclosure is backordered and will ship as soon as it is back in stock.
Resilient Sounds Dual 12" Gold v2 Ported Enclosure is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

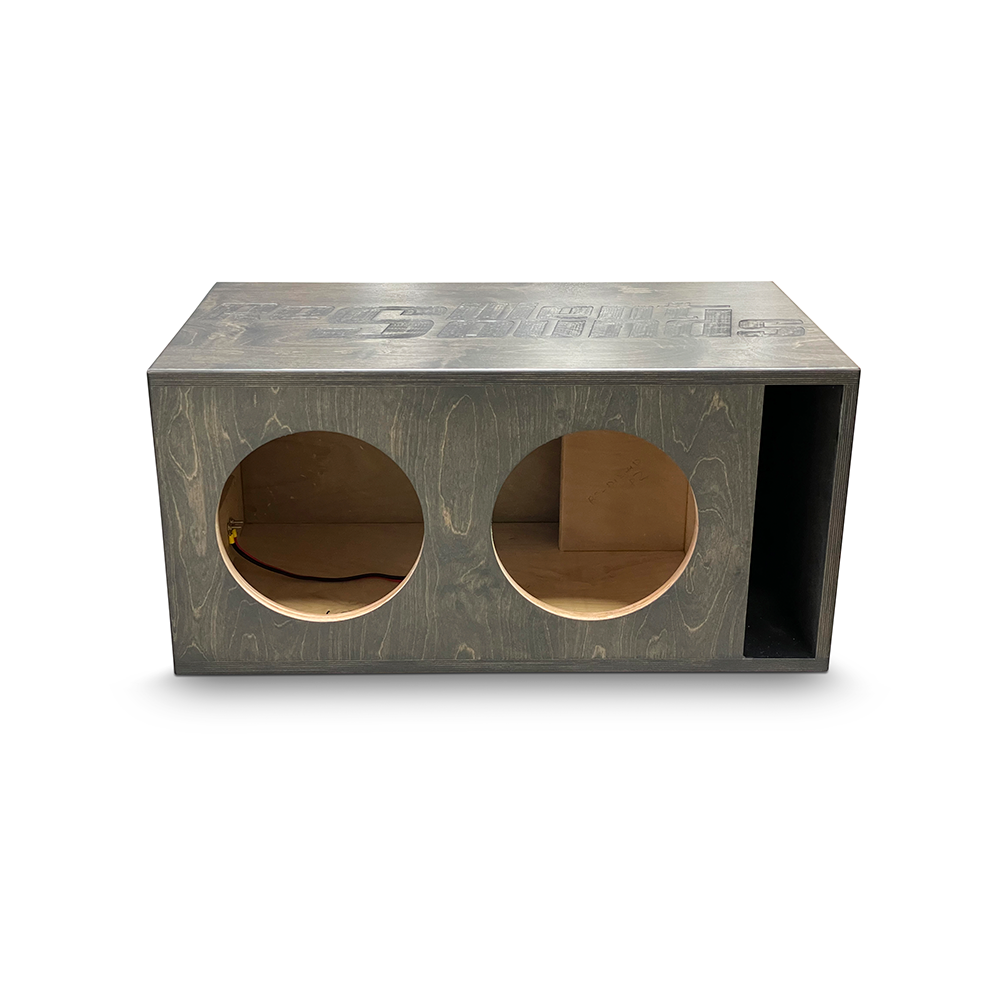

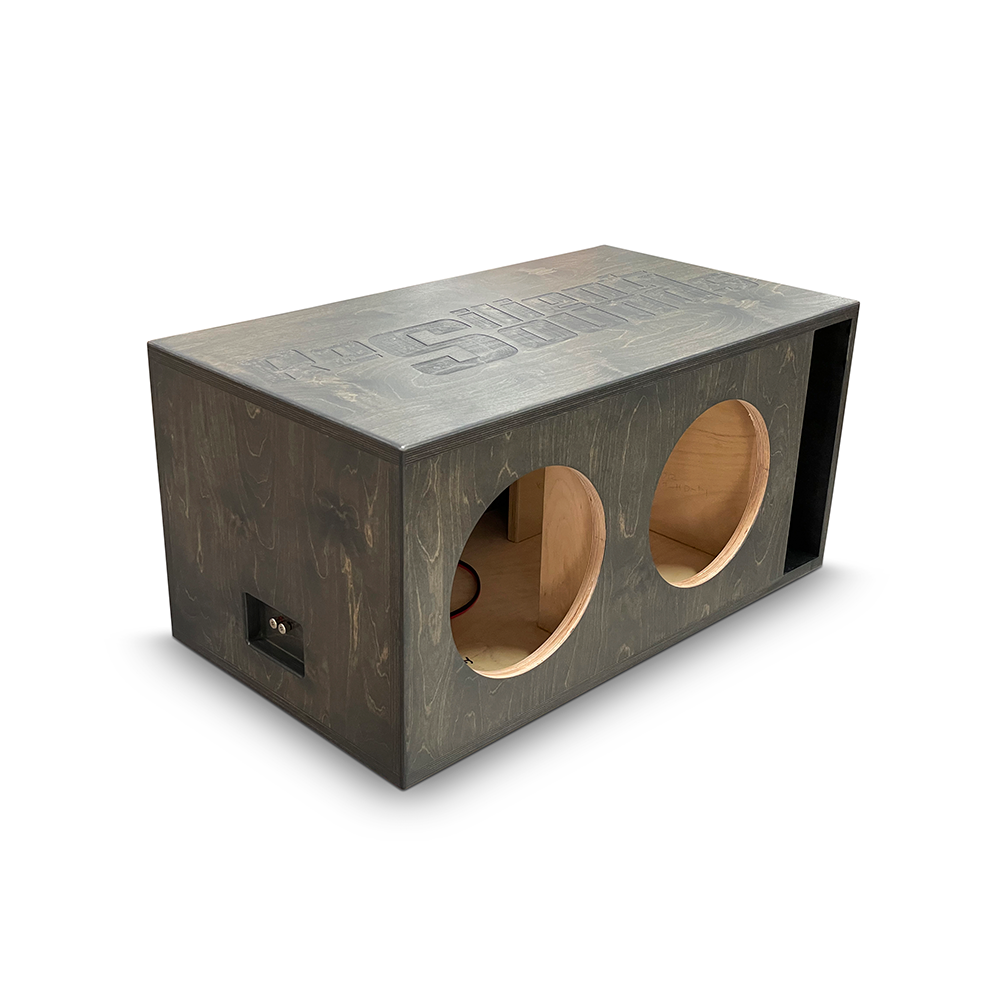

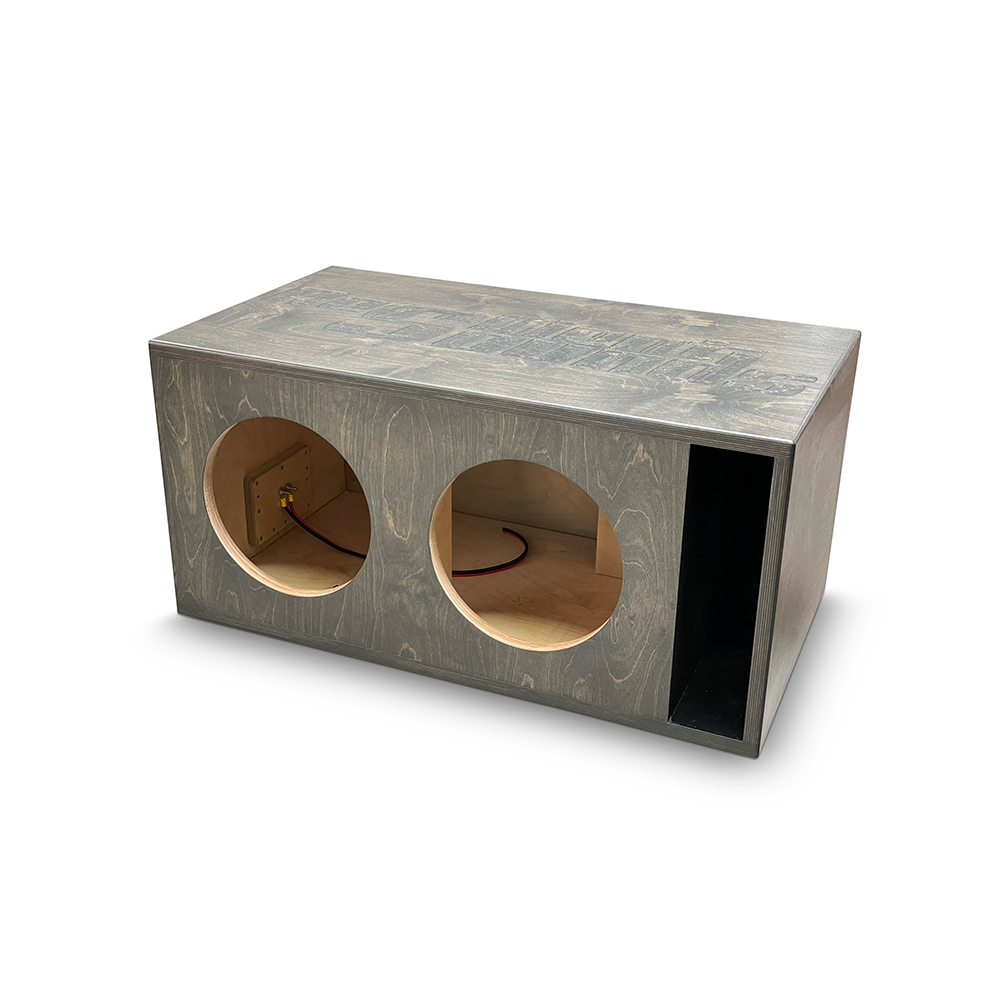

Build a dual-subwoofer setup around deep, controlled bass with the Resilient Sounds Dual 12" Gold v2 Ported Enclosure. Designed for two Resilient Sounds Gold v2 12" subs, this 4.0 cubic-foot enclosure is tuned to 33 Hz and handcrafted in the USA.
Key Features & Benefits
- 33 Hz tuning: Targets strong sub-bass extension while maintaining control at high output levels.
- Rigid construction: 13-ply Russian Baltic Birch walls and a 17-ply front baffle help reduce panel flex.
- Braced design: A center baffle brace helps maintain enclosure integrity during high-output signals.

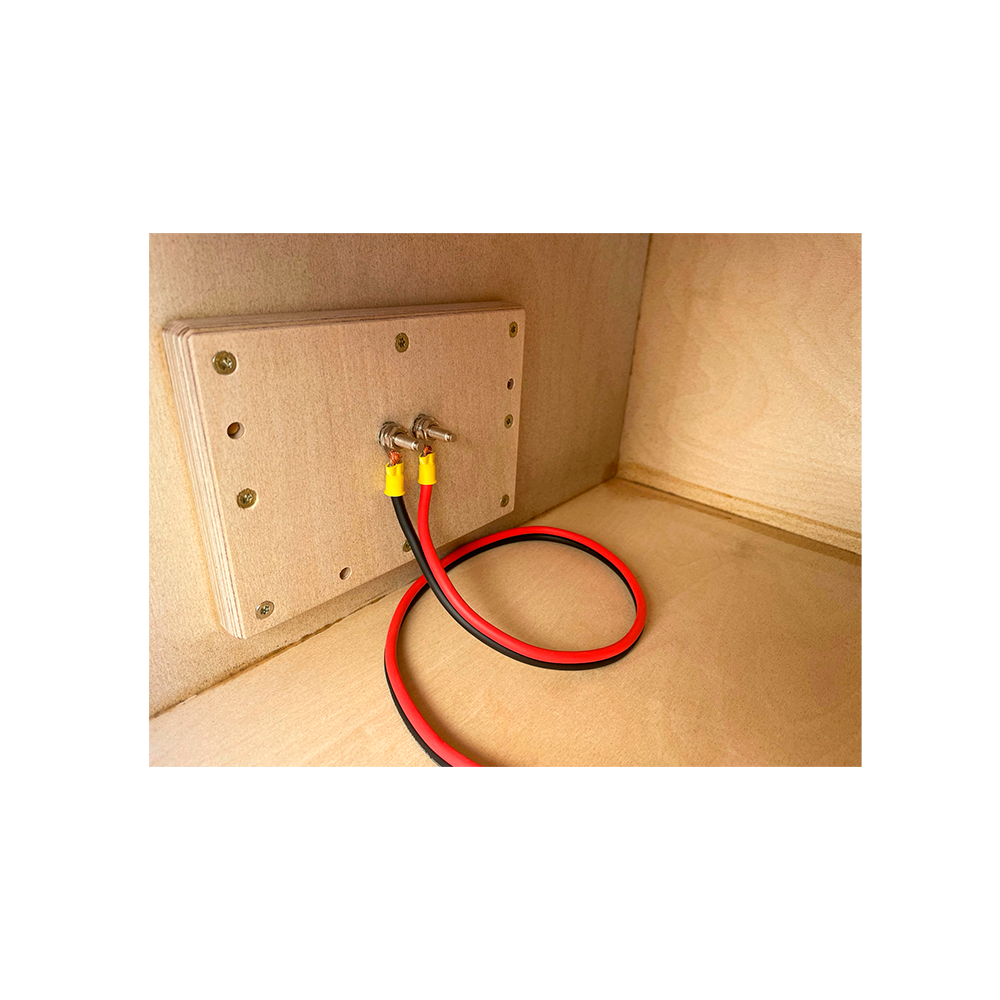

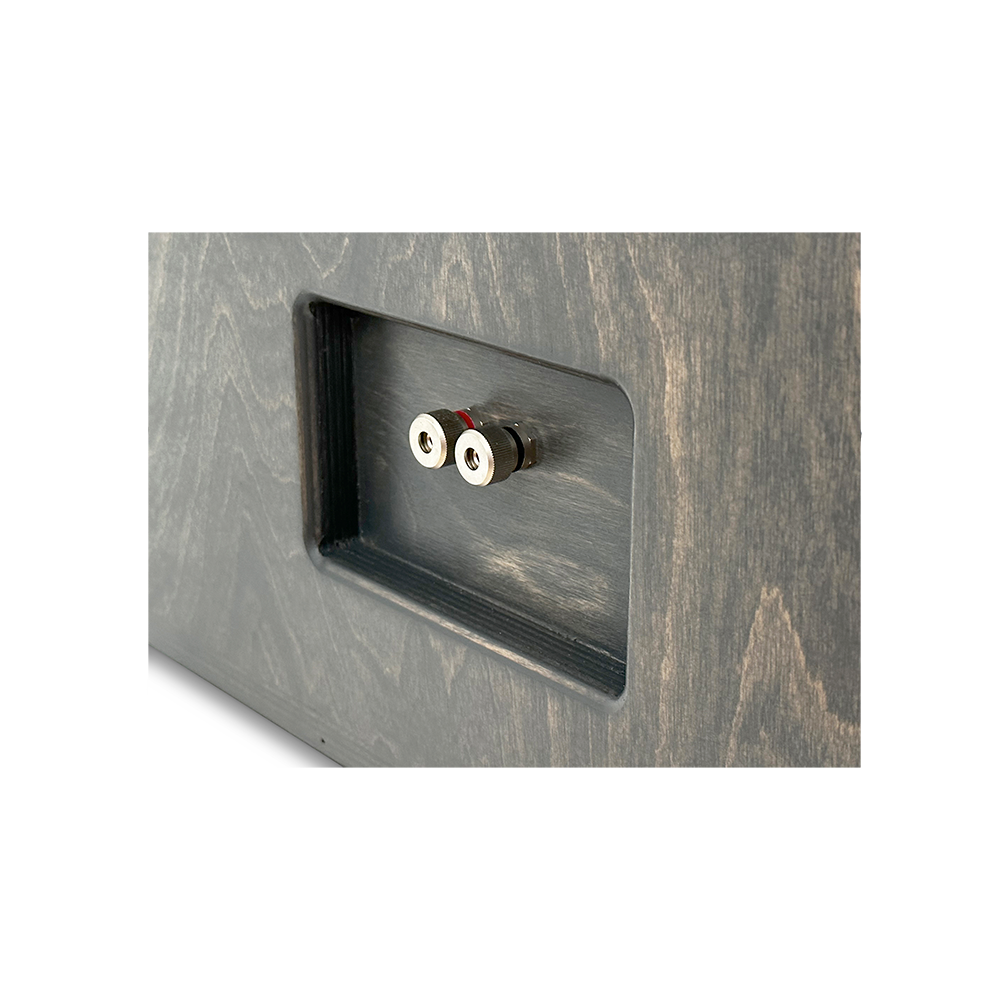

- Pre-wired connection: 10ga OFC wiring and a metal binding post simplify the subwoofer connection.
- Finished exterior: Carbon gray stain with a polyurethane topcoat gives the enclosure a show-quality finish.
- Clean assembly: Fully glued with Titebond III and no visible exterior screw holes.
Technical Specifications
| Specification | Value |
|---|---|
| Designed for | Two Resilient Sounds Gold v2 12" subs |
| Net Volume | 4.0 cubic feet |
| Tuning | 33 Hz |
| Port Area | 57.38 sq in |
| Port Size | 13.501" x 4.25" |
| Cutout | 11.175" |
| Construction | 3/4" (18mm) Russian Baltic Birch; 13-ply walls |
| Baffle | Solid 1" (24mm) front baffle; 17-ply construction |
| Bracing | 3/4" (18mm) center baffle brace |
| Finish | Carbon gray stain with polyurethane topcoat |
| Wiring | Pre-wired 10ga OFC with metal binding post |
| Power Rating | Up to 3500W RMS |
| Dimensions | Height 15.0", Width 33.25", Depth 23.0" |
| Construction details | Handcrafted in the USA; fully glued with Titebond III; zero visible exterior screw holes |
| Order details | Built to order; ships in 2-3 weeks |
Why Choose This Product?
This enclosure pairs a defined internal volume and port design with construction details made for rigidity. The Baltic Birch walls, solid front baffle, and center brace are intended to help limit panel flex as the system plays at high output.
Its carbon gray finish and clean exterior keep the enclosure’s appearance considered, while the pre-wired connection gives you a clear starting point for integrating the two subwoofers.
Installation & Compatibility Notes
Confirm that your vehicle’s cargo area can accommodate the external dimensions: 15.0" high, 33.25" wide, and 23.0" deep. The enclosure is designed for two Resilient Sounds Gold v2 12" subs and has an 11.175" cutout.
Connect the subwoofers to the pre-wired 10ga OFC wiring and metal binding post. The enclosure is rated up to 3500W RMS. Built-to-order units ship in 2-3 weeks.
Frequently Asked Questions
Which subwoofers is this enclosure designed for?
It is designed for two Resilient Sounds Gold v2 12" subs.
What does the 33 Hz tuning indicate?
The enclosure is tuned to 33 Hz to target strong sub-bass extension while maintaining control at high output levels.
What are the enclosure’s external dimensions?
It measures 15.0" high, 33.25" wide, and 23.0" deep. Compare these measurements with the available space in your vehicle.
How does the enclosure connect to the subwoofers?
It comes pre-wired with 10ga OFC wiring and a metal binding post. Wire the subwoofers to the enclosure’s wiring.
What is the power rating?
The enclosure is rated up to 3500W RMS.
