Resilient Sounds Dual 12" Platinum v2 Ported Enclosure
Key features
Empty enclosure; drivers and amplifier not included
- Net volume (total): 4.5 ft³
- Compatible woofer size: 12 inches
- Woofer mounting capacity: 2
- Port tuning: 32 Hz
- Port area (total): 65 in²
- Finish: Carbon gray stain with polyurethane topcoat
Resilient Sounds Dual 12" Platinum v2 Ported Enclosure is backordered and will ship as soon as it is back in stock.
Resilient Sounds Dual 12" Platinum v2 Ported Enclosure is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

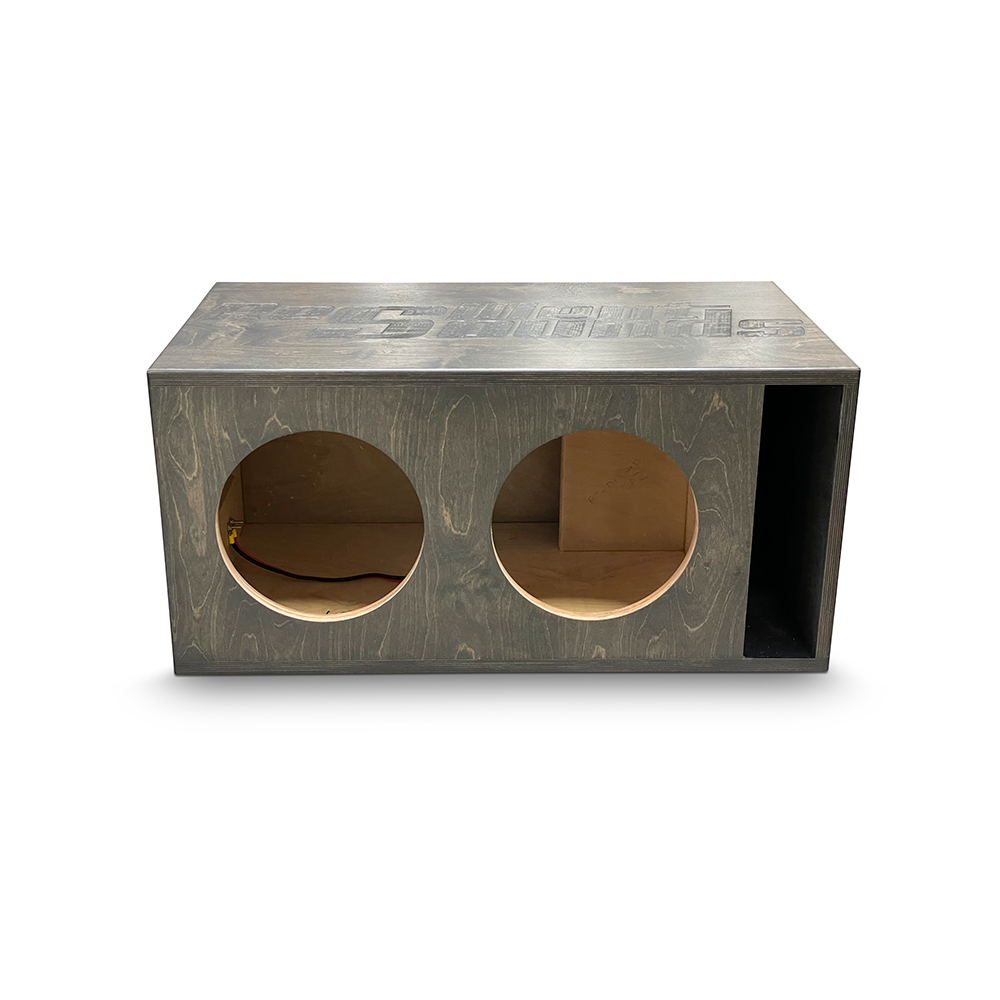

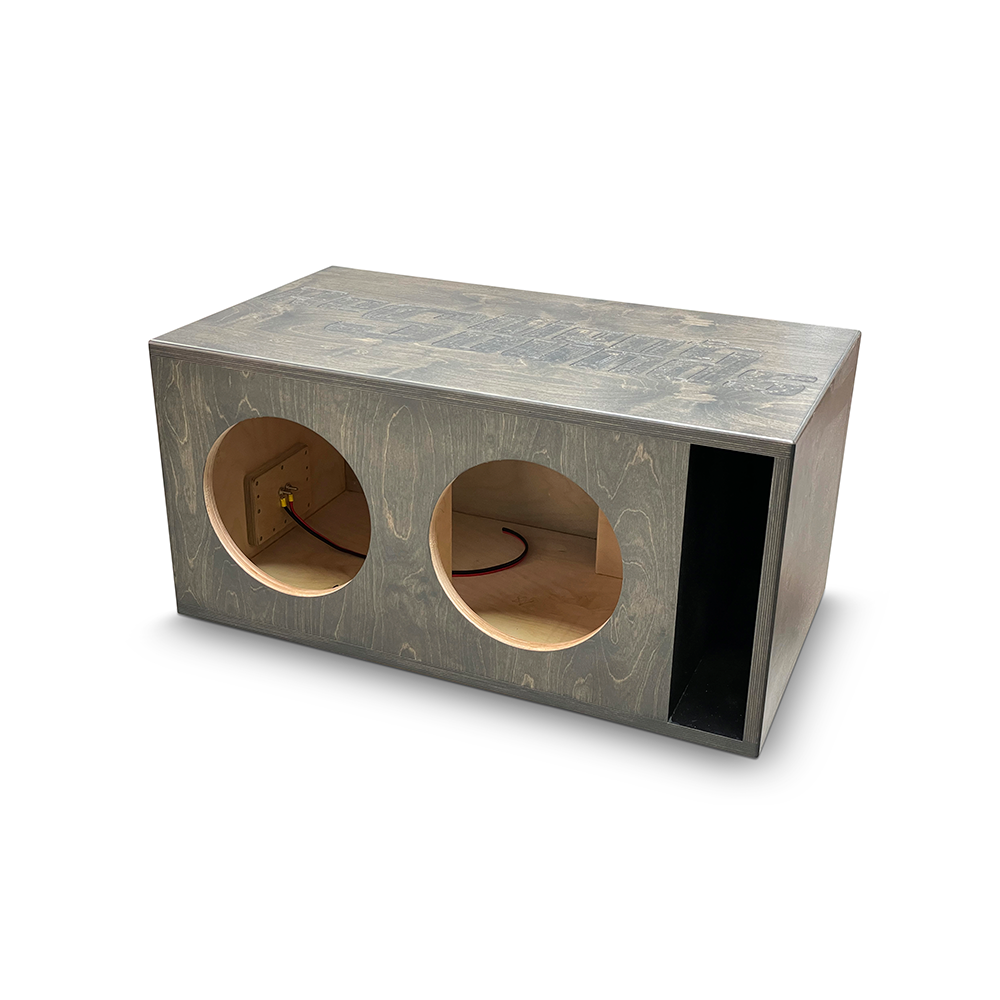

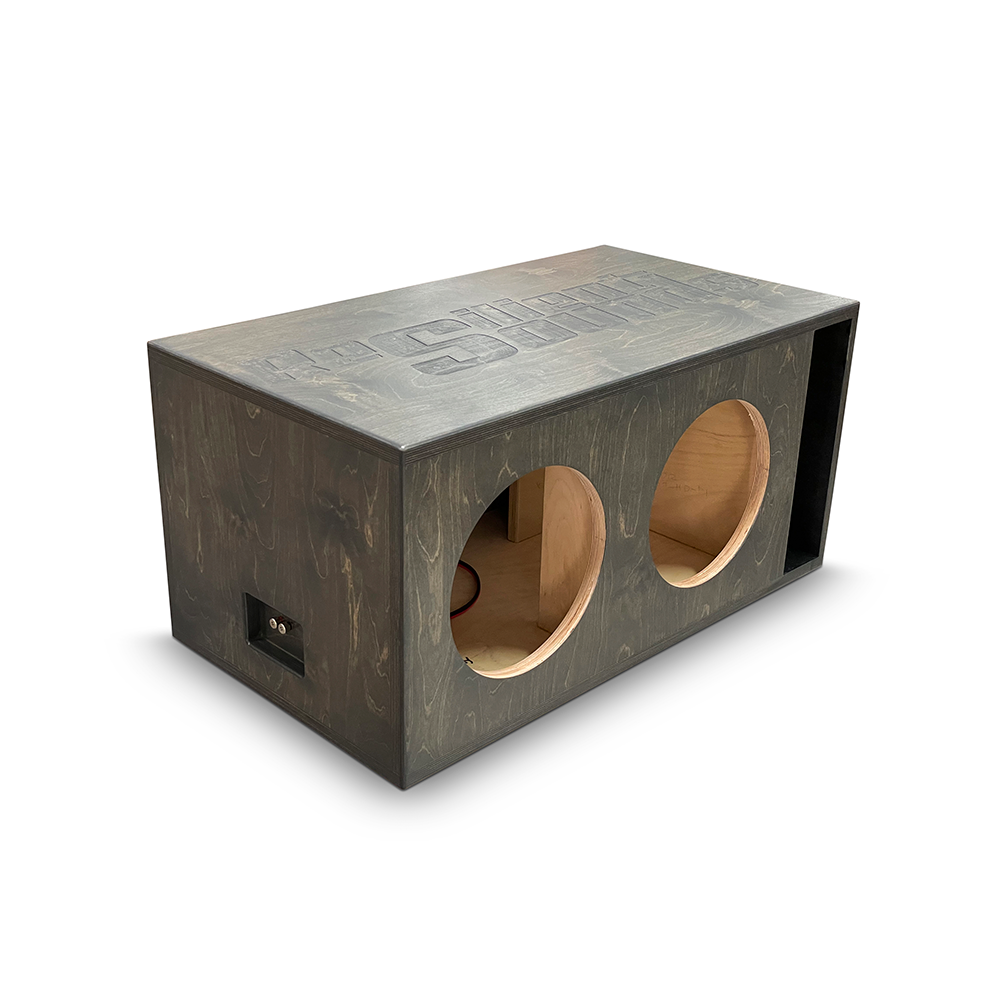

The Resilient Sounds Dual 12" Platinum v2 Ported Enclosure gives a Platinum v2 12" subwoofer setup a dedicated, low-frequency enclosure. Its 4.5 cubic feet of net airspace and 32 Hz tuning are designed for deep bass with controlled response.
Key Features & Benefits
- Rigid construction: Baltic Birch panels, a thick front baffle, and center bracing help resist flex during deep bass transients.
- Ported design: The port area and geometry support airflow for the enclosure’s tuning.

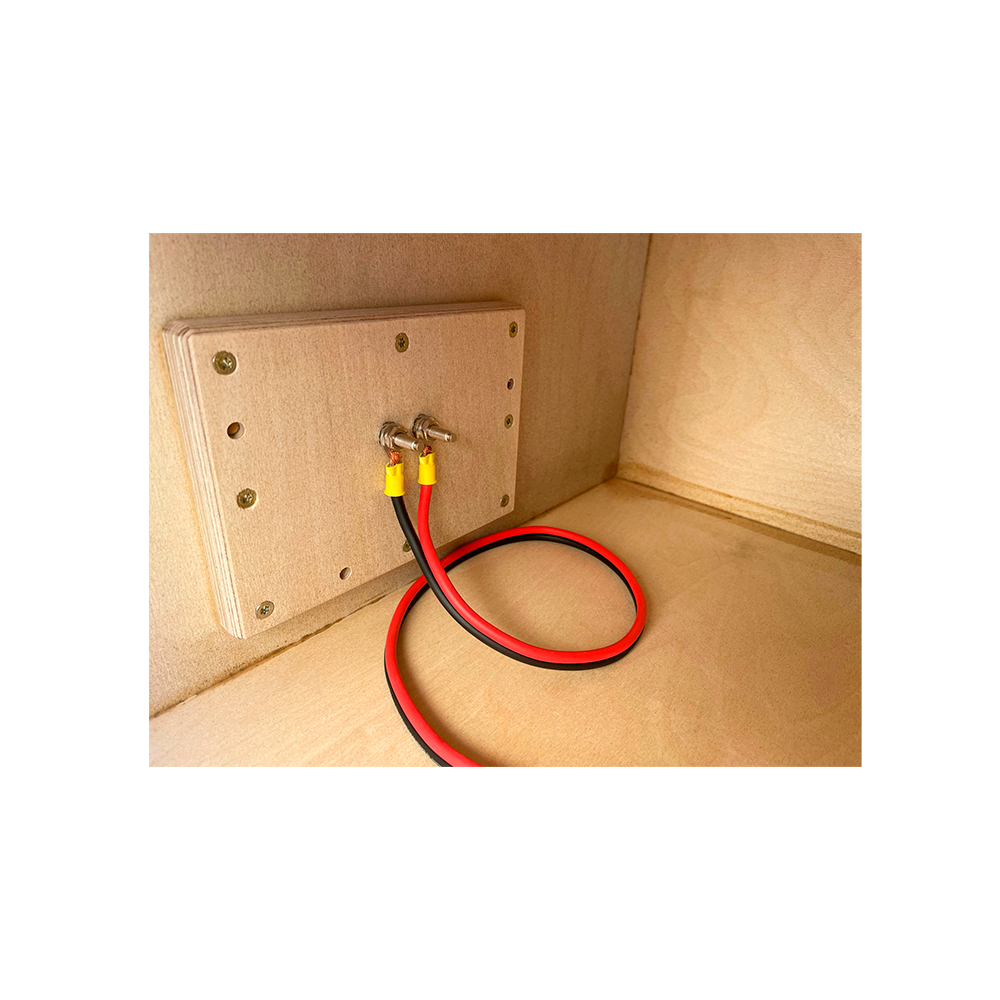

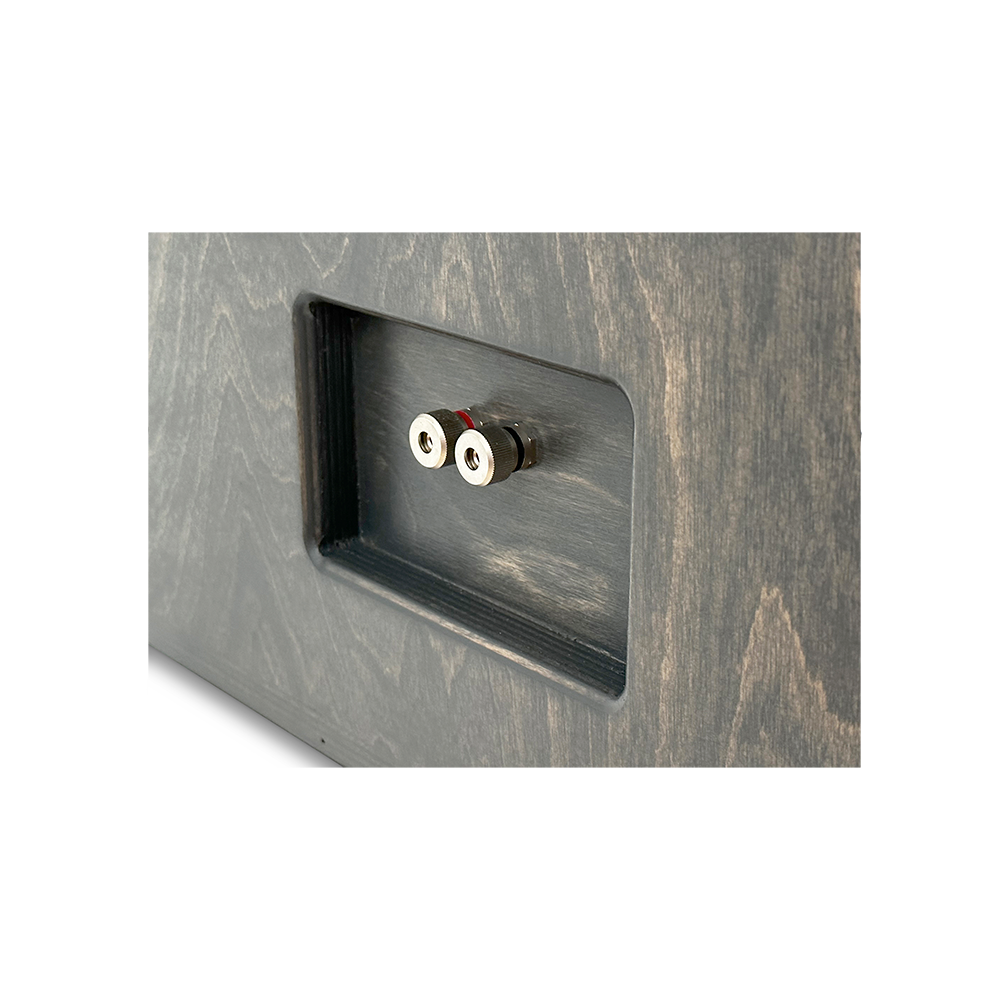

- Pre-wired connection: 10ga OFC wiring and a metal binding post simplify connecting your system.
- Finished appearance: Carbon gray stain, a polyurethane topcoat, and no visible exterior screw holes create a clean look.
- Handcrafted build: Made by hand in the USA and fully bonded with Titebond III.
Technical Specifications
| Product type | Dual 12" ported enclosure |
|---|---|
| Designed for | Resilient Sounds Platinum v2 12" sub |
| Net volume | 4.5 cubic feet |
| Tuning frequency | 32 Hz |
| Port area | 65.0 sq in |
| Port size | 16.0" x 4.063" |
| Cutout | 11.175" diameter |
| Construction | 1" (24mm) Russian Baltic Birch, 17 plies |
| Front baffle | 1" (24mm) thick |
| Center brace | 1" (24mm) center baffle brace |
| Finish | Carbon gray stain with polyurethane topcoat |
| Wiring | Pre-wired 10ga OFC with metal binding post |
| Dimensions | Height 18.0", Width 37.0", Depth 21.0" |
| Build location | Handcrafted in the USA |
| Glue bond | Titebond III |
Why Choose This Product?
This enclosure pairs a defined ported alignment with reinforced construction for a Platinum v2 12" subwoofer build. Its bracing and rigid panels are intended to limit enclosure flex under high power, while the finished exterior suits an installation where appearance matters.
Installation & Compatibility Notes
Confirm that your subwoofer, available mounting space, and installation plan suit the 11.175" diameter cutout and the enclosure’s 18.0" x 37.0" x 21.0" dimensions. The enclosure is intended for a trunk or rear cargo area. Wiring is pre-installed and terminates at a metal binding post.
Frequently Asked Questions
What subwoofer is this enclosure designed for?
It is designed for the Resilient Sounds Platinum v2 12" sub.
What is the enclosure’s tuning frequency?
The ported enclosure is tuned to 32 Hz.
How much space should I allow for installation?
Allow for the enclosure’s 18.0" height, 37.0" width, and 21.0" depth, plus the space needed for wiring.
What is the stated build lead time?
The enclosure is built to order and ships in 2–3 weeks.
