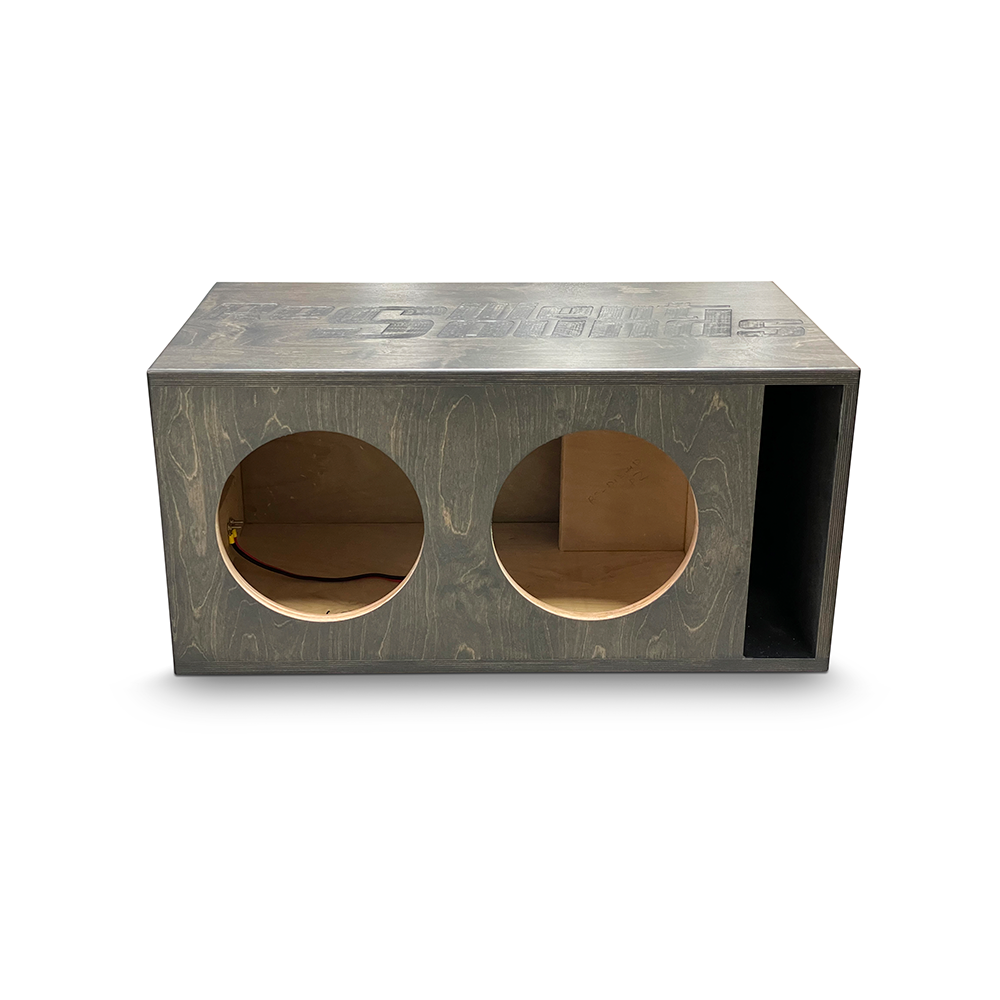

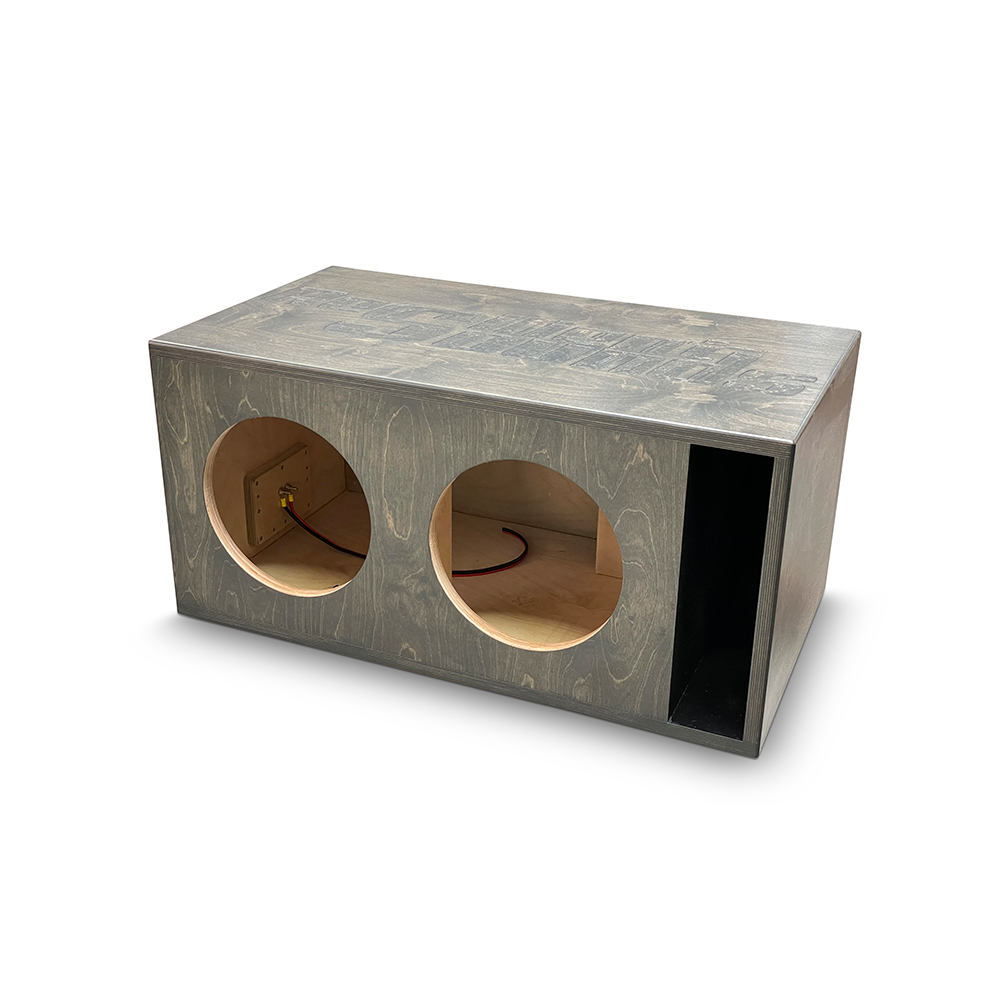

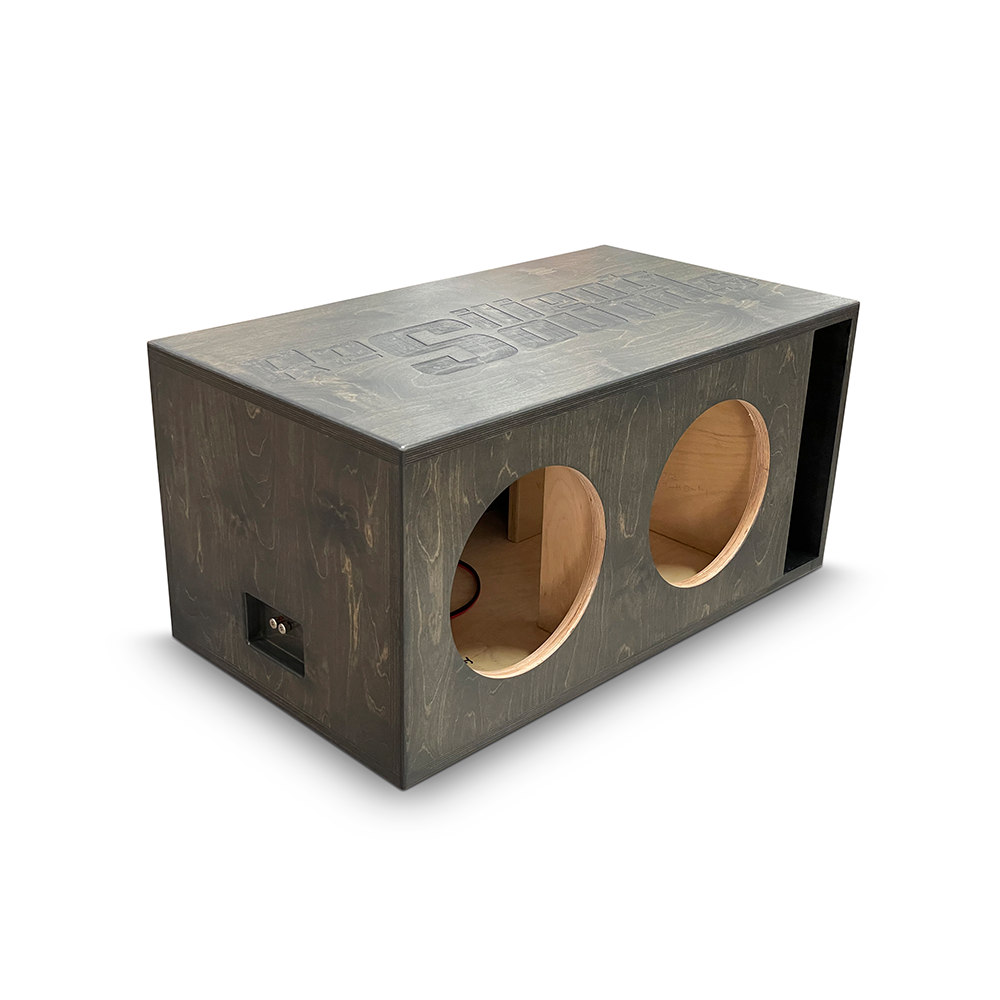

Resilient Sounds Dual 8" Gold Ported Enclosure
Key features
Empty enclosure; drivers and amplifier not included
- Net volume (total): 2 ft³
- Compatible woofer size: 8 inches
- Woofer mounting capacity: 2
- Port tuning: 34 Hz
- Port area (total): 28.75 in²
- Finish: Carbon gray stain with polyurethane topcoat
Resilient Sounds Dual 8" Gold Ported Enclosure is backordered and will ship as soon as it is back in stock.
Resilient Sounds Dual 8" Gold Ported Enclosure is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring deep, controlled bass to your vehicle with the Resilient Sounds Dual 8" Gold Ported Enclosure. It is built for the Resilient Sounds Gold 8" subwoofer, with a 2.0 cubic foot chamber tuned to 34 Hz.
The 3/4" Russian Baltic Birch construction, internal brace, and clean exterior give your bass system a rigid foundation and a refined look in a trunk or cargo area.
Key Features & Benefits
- 34 Hz tuning: Supports deep bass extension with a controlled response.
- 28.75 sq in port area: Provides substantial airflow through the port.
- 13-ply Baltic Birch: Rigid panels help limit enclosure flex.

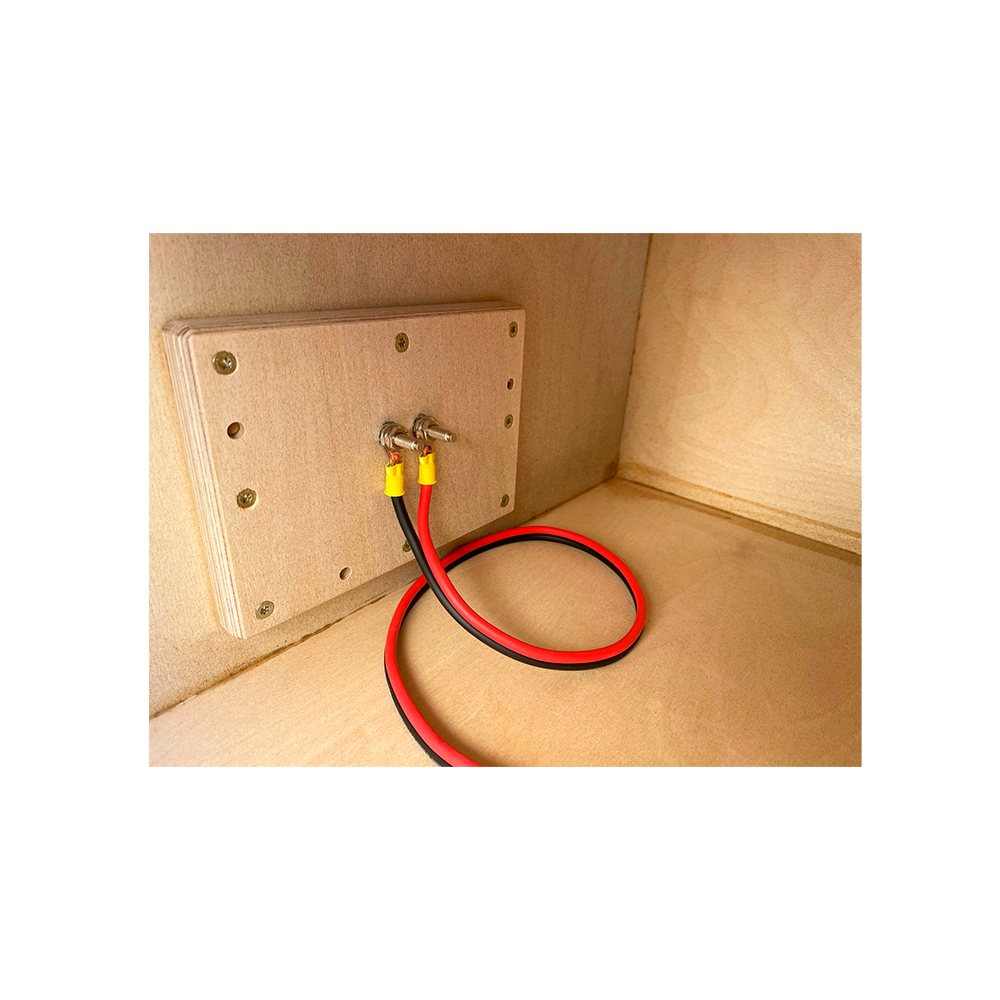

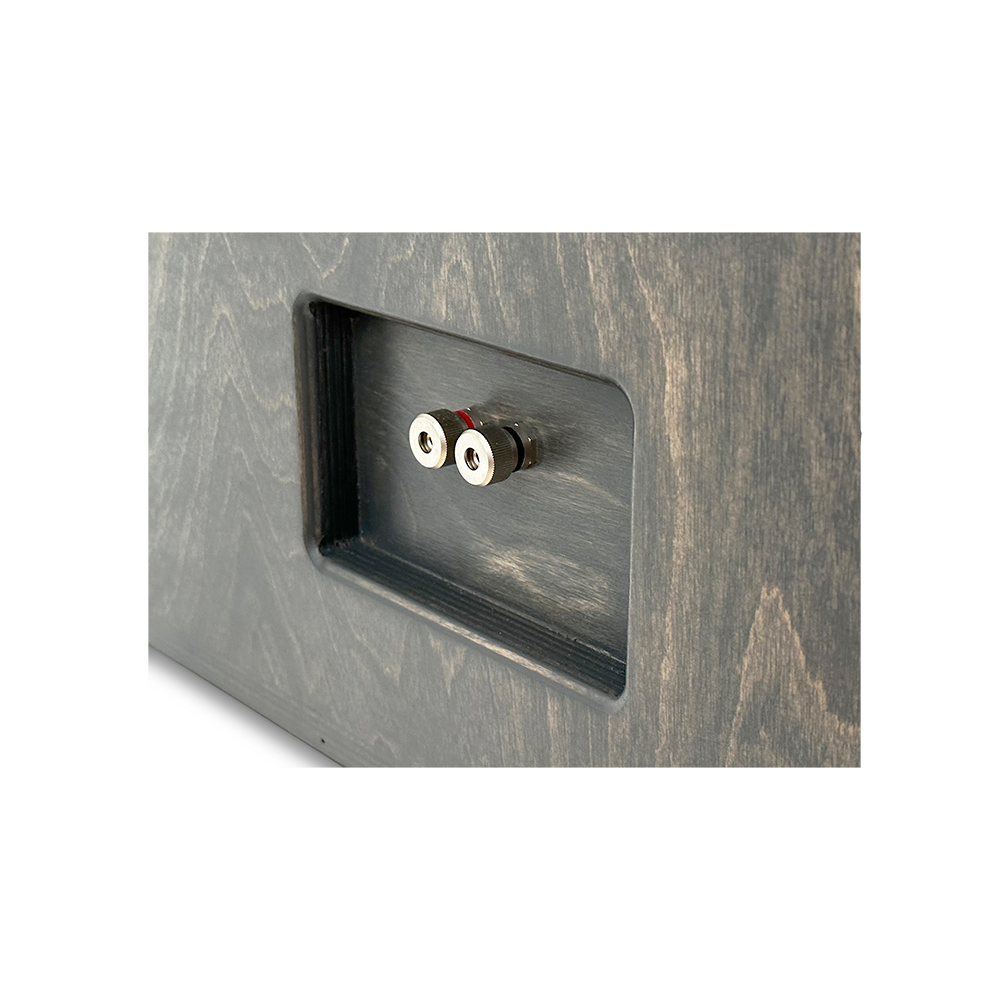

- Pre-wired connection: 10ga OFC wiring and a metal binding post simplify connection.
- Clean exterior: Hand-built construction has no visible exterior screw holes.
Technical Specifications
| Configuration | Dual 8" |
|---|---|
| Designed for | Resilient Sounds Gold 8" subwoofer |
| Net volume | 2.0 cubic feet |
| Tuning | 34 Hz |
| Port area | 28.75 sq in |
| Port size | 12.5" x 2.3" |
| Cutout | 7.3" |
| Construction | 3/4" (18mm) Russian Baltic Birch - 13 ply |
| Front baffle | 3/4" |
| Center baffle brace | 3/4" |
| Finish | Carbon gray stain with polyurethane topcoat |
| Wiring | Pre-wired 10ga OFC with metal binding post |
| Power rating | Up to 2000W RMS |
| Dimensions | Height 14.0", Width 27.0", Depth 17.063" |
| Assembly | Handcrafted in the USA; fully glued with Titebond III |
| Lead time | Built to order. Ships in 2-3 weeks |
Why Choose This Product?
This enclosure combines a defined 34 Hz tuning with a 2.0 cubic foot chamber for a bass setup centered on the Gold 8" subwoofer. Its 3/4" panels and center brace add rigidity, while fully glued Titebond III joints support airtight construction.
The carbon gray stain and polyurethane topcoat give the enclosure a finished appearance. With no visible exterior screw holes, it keeps the installation looking clean when the enclosure is on display.
Installation & Compatibility Notes
Check that the 14.0" height, 27.0" width, and 17.063" depth fit your available vehicle space. Confirm the 7.3" cutout suits the subwoofer before installation.
The enclosure is designed for the Resilient Sounds Gold 8" subwoofer and is rated up to 2000W RMS. Allow for the stated 2-3 week build and shipping lead time.
Frequently Asked Questions
Which subwoofer is this enclosure designed for?
It is designed for the Resilient Sounds Gold 8" subwoofer.
What does the 34 Hz tuning mean?
The enclosure is tuned to 34 Hz, a specification that helps describe its low-frequency response.
What space should I allow for the enclosure?
Its external dimensions are 14.0" high, 27.0" wide, and 17.063" deep. Check your available space before purchase.
What is the enclosure’s power rating?
It is rated for up to 2000W RMS.
How does it connect?
It has pre-wired 10ga OFC wiring and a metal binding post.
