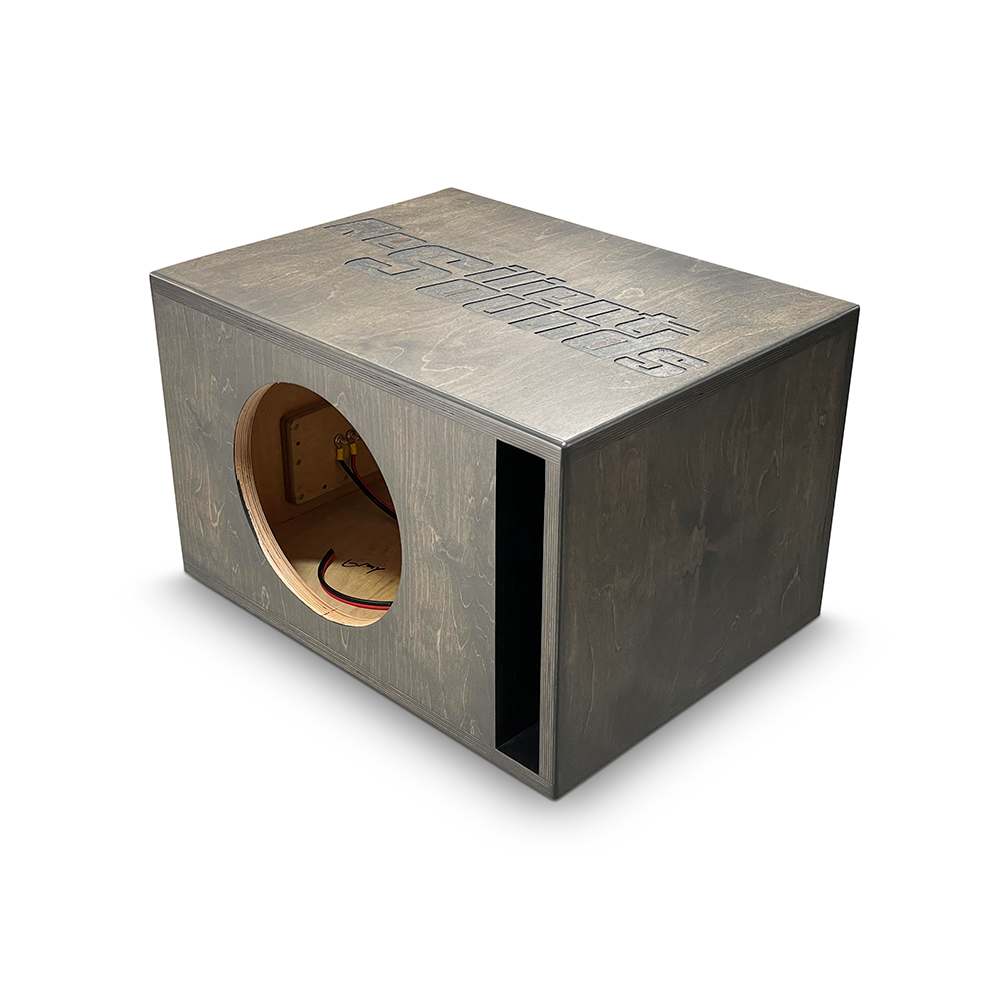

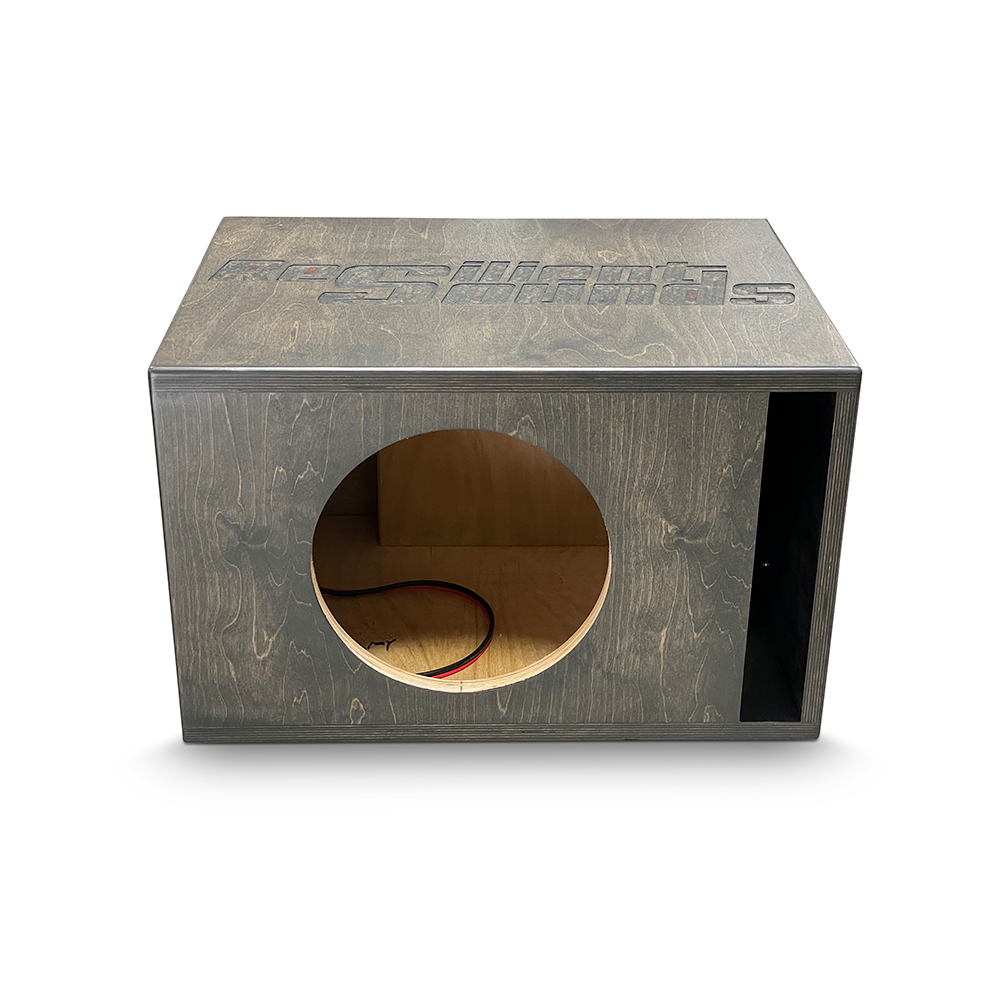

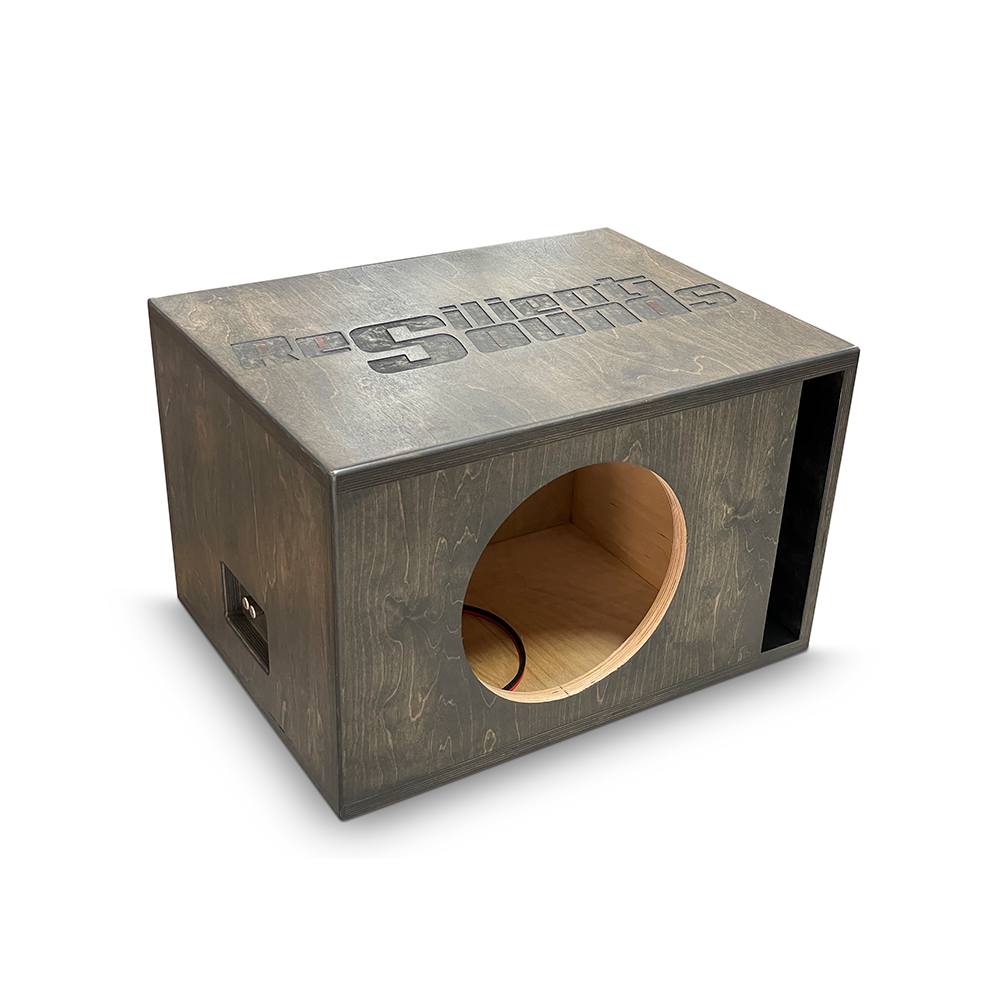

Resilient Sounds Single 10" Gold v2 Ported Enclosure
Key features
Empty enclosure; drivers and amplifier not included
- Net volume (total): 1.25 ft³
- Compatible woofer size: 10 inches
- Woofer mounting capacity: 1
- Port tuning: 34 Hz
- Port area (total): 18.05 in²
- Finish: Carbon gray stain with polyurethane topcoat
Resilient Sounds Single 10" Gold v2 Ported Enclosure is backordered and will ship as soon as it is back in stock.
Resilient Sounds Single 10" Gold v2 Ported Enclosure is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get a dedicated ported enclosure for the Resilient Sounds Gold v2 10-inch subwoofer, with a 1.25 cubic-foot net volume and 34 Hz tuning. Its port dimensions and internal airspace are designed specifically for this sub, supporting deep bass while retaining transient response.
Hand-built in the USA from Russian Baltic Birch, the enclosure pairs a rigid cabinet with a solid front baffle. A carbon gray stain and polyurethane topcoat give it a finished look for your vehicle’s audio setup.
Key Features & Benefits
- Gold v2-specific design: The enclosure’s volume and tuning are tailored to the Resilient Sounds Gold v2 10-inch subwoofer.
- 34 Hz tuning: The low tuning is intended to emphasize bass extension in a typical vehicle cabin.
- Rigid construction: 3/4-inch, 13-ply Russian Baltic Birch walls and a 1-inch, 17-ply baffle help limit panel flex and resonance.

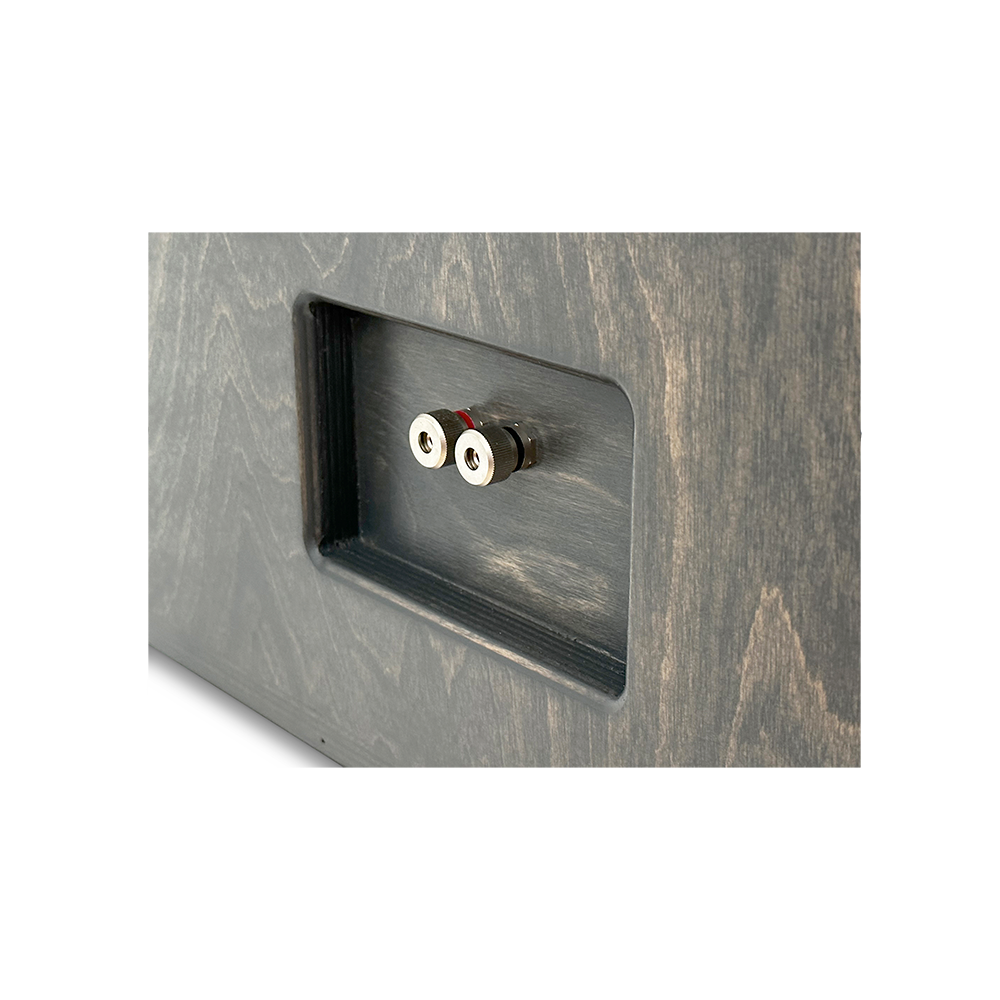

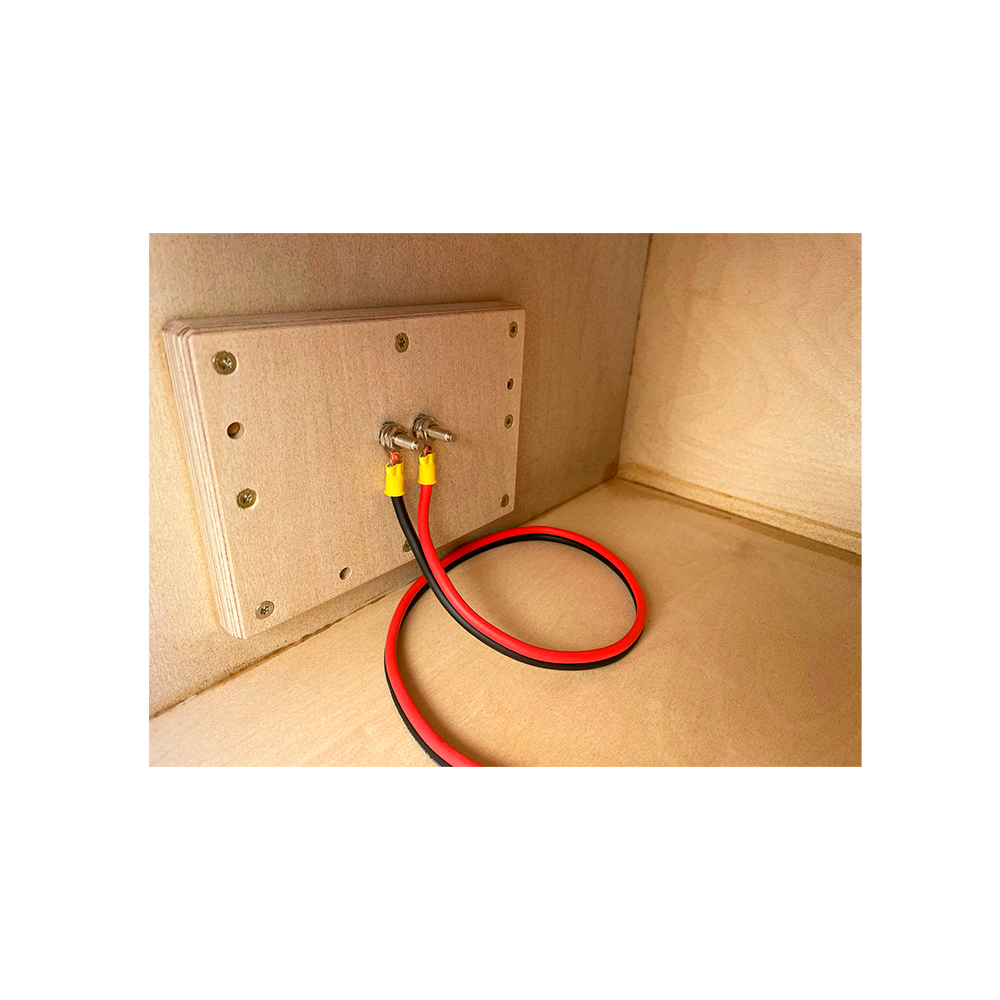

- Pre-wired connection: 10-gauge OFC wiring and a metal binding post simplify connecting the enclosure.
- Clean exterior: No visible exterior screw holes and a polyurethane topcoat create a neat, finished appearance.
Technical Specifications
| Specification | Details |
|---|---|
| Product | Single 10" Gold v2 ported enclosure |
| Net volume | 1.25 cubic feet |
| Tuning | 34 Hz |
| Port area | 18.05 sq in |
| Port size | 11.497" x 1.57" |
| Cutout | 9.438" |
| Cabinet construction | 3/4" (18 mm) Russian Baltic Birch; 13-ply walls |
| Front baffle | Solid 1" (24 mm); 17-ply |
| Finish | Carbon gray stain with polyurethane topcoat |
| Wiring | Pre-wired 10ga OFC with metal binding post |
| Power rating | Up to 1750W RMS |
| Dimensions | Height 13.0", Width 20.375", Depth 16.0" |
| Construction details | Handcrafted in the USA; Titebond III glue; zero exterior screw holes |
| Lead time | Built to order; ships in 2–3 weeks |
Why Choose This Product?
This enclosure brings together a sub-specific airspace, 34 Hz tuning, and an 18.05-square-inch port for a dedicated Gold v2 10-inch setup. The ported design emphasizes low-frequency extension, while the rigid birch cabinet and thick baffle help control panel movement.
Its compact, floor-friendly dimensions and pre-wired binding post make it easier to plan the enclosure’s placement and connection within your audio system.
Installation & Compatibility Notes
This enclosure is designed for the Resilient Sounds Gold v2 10-inch subwoofer. Check the 9.438-inch cutout and the enclosure’s 13.0" x 20.375" x 16.0" dimensions against your driver and available vehicle space before purchase.
The enclosure is rated up to 1750W RMS when paired with the Gold v2 10-inch subwoofer and a matching amplifier. Confirm that your system components are appropriate for your intended setup.
Frequently Asked Questions
Which subwoofer is this enclosure designed for?
It is designed specifically for the Resilient Sounds Gold v2 10-inch subwoofer.
What are the enclosure’s volume and tuning?
It has a net volume of 1.25 cubic feet and is tuned to 34 Hz.
What is the cutout diameter?
The listed cutout is 9.438". Check it against your subwoofer’s mounting requirements.
What power rating does the enclosure support?
Its rating is up to 1750W RMS when paired with the Gold v2 10-inch subwoofer and a matching amplifier.
How does the enclosure connect?
It comes pre-wired with 10ga OFC wiring and a metal binding post.
How long is the build lead time?
The enclosure is built to order and ships in 2–3 weeks.
