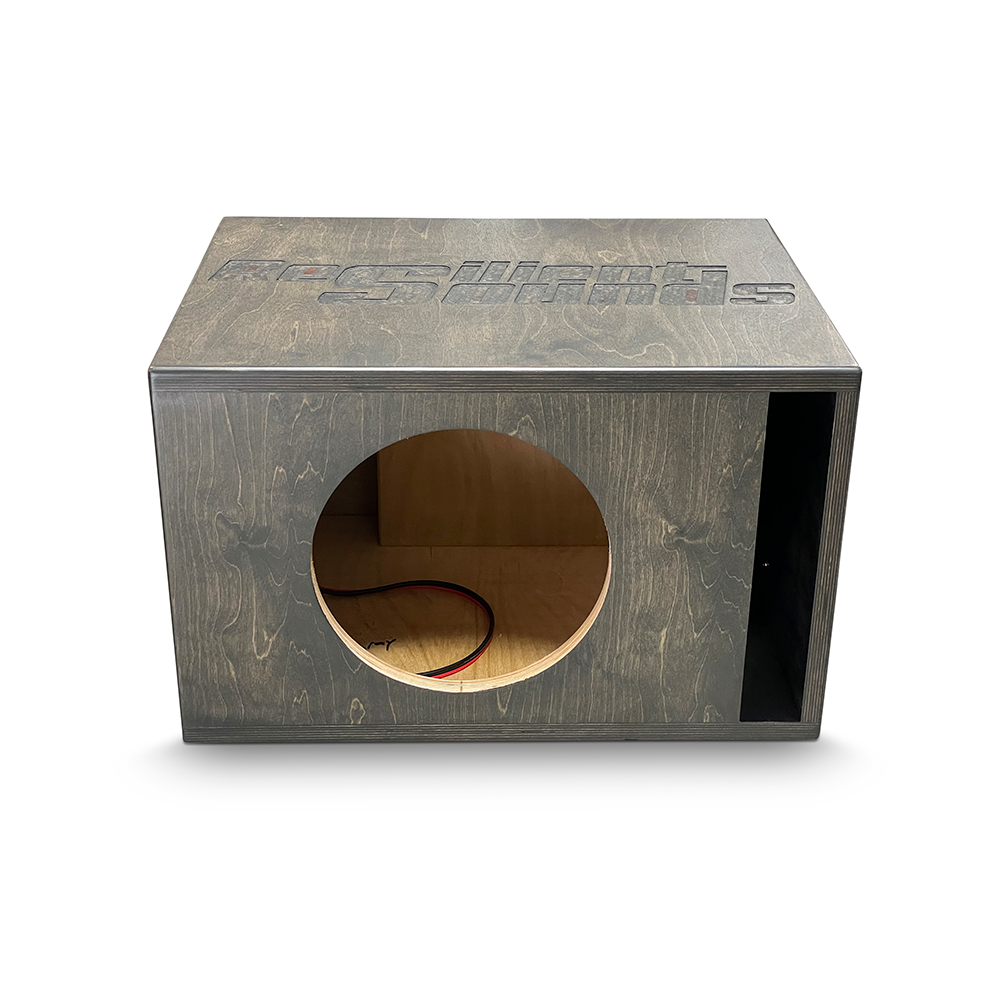

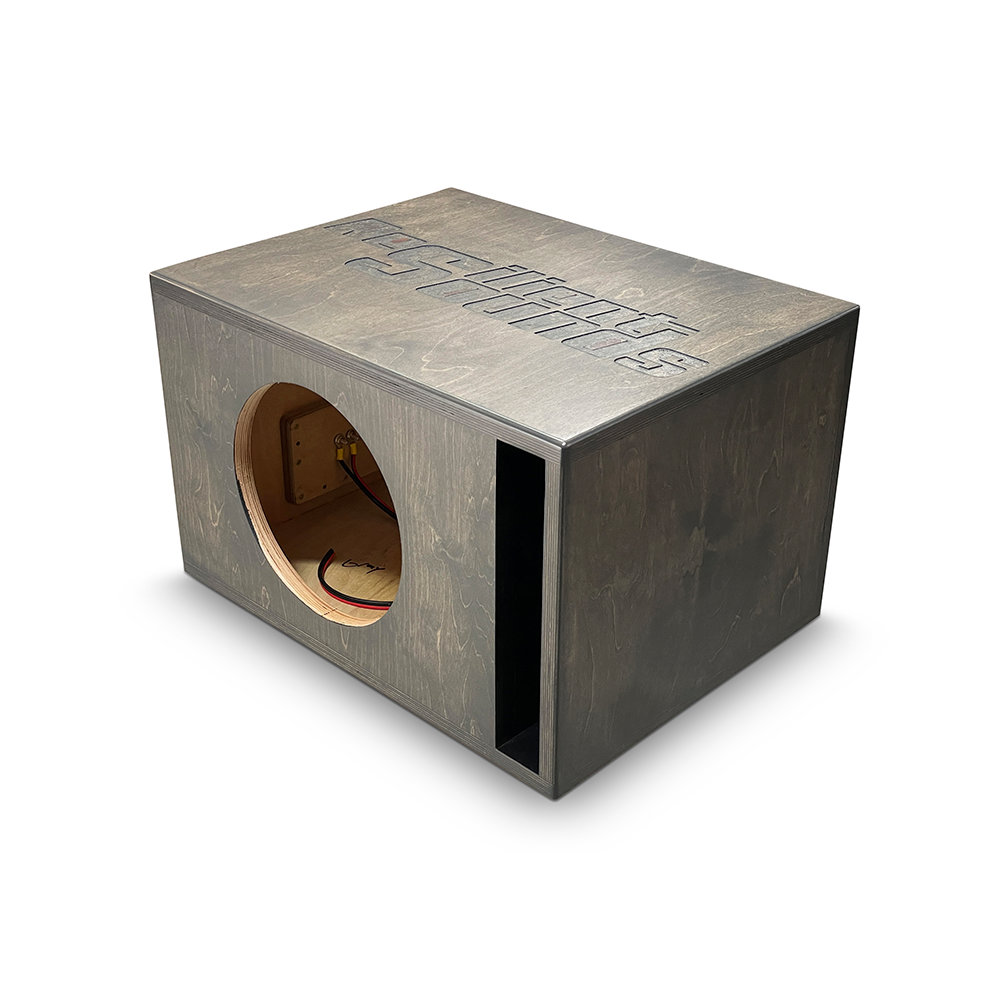

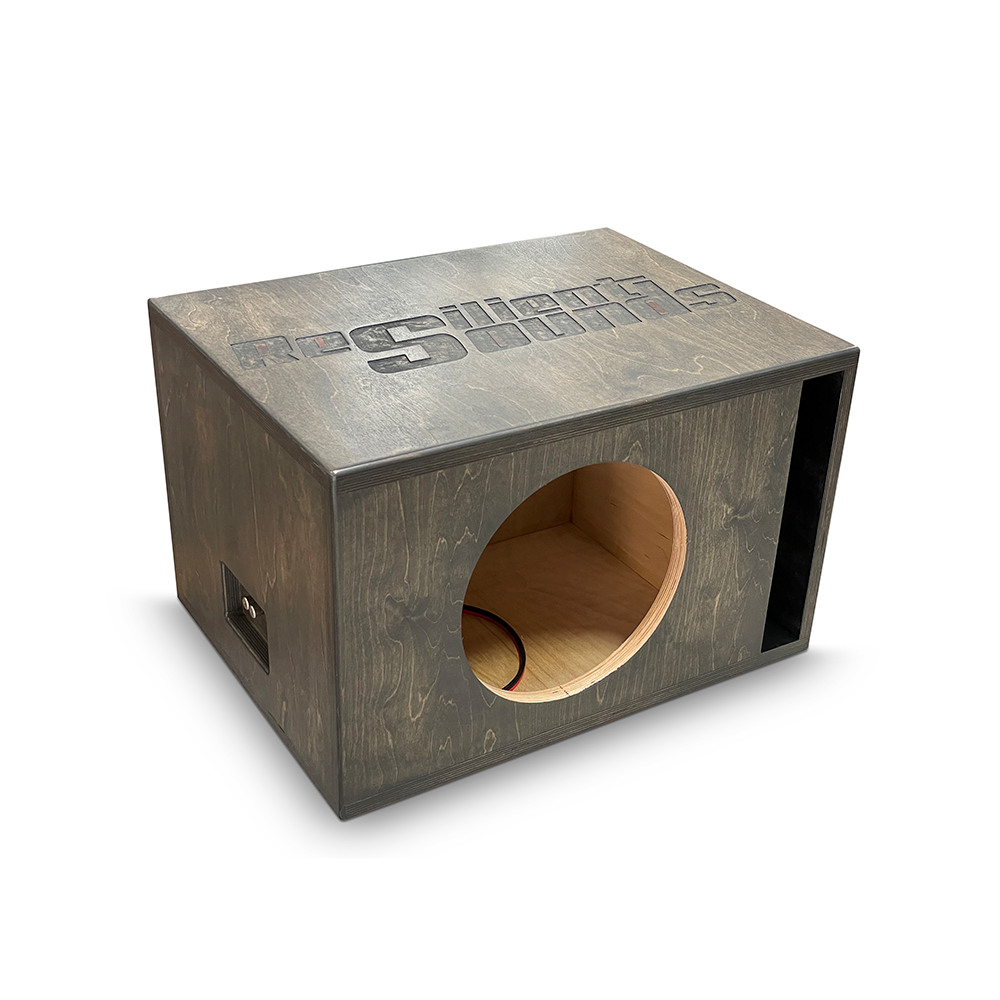

Resilient Sounds Single 10" Platinum v2 Ported Enclosure
Key features
Empty enclosure; drivers and amplifier not included
- Net volume (total): 1.5 ft³
- Compatible woofer size: 10 inches
- Woofer mounting capacity: 1
- Port tuning: 32 Hz
- Port area (total): 21.72 in²
- Finish: Carbon gray stain with polyurethane topcoat
Resilient Sounds Single 10" Platinum v2 Ported Enclosure is backordered and will ship as soon as it is back in stock.
Resilient Sounds Single 10" Platinum v2 Ported Enclosure is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a car audio system around a ported enclosure made specifically for the Resilient Sounds Platinum v2 10-inch subwoofer. This single-subwoofer enclosure provides 1.5 cubic feet of net airspace and is tuned to 32 Hz for deep, controlled bass.
Its carbon gray finish and clean exterior suit a show-focused installation, while the pre-wired connection helps streamline setup.
Key Features & Benefits
- Purpose-built design: Made for the Platinum v2 10-inch subwoofer, with a 9.438-inch cutout.
- Ported bass response: The 32 Hz tuning and 21.72-square-inch port area support airflow and low-frequency output.
- Rigid construction: 17-ply Russian Baltic Birch and a 1-inch front baffle help limit panel flex.

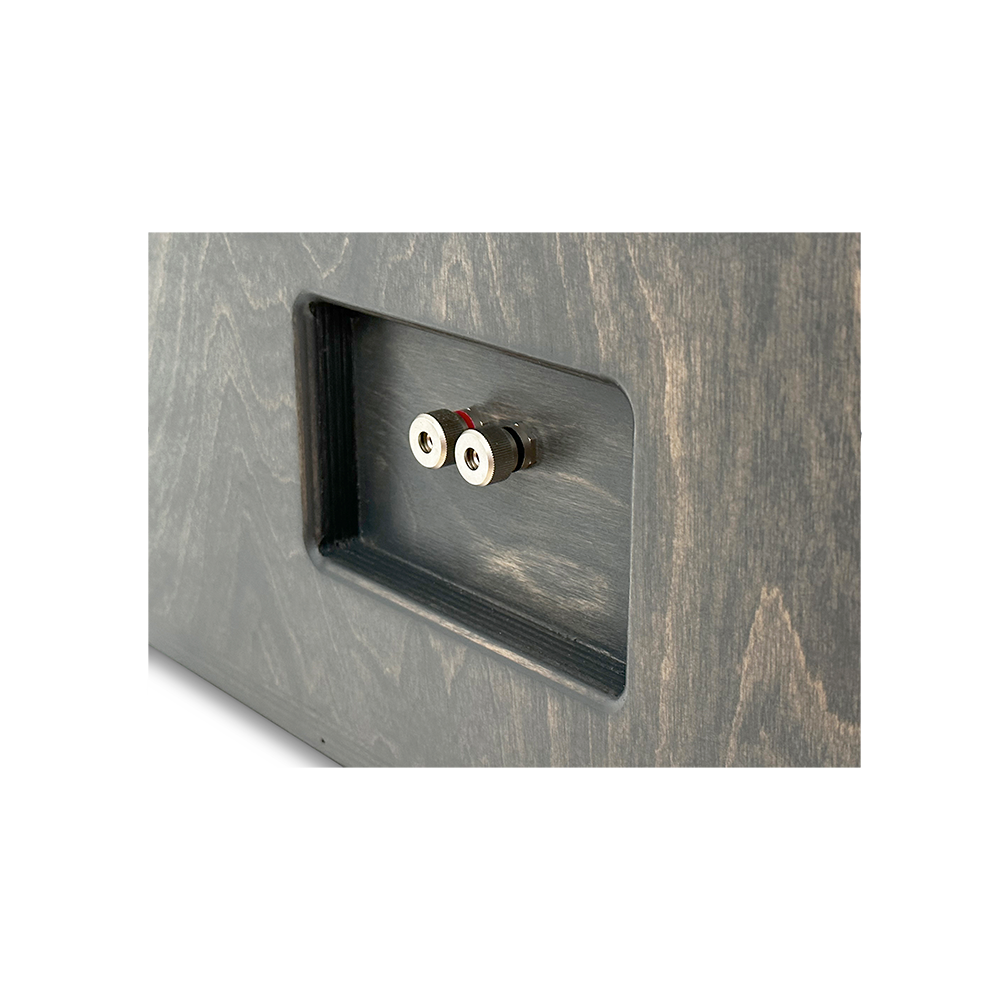

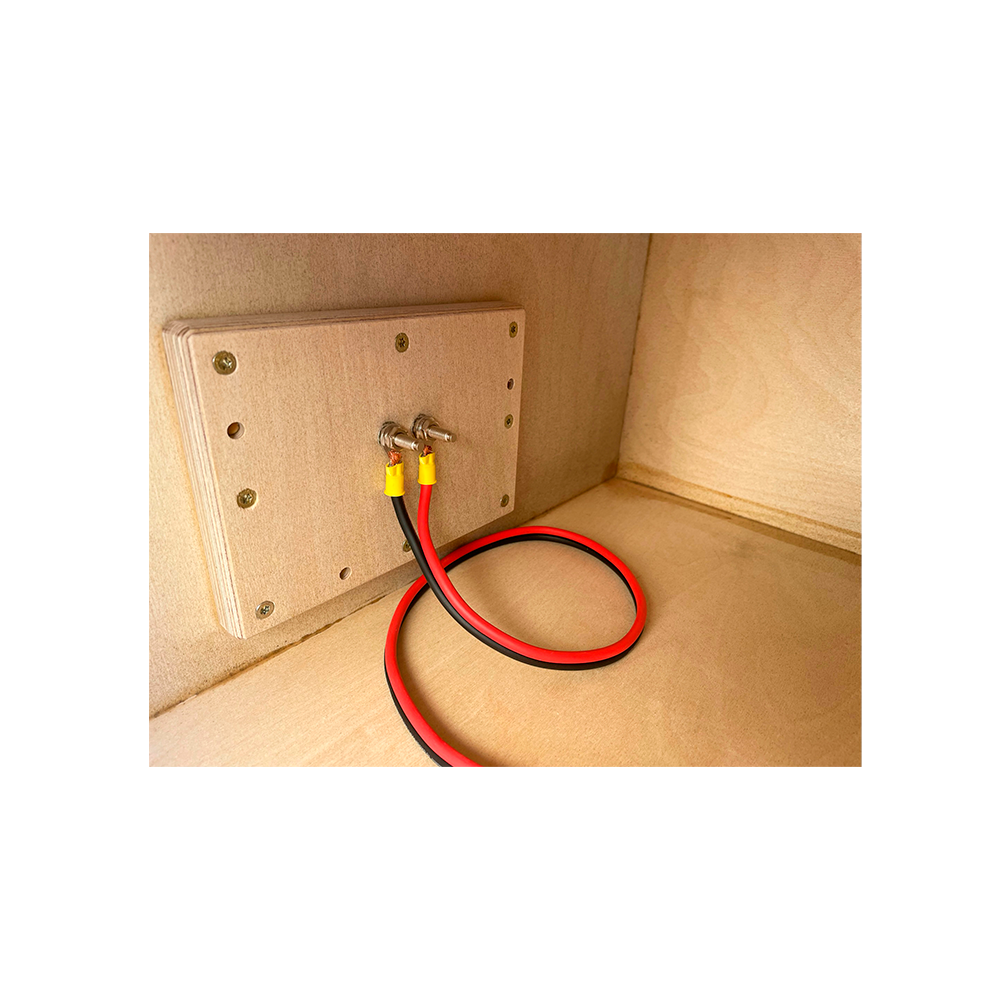

- Ready-to-connect wiring: Pre-wired 10-gauge OFC wiring and a metal binding post simplify the enclosure connection.
- Clean exterior: Carbon gray stain, a polyurethane topcoat, and no visible screw holes create a finished appearance.
Technical Specifications
| Product type | Single 10" ported enclosure |
|---|---|
| Designed for | Platinum v2 10" subwoofer |
| Net volume | 1.5 cubic feet |
| Tuning | 32 Hz |
| Port area | 21.72 sq in |
| Port size | 12.0" x 1.81" |
| Cutout | 9.438" |
| Construction | 1" (24mm) Russian Baltic Birch, 17-ply |
| Front baffle | 1" |
| Finish | Carbon gray stain with polyurethane topcoat |
| Wiring | Pre-wired 10ga OFC with metal binding post |
| Power rating | High power systems |
| Dimensions | Height 14.0", Width 25.25", Depth 16.0" |
| Construction details | Handcrafted in the USA; fully glued with Titebond III; zero visible screw holes |
| Lead time | Built to order; ships in 2-3 weeks |
Why Choose This Product?
This enclosure pairs defined airspace and port dimensions with the Platinum v2 10-inch subwoofer’s intended application. The port is sized to support airflow at the enclosure’s tuning frequency, while the rigid birch construction and glued joints are designed to reduce panel flex, leakage, and resonance.
Its finished exterior keeps the installation looking considered, and the pre-wired connection avoids having to add enclosure wiring during setup.
Installation & Compatibility Notes
This enclosure is designed for the Resilient Sounds Platinum v2 10-inch subwoofer. Check the 9.438-inch cutout against the driver’s mounting requirements, and confirm the enclosure’s external dimensions fit your available vehicle space.
It is described for high-power systems, but no specific power limit or wiring configuration is listed. Match the subwoofer and amplifier requirements when planning your system. The enclosure is built to order, with a stated lead time of 2-3 weeks.
Frequently Asked Questions
Which subwoofer is this enclosure designed for?
It is purpose-built for the Resilient Sounds Platinum v2 10-inch subwoofer.
What are the enclosure’s tuning and net volume?
It has 1.5 cubic feet of net airspace and is tuned to 32 Hz.
What space should I allow for the enclosure?
Its external dimensions are 14.0 inches high, 25.25 inches wide, and 16.0 inches deep. Check your available space before installation.
Does it include wiring?
Yes. It comes pre-wired with 10ga OFC wiring and a metal binding post.
